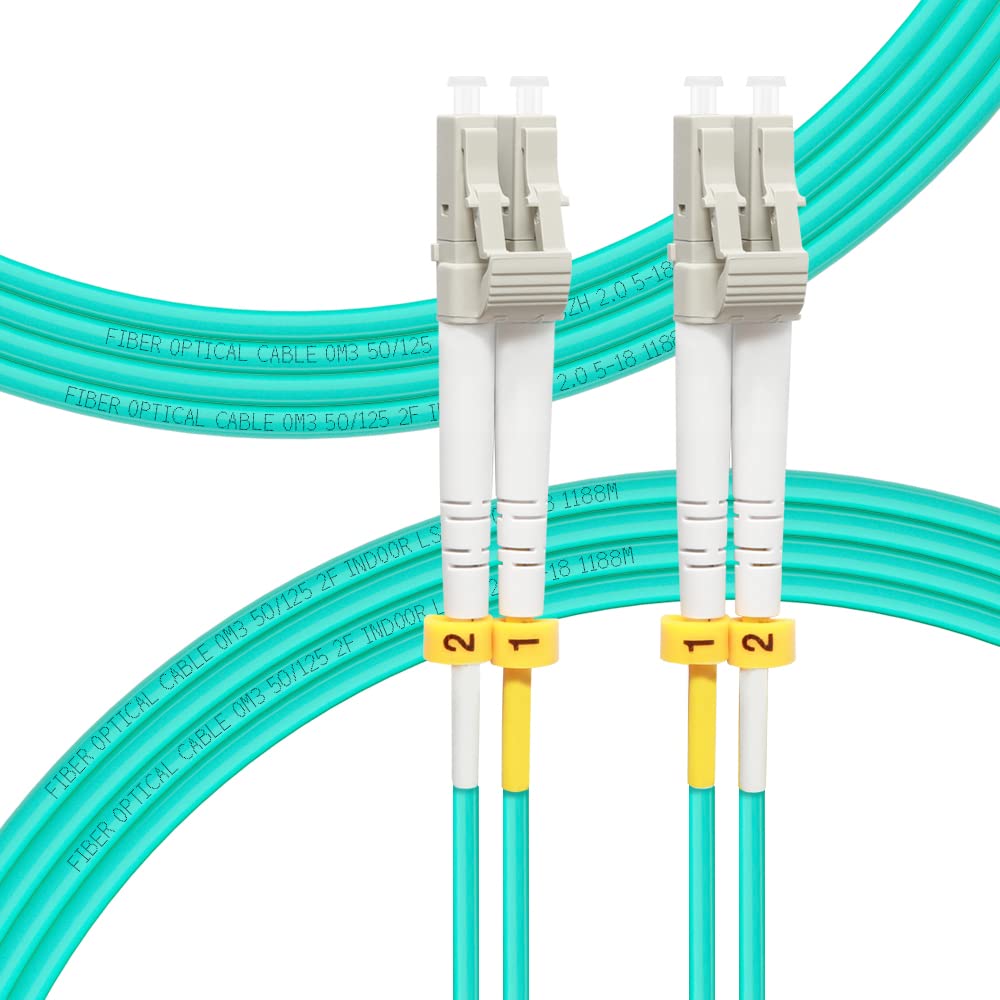

FLYPROFiber OM3 LC-LC Duplex Fiber Patch Cable 3m 4pack

FLYPROFiber OM3 LC-to-LC duplex patch cable, 3 meters (10ft), delivers low-loss multimode fiber performance for 10Gb/40Gb/100Gb networks in a compact, LSZH jacketed 4-pack.

This 4-pack of FLYPROFiber OM3 LC-LC cables is built for modern data centers, server rooms, and high-density network racks that require reliable multimode connections. Each duplex cable uses 50/125µm multimode fiber rated for 10Gb and above with polished UPC connectors and precision zirconia ferrules to keep insertion loss low and return loss high. The LSZH (low-smoke, zero-halogen) jacket reduces toxic emissions in enclosed spaces, while the duplex clip and clear labeling simplify installation and maintenance.

How far can these OM3 LC-LC cables carry 10Gb and higher signals?

The OM3 specification of these cables supports long multimode runs suitable for many campus and data center layouts. Expect 1Gb links up to approximately 550 meters and 10Gb links up to roughly 300 meters at 850nm; higher-speed 40Gb and 100Gb links follow multimode distance guidance and are commonly used in shorter backbone segments.

• 1Gb Ethernet: ~550 meters at 850nm
• 10Gb Ethernet: ~300 meters at 850nm
• 40Gb Ethernet: ~300 meters using parallel multimode setups
• 100Gb Ethernet: commonly used in short-reach multimode connections (~200m typical)

What makes these cables suitable for high-density racks and tight bends?

These cables use 50/125µm multimode fiber engineered to tolerate tighter bends with minimal signal loss. A 7.5mm minimum bend radius lowers the risk of attenuation when routed through dense cable trays or around cabinet hardware, making them practical for SANs and crowded patch fields.

• 7.5mm minimum bend radius for flexible routing
• Low insertion loss (typically ≤0.3dB) for consistent links
• High return loss (≥30dB) to maintain signal integrity
• Durable construction for repeated moves and re‑terminations

How does the connector and jacket design help with installation and troubleshooting?

FLYPROFiber focused on practical installation features: duplex clips and embossed A/B indicators make it quick to identify transmit and receive legs, while the LSZH outer jacket minimizes smoke and corrosive gas should a fire occur. UPC-polished connectors and Japanese zirconia ferrules improve alignment, reducing link failures and easing certification testing.

• Adjustable duplex clips and embossed A/B labeling for fast identification
• UPC polish and precision zirconia ferrules for low loss
• LSZH jacket for safer indoor use and code compliance
• Jacket tag rings labeled 1 & 2 for clear Tx/Rx mapping

Which length and packaging options are available and how are they tested?

These cables are offered in a wide range of lengths—from short patch cords to long backbone runs—to match your network layout. Each cable is factory-tested for insertion loss and continuity so you receive certified performance with every shipment.

• Length options from 0.2m up to 200m to suit patch or backbone needs

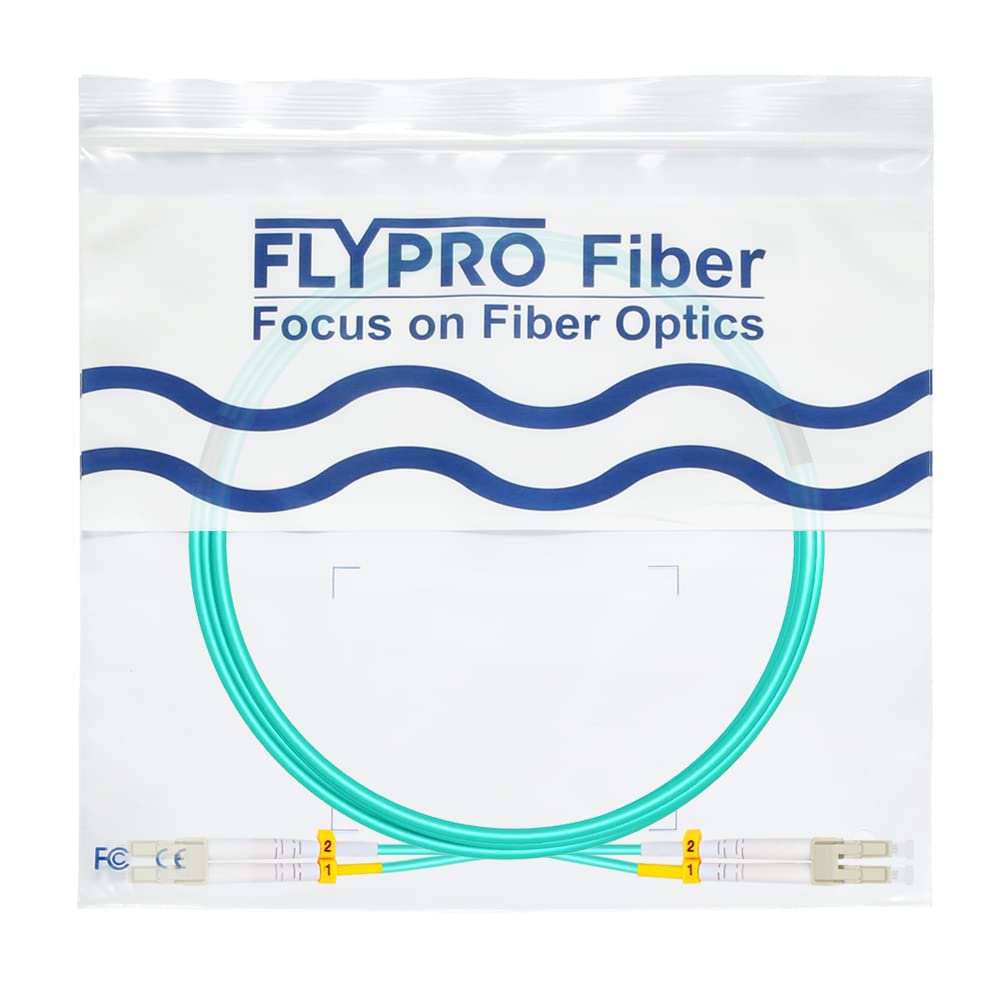

• Available in convenient 3m (10ft) sets; this listing is a 4-pack
• Factory-tested for insertion loss and quality control
• Optimized for SFP+, 10G SR/LRM and other multimode transceivers

Who is this for? Network engineers, system integrators, and IT teams who install and maintain enterprise networks, data centers, or campus backbone links will benefit from these FLYPROFiber OM3 LC-LC cables. They suit environments that demand high bandwidth, low loss, compact routing through dense racks, and compliance with indoor safety standards, while offering easy identification and reliable factory-tested performance.
