FLYPROFiber LC to LC OM3 Multimode Fiber Patch Cable 30M Duplex 50/125µm LSZH, 10Gb/40Gb Ready

FLYPROFiber's 30M OM3 LC-to-LC duplex multimode patch cable is a 50/125 µm LSZH fiber jumper engineered for reliable 10Gb and 40Gb short-range links in data centers and enterprise networks.

Designed for high-density racks, SAN cabinets and campus backbone runs, this 30 meter (98 ft) MMF jumper uses LC connectors with UPC polish and Japan-made zirconia ferrules for precise alignment and low loss. The cable's OM3 multimode core supports common SFP+, SR and QSFP+ modules, while its LSZH jacket and bend-insensitive fiber make installation safer and easier in confined or populated spaces.

How does this cable perform in 10Gb/40Gb networks?

The OM3 multimode construction is optimized for short-reach, high-bandwidth links. It provides defined reach for gigabit and 10/40 gigabit Ethernet using standard 850 nm transceivers and maintains low insertion and high return loss to protect signal integrity.

• 10Gb Ethernet: up to 300 meters at 850 nm.
• 1Gb Ethernet: up to 550 meters at 850 nm.
• 40Gb Ethernet: supports up to 300 meters with compatible QSFP+ SR modules.
• Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB for stable links.

What installation advantages does the FLYPROFiber cable offer?

This jumper is built for tight spaces and frequent handling: the 50/125 µm bend-insensitive fiber tolerates small radii without significant loss, while the LSZH jacket reduces smoke and toxic gases in the event of fire—useful in telecom rooms and populated facilities.

• 2.0 mm jacket diameter for manageable routing in trays and conduits.
• 7.5 mm minimum bend radius to resist macro-bending loss in tight bends.
• Removable dust caps and adjustable connector clips protect connectors during deployment.

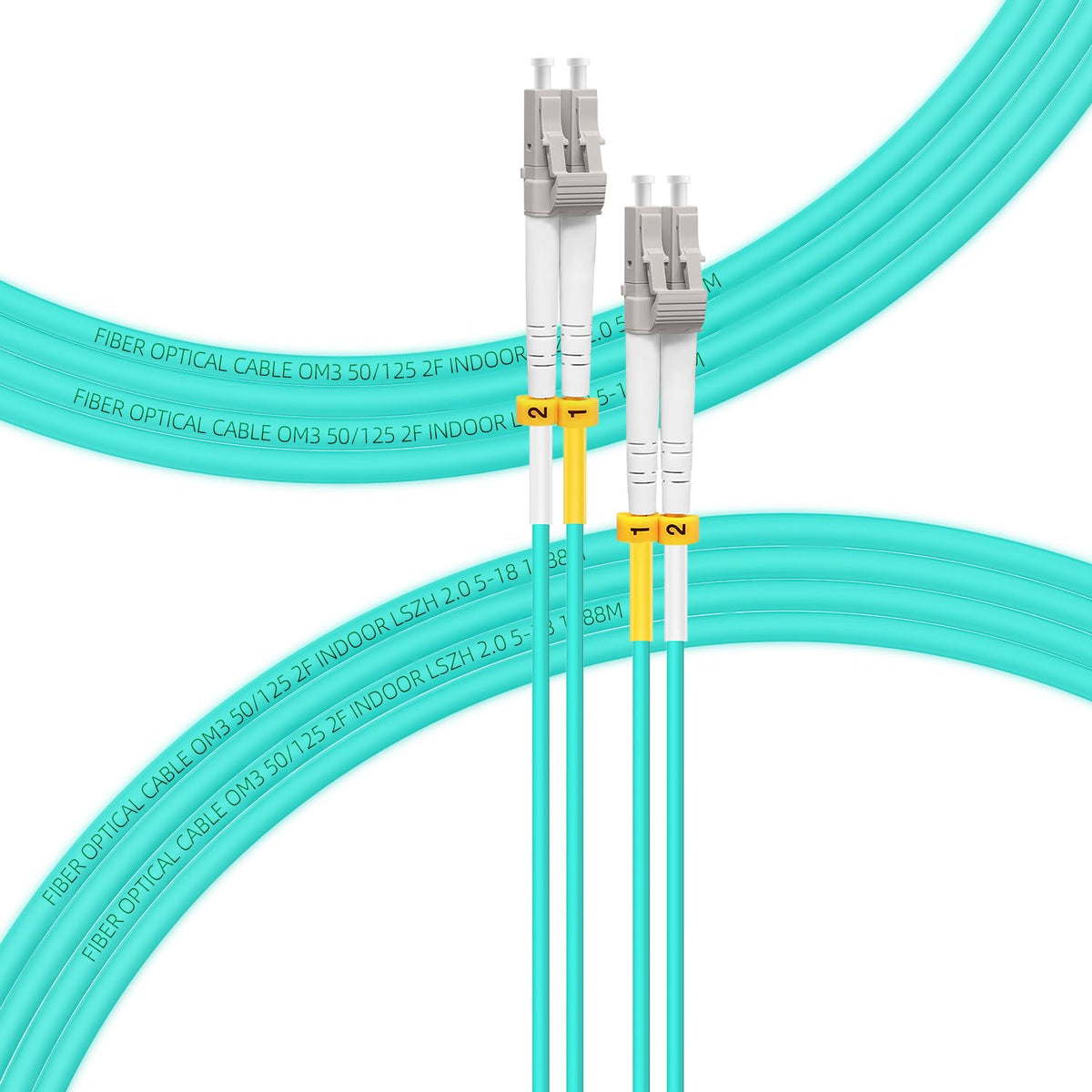

• Embossed A/B duplex clip and jacket tags labeled 1 & 7 for fast Tx/Rx identification.

Which connectors and materials are used for reliability?

FLYPROFiber fits enterprise expectations with LC duplex connectors polished to UPC standards and ceramic ferrules made in Japan to ensure repeatable mating and low back-reflection. Those mechanical choices help preserve performance across repeated insertions and in high-density panels.

• Duplex LC to LC connector configuration for compact port density.
• UPC polish and precision zirconia ferrules for accurate core alignment.
• Compatible with SFP+, SR, LRM transceivers and optical NICs.

Who is this for? Network engineers, data center technicians and IT teams specifying short-range multimode links will find this 30 m OM3 LC-LC cable useful when deploying 10Gb/40Gb server uplinks, SAN connections or switch-to-switch runs. It’s appropriate for high-density cabinets, campus fiber closets and any environment that requires reliable multimode performance with safer LSZH materials and bend-resistant routing.
