FLYPROFiber LC to LC OM3 Fiber Patch Cable 2M 6-Pack

FLYPROFiber 2M LC to LC OM3 multimode fiber patch cable (6-pack) is a duplex 50/125µm LSZH jumper built for 10Gb/40Gb high-density networking with low loss and bend-insensitive performance.

These pre-terminated OM3 LC–LC patch cords come as six identical 2 meter (approximately 7 ft) duplex jumpers, designed for data centers, server rooms, and enterprise network racks where reliable short-range multimode performance and neat cable management matter. They pair UPC-polished LC connectors with 50/125µm multimode fiber and a low-smoke zero-halogen outer jacket to meet safety and performance expectations in commercial installations.

How does this cable support 10Gb and 40Gb connections?

The OM3 multimode specification and high-quality UPC-polished ferrules enable multimode transceivers to reach their designed distances while keeping insertion loss low. These cables are built to work with 10G SR, 10G LRM, SFP+, and 40G SR optics in short-reach applications.

• Designed for 10Gb/s up to 300 meters at 850 nm and 1Gb/s to 550 meters at 850 nm
• Compatible with 10G SR, 10G LRM, SFP+, and 40G SR transceivers
• Duplex LC–LC connectors for immediate Tx/Rx pairing
• UPC polish and zirconia ferrules for precise optical alignment

What makes these cables durable and safe for installation?

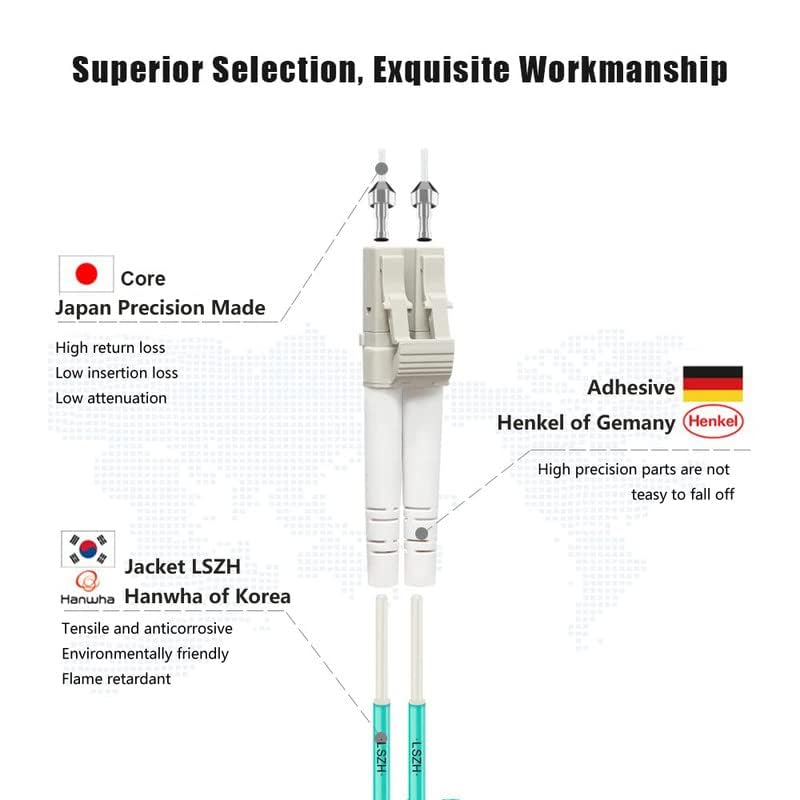

FLYPROFiber uses a 2.0 mm LSZH jacket that resists environmental stress while limiting smoke and toxic gases in case of a fire. The fiber itself is bend-insensitive with a small minimum bend radius, helping preserve signal under tight routing conditions inside cabinets and trays.

• Low Smoke Zero Halogen (LSZH) jacket for safer indoor use
• Operating temperature range from −20°C to 70°C for typical environments
• Bend-insensitive design with 7.5 mm minimum bend radius to prevent macro-bending loss
• Flexible 2.0 mm construction for dense cable routing and clean management

How easy is installation and troubleshooting with these jumpers?

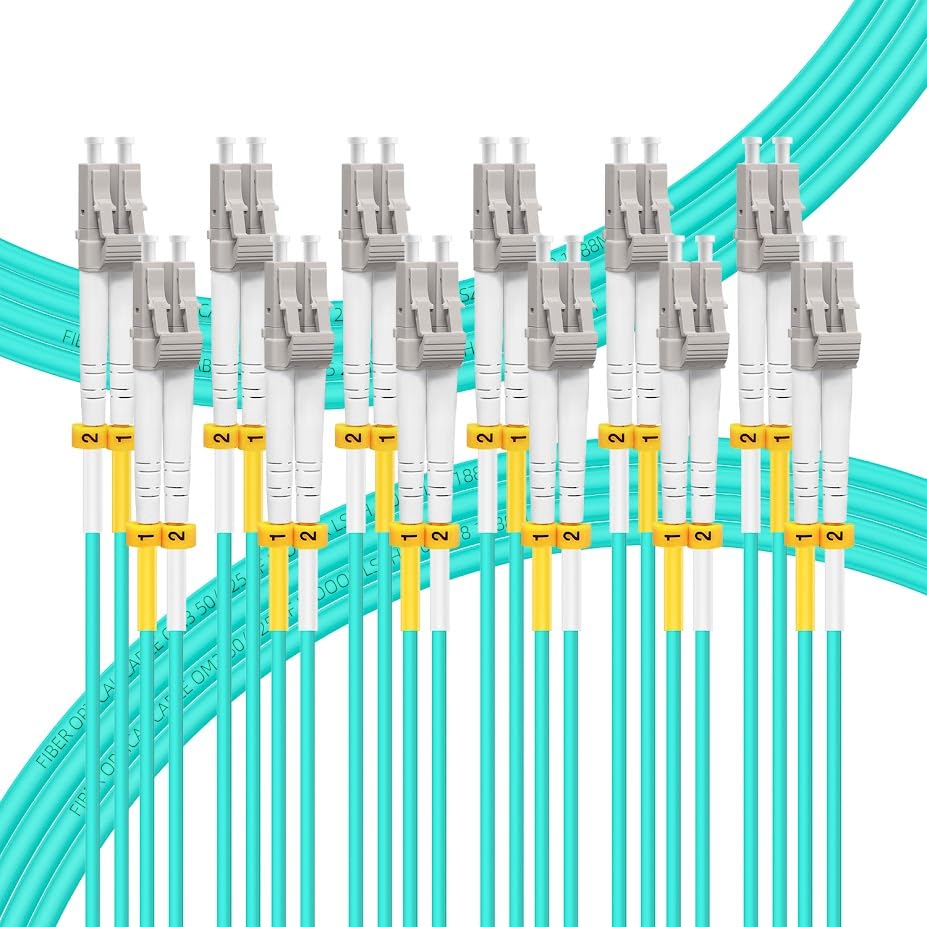

These patch cords include practical features to speed installation and reduce errors. Removable dust caps protect the connectors before use, and embossed duplex clips and jacket tags clearly identify the two fiber positions to simplify Tx/Rx alignment and troubleshooting.

• Adjustable duplex connector clips and removable dust caps included
• Embossed A/B positions on duplex clip for quick Tx/Rx mapping
• Jacket tag rings labeled 1 & 2 for rapid port identification
• Low insertion loss ≤ 0.3 dB and return loss ≥ 30 dB for stable links

What technical specs should I verify before buying?

Confirm that your transceivers and installed backbone are multimode OM3 and accept LC duplex connectors. Double-check distance requirements and whether LSZH jacket compliance is required by your building codes or safety guidelines.

• Fiber type: OM3 multimode, 50/125 µm core/cladding
• Connector: LC to LC duplex, UPC polish, zirconia ceramic ferrules
• Cable length: 2 meters (≈7 ft), sold in a 6-pack
• Electrical: passive optical jumper, not for electrical conduction

Who is this for: Network engineers, data center technicians, and IT teams who need reliable short-range multimode links with neat cable management will benefit most. Choose this 6-pack if you’re standardizing LC duplex connections across racks, replacing worn jumpers, or provisioning multiple adjacent ports where consistent low loss, bend tolerance, and LSZH safety are required.
