FLYPROFiber LC-LC OM3 Fiber Patch Cable 10m (2-pack) — Duplex 50/125µm LSZH, 10Gb Short-Range

FLYPROFiber LC to LC OM3 multimode duplex patch cable — 10 meters, 50/125µm, LSZH jacket, sold as a 2-pack designed for reliable 10Gb and higher short-range connections.

Built for data centers, enterprise networks, and high-density patching, this FLYPROFiber OM3 LC-LC cable supports 10Gb and multi‑gigabit links with low insertion loss and consistent transmission. The duplex 50/125µm multimode fiber and UPC-polished zirconia ferrules give repeatable alignment and performance for short-reach Ethernet and fiber channel applications. The cable ships as two matched LC-LC patch cords with clear A/B labeling and a low-smoke, zero-halogen jacket for safer routing in enclosed spaces.

How fast and how far can this OM3 LC-LC patch cable carry signals?

This OM3 multimode cable is optimized for short-range multimode links. It supports 1Gb ethernet up to about 550 meters at 850nm and 10Gb ethernet up to roughly 300 meters at 850nm, with defined ranges for 40Gb and 100Gb applications depending on transceiver and network design.

• 1Gb: up to ~550 meters at 850nm
• 10Gb: up to ~300 meters at 850nm
• 40Gb: supports typical short-range modules up to ~300 meters
• 100Gb: usable for short-reach links, around ~200 meters at 850nm
• Modal bandwidth: 2000 MHz·km at 850nm for OM3 grade

What makes the cable durable and easy to install in dense racks?

The cord uses a 50/125µm fiber with a 7.5mm minimum bend radius and a flexible yet robust LSZH jacket. These characteristics reduce microbending loss in tight routing and keep insertion loss low, while the duplex clip and embossed jacket labeling simplify identification during installation and troubleshooting.

• 7.5mm minimum bend radius for tight cabinet routing
• LSZH jacket minimizes smoke and toxic emissions in enclosed spaces

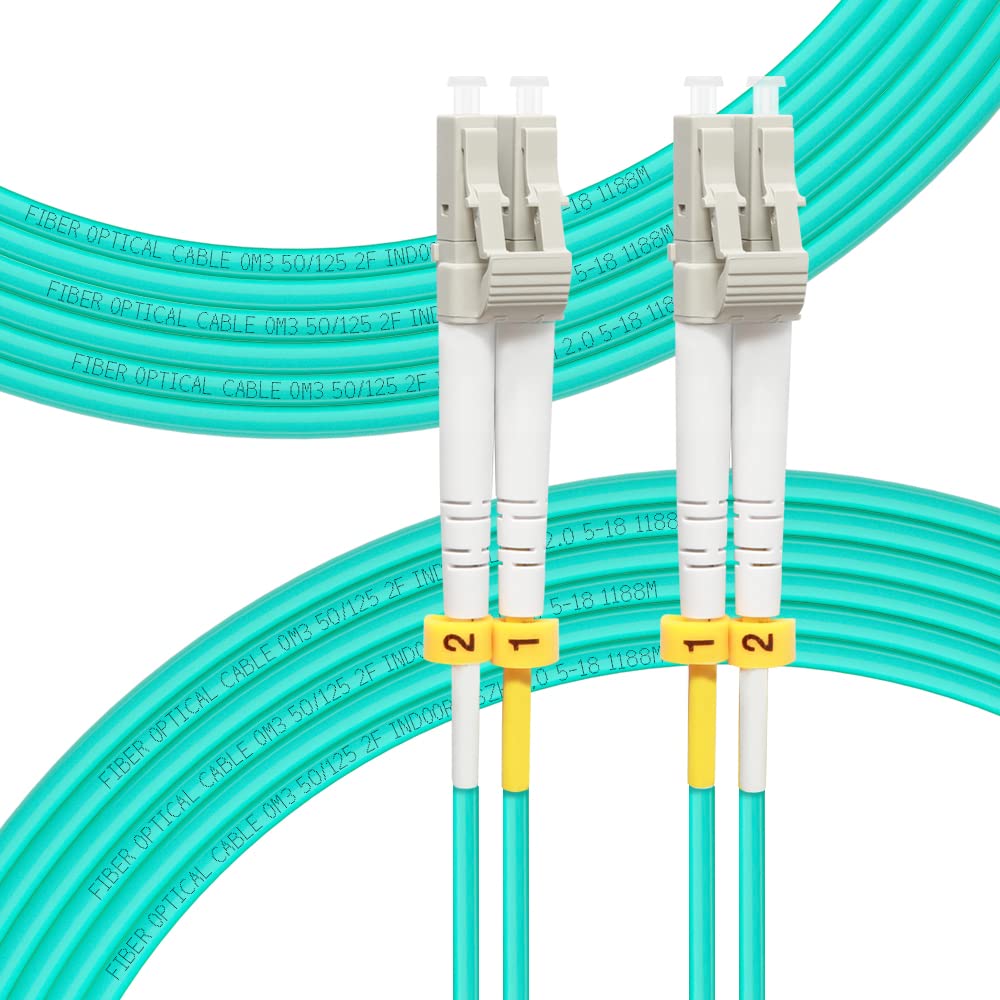

• Embossed A/B duplex clips and jacket tags labeled 1 & 2 for quick Tx/Rx mapping
• Adjustable connector clips for individual fiber access in crowded panels

How do the connectors and construction protect signal integrity?

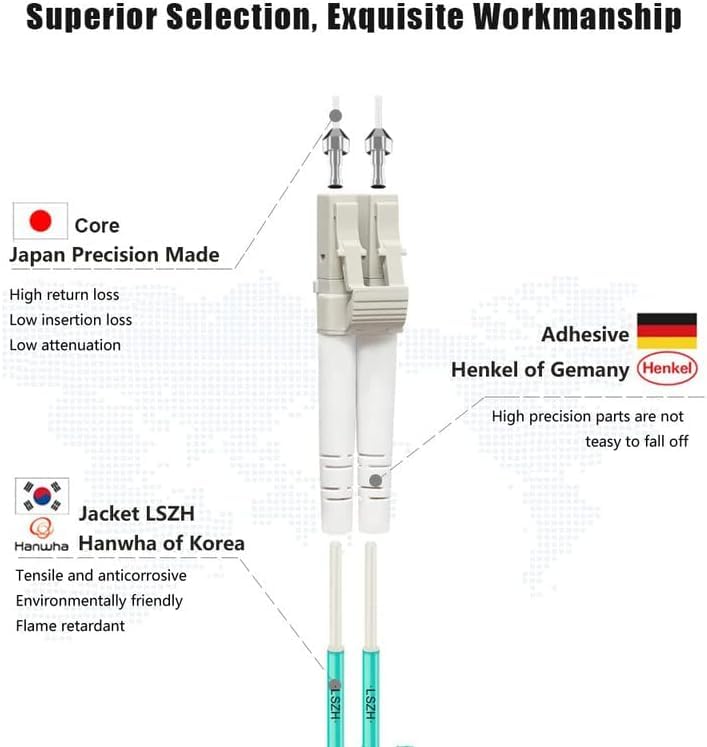

Each LC connector uses UPC polish and precision zirconia ceramic ferrules—manufactured in Japan—to ensure accurate fiber alignment and low back reflection. Factory testing confirms insertion loss and return loss meet expected tolerances so links remain stable once deployed.

• UPC polish for low reflectance and reliable mating
• Japan-made zirconia ferrules for precise core alignment
• Factory-tested insertion loss ≤0.3dB and return loss ≥30dB
• Matched pair packaging (2-pack) for consistent duplex performance

Which lengths are available and how does that affect installation?

FLYPROFiber offers this LC-LC OM3 patch cable in a wide range of lengths from 0.2m to 200m so you can pick the right length to avoid slack loops or excess tension. Choosing an appropriate length reduces clutter and improves airflow in racks while preserving optical performance.

• Length options span 0.2m through 200m to fit patch panels and long runs
• 10 meters (33ft) is ideal for many cabinet-to-switch connections
• Shorter lengths minimize excess coiling and insertion loss risk
• Longer options suit longer premise or campus links (observe OM3 distance limits)

Who is this for: Network engineers, data center technicians, and IT professionals who need dependable, lab-tested OM3 duplex patch cords for 10Gb and higher short-range connections. Choose this FLYPROFiber 2-pack when you require clear A/B identification, tight-bend routing capability, and a low-smoke, zero-halogen jacket for safe, high-density installations.
