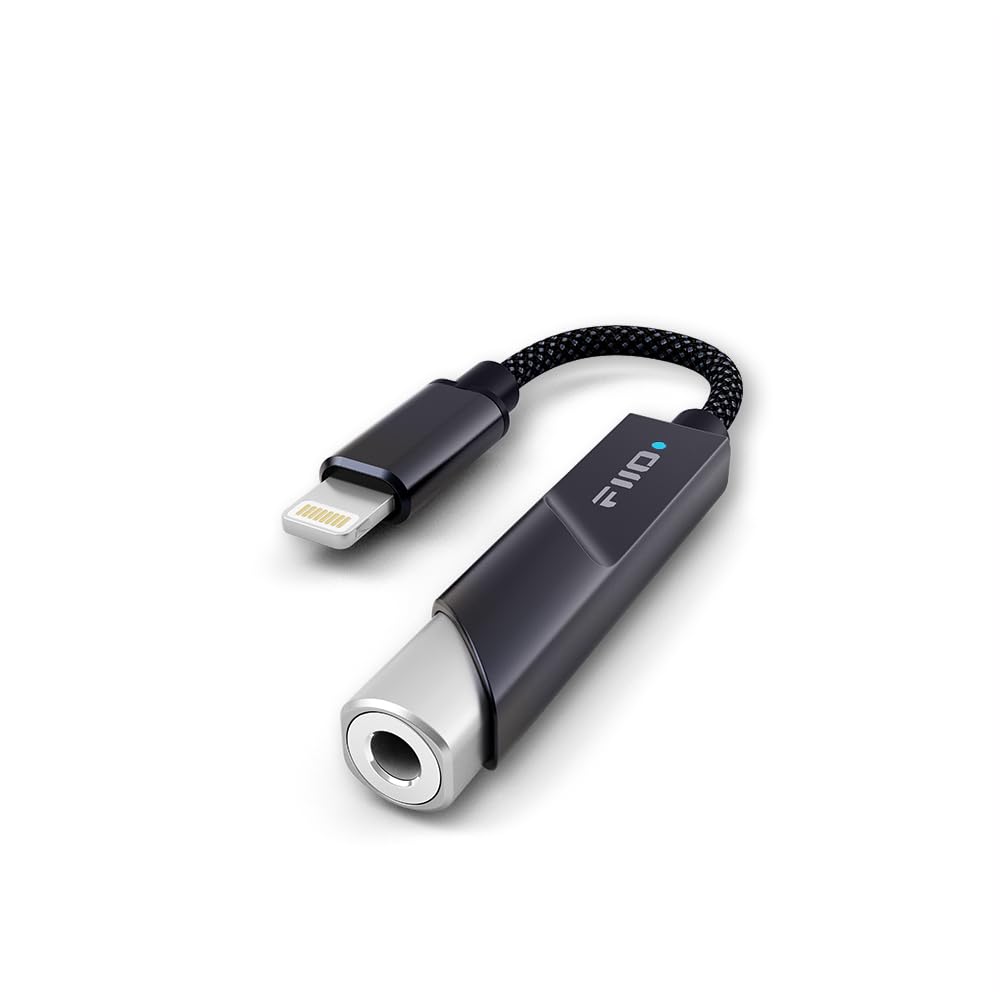

FiiO KA11 Lightning to 3.5mm Hi‑Res DAC Adapter

The FiiO KA11 is a compact Lightning-to-3.5mm USB DAC dongle that delivers high-resolution, low-distortion audio for phones, tablets, and computers.

If you want better headphone sound than your device’s built-in codec provides, the KA11 is a pocket-sized solution that converts a Lightning/USB connection into a 3.5mm analog output using a dedicated Hi‑Res DAC. It combines a CS43131 DAC, an op‑amp stage and careful circuit design to lift detail, dynamics and signal-to-noise compared with typical smartphone headphone outputs.

How does the KA11 improve headphone sound on mobile devices?

The KA11 bypasses a phone or tablet’s internal audio processing and uses its own high-performance DAC and amplifier to decode up to 32bit/384kHz audio. The result is lower noise, cleaner transients and clearer instrument separation, especially with high-quality files or sensitive IEMs.

• CS43131 DAC + op-amp for precise decoding and better tonal balance
• Supports up to 32bit/384kHz sampling for high-res sources
• Measured SNR ~125dB and THD+N <0.0006% for low distortion
• Noise floor below 1.7µV for quieter backgrounds

Will it drive my headphones and earphones well?

Despite its tiny footprint (about 44 × 9.7 × 10.5 mm), the KA11 offers substantial output power and can drive most portable headphones. It supplies up to ~245mW into 16Ω and ~200mW into 32Ω, giving it the headroom to handle both sensitive IEMs and many over-ear models.

• 245mW@16Ω and 200mW@32Ω for robust playback levels
• Compact 8.5g body for pocketable use with minimal bulk
• Low distortion and high SNR maintain clarity at higher volumes
• Works well with earphones, IEMs and many portable headphones

Which devices are compatible and how do I use it?

The KA11 is designed for wide compatibility: its Lightning connector model plugs into iOS devices with a Lightning port, and it also supports Windows, Mac and select consoles when used in the appropriate mode. For certain features, the FIIO Control app lets you change modes such as UAC1.0 for game consoles and other hosts.

• Lightning connector for iPhone/iPad models with Lightning ports
• Plug-and-play with many computers and some consoles (mode switching may be needed)
• FIIO Control app can toggle UAC1.0 mode for Switch/PS5 low‑latency use
• No extra battery required — powered from the host device

What construction and component choices matter for sound quality?

FiiO built the KA11 using high-standard components and a multi-layer immersion-gold circuit board to minimize signal loss and interference. Those hardware choices, together with careful analog stage design, contribute to the adapter’s low noise and faithful detail retrieval.

• Multi-layer immersion-gold PCB for stable signal routing
• High-quality passive components to preserve dynamics
• Compact chassis that balances portability with thermal stability
• Measured performance figures indicate precise reproduction

Who is this for? The FiiO KA11 is aimed at listeners who want a clear and compact upgrade from built-in headphone outputs — audiophiles using Lightning phones or tablets, content creators needing cleaner audio monitoring on the go, and gamers who want improved sound and lower latency on supported consoles. If you carry a Lightning-device and value transparent, high-resolution playback without a bulky DAC/Amp, the KA11 is a practical, pocketable choice.
