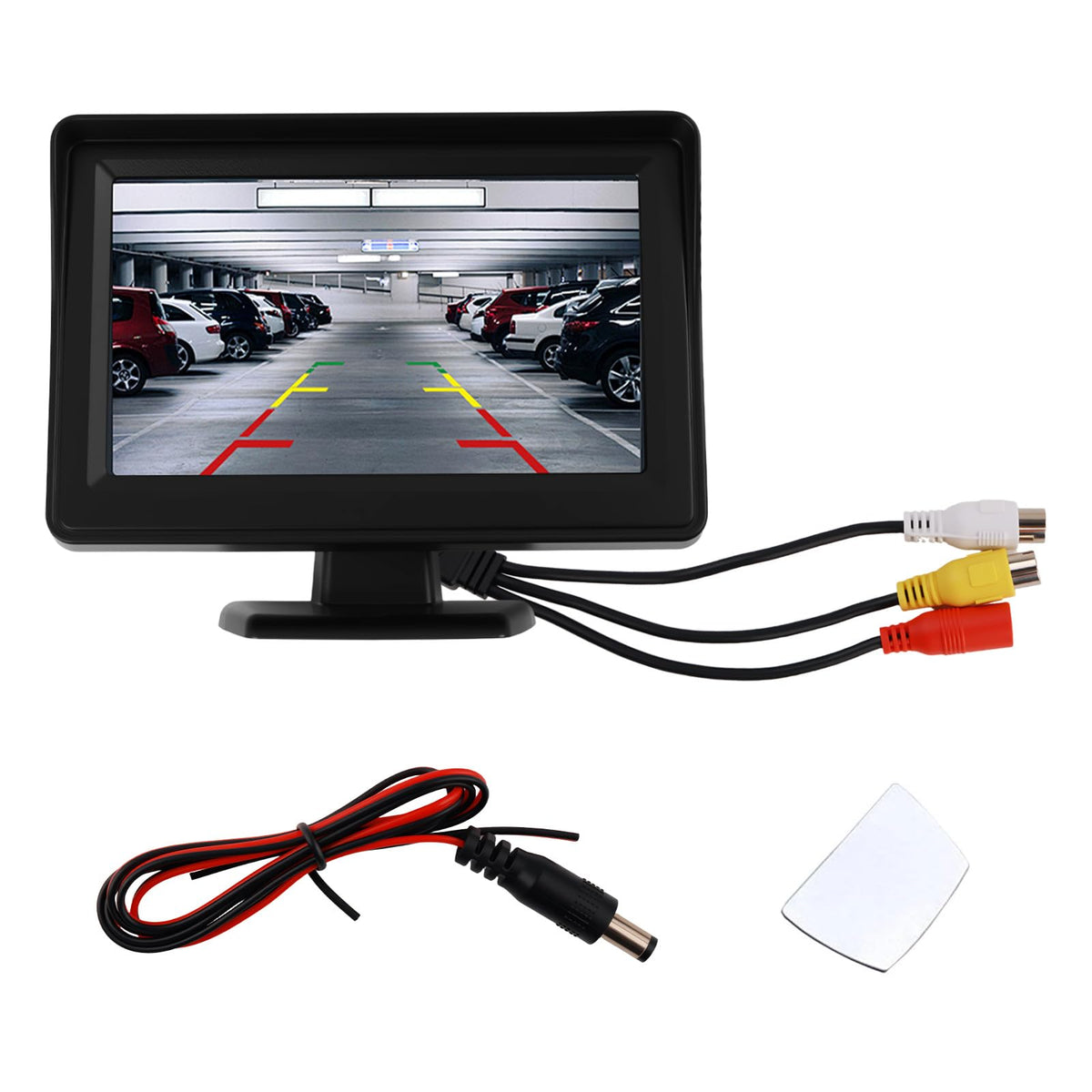

Figpade 4.3" LCD Backup Camera Monitor

This lightweight monitor connects to a vehicle's reversing camera and power supply to give drivers a clear, live view behind the car. Designed for 12V/24V passenger vehicles and SUVs (not for large trucks), the screen includes a sun visor, cooling vents, and an adhesive base for easy mounting. With a 480×272 resolution and 160° tilt range, the Figpade monitor provides a practical upgrade to factory displays or an economical stand-alone reversing aid.

How does this monitor improve everyday reversing?

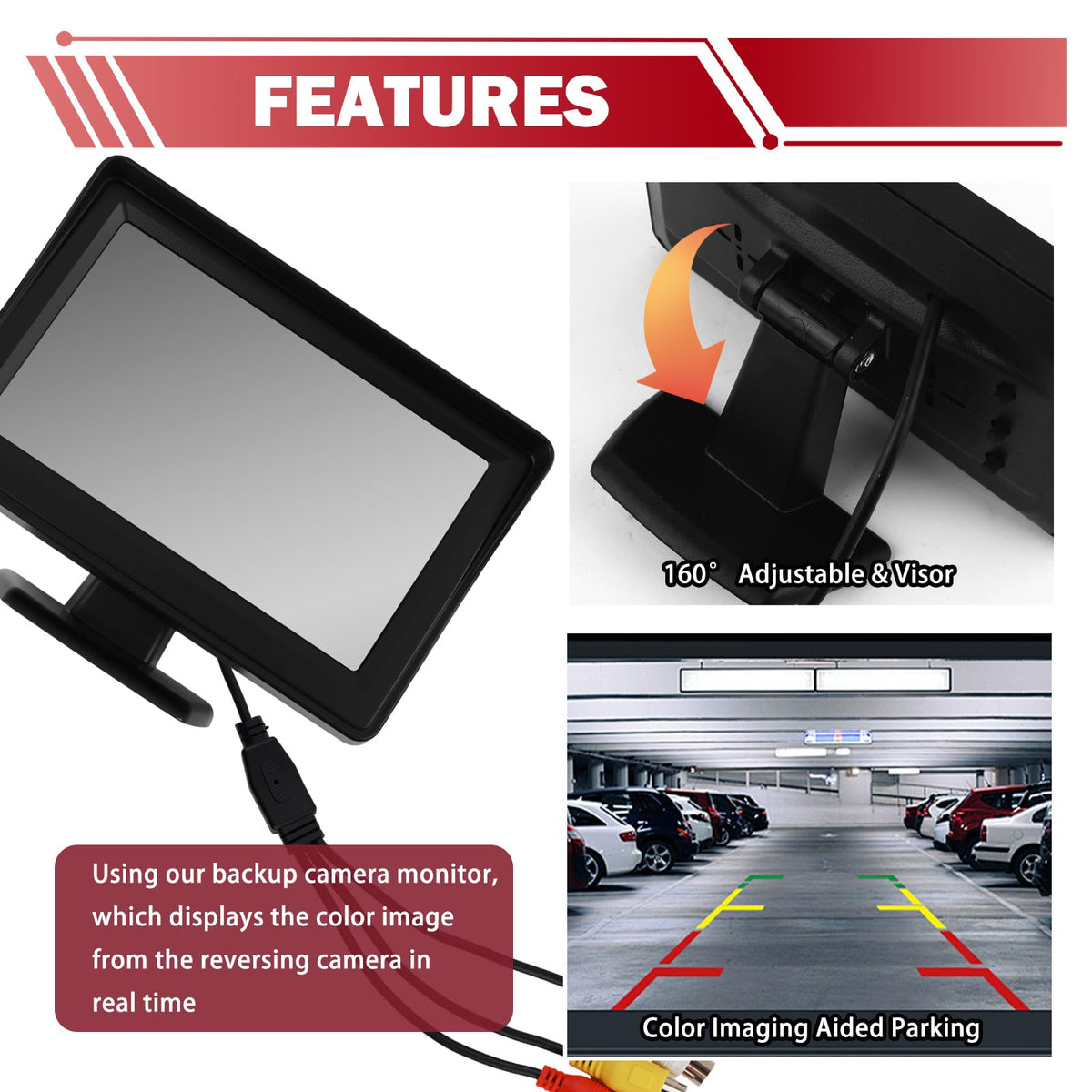

The monitor displays live color video from a compatible reversing camera and overlays auxiliary parking lines to indicate vehicle trajectory. Automatic switching activates the AV2 input when the car is put into reverse, so the driver doesn’t need to toggle inputs manually. Cooling vents help keep the unit stable during prolonged use.

• Real-time color feed (requires a color-capable reversing camera)
• Automatic AV2 switching when reversing
• Guideline overlay to assist alignment while parking
• Back vents to reduce overheating and prolong lifespan

What are the physical size and installation details?

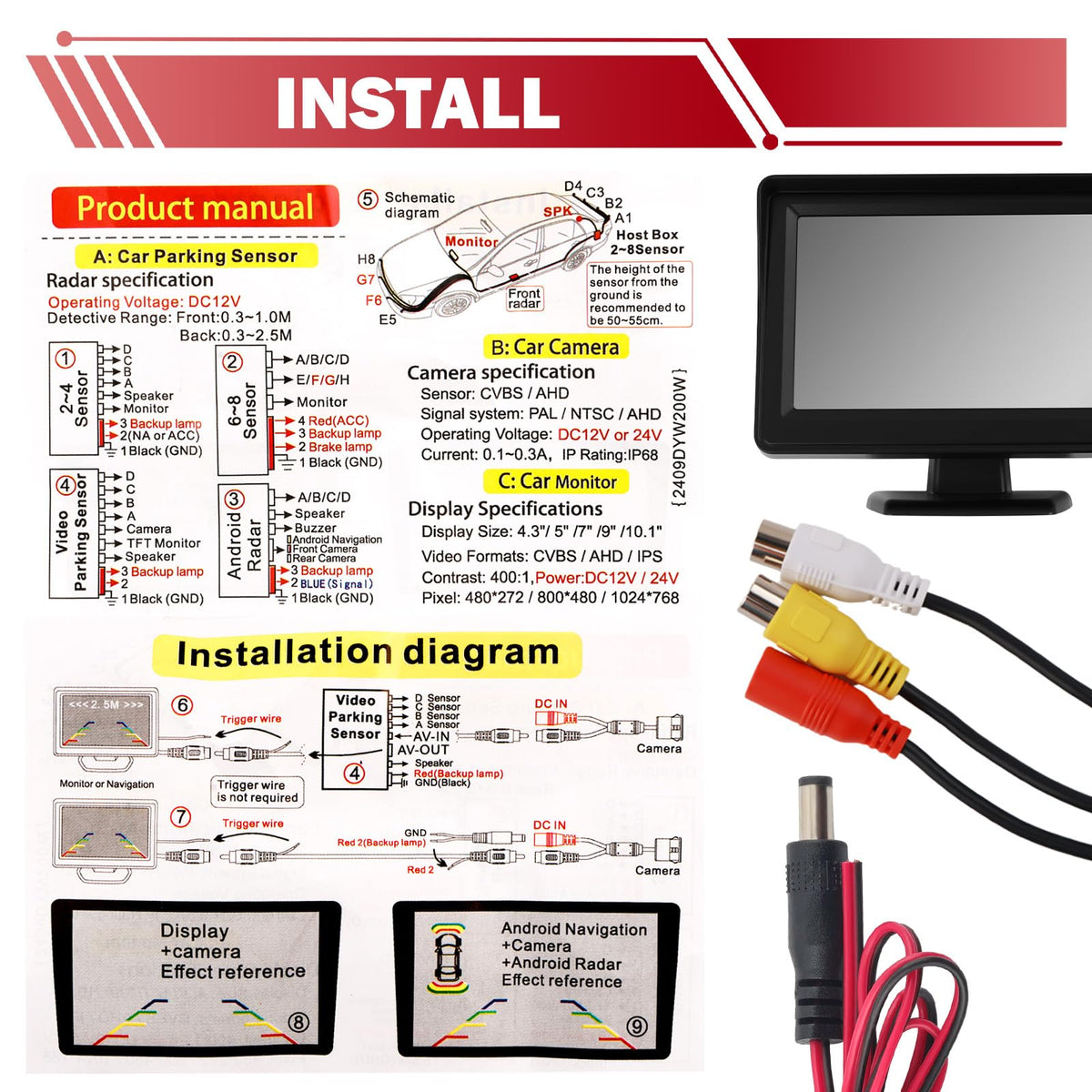

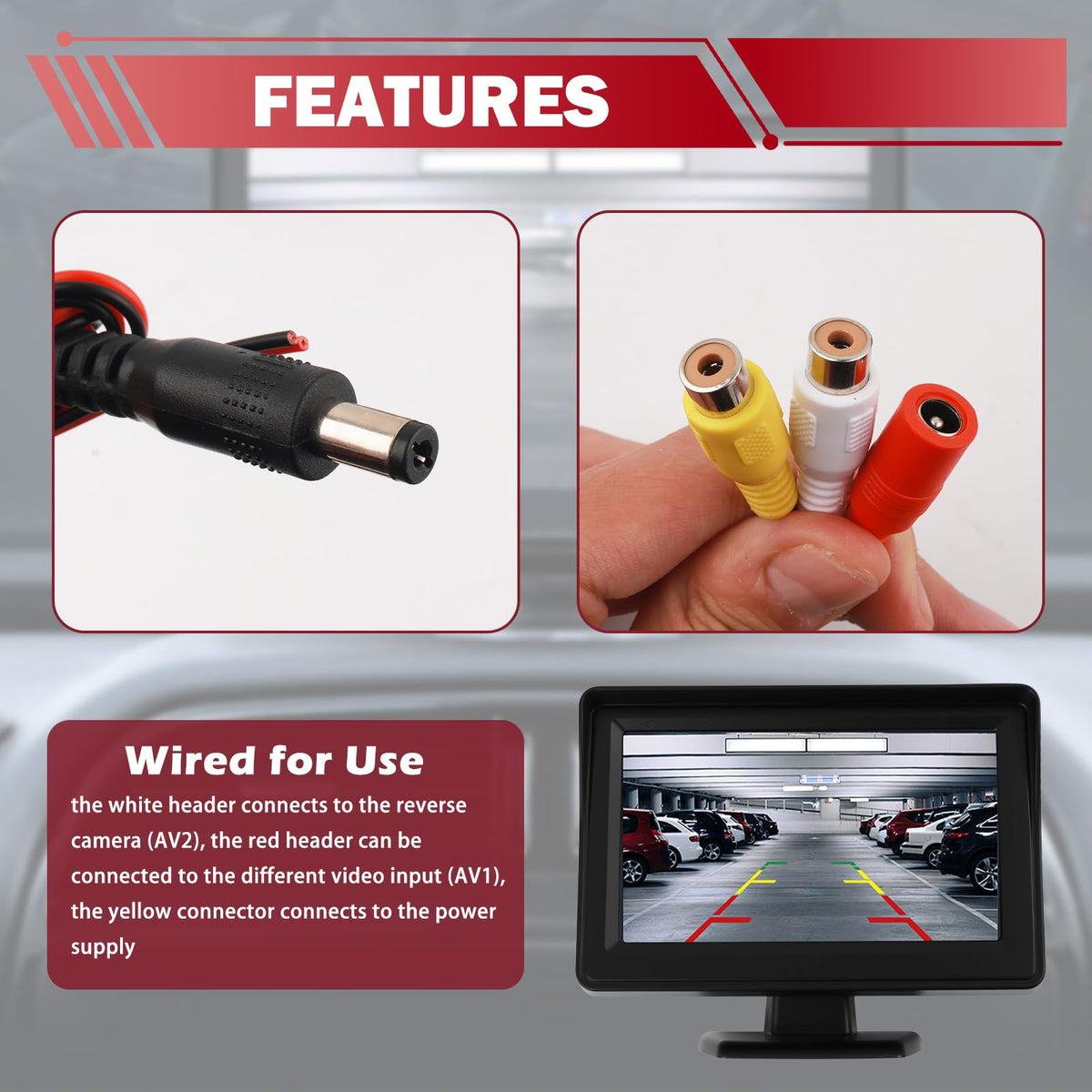

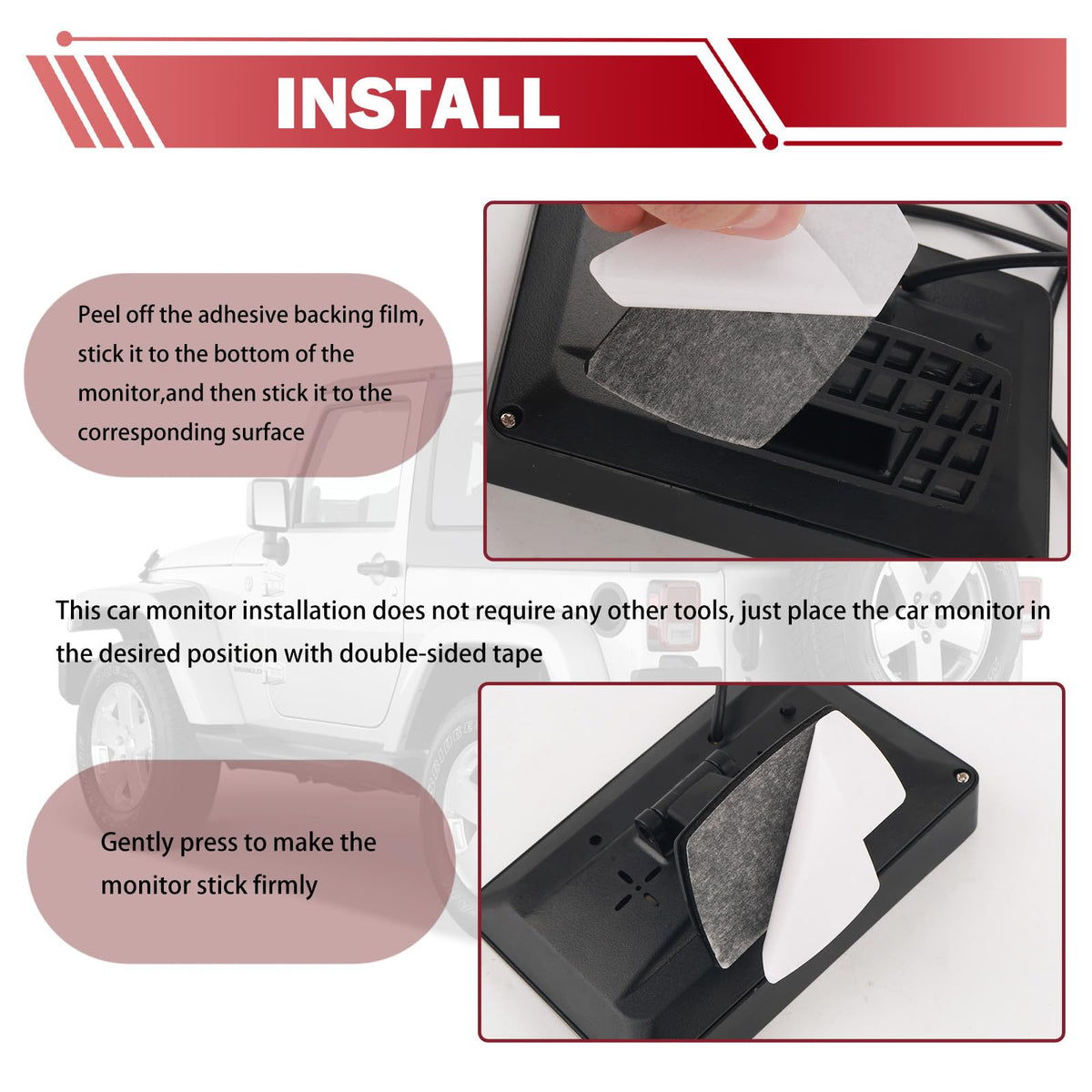

The monitor is compact and lightweight, making it simple to mount on a dash or windshield area using the included adhesive backing. Two adhesive surfaces are provided and instructions recommend cleaning surfaces and warming the adhesive for a stronger bond. Power and video connections are wired: red for power, yellow for AV1, and white for AV2 (reverse camera).

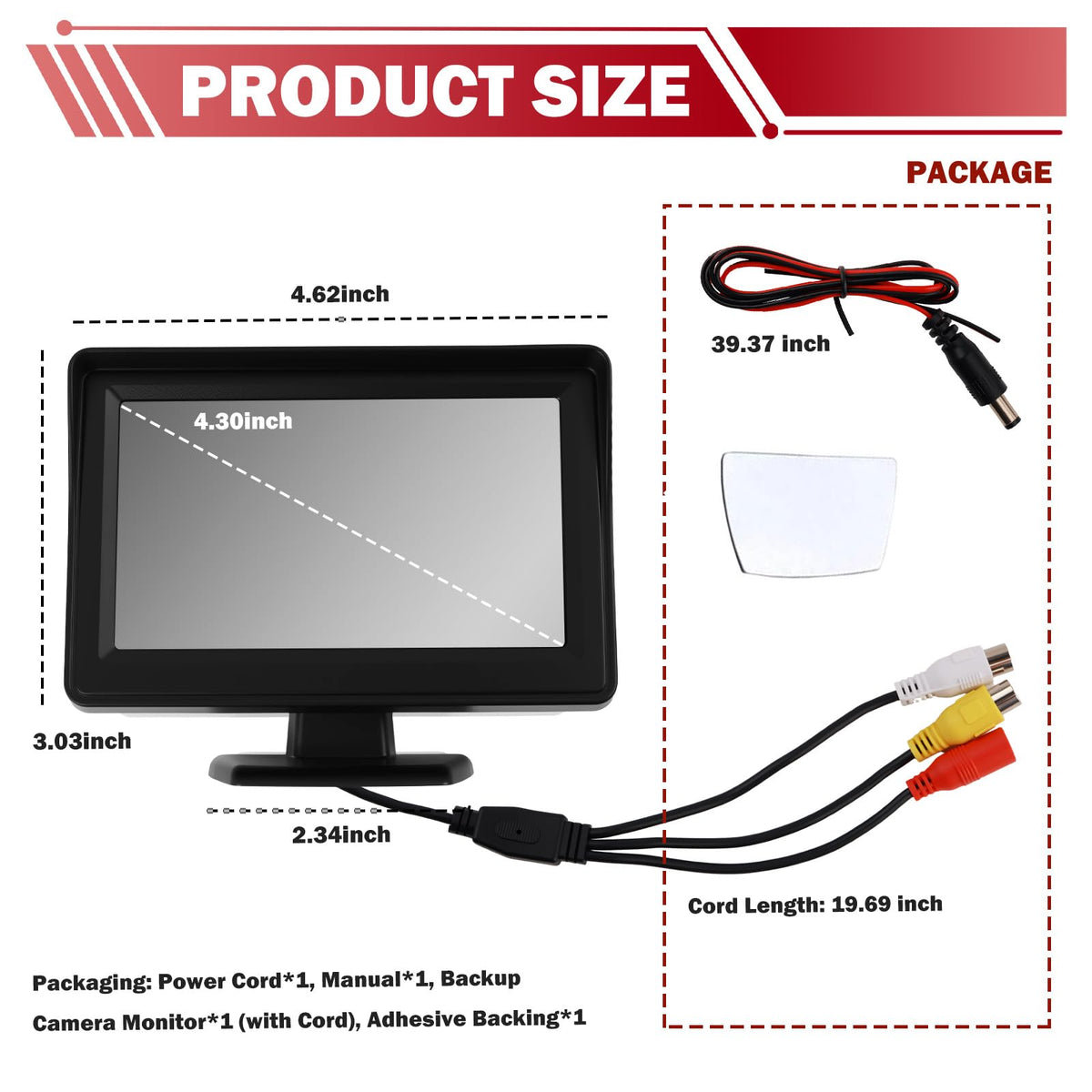

• Monitor size without base: 4.62 × 3.03 × 0.76 in; with base: 4.62 × 3.49 × 1.4 in
• Screen diagonal: 4.3 inches; resolution: 480×272
• Power cord: 39.37 in (1 m); monitor cord: 19.69 in
• Includes adhesive backing (2.34 × 1.36 in) and manual for installation

Which vehicles and camera types is this monitor compatible with?

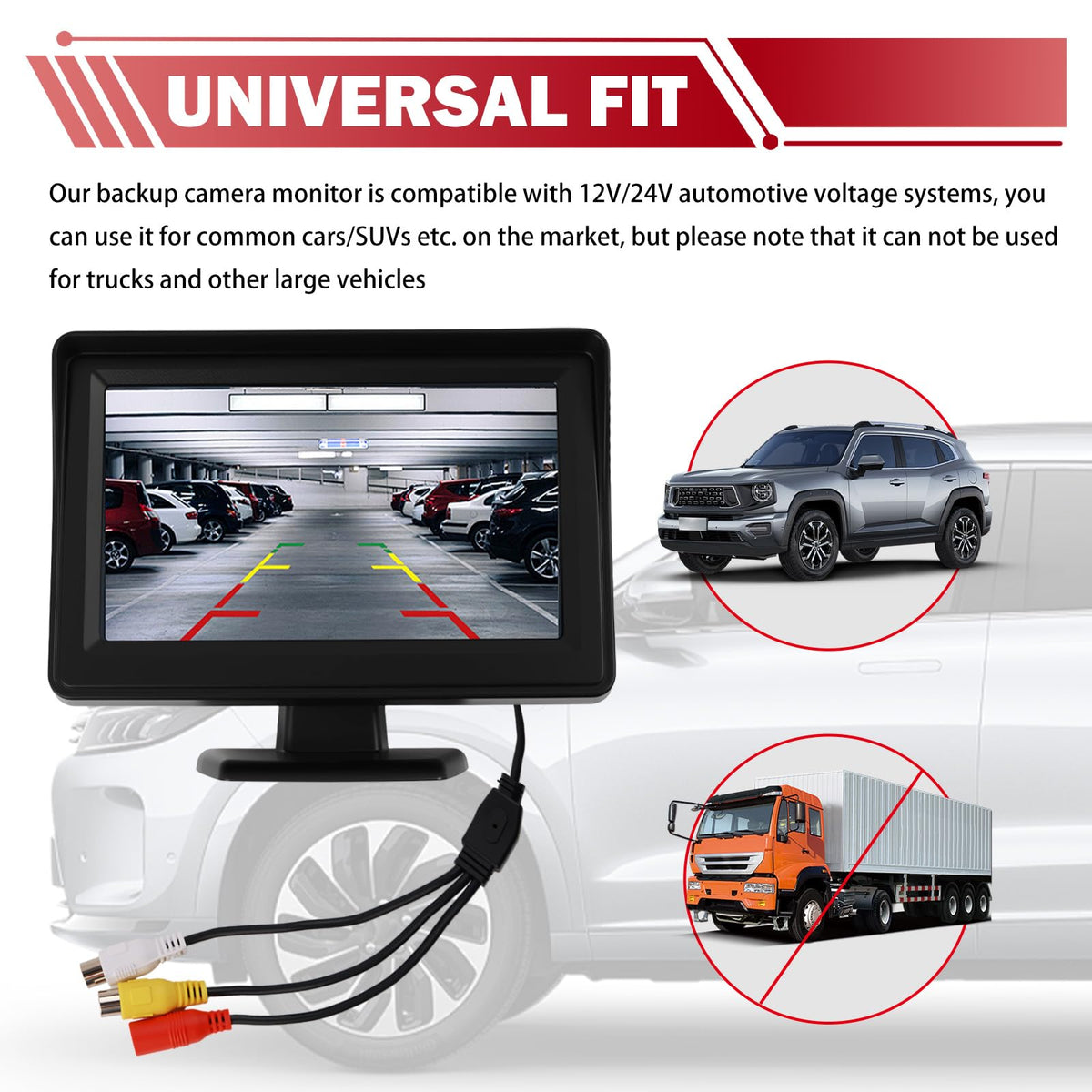

The Figpade monitor supports both 12V and 24V electrical systems, so it works with most cars and SUVs. It is not intended for large trucks or heavy commercial vehicles. To see color on this screen, pair it with a reversing camera that outputs a color video signal; otherwise the feed will appear in the camera's native format.

• Compatible with 12V/24V passenger cars and SUVs
• Not suitable for heavy trucks or larger commercial vehicles
• Requires a separate reversing camera (camera not included)
• Color display depends on camera’s color output support

Who is this for? The Figpade 4.3" backup camera monitor is aimed at drivers who want an affordable, space-saving visual aid for reversing and parking—ideal for owners of older cars without a factory monitor, DIY installers fitting an aftermarket camera, or anyone seeking a compact secondary screen. It’s best for compact and mid-size vehicles where a small, easily mounted display improves rear visibility without complex installation.
