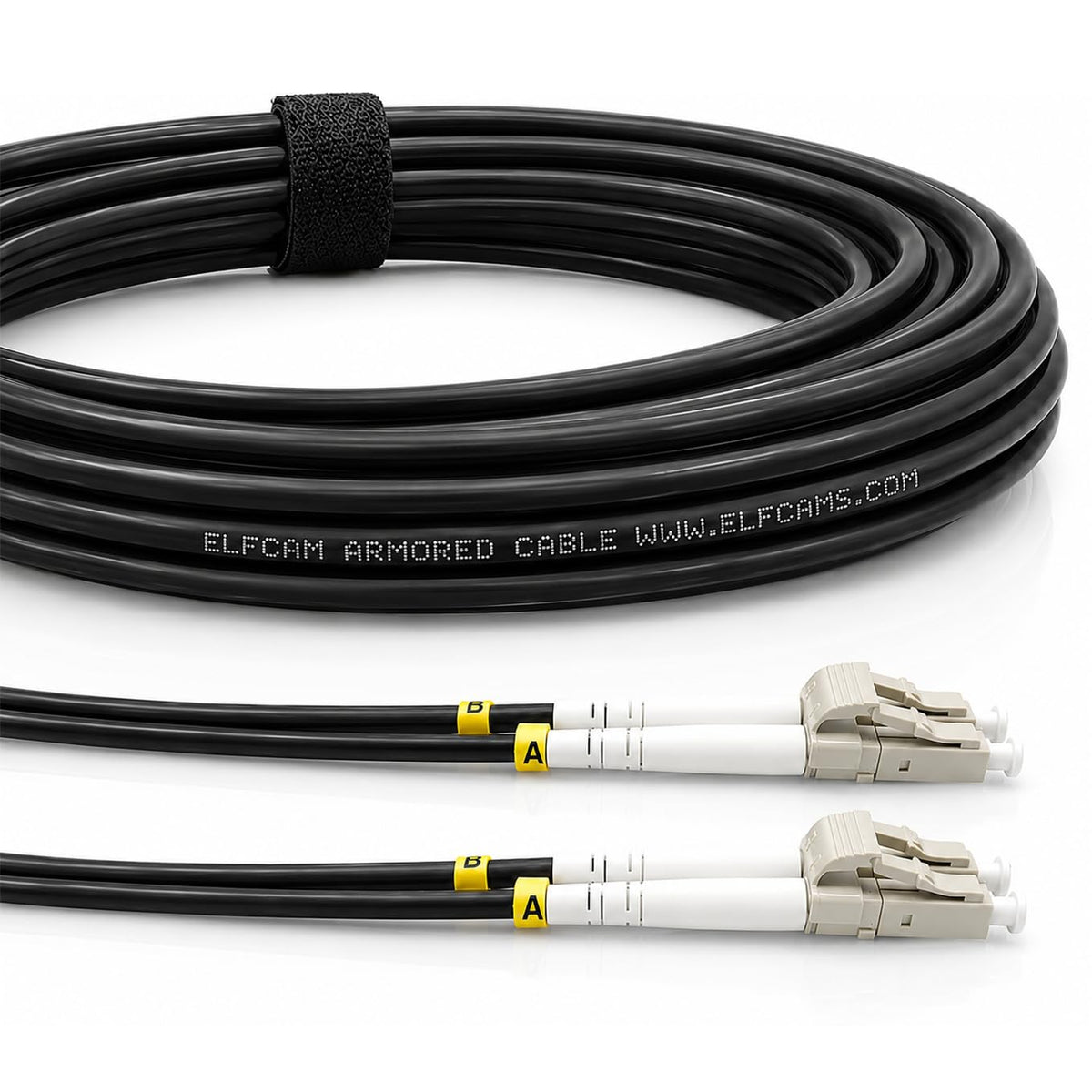

Elfcam Armored OM3 Duplex LC/LC 30m Fiber Cable

Elfcam’s 30m armored OM3 multimode fiber patch cable is a shielded LC/UPC-to-LC/UPC duplex lead designed for robust indoor and outdoor installations where mechanical protection and low-smoke, zero-halogen safety are required.

This 30-meter (98.4 ft) Elfcam patch cord pairs OM3 multimode 50/125 µm performance with an armored steel tape and LSZH outer jacket to resist physical damage, rodent chewing and abrasion while keeping smoke and halogen emissions low in confined spaces. Engineered for high-speed links such as 10G, 25G, 40G and 100G transceivers, the cable is certified and tested for low insertion loss and strong return loss, giving reliable opto-electrical performance across short- and mid-range multimode runs.

How does the armored construction help in tough environments?

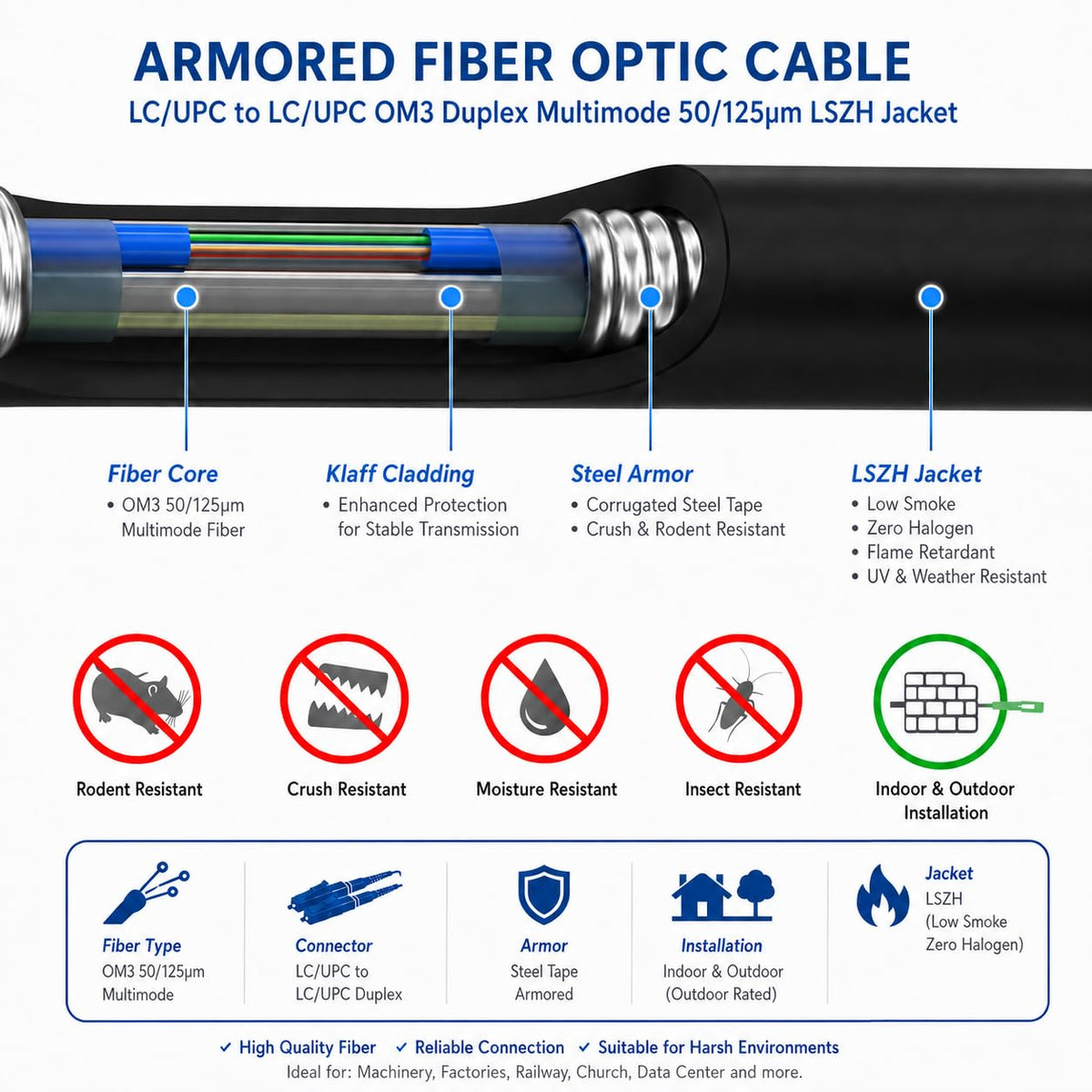

The internal shielded steel tape provides a mechanical barrier against crushing, cuts and rodent damage, preserving the fiber core integrity in exposed or concealed runs. The LSZH outer jacket reduces smoke and toxic gas output during fire incidents, making it safer in enclosed commercial and industrial spaces.

• Armored steel tape under the jacket for puncture and bite resistance.

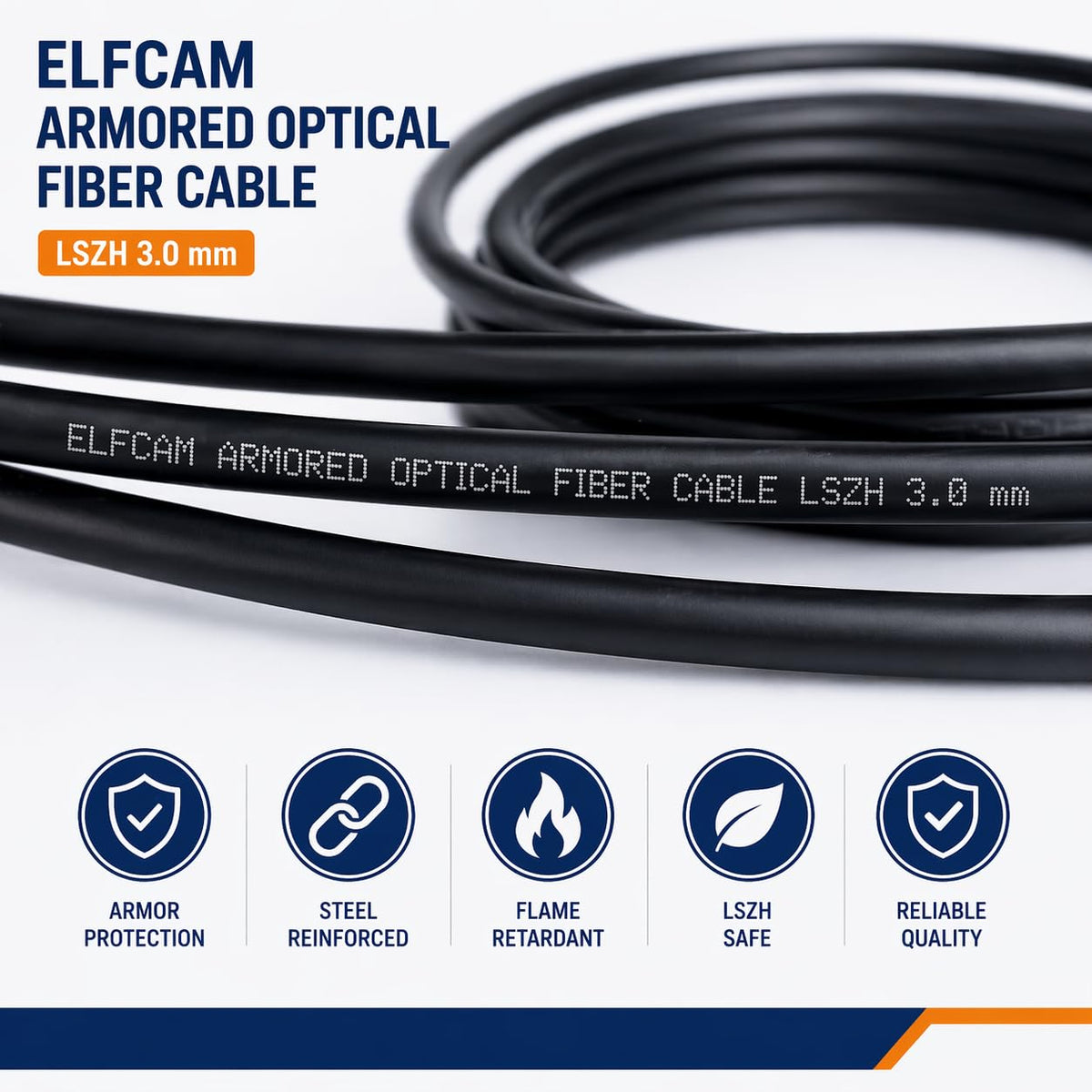

• 3.0 mm diameter per fiber for a compact yet protected profile.
• LSZH sheath minimizes smoke and halogen emissions for safer interiors.
• Durable jacket suited for installations near machinery, railways or wall voids.

Will this cable meet high-speed data and transceiver requirements?

Yes — the OM3 multimode 50/125 µm core supports common high-speed optics and short-reach data rates. It works with 10GBase-SR, 10G SFP+, 25G SFP28, 40G QSFP+ and 100G QSFP28 transceivers, delivering low insertion loss and strong return loss within multimode distance limits.

• OM3 multimode grade optimized for VCSEL-based 10G and 40G links.
• Insertion loss ≤ 0.2 dB and return loss ≥ 35 dB for tight connector performance.

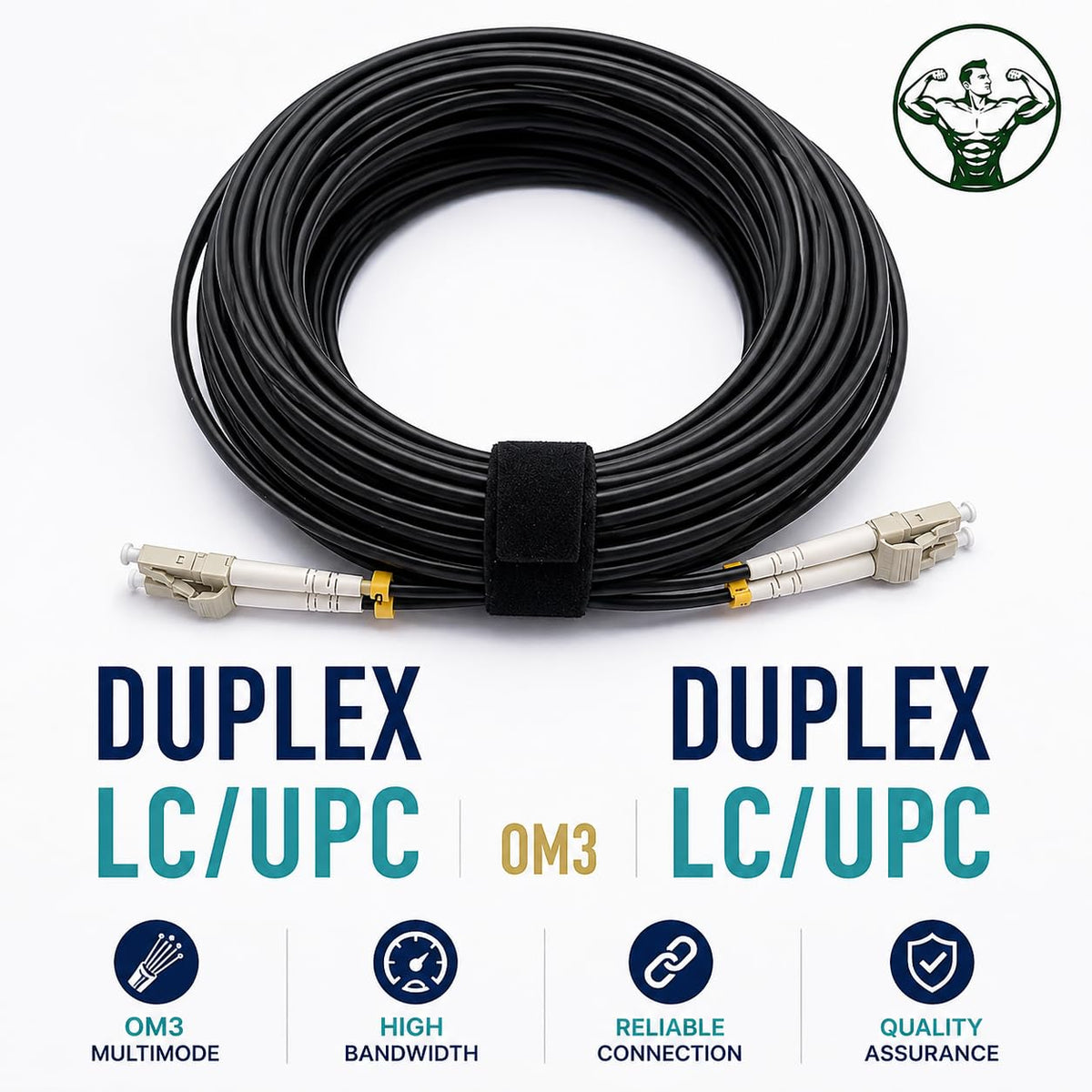

• Duplex LC/UPC terminations compatible with standard LC ports and patch panels.
• Certified and stress-tested to industry optical and mechanical standards.

How do the connectors and build affect installation and maintenance?

Precision LC/UPC terminations provide low-loss mating and easy patch-panel integration, while the duplex format keeps transmit and receive fibers neatly paired. The compact 3.0 mm cable diameter and armored layer let installers route cable through trays, conduits and concealed paths with confidence.

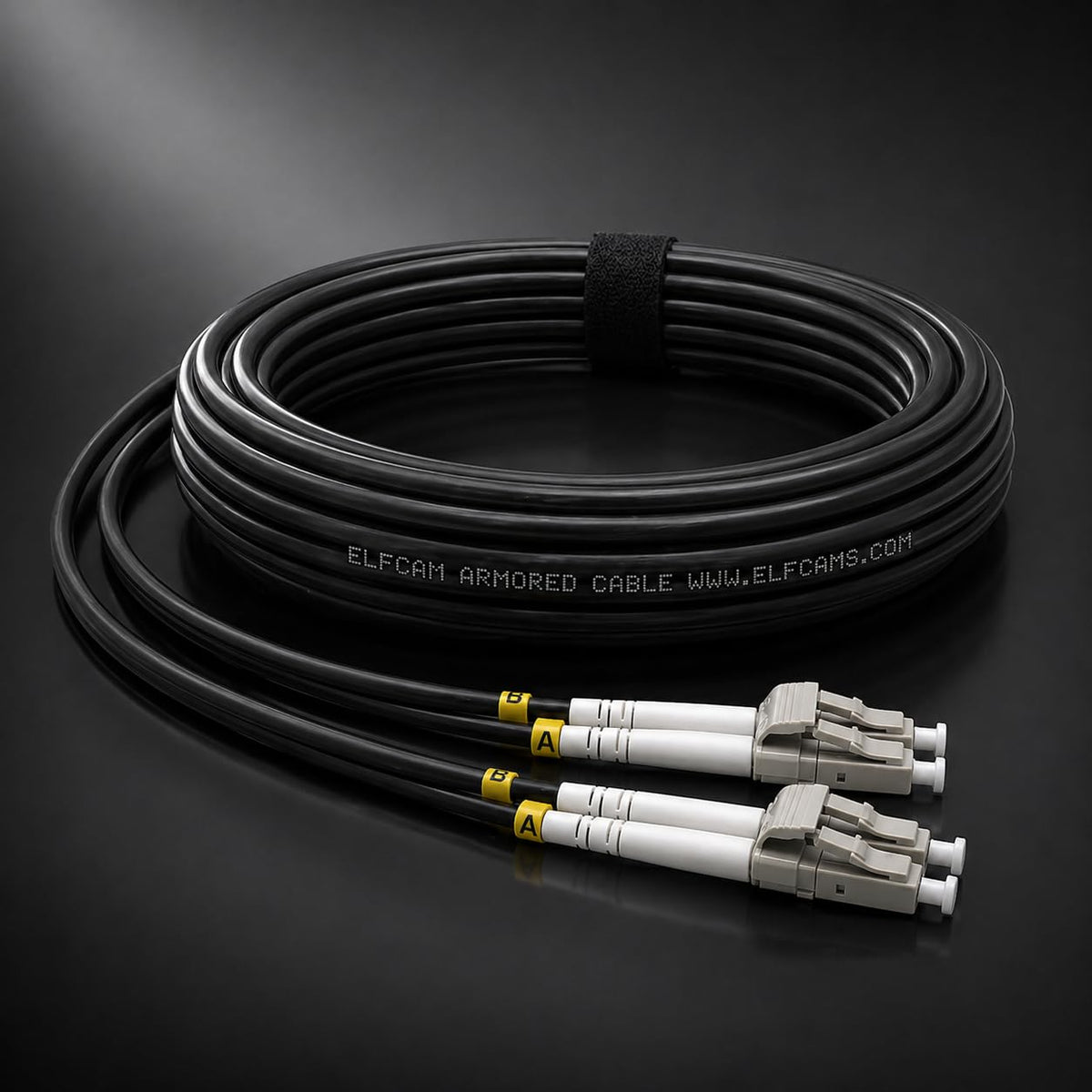

• LC/UPC duplex connectors for reliable, repeatable connections and compact port density.
• Reinforced core protection reduces the need for frequent re-termination or replacement.
• Flexible enough for tray and conduit runs but robust against pinch and abrasion.
• Pre-tested and labeled to speed deployment and troubleshooting.

What tests and certifications back up performance?

Elfcam subjects each cable to optical and mechanical stress tests, and the design meets ITU specifications for single- and multimode performance where applicable. Performance metrics like insertion loss and return loss are measured so network engineers can trust link budgets and compliance with transceiver requirements.

• Stress-tested for mechanical resilience and optical stability.
• Built to OM3 multimode optical specifications for VCSEL-based systems.
• Sheath rated LSZH for safety in indoor commercial environments.
• Documented insertion loss and return loss figures for link planning.

Who this is for: installers, network engineers and facilities managers who need a durable, high-performance multimode patch cord for indoor concealed routes or outdoor-exposed paths where mechanical threats exist. Choose this Elfcam 30m armored OM3 duplex cable when you require compact LC connectivity, repeatable low-loss performance and added physical protection in mission-critical local area networks, industrial sites, transport corridors and enterprise wiring closets.
