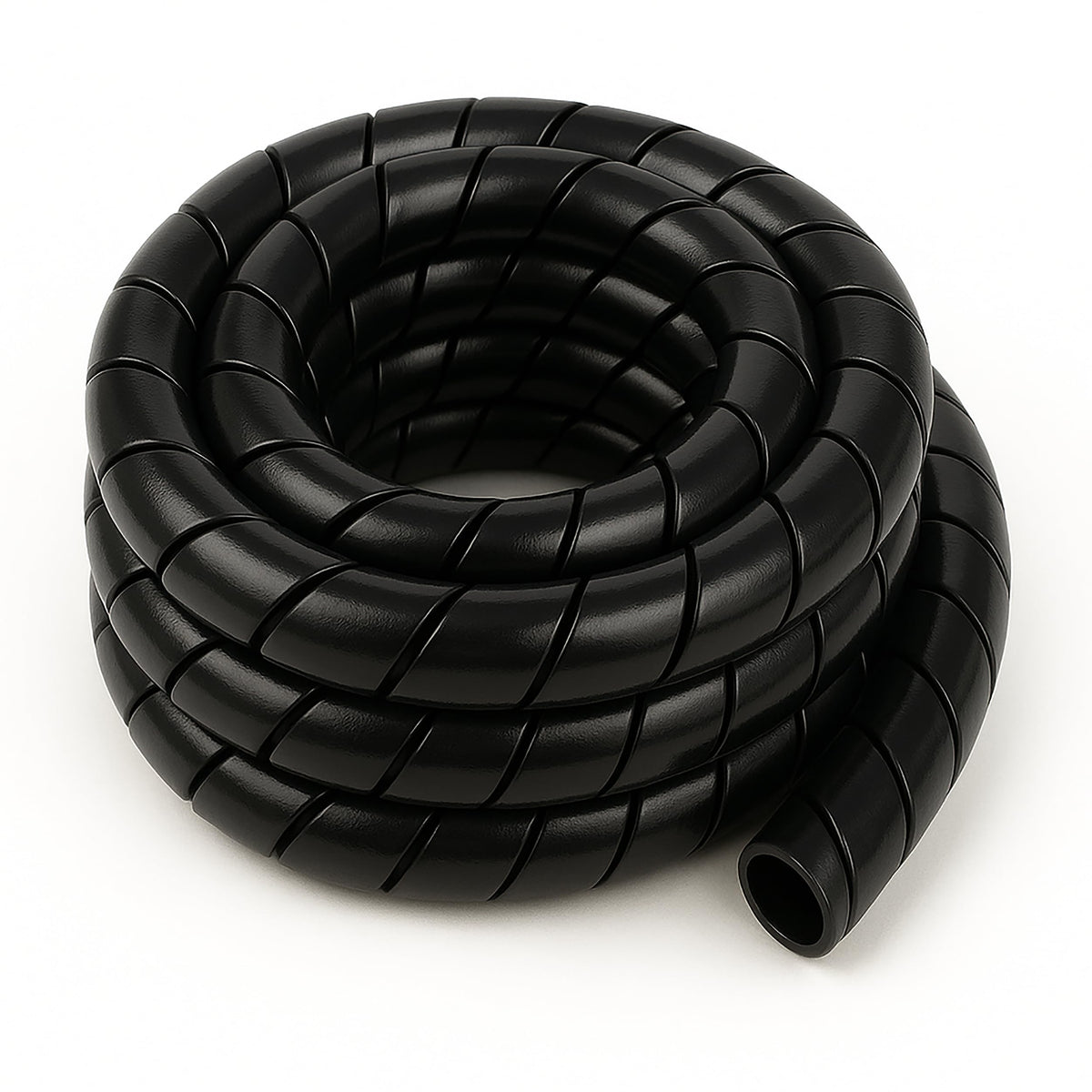

Electriduct 3in Heavy-Duty Spiral Cable Sleeve 5ft

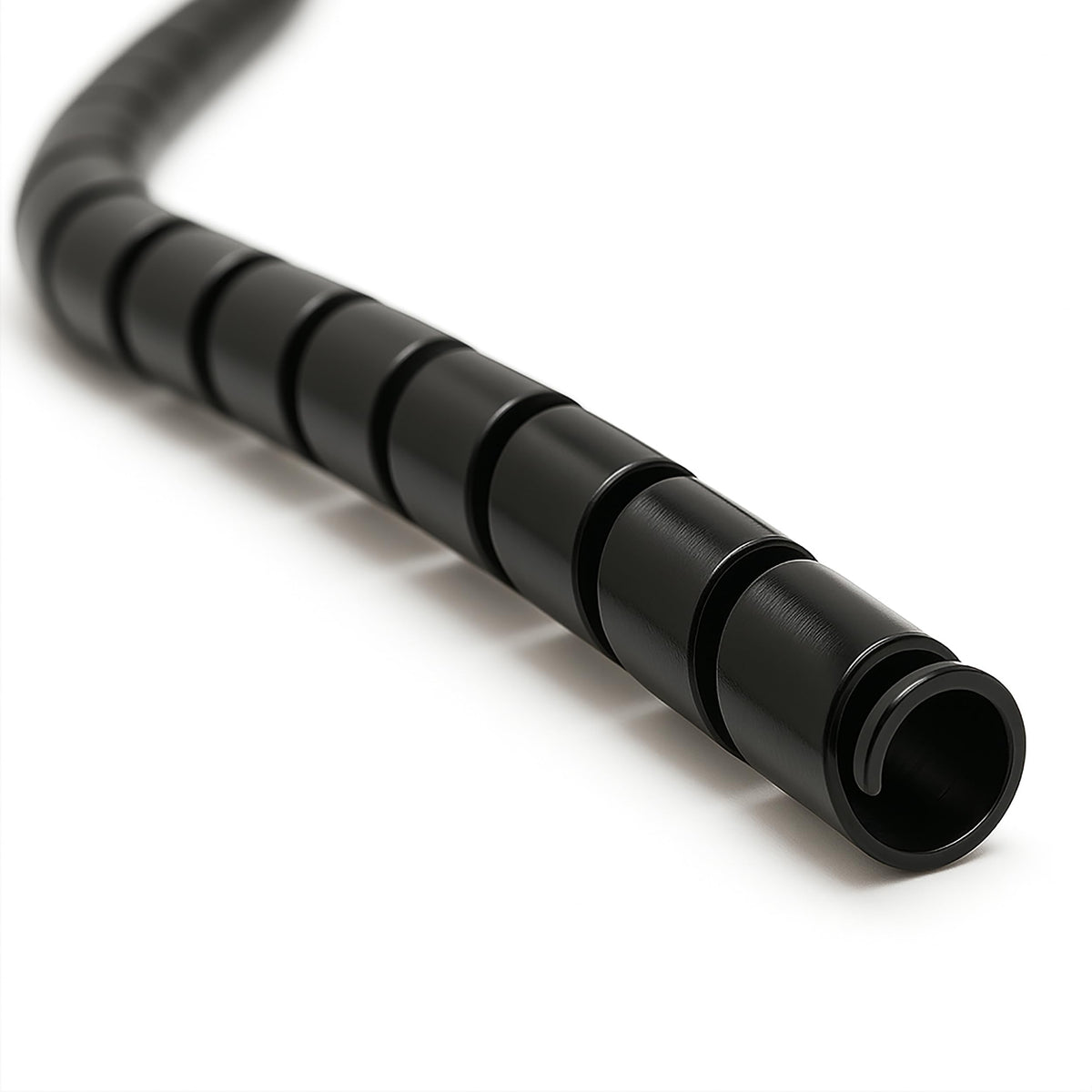

Electriduct's 3-inch heavy-duty spiral wrap is a 5-foot HDPE cable sleeve that protects, organizes, and routes hoses, cables, and pipes without disconnecting end fittings.

This flexible spiral sleeve is engineered from high-density polyethylene (HDPE) to deliver a robust, long-lasting solution for industrial, automotive, marine, agricultural, and mining cable management. Its open spiral profile lets you install over assemblies without unplugging connectors, while the thick wall and wide diameter accommodate clusters of hydraulic hoses, power cables, and conduit. Rated for temperatures from -40°C to +80°C and RoHS compliant, this Electriduct sleeve balances durability, chemical resistance, and ease of use for demanding environments.

How does the spiral design make installation faster?

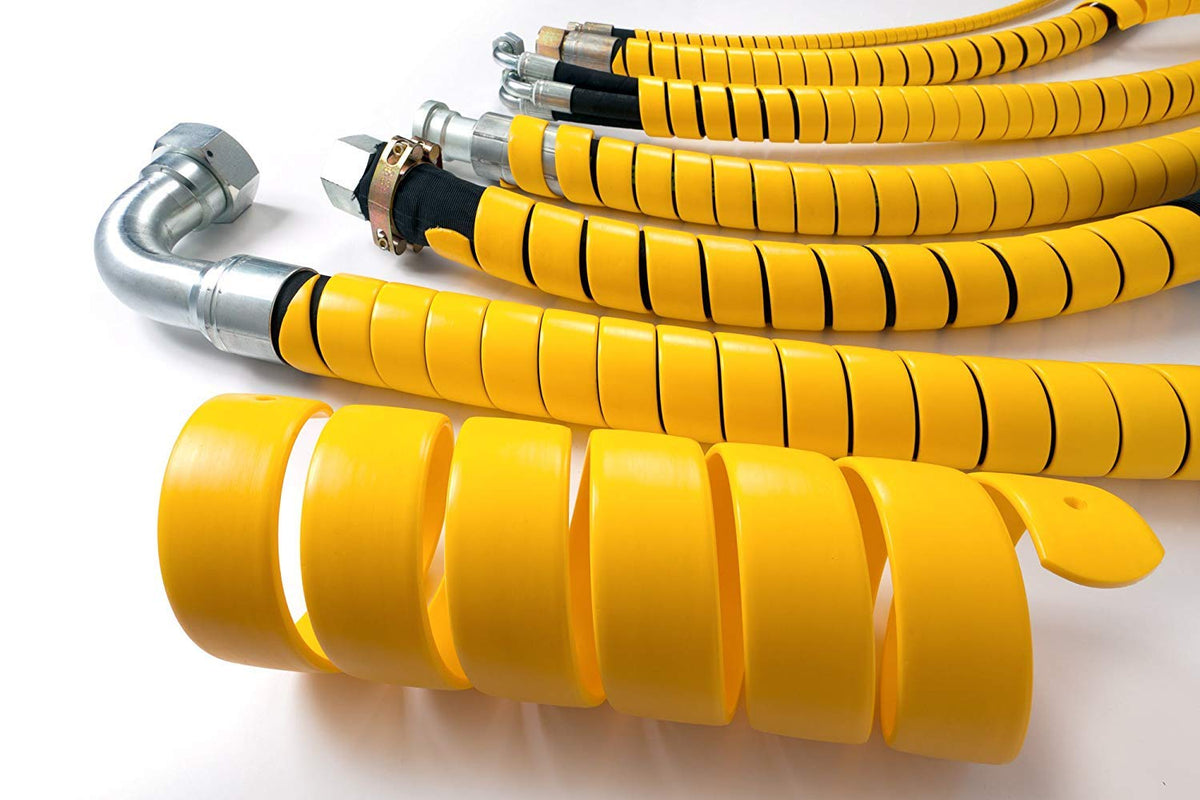

The open helix shape lets you wrap the sleeve around existing cable bundles or routed hoses instead of feeding them through a closed tube, which saves time and avoids system downtime. The spiral also permits lateral access for adding or removing individual lines without unwrapping the entire length.

• Installs around connected cables and hoses—no disconnections required.
• Add or remove lines along the run without full disassembly.
• Flexible enough to follow bends and bends tightly around corners.

Will it protect cables in harsh environments?

Yes — the HDPE construction offers resistance to oil, UV exposure, chemicals, abrasion, and has flame-retardant properties. With a tensile strength of 25 MPa and a wall thickness of 0.17" the sleeve is built to withstand mechanical wear and outdoor conditions.

• Temperature range: -40°C to +80°C for wide environmental tolerance.
• Oil, chemical, UV, and abrasion resistant for long service life.
• RoHS compliant material suitable for regulated installations.

What bundle sizes and cable types does the 3" sleeve accommodate?

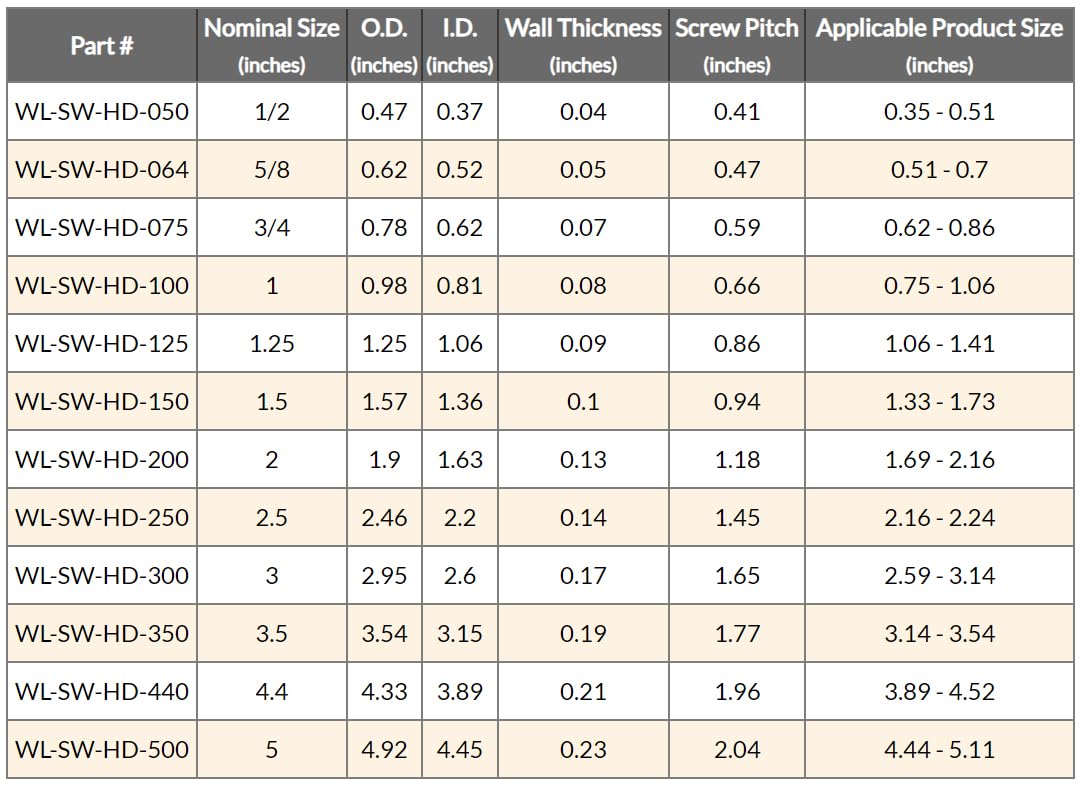

The nominal 3" size has an outside diameter of 2.95" and an inside diameter of 2.6", providing an effective product use range from 2.59" to 3.14". That makes it ideal for multiple hoses, power cables, and small conduit runs bundled together.

• Nominal size: 3" with 2.6" ID and 2.95" OD.
• Use range: 2.59"–3.14" for flexible bundle sizing.

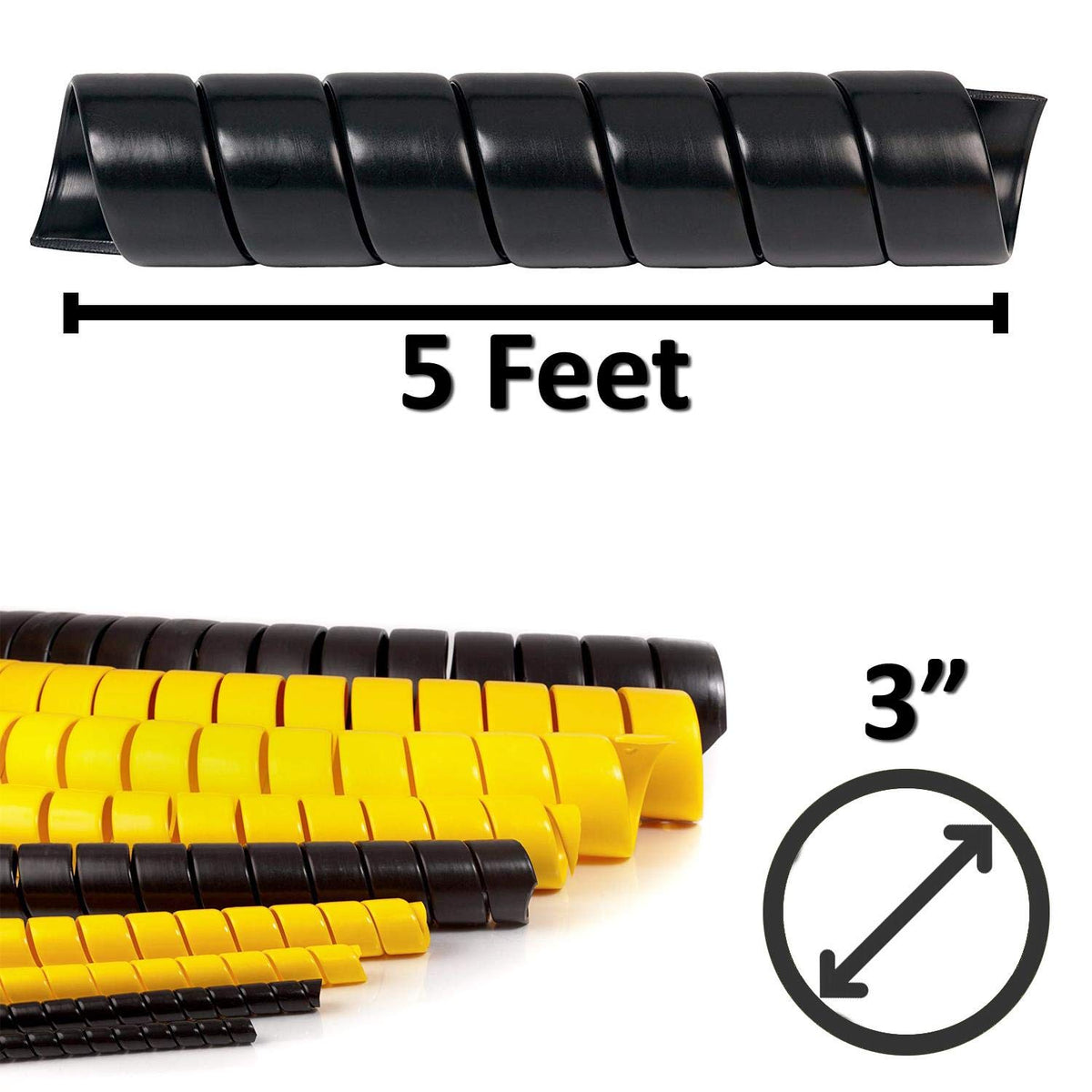

• Length: 5 feet per section—combine sections for longer runs.

How does this sleeve perform in vehicle and equipment applications?

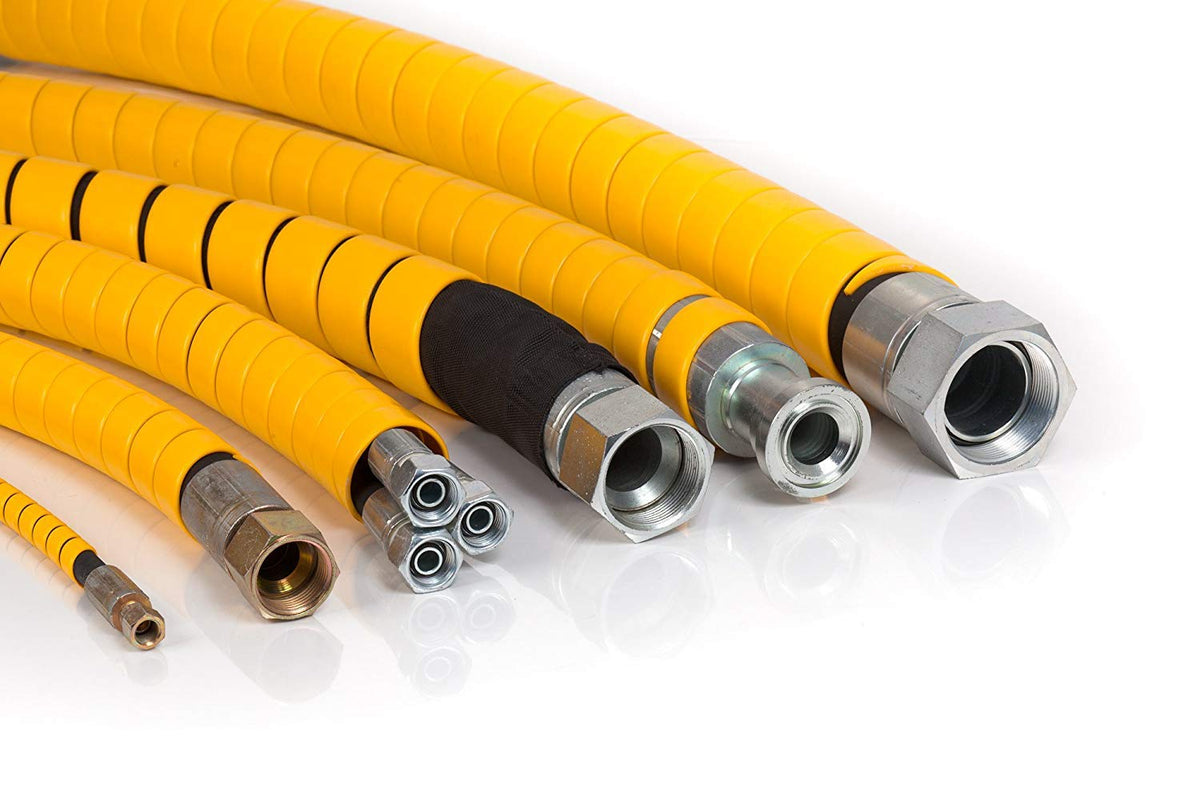

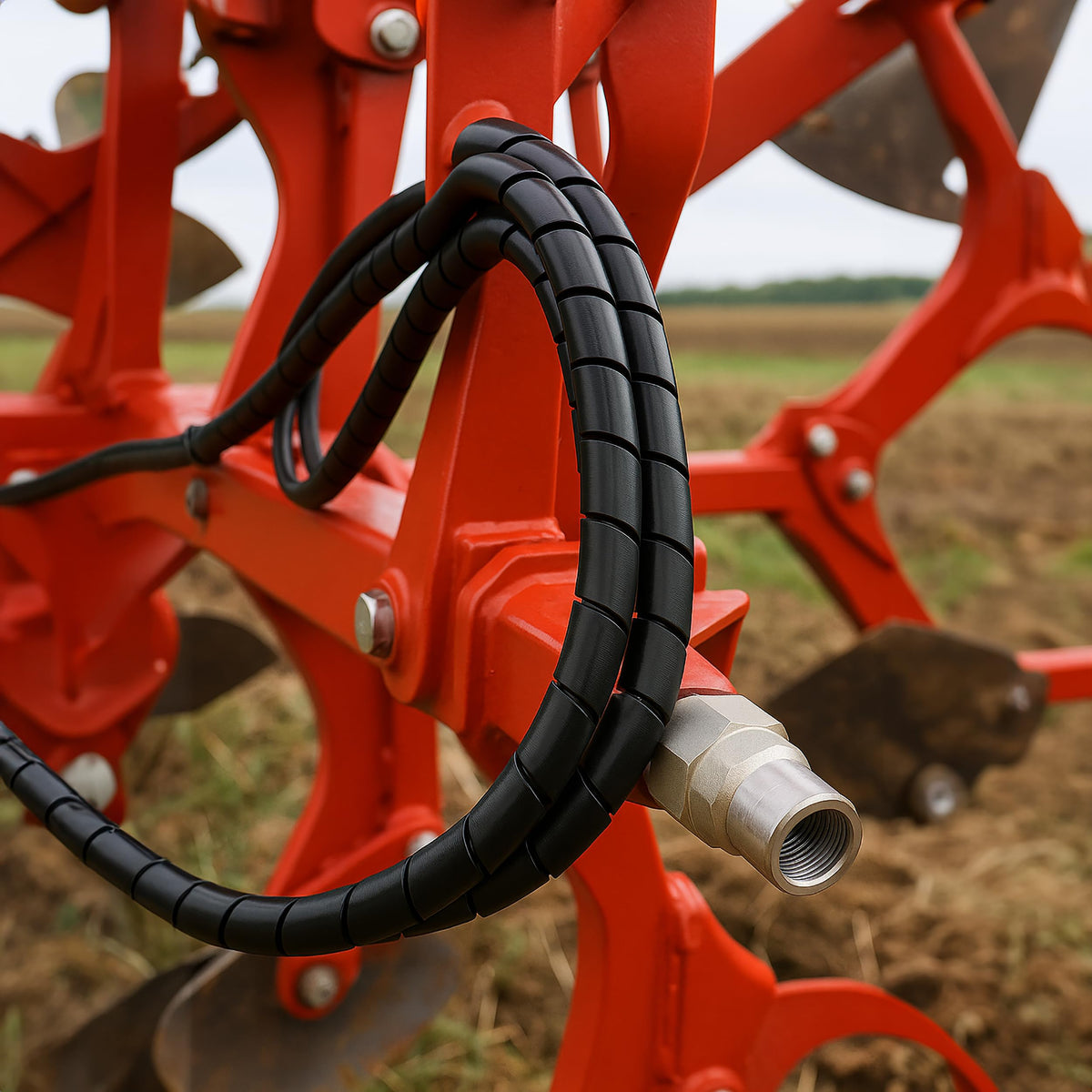

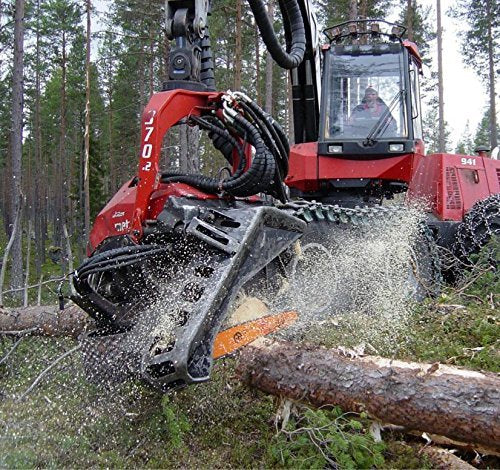

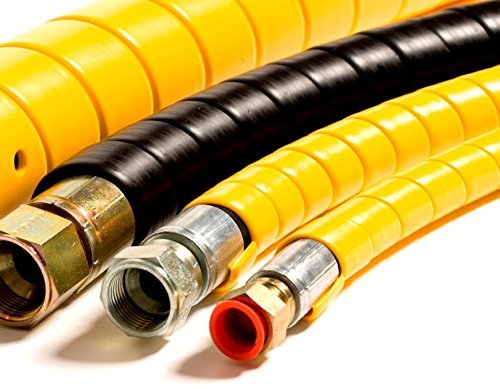

Designed for heavy-duty use, Electriduct’s spiral wrap works well on tractors, construction machinery, marine rigs, and industrial equipment where vibration, abrasion, and exposure to fluids are common. It secures hoses and cables while allowing movement and access for maintenance.

• Common uses: automotive, farming, mining, marine, and industrial systems.
• Flexible spiral shape reduces chafing and concentrates stress away from connectors.
• Simple retrofit installation keeps equipment in service during upgrades.

Who is this for? Electriduct’s 3" heavy-duty spiral wrap is suited to technicians, fleet and equipment managers, electricians, and mechanics who need a reusable, high-strength protective sleeve that installs quickly and endures tough conditions. It’s particularly useful when you must protect clustered hydraulic hoses or electrical runs on mobile equipment, retrofit existing assemblies without downtime, or create tidy, serviceable cable runs in outdoor environments. Choose this 5-foot HDPE sleeve when durability, access, and chemical and UV resistance matter for professional-grade cable management.
