Electriduct 3" Flanged Wire Guard Raceway 58"

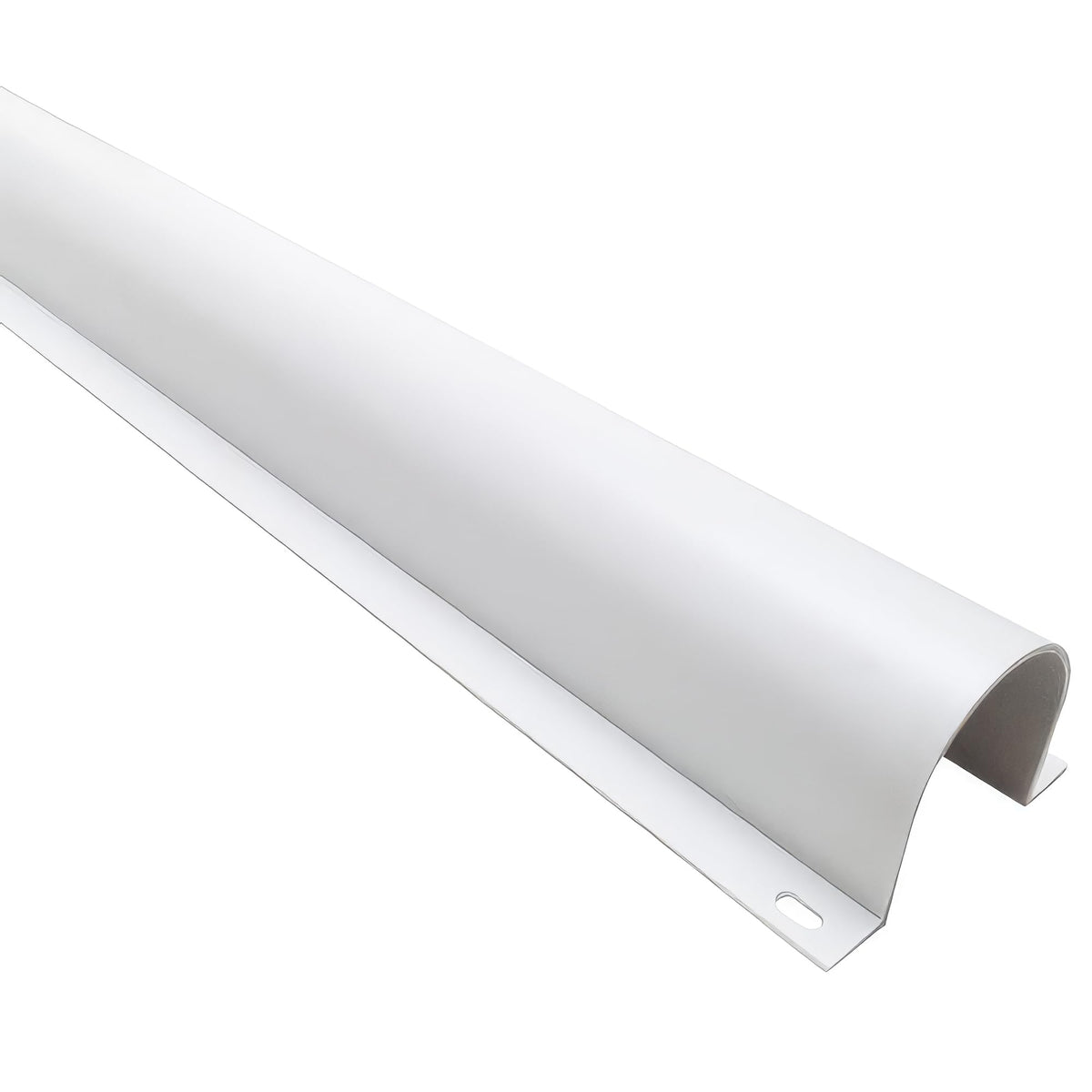

The Electriduct 3" Plastic Flanged Wire Guard is a 58-inch white PVC cable raceway designed to conceal and protect multiple cables while mounting neatly to walls or siding.

This single-stick cable raceway offers a simple, durable way to organize and protect wiring for indoor or outdoor routing. Constructed from UL94-0 rated PVC, the channel measures approximately 2.79" wide by 2.95" high with 0.1" wall thickness, providing a roomy interior for power, data, or low-voltage lines. It arrives as one 58-inch length with a pre-drilled 5/8" flange to speed installation and can be trimmed or painted to match its surroundings.

How much cable can this 3" raceway hold?

The internal channel is roomy enough for multiple cables, including power cords, Ethernet, coax, and low-voltage lines. Capacity depends on cable diameter and bundling method, but the 2.79" x 2.95" channel accommodates several standard conductors without crowding.

• Channel interior: 2.79" wide × 2.95" high for multiple cables
• Compatible with common cable types: power, Cat5/6, RG6, speaker wire
• Allows neat bundling and separation to reduce tangling

How do I install and secure the Electriduct flanged wire guard?

Installation is straightforward: position the raceway over the routed cable, align the flange, and fasten through the pre-drilled holes. The 5/8" flange comes with 1.375" × 0.25" pre-drilled openings to accept standard screws; sealants or screws appropriate for the substrate should be used for outdoor applications.

• Pre-drilled flange holes: 1.375" long × 0.25" wide for faster mounting
• Cut-to-fit: trim with a handsaw to shorten length as needed
• Finish options: paintable PVC to blend with walls or siding

Is this raceway suitable for outdoor use and weather exposure?

The Electriduct stick is made from durable UL94-0 PVC designed for indoor and exterior routing. It provides physical protection against incidental impacts and basic environmental exposure, but final weather resistance will depend on mounting technique, sealants used at joints, and local climate conditions.

• Material: UL94-0 PVC for sturdy, flame-retardant construction
• Outdoor-ready: designed for exterior routing on homes and buildings*
• Improve durability: use appropriate sealant and UV-resistant paint if required

Can I customize this raceway to fit a specific project?

Yes—this Electriduct raceway is intended to be adapted on-site. It cuts cleanly with a handsaw, accepts paint to match surrounding finishes, and the flange makes it simple to anchor to walls, trim, or siding.

• Trim with common hand tools to desired length (58" stock)
• Paintable surface for color-matching to interior or exterior finishes
• Order quantity: sold as one 58" stick for flexible use

Who this is for: Electricians, installers, contractors, and DIY homeowners who need a reliable, adaptable channel to hide and protect bundles of cables will find this Electriduct flanged wire guard convenient. It suits small- and medium-scale runs where a single 58" length provides adequate coverage, and is especially useful when a paintable, pre-drilled raceway speeds installation on walls, trim, or siding. Choose this product when you want an economical, easy-to-cut PVC solution that organizes wiring while allowing for neat fastening and a finished appearance.
