Electriduct 2in Heavy-Duty Spiral Cable Wrap 5 ft

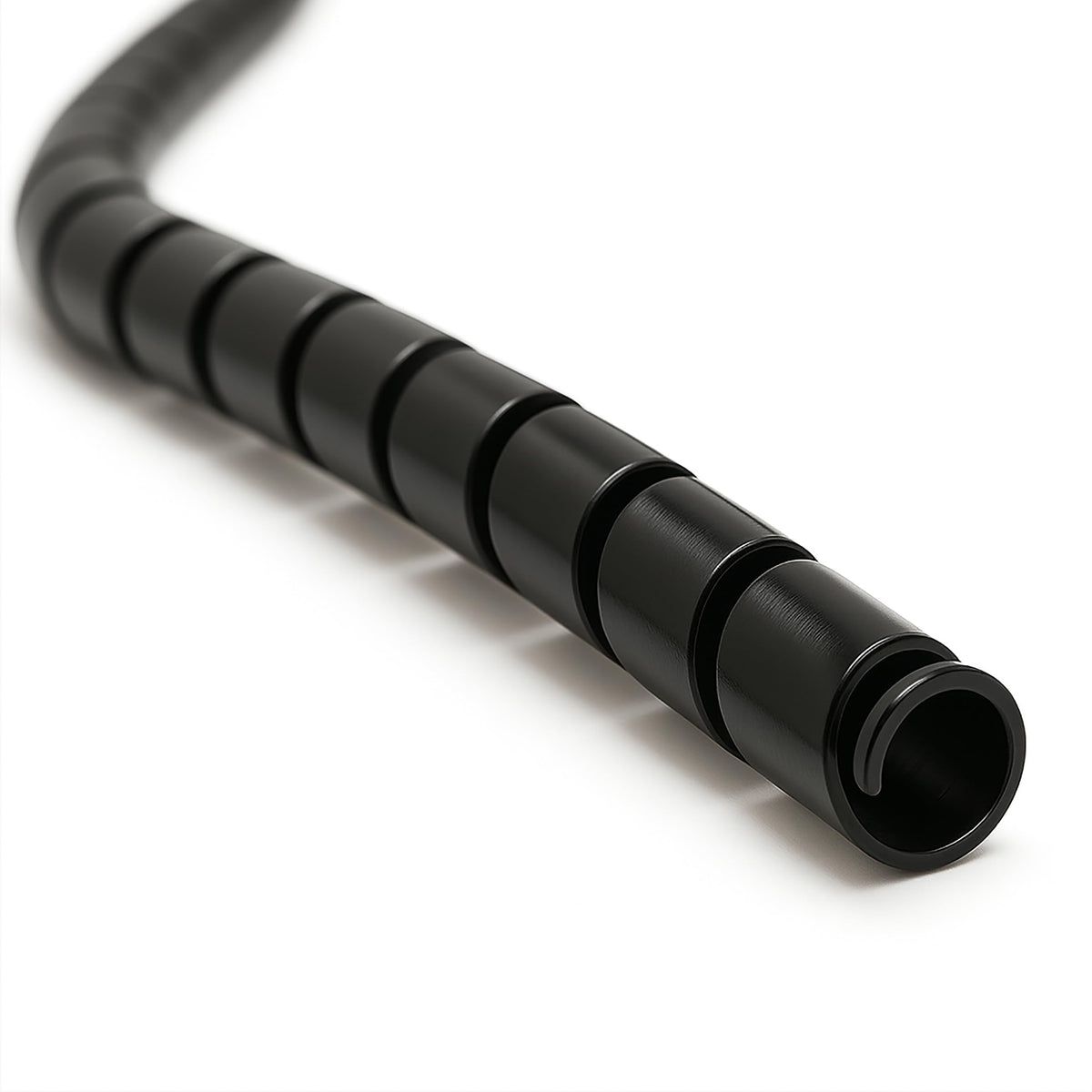

Electriduct's 2-inch heavy-duty spiral wrap is a 5-foot HDPE cable sleeve that bundles and shields hoses, wires, and cords while allowing connectors to stay attached.

This flexible spiral wrap is engineered from high-density polyethylene (HDPE) for demanding environments where abrasion, oil, UV and chemical exposure are common. With a 2" nominal size and an operating range from -40°C to +80°C, the Electriduct sleeve slips around existing harnesses without disconnecting end fittings and keeps installations neat, safer, and easier to service.

How does this spiral wrap protect cables and hoses?

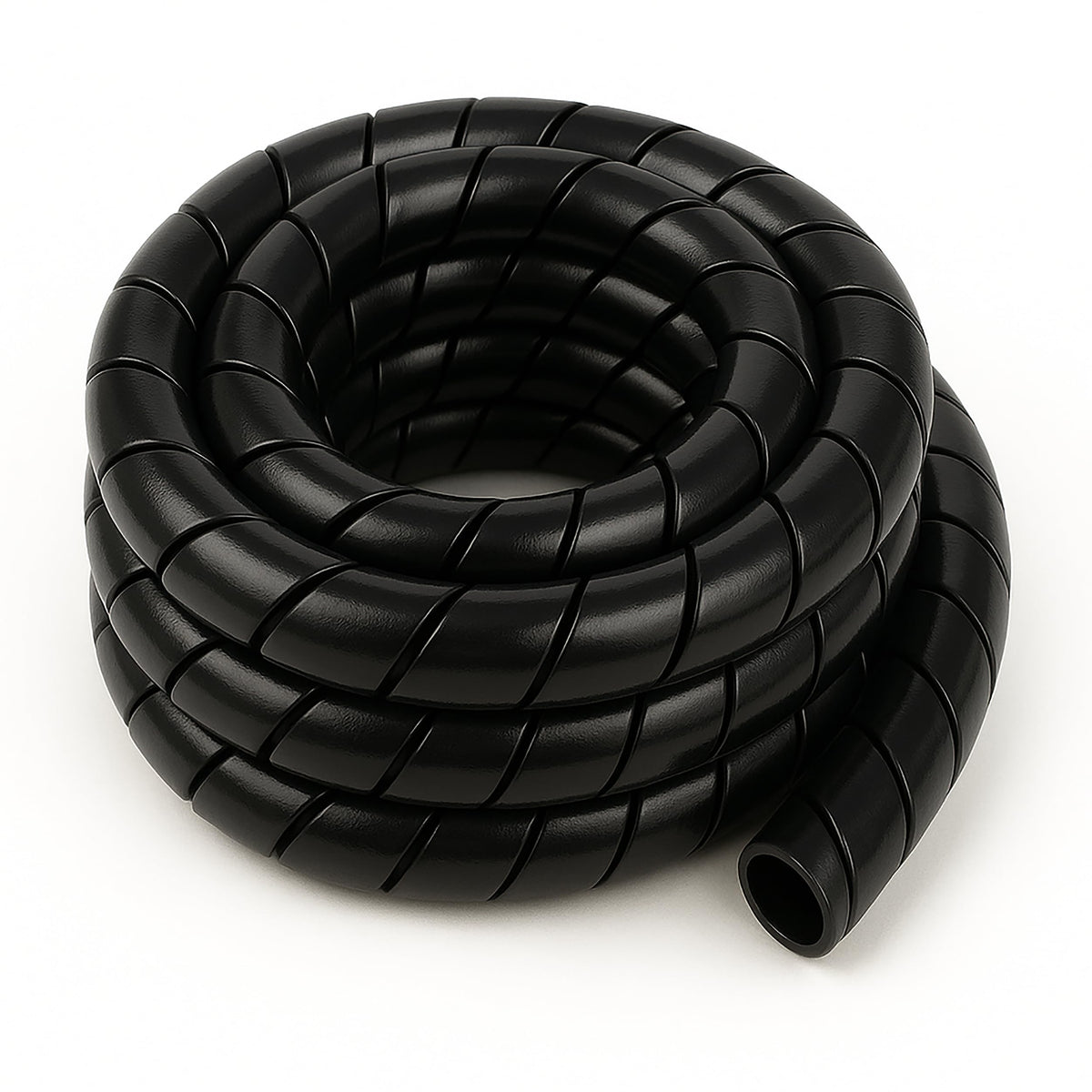

The spiral profile provides continuous surface coverage while still allowing ventilation and flexibility. It absorbs wear from rubbing and shields components from oils, chemicals, and sunlight, extending service life without adding significant bulk.

• Heavy-duty HDPE resists abrasion, oil, UV and many chemicals
• Wall thickness 0.13" for robust protection without rigidity
• Flame-retardant properties reduce fire risk in exposed areas
• Tensile strength 25 MPa for mechanical durability

Will I need to disconnect connectors to install it?

No—its spiral construction is designed to wrap around assembled harnesses so you can add or remove the sleeve without unplugging equipment. This reduces downtime and keeps complex systems intact during upgrades or maintenance.

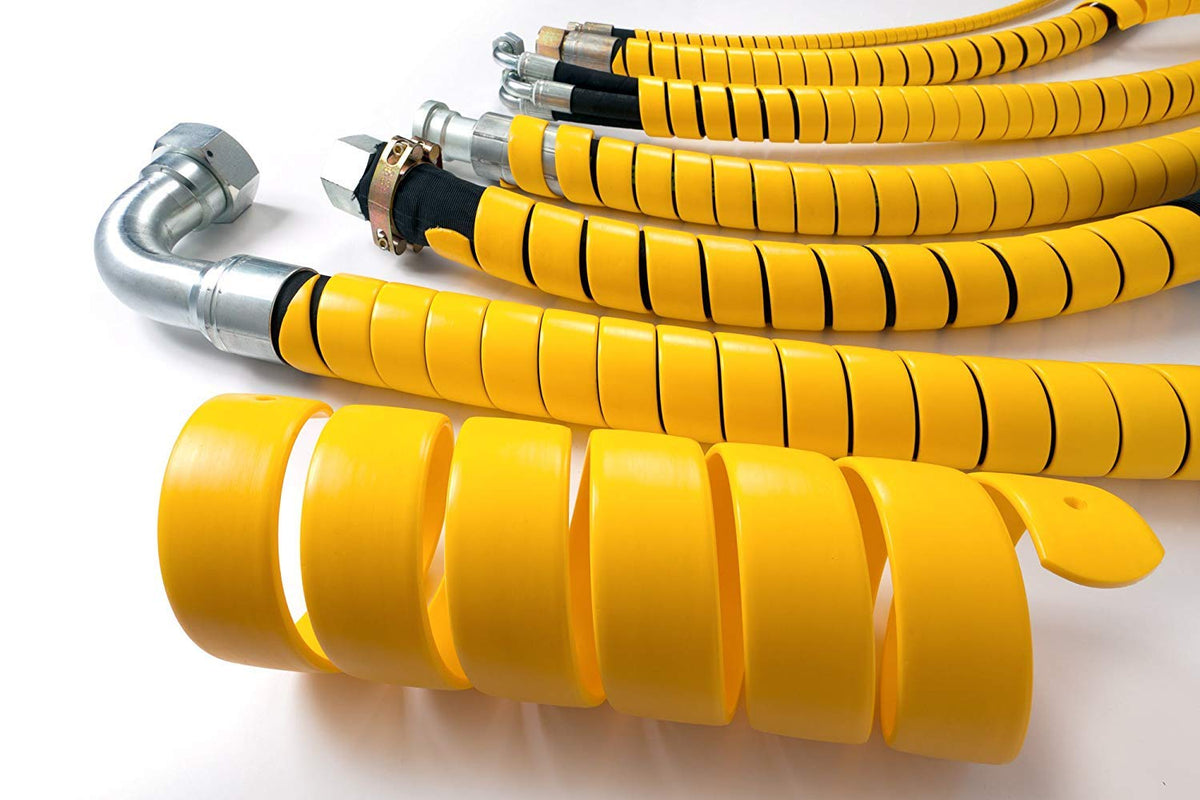

• Wraps around cables, hoses and tubing without disconnection
• Flexible spiral lets you weave over branches and fittings
• Re-openable design makes rerouting and repairs faster
• Smooth edges minimize abrasion to internal lines

What cable sizes and applications does it support?

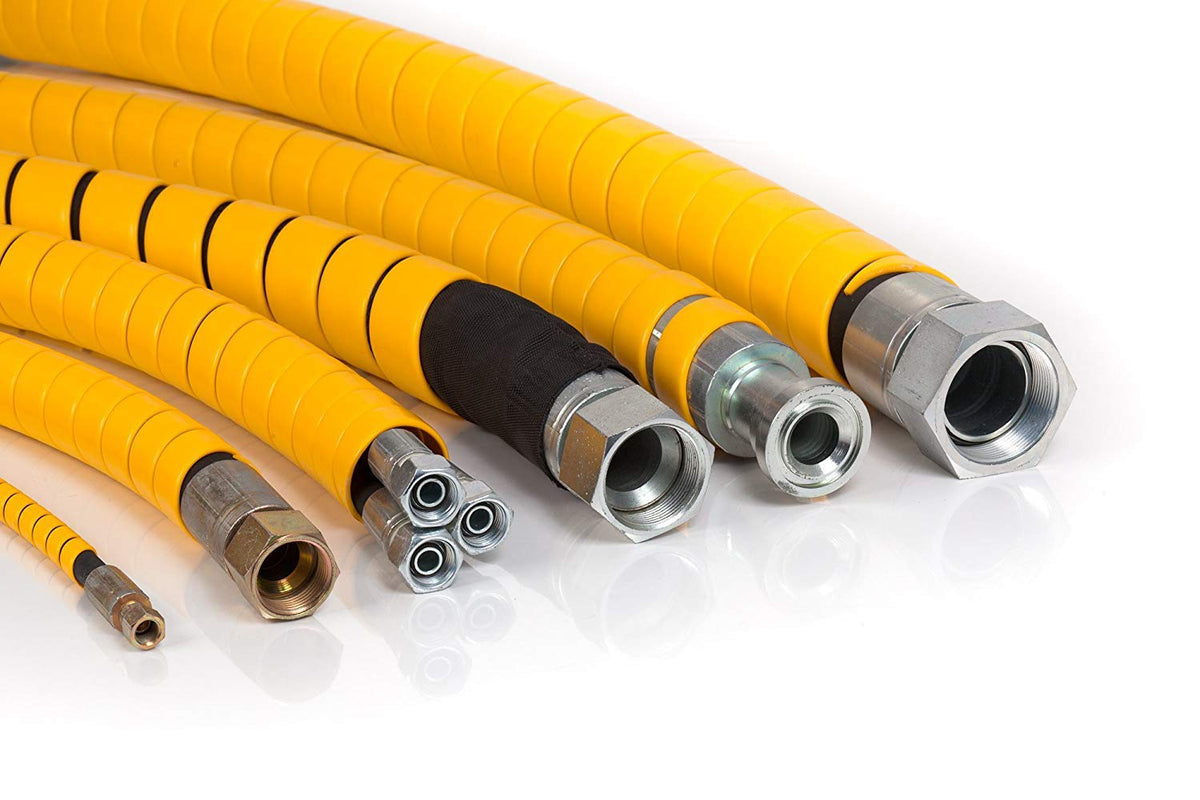

The Electriduct 2" wrap fits bundles with a usable product range from about 1.69" to 2.16" in outer diameter, making it suitable for thicker cable assemblies, hydraulic lines and small hose bundles. It’s specified for industrial, automotive, marine, agricultural and mining uses.

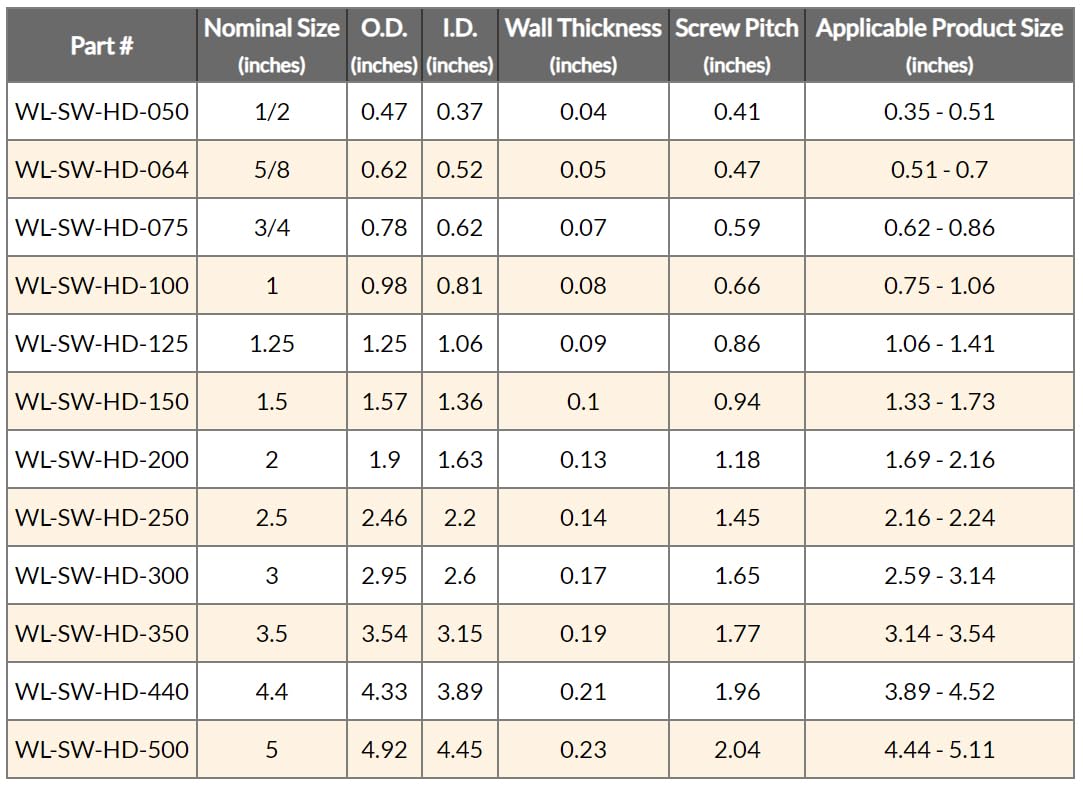

• Nominal size: 2", inside diameter 1.63", outside 1.9"
• Product use range: 1.69"–2.16" fits medium-to-large bundles

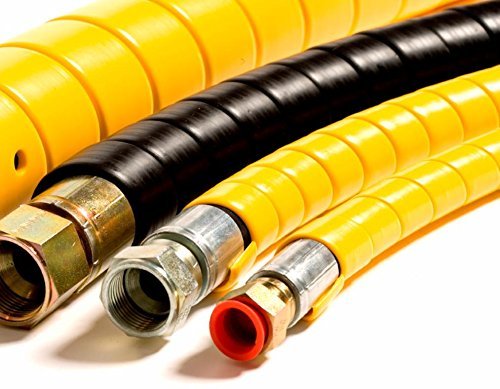

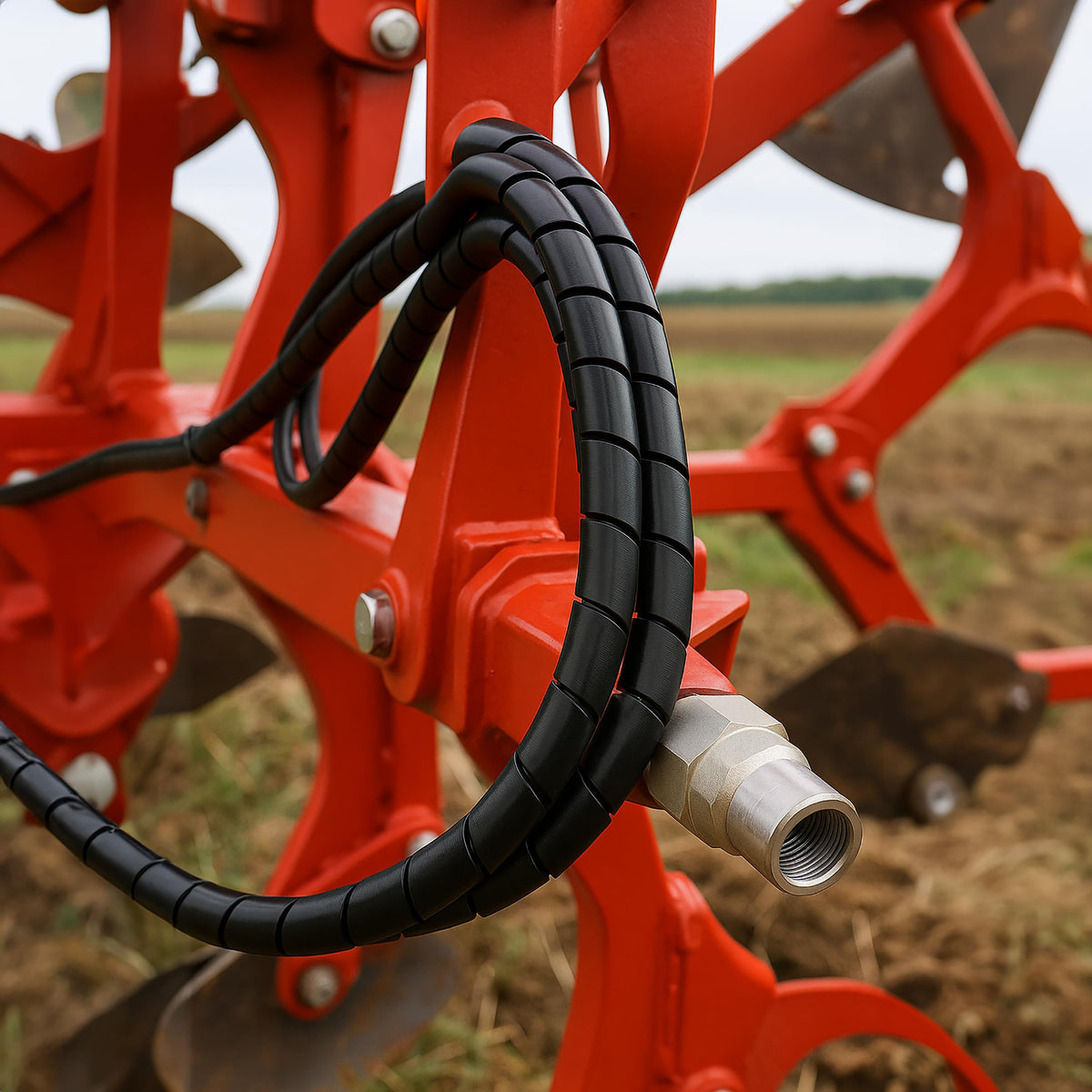

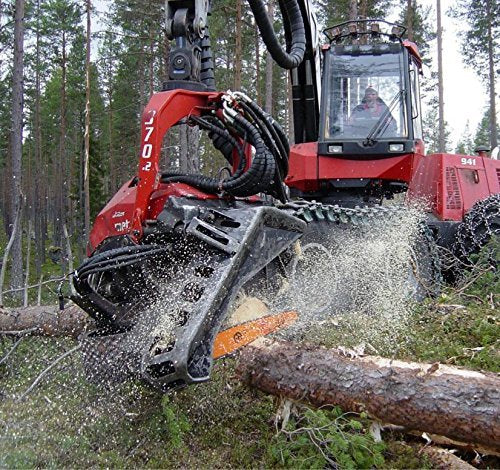

• Common uses: hydraulic hoses, cable looms, marine wiring, heavy equipment

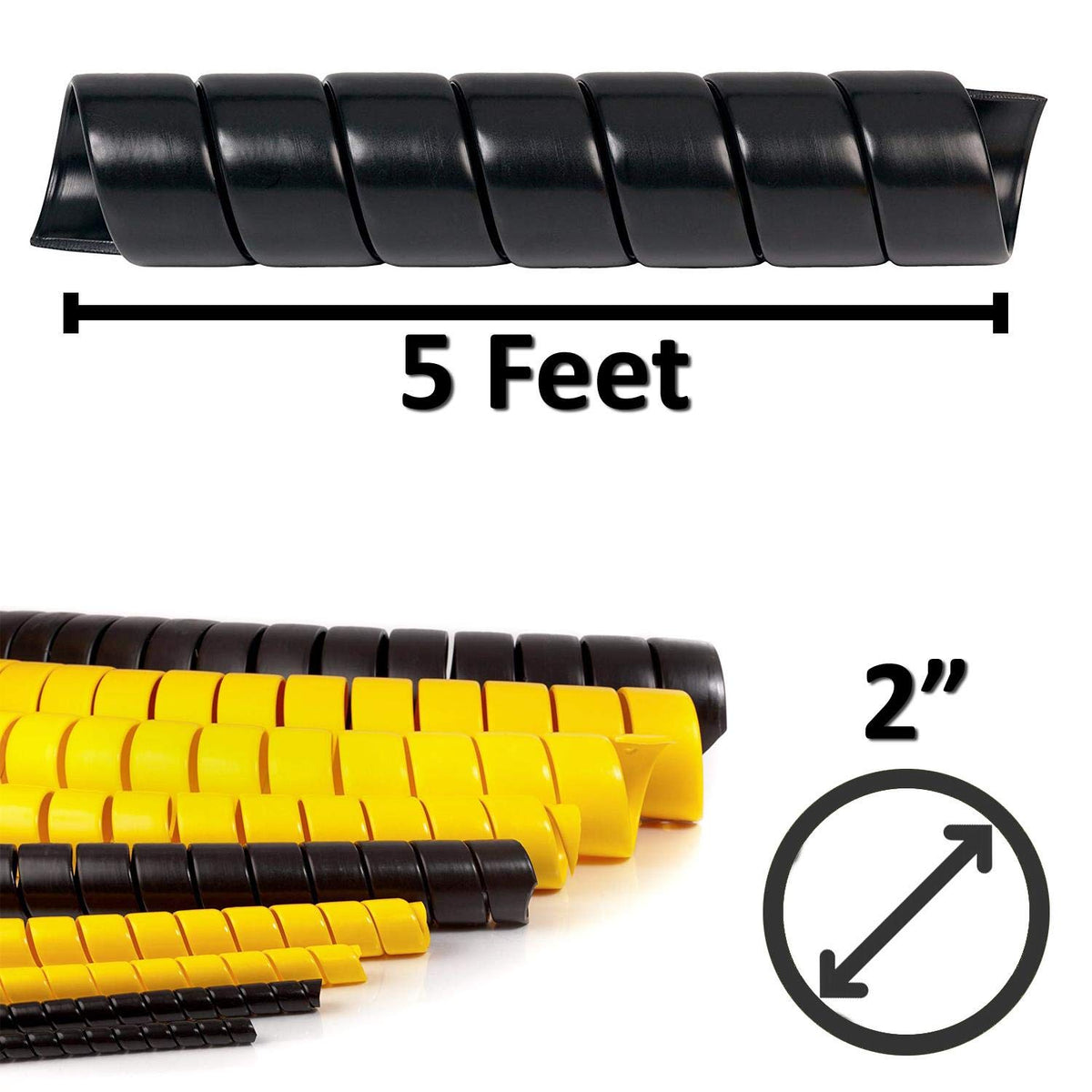

• Length: 5 feet—cut to fit longer runs or multiple sections

How does it perform in extreme conditions?

Electriduct’s HDPE formulation maintains flexibility and strength across a wide temperature span and stands up to environmental stresses. Its RoHS compliance and robust tensile properties make it reliable for long-term outdoor and industrial exposure.

• Operating temperature range: -40°C to +80°C
• UV resistant for prolonged outdoor service
• Chemical and oil resistance for engine bays and industrial floors
• RoHS compliant and designed for demanding mechanical loads

Who is this for: Engineers, fleet technicians, farmers, mariners, and maintenance crews who need a durable, service-friendly way to organize and protect mid-size cable and hose bundles. If you require a flexible protector that installs around existing fittings, resists harsh environments, and is simple to trim or extend, this Electriduct spiral wrap is built for those applications.
