Electriduct 1" Plastic Flanged Wire Guard Raceway - 24.1 ft

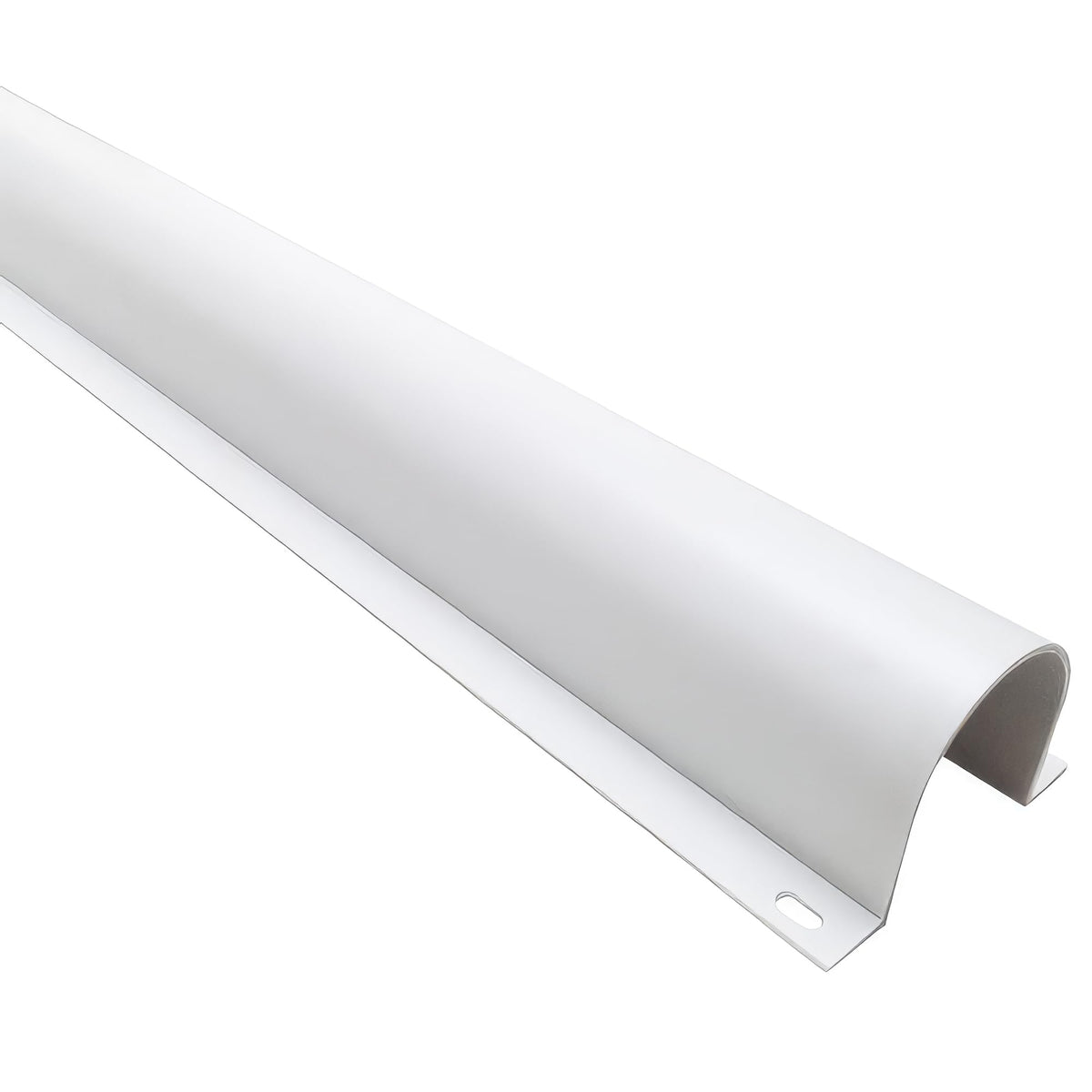

This 5-stick kit delivers 24.1 feet of 1"-wide PVC raceway designed for tidy cable management in residential, commercial, and light industrial spaces. Each stick measures 59 inches and includes a 5/8" pre-drilled flange for fast, secure mounting. The raceway's paintable PVC finish helps it blend with existing décor, while the robust wall thickness and UL 94-V0 rating give durable performance and flame resistance where code or safety standards apply.

How does this raceway keep cables organized and protected?

The enclosed 1" channel conceals power, network, and audio/video wiring to reduce tripping hazards and present a cleaner appearance. The rigid PVC construction resists impact and shields wiring from accidental contact and environmental exposure when used outdoors or in warehouses.

• 1" internal width and 1" height accommodate multiple low-voltage and some low-profile power cables
• 0.07" wall thickness for structural rigidity and cable protection
• Enclosed design prevents dust and snagging

How do I mount and cut the Electriduct raceway?

Installation is straightforward: measure and cut each 59" stick to length with a standard handsaw, then secure with screws through the pre-drilled flange. The 5/8" flange simplifies alignment and provides a wide surface for fastening to drywall, wood, or masonry using appropriate anchors.

• Pre-drilled flange holes sized 1.375" x 0.25" for easy screw placement
• Can be cut with a common hand saw—no specialty tools required
• Paintable PVC lets you match the raceway to surrounding wall color after installation

Is this product suitable for outdoor or commercial use?

Yes—this Electriduct raceway is built to perform outside and in active commercial environments when installed correctly. The PVC material is specified for outdoor exposures and industrial areas, and the UL 94-V0 flame-retardant rating supports safer use where fire-resistance properties are important.

• UV-resistant PVC construction for exterior routing (verify local conditions)
• Flame retardant: UL 94-V0 classification
• Designed for warehouses, building exteriors, offices, and residential installations

What capacity and layout options does the 5-stick set provide?

The pack includes five 59" sticks—totaling 24.1 feet—to handle medium-length runs or multiple routes with joints at corners and intersections. The 1" channel is compact for discreet installations while still accommodating grouped low-voltage cables and some slim power cords.

• Five sticks per order—each 59" long (total 24.1 ft) for flexible routing
• 1" x 1" internal channel dimensions for tidy multi-cable runs
• Use additional accessories or multiple packs for longer continuous runs

Who is this for: Installers, electricians, facility managers, and DIY homeowners who need a reliable, paintable raceway for neat cable routing across walls, exteriors, warehouses, and commercial areas. Electriduct's flanged design speeds mounting and provides a finished look while the UL 94-V0 PVC construction addresses durability and flame-retardant needs.
