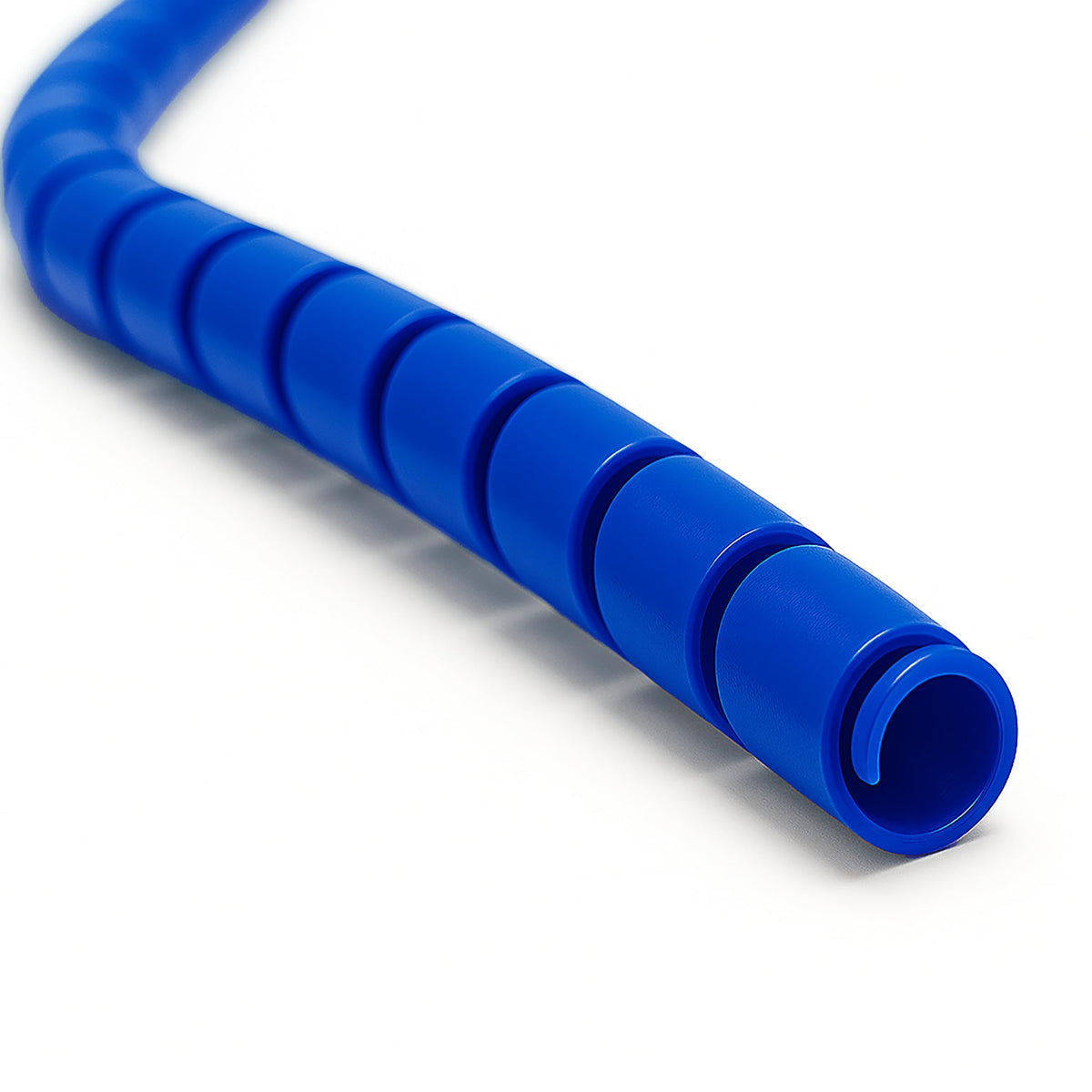

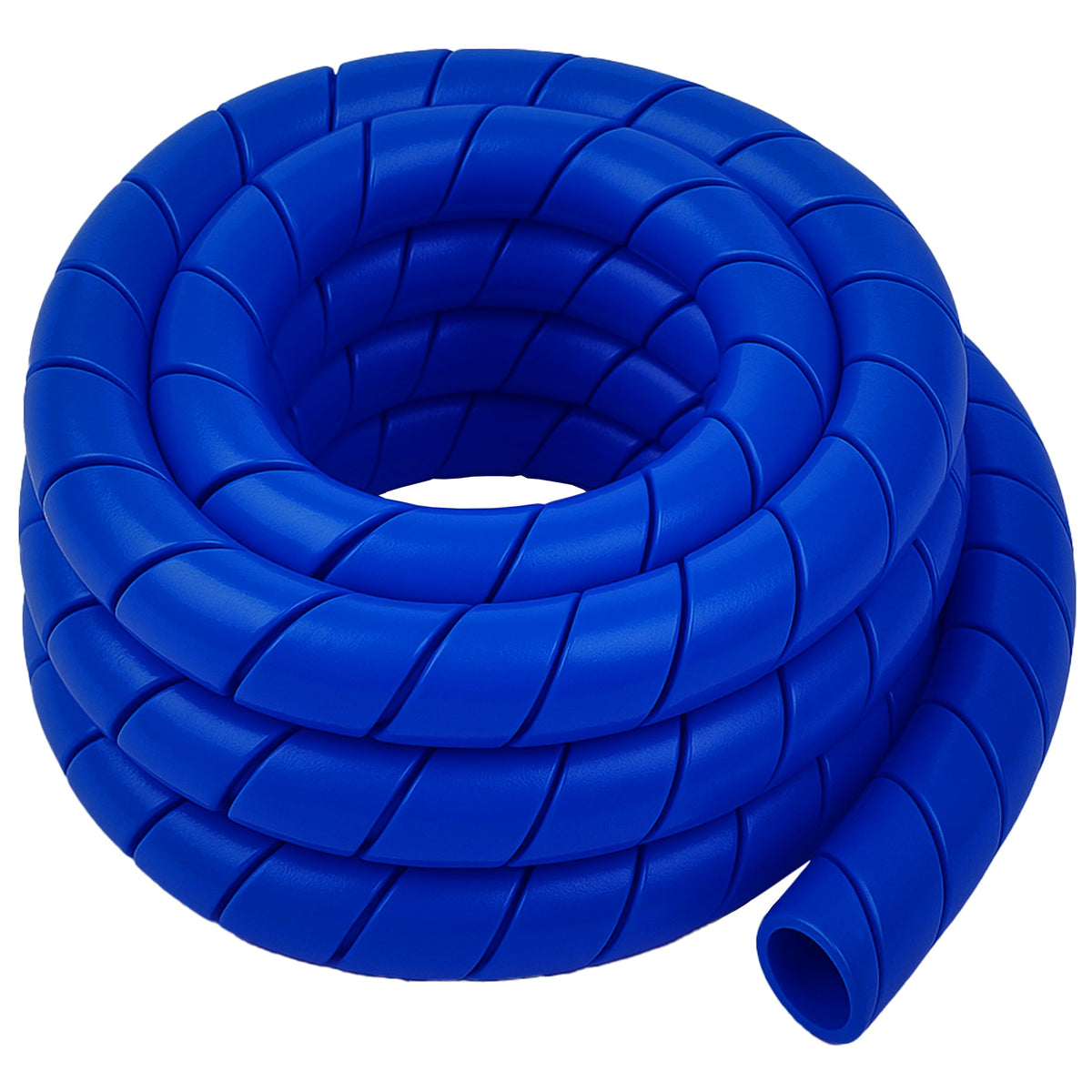

Electriduct 1" Heavy Duty Spiral Cable Wrap 10ft Blue

Electriduct 1 inch Heavy Duty Spiral Wrap is a 10-foot blue HDPE cable sleeve that bundles and protects hoses, cables and cords without disconnecting connectors.

Keep wiring and hoses neat, protected and easy to service with this flexible spiral sleeve made from high-density polyethylene (HDPE). Designed for industrial, automotive, marine and agricultural use, the wrap resists oil, UV, abrasion and many chemicals while operating from -40°C to +80°C. Its nominal 1" size fits bundles between 0.75" and 1.06" and installs quickly by spiraling around cables—no need to unplug or reroute ends.

How does the spiral design simplify installation and maintenance?

The spiral profile lets you feed the sleeve around existing wiring or hoses without disconnecting connectors or terminating lines. You can add or remove individual cables from the bundle at any point and rewrap quickly to accommodate changes.

• Wraps around connectors and junctions for retrofit applications
• Allows incremental entry and exit of cables without cutting
• Rewinds or expands easily for service access

Will this sleeve withstand outdoor and industrial environments?

Yes — the HDPE construction is formulated for durability in demanding settings. It’s UV-resistant and designed to resist oils, many chemicals and abrasion, making it suitable where exposure and wear are common.

• Operating temperature range: -40°C to +80°C
• RoHS compliant material with flame-retardant behavior
• Tensile strength ~25 MPa for mechanical durability

What sizes and cable bundles does the 1" Electriduct handle?

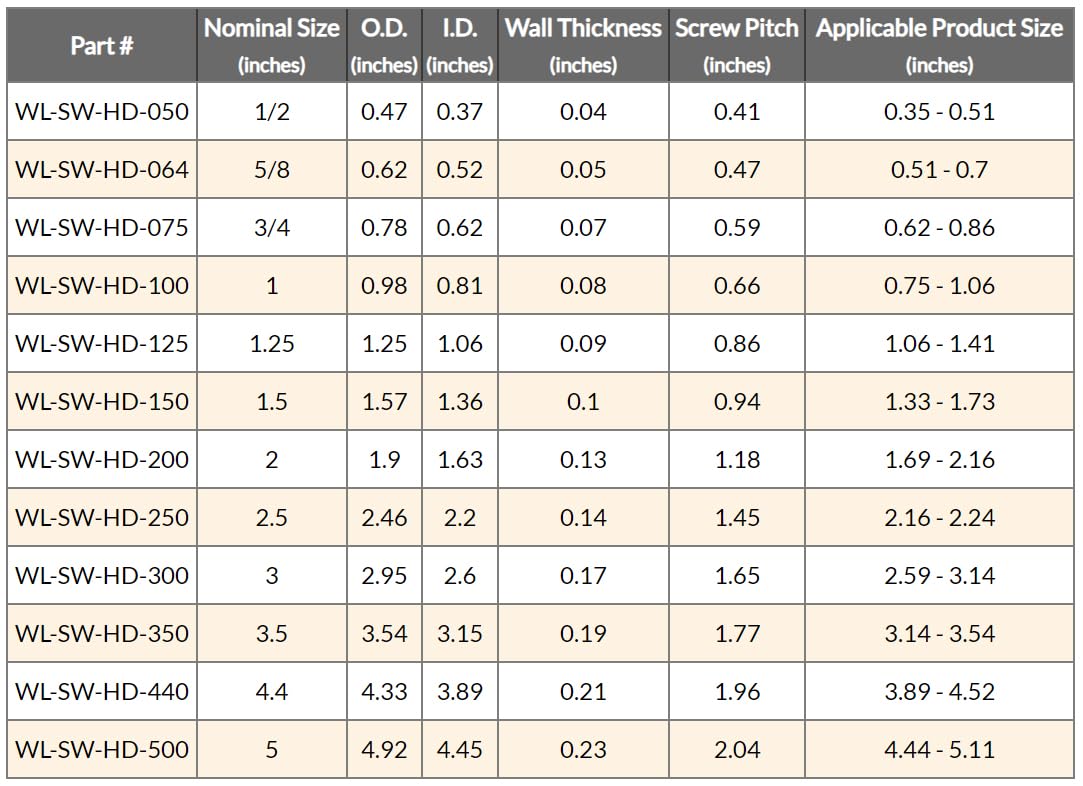

The listed nominal size is 1" with an outside diameter of 0.98" and inside diameter of 0.81". It’s intended for bundle diameters from about 0.75" up to 1.06", so it’s ideal for single hoses, small harnesses or grouped cords.

• Nominal size: 1", wall thickness 0.08"
• Recommended product use range: 0.75"–1.06" bundle diameter
• Supplied in a 10-foot continuous length for runs or multiple segments

How can I use this Electriduct wrap across different applications?

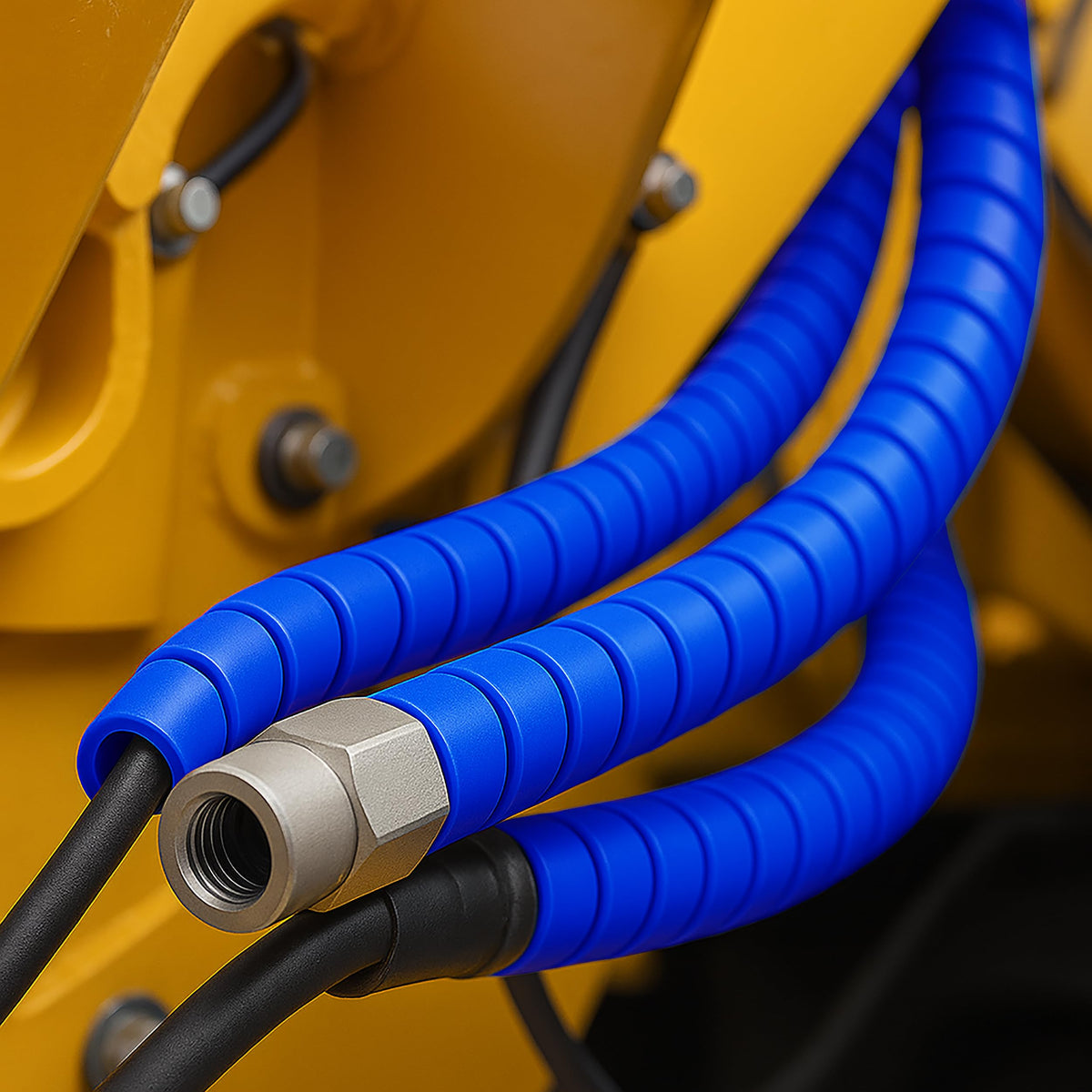

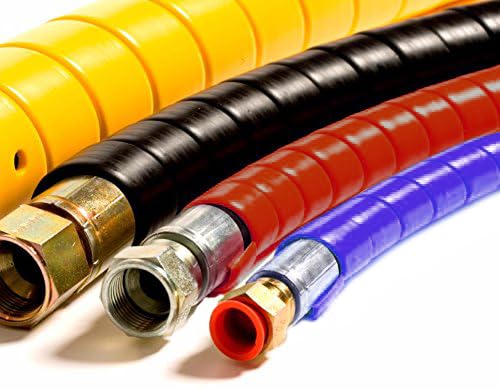

The flexibility and protective properties make it a multi-purpose solution. Use it to organize wire looms in vehicles, protect hydraulic hoses on farm equipment, route marine cords out of chafe zones, or tidy data and power runs in industrial machinery.

• Automotive: protect engine bay harnesses and routing points
• Industrial and mining: bundle power and control lines against abrasion
• Marine and farming: shield hoses and cables from oil, dirt and UV

Who this is for: Engineers, mechanics, fleet managers, electricians and DIYers who need a robust, easy-to-install sleeve for protecting and organizing small to medium cable and hose bundles. If you want a 10-foot, reusable HDPE spiral wrap that handles outdoor exposure and service access without disconnecting ends, this Electriduct solution is built for that purpose.
