DS18 ZXI-T1 1.7" PEI Dome Car Tweeter 4Ω 92dB

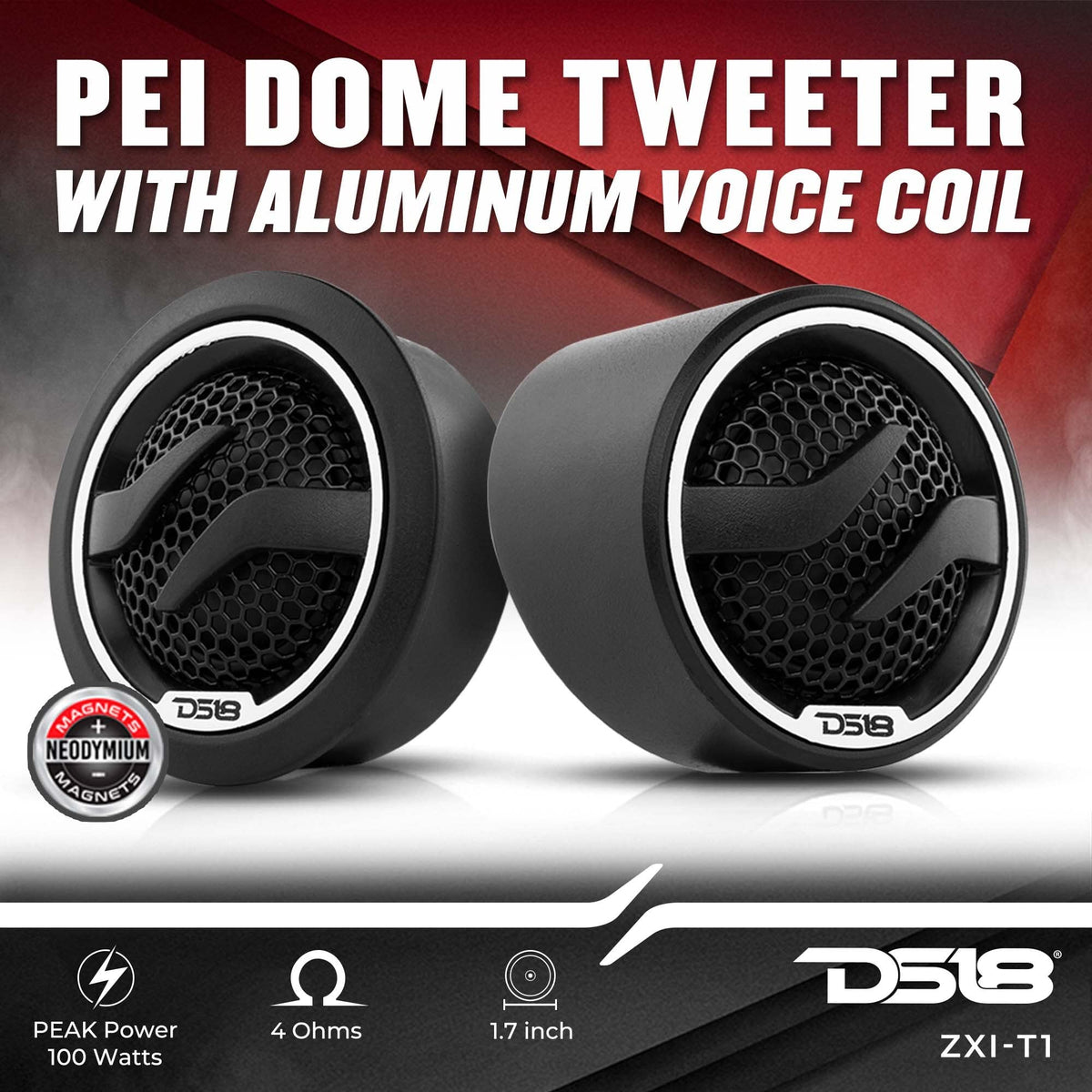

DS18 ZXI-T1 is a compact 1.7" PEI dome car audio tweeter built for loud, clear high frequencies with a 1" aluminum voice coil and up to 100 watts peak power.

The ZXI-T1 tweeter by DS18 brings focused high-frequency detail to car audio systems without demanding a large amplifier. Its PEI diaphragm and 1" aluminum voice coil deliver crisp treble with 92 dB sensitivity, while the neodymium motor keeps the driver light and responsive. With multiple mounting adapters included, these tweeters fit a variety of installations — from surface mounting on a dash or pillar to a recessed flush mount — making them a practical upgrade for both OEM and aftermarket systems.

How will these tweeters improve my car's soundstage?

These tweeters sharpen the upper frequencies so vocals, cymbals, and harmonics are clearer and more defined. The high 92 dB sensitivity and PEI dome material emphasize presence without muddying midrange frequencies. Properly crossed over at the recommended 3.5 kHz, they integrate cleanly with midrange speakers for a more precise stereo image.

• PEI dome for crisp, detailed highs
• 92 dB sensitivity improves perceived loudness from low power
• Recommended 3.5 kHz high-pass crossover for smooth blending
• Neodymium magnet for tight transient response

Can I run these tweeters from a factory radio or do I need an amp?

The ZXI-T1 can work on many factory radios thanks to its 92 dB sensitivity and modest AES power rating. For louder volumes or more headroom, a small aftermarket amp or using your head unit’s high-output channels will maximize dynamics. The tweeter’s AES rating of 25 W and 50 W program power gives you flexibility without necessarily requiring a high-power amp.

• AES power handling: 25 W, Program: 50 W, Peak: 100 W
• High sensitivity reduces dependence on large amplifiers
• Compatible with factory crossovers or simple high-pass networks
• Useful for both stock and upgraded head units

What mounting options and physical sizes should I know about?

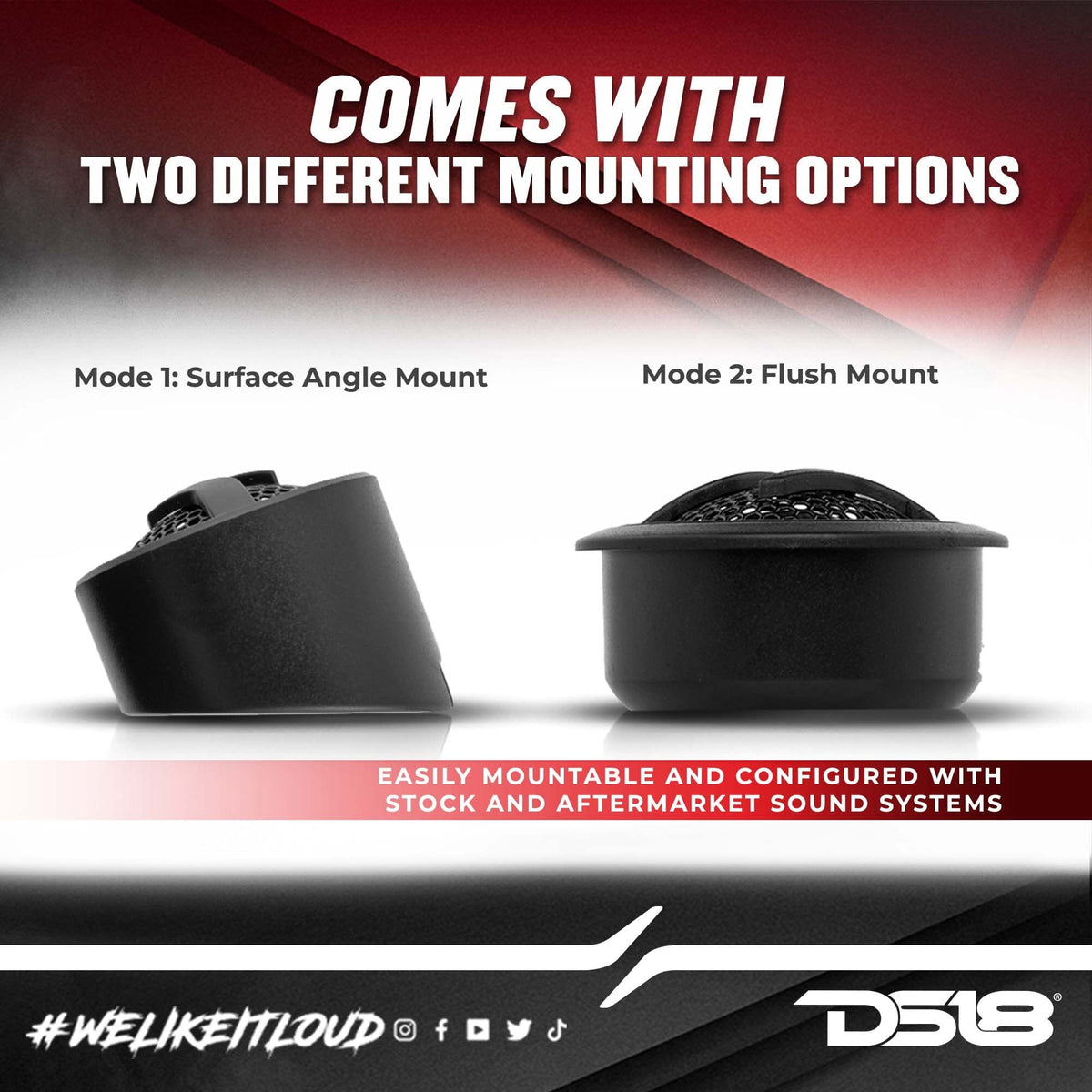

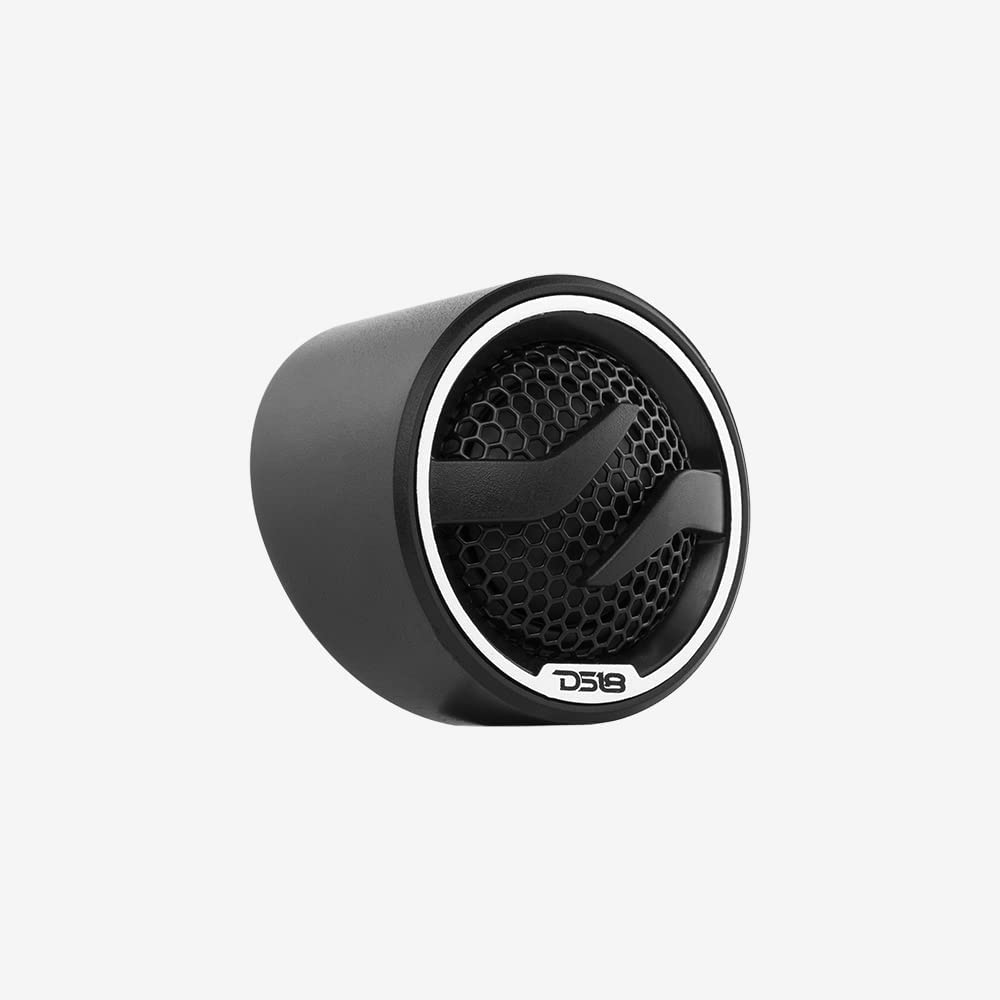

DS18 supplies adapters for both angle surface and flush mounting so you can position the tweeter for optimal imaging. The tweeter without adapters measures 1.71" diameter and 1" height, while with adapters the overall diameters and depths change to suit different installation spaces. Shallow mounting depth makes these suitable for tight door pillars or dash corners.

• Tweeter without adapter: 1.71" diameter, 1" height

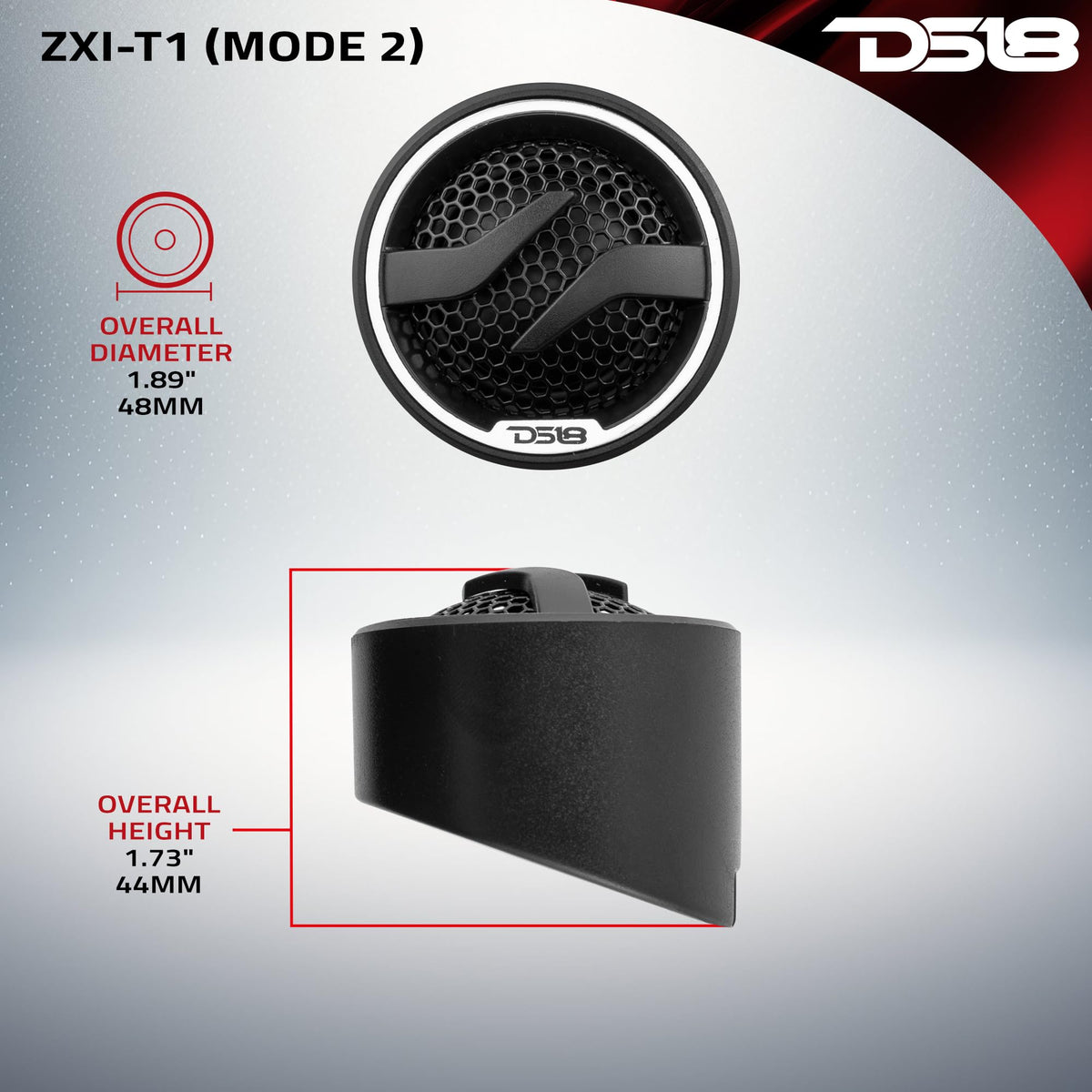

• Surface mount adapter overall diameter: 1.89"; height 1.73"

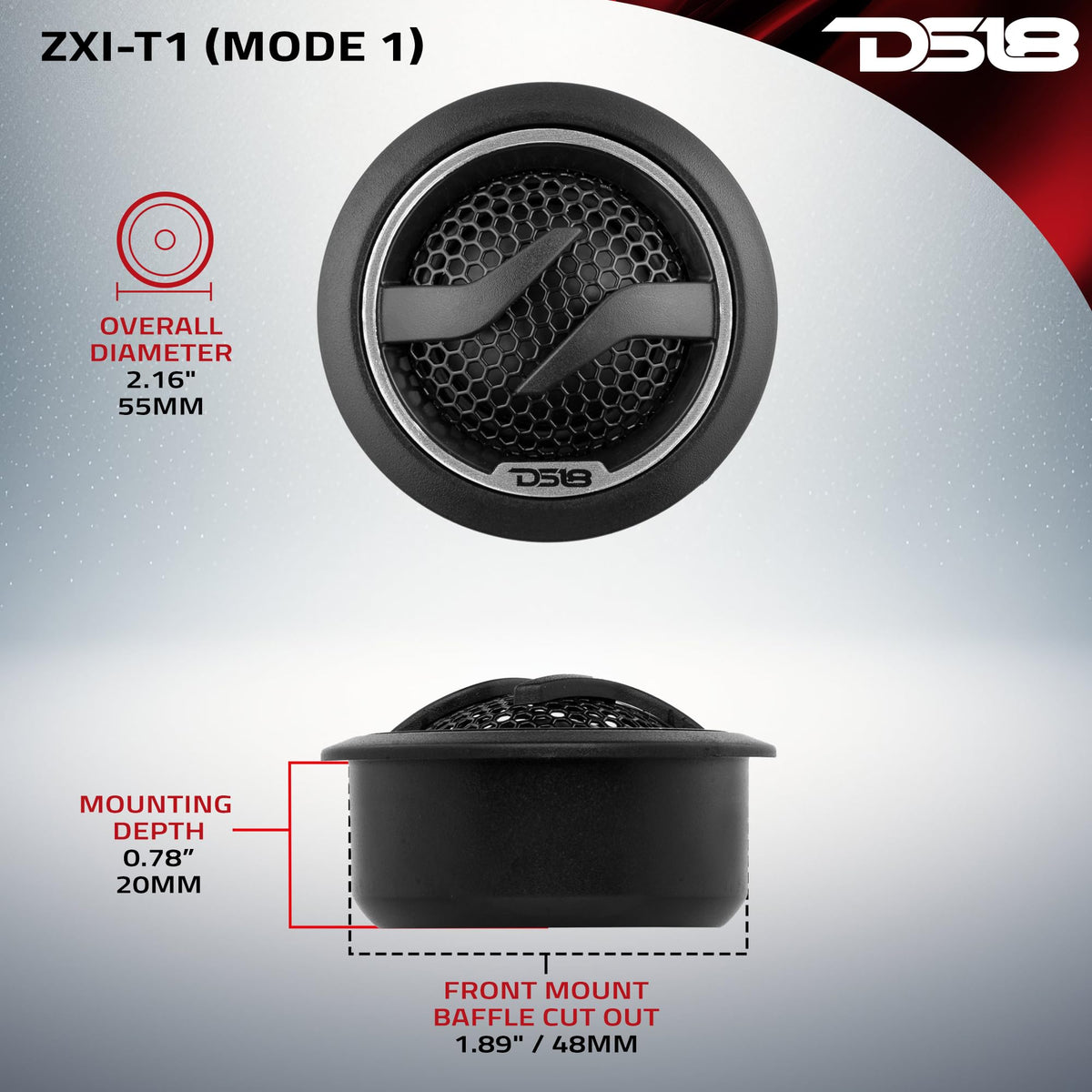

• Flush mount adapter overall diameter: 2.16"; depth 1.18"
• Mounting depth: 0.78" for constrained spaces

What technical specs matter for performance and compatibility?

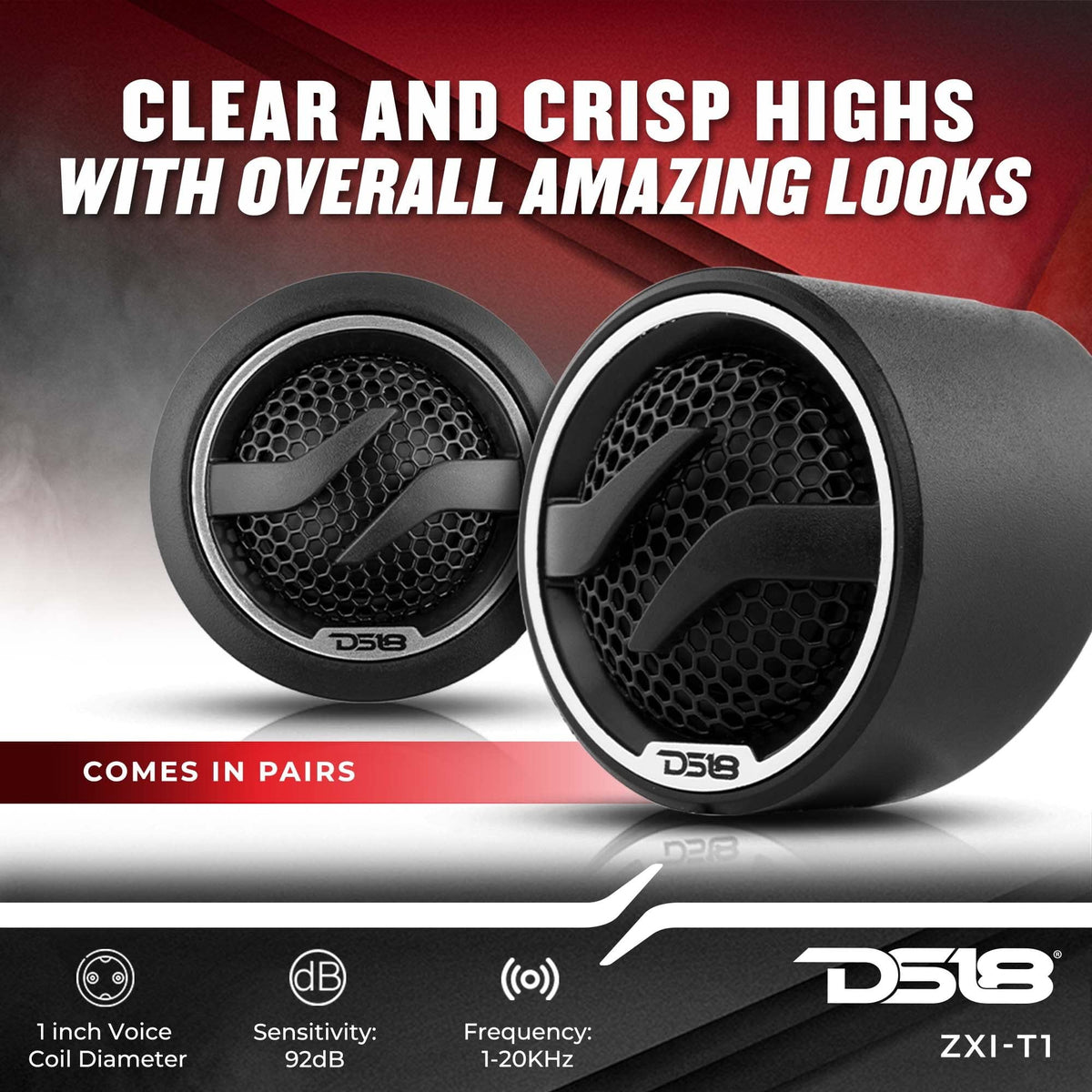

Key specs include a 4-ohm impedance, a 1" aluminum voice coil, and frequency response from 1 kHz to 20 kHz. The neodymium magnet keeps weight low (13 g) and enables quick transient response. Sensitivity of 92 dB at 1 W/1 m makes the tweeter efficient and able to deliver clear highs even at moderate power.

• Impedance: 4 ohms for broad compatibility
• Voice coil: 1" aluminum for durability and thermal handling
• Frequency response: 1 kHz–20 kHz for comprehensive high-end coverage
• Neodymium magnet: strong, lightweight motor

Who is this for? The DS18 ZXI-T1 is aimed at car audio enthusiasts who want a compact high-frequency driver that delivers pronounced, articulate treble without complicated installation. It suits builders upgrading factory systems, DIY installers upgrading component sets, and anyone seeking clearer highs with modest power demands. If you need a durable, high-sensitivity tweeter that integrates with common crossovers and fits tight mounting positions, the ZXI-T1 is a practical choice.
