DS18 8" Speaker Grill Ring RGB Acrylic Seal

DS18 LRING8 is an 8-inch acrylic RGB LED speaker ring designed to mount between an 8" speaker flange and enclosure, providing sealed, marine-ready accent lighting with millions of color options when paired with an RGB controller.

The LRING8 adds customizable LED illumination to any compatible 8" speaker installation. Built from durable acrylic with a soft surround seal and pre-drilled mounting holes, this ring is intended to sit between the speaker flange and mounting surface so the LED element stays protected. It’s compatible with DS18 RGB controllers (sold separately) for color and pattern control or can be used as a single-color accent when wired accordingly. Check the ring’s exact dimensions before purchase to ensure a correct fit for your speaker and enclosure.

Will the LRING8 fit my 8" speaker and mounting hole?

The LRING8 is made to fit most 8" speakers, but measuring your speaker flange and cutout is essential. The ring’s outside and inside diameters plus the pre-drilled bolt circle determine compatibility.

• Outside diameter: 8.25" (222.3 mm)
• Inside diameter: 7.00" (177.8 mm)
• Pre-drilled holes diameter (bolt circle): 7.75" (196.85 mm)
• Thickness: 0.55" (13.97 mm) and a soft surround for watertight sealing

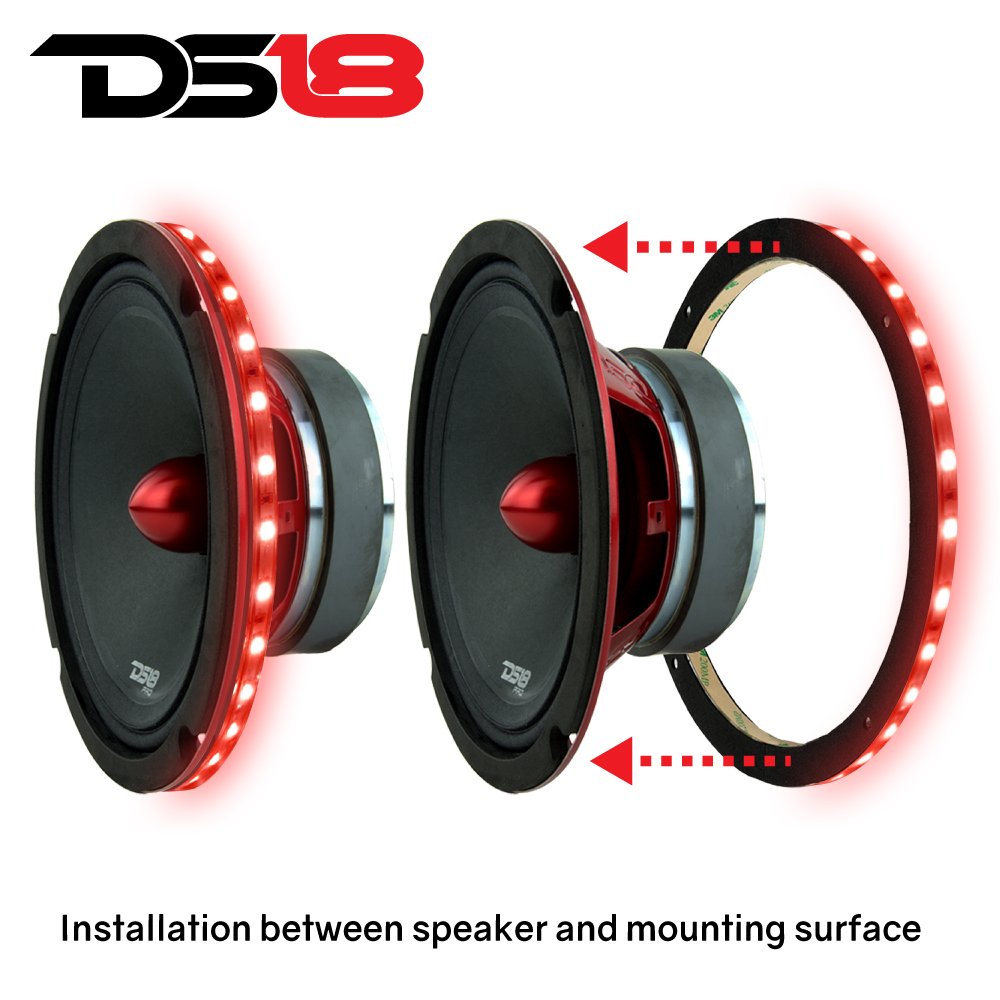

How does installation work and how watertight is it?

Installation is straightforward: place the LRING8 between the speaker flange and the mounting surface, aligning the pre-drilled holes, then secure the speaker. A compliant soft surround maintains a watertight seal when installed properly, keeping moisture and spray out of the LED cavity.

• Pre-drilled holes for fast alignment and mounting
• Soft perimeter seal for marine and off-road protection when correctly installed
• Compact 0.55" thickness fits typical speaker mounting depths
• Designed to be protected by the speaker flange once fastened

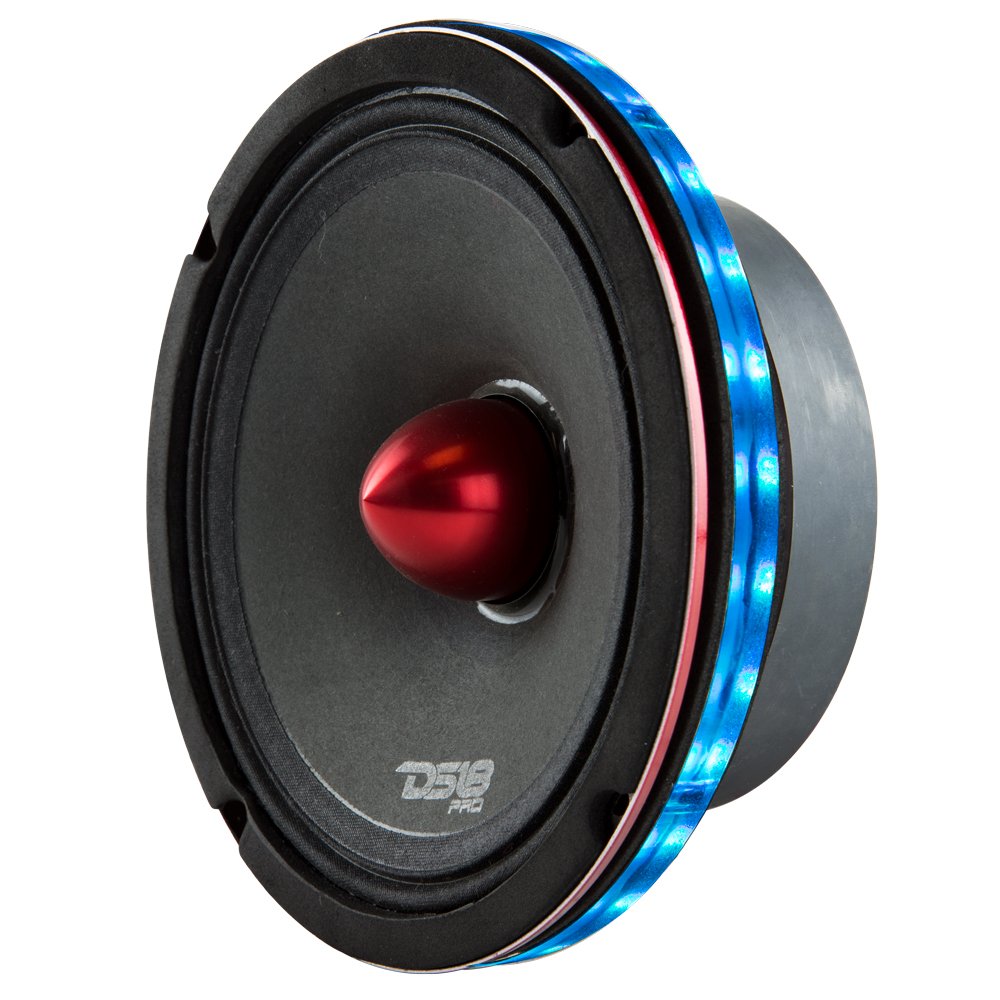

What lighting control options and effects can I get?

The LRING8 itself is an RGB acrylic ring that requires a compatible controller to access full-color and dynamic effects. Using the DS18 LED-BTC RGB module (sold separately) or similar controllers unlocks millions of colors, pattern syncing, and music-reactive modes for environments like boats, cars, or home audio systems.

• Works with DS18 LED-BTC RGB controller for color and pattern control
• Choose a single fixed color or enable multi-color, pulsing, and music-sync modes
• Smartphone-friendly control available with compatible modules

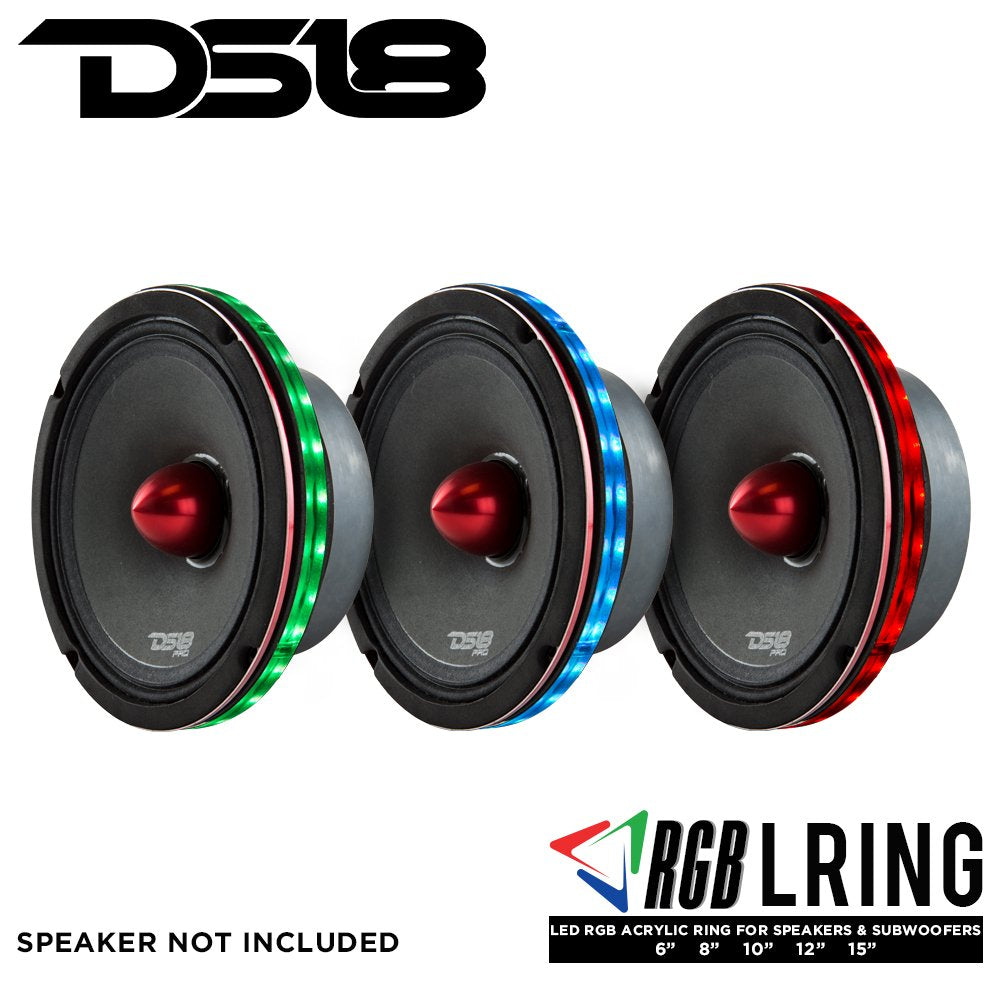

• Mix and match sizes (6.5", 8", 10", 12") for a coordinated system look

What materials and durability features does it have?

The ring is molded from high-quality acrylic with a sealed LED channel and a flexible surround to resist corrosion and water ingress when mounted correctly. Its build quality is aimed at marine and off-road use, providing long-lasting visual enhancement in harsh environments.

• Acrylic construction for clear illumination and toughness
• Sealed LED housing to reduce moisture exposure
• Soft sealing edge prevents chafing and maintains watertight contact
• Pre-drilled for consistent, repeatable installs

Who is this for? Installers, boat and marine owners, automotive audio enthusiasts, and custom home or commercial audio integrators who want an easy-to-fit LED accent for 8" speakers. If you need customizable RGB lighting with a marine-capable seal and simple installation, the DS18 LRING8 is a compact upgrade to give speakers a professional, illuminated finish. Always verify measurements and pair with a compatible RGB controller to access the full spectrum of lighting effects.
