DS18 6.5" Midrange Loudspeaker PRO-GM6B — Red Aluminum Bullet, 140W RMS, 8Ω, Clear Vocal Midband

The DS18 PRO-GM6B is a 6.5" midrange loudspeaker built to deliver clear, powerful midband audio for car and truck sound systems.

Designed as a dedicated midrange driver, the PRO-GM6B focuses on the central portion of the audible spectrum where vocals and many instruments live. Its robust construction — including a 1.5" Kapton voice coil, ferrite magnet, and cloth surround — is engineered to tolerate sustained use in automotive environments. With an 8-ohm impedance and 140W RMS power handling, this single-speaker upgrade is intended to improve clarity and presence when replacing or complementing factory door speakers.

How does the PRO-GM6B improve vocals and instruments?

The speaker emphasizes the mid frequencies, producing a more articulated presentation of voices and midrange instruments. That focus reduces muddiness and helps each layer of a mix sit cleaner in the soundstage without boosting highs or lows unnaturally.

• Frequency response 160–10,000 Hz concentrates on the critical midrange.
• 94 dB sensitivity for efficient output from limited amplifier power.
• Paper cone tuned for natural mid tone and controlled breakup.

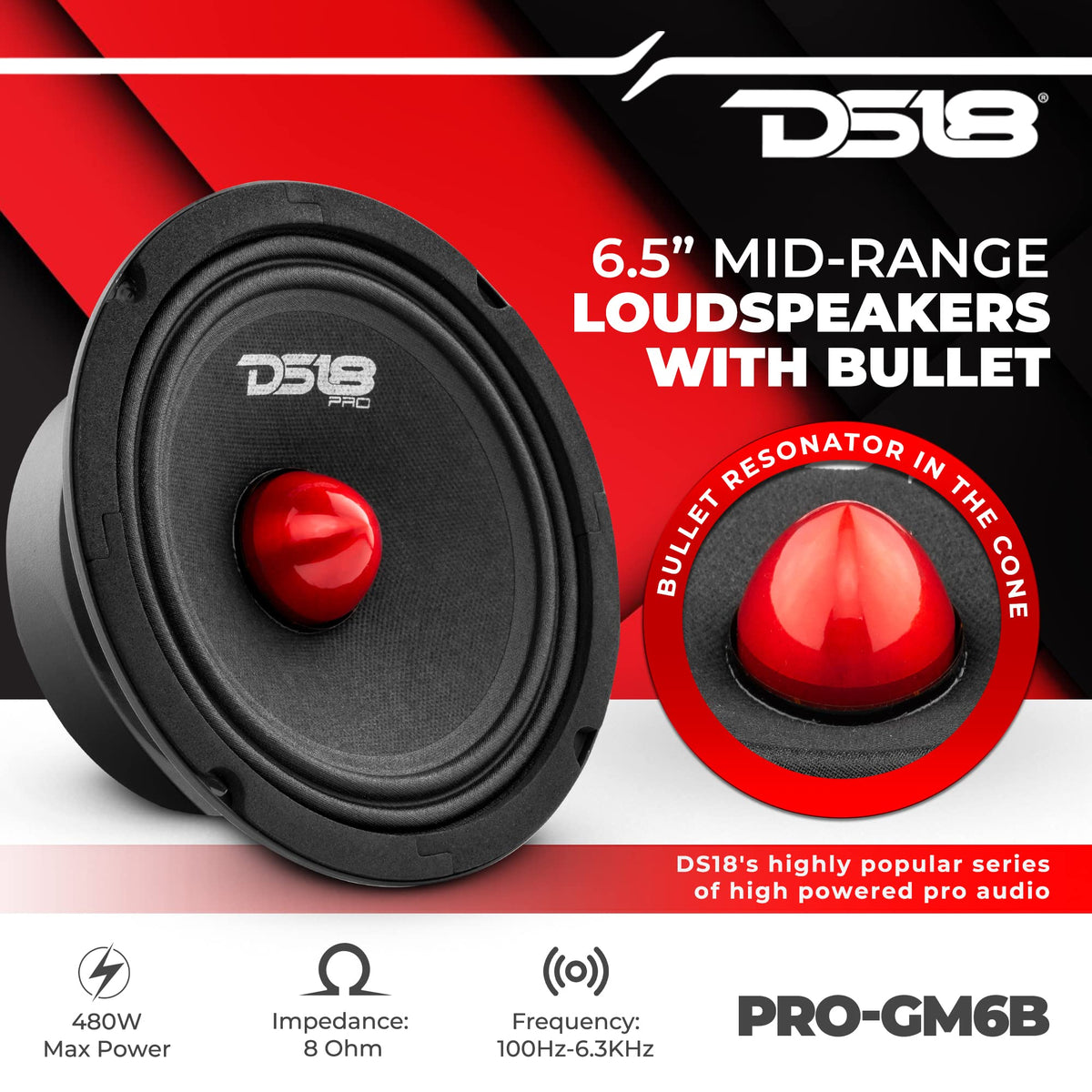

• Red aluminum bullet phase plug for smoother midband dispersion.

What power and wiring should I use with this 8-ohm speaker?

The PRO-GM6B is rated 140W RMS and 480W maximum at 8 ohms; pair it with an amplifier or head unit capable of supplying consistent power in that range for best results. Use an amplifier channel matched to 8 ohms and avoid clipping — clean power yields clearer mids and protects the Kapton voice coil.

• Recommended continuous power: up to 140W RMS per speaker.
• Peak capacity: manageable short-term peaks up to 480W.
• Impedance: 8 ohm nominal — wire accordingly or use compatible crossover networks.
• Mounting depth 69 mm and 145 mm cut-out for proper installation space.

What are the build details and why do they matter?

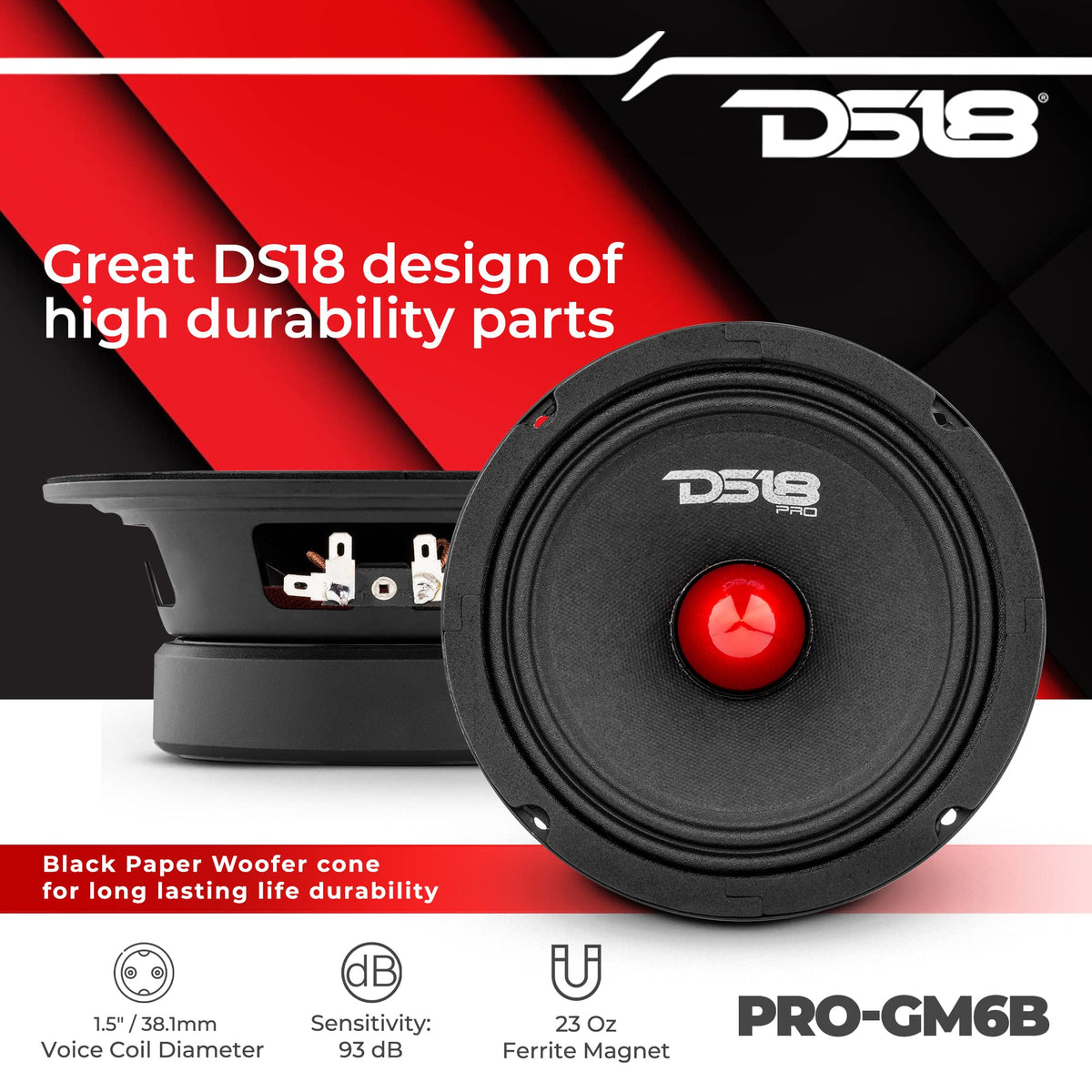

Materials and geometry affect durability and sound. The PRO-GM6B uses a ferrite magnet, a stamped steel basket, a treated paper cone, and a high-temp Kapton voice coil — each chosen for long-term stability in an automotive setting.

• 1.5" Kapton voice coil for heat resistance and longevity.
• 23 oz ferrite magnet for consistent magnetic drive.
• Cloth surround for controlled cone movement and reduced resonances.
• Stamped steel basket for a rigid mounting platform.

How easy is it to install in doors or custom pods?

The speaker's 145 mm cut-out and 69 mm mounting depth match common 6.5" openings, making it suitable for many factory door locations and aftermarket pods. Check clearance for the red bullet phase plug and ensure proper grilles or adapters are used to avoid rubbing.

• Mounting depth: 69 mm (2.72") for typical door cavities.
• Cut-out diameter: 145 mm (5.7") fits most 6.5" locations.
• Single-speaker SKU simplifies upgrades one door at a time.
• Works well with passive crossovers when integrating with tweeters/subwoofers.

Who is this for? The DS18 PRO-GM6B is aimed at car and truck audio enthusiasts who want to upgrade the midrange performance of their system without a full component set. It's well suited for installers replacing worn factory mid drivers, builders creating vocal-forward systems, and hobbyists seeking a robust, heat-tolerant driver for sustained listening. If you need a focused midrange that balances efficiency, power handling, and durable materials for automotive environments, the PRO-GM6B is a practical option.
