DROK Waterproof DC Buck Converter Voltage Regulator 8-22V

The DROK Waterproof DC Buck Converter is a sealed, adjustable step-down regulator that converts 8–22V input to a stable 3–15V (selectable 5V/12V) output at up to 3A for automotive and hobby electronics.

This compact module combines synchronous rectification and a full-metal waterproof enclosure to deliver efficient, protected voltage regulation for car projects, LED arrays, small motors, radio gear and other 12V systems. Its bottom-mounted potentiometer lets you fine-tune the output without exposing the adjustment to accidental knocks, while the housing doubles as a heatsink to manage thermal load in tight spaces.

How does this regulator perform in a vehicle environment?

The DROK unit is engineered for the demands of automotive use: a robust sealed case resists water, dust and vibration, and multiple built-in protections help it survive real-world conditions. It accepts typical car battery ranges and steps them down cleanly to power accessories without needing large external cooling.

• Wide 8–22V input range suits 12V and 24V systems.
• Waterproof, anti-shock and dust-proof metal enclosure for durability.
• Integrated reversed-connection and over-current safeguards.
• Synchronous rectification for higher conversion efficiency.

How do you set the output voltage and what precision can you expect?

Output is adjusted using the recessed potentiometer located on the bottom of the module; this placement prevents accidental changes after installation. The design requires the input to be at least about 3V higher than the desired output, and the regulator lets you dial in common fixed outputs like 5V or 12V or any voltage between 3V and 15V within limits.

• Bottom-mounted mini screw potentiometer for secure trimming.
• Adjustable output range: 3–15V (with typical selectable stops at 5V and 12V).
• Input must exceed output by ~3V for proper regulation.
• Rated continuous output current up to 3A with proper cooling.

What protections and reliability features are included?

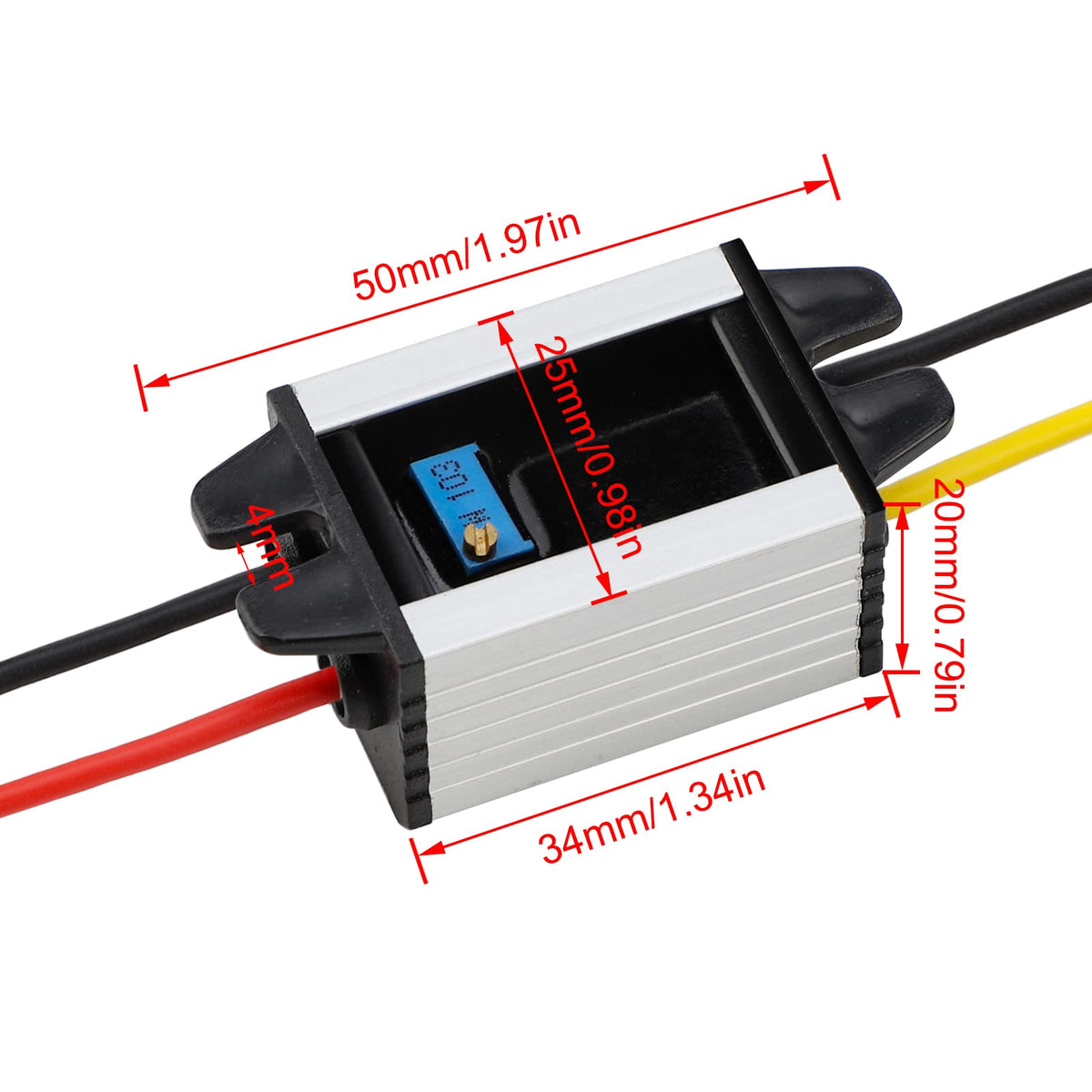

The module includes multiple safety layers to reduce failure risk when wiring mistakes or load faults occur. Thermal management is improved by the outer enclosure acting as a heatsink, while electronic protections shut down or limit operation under unsafe conditions.

• Reverse polarity protection to prevent damage from incorrect wiring.
• Over-current and over-voltage protections for load safety.
• Over-temperature protection to prevent thermal runaway.
• Fully sealed housing for long-term resistance to humidity and dust.

Who is this for? The DROK Waterproof DC Buck Converter is well suited for hobbyists, automotive DIYers, installers of car audio and LED lighting, and anyone who needs a compact, protected step-down power supply in wet or vibration-prone environments. If you are powering microcontrollers, phone chargers, LED strips, small motors or instrumentation from a vehicle battery and require an adjustable, durable regulator with built-in safety features, this module is a practical, space-saving choice.
