DROK 12V 480W Adjustable AC-to-DC Buck Converter

The DROK 12V 480W adjustable AC-to-DC buck converter delivers a stable, variable DC output from 0–12V with up to 40A continuous current for bench, CCTV, automotive and DIY electronics projects.

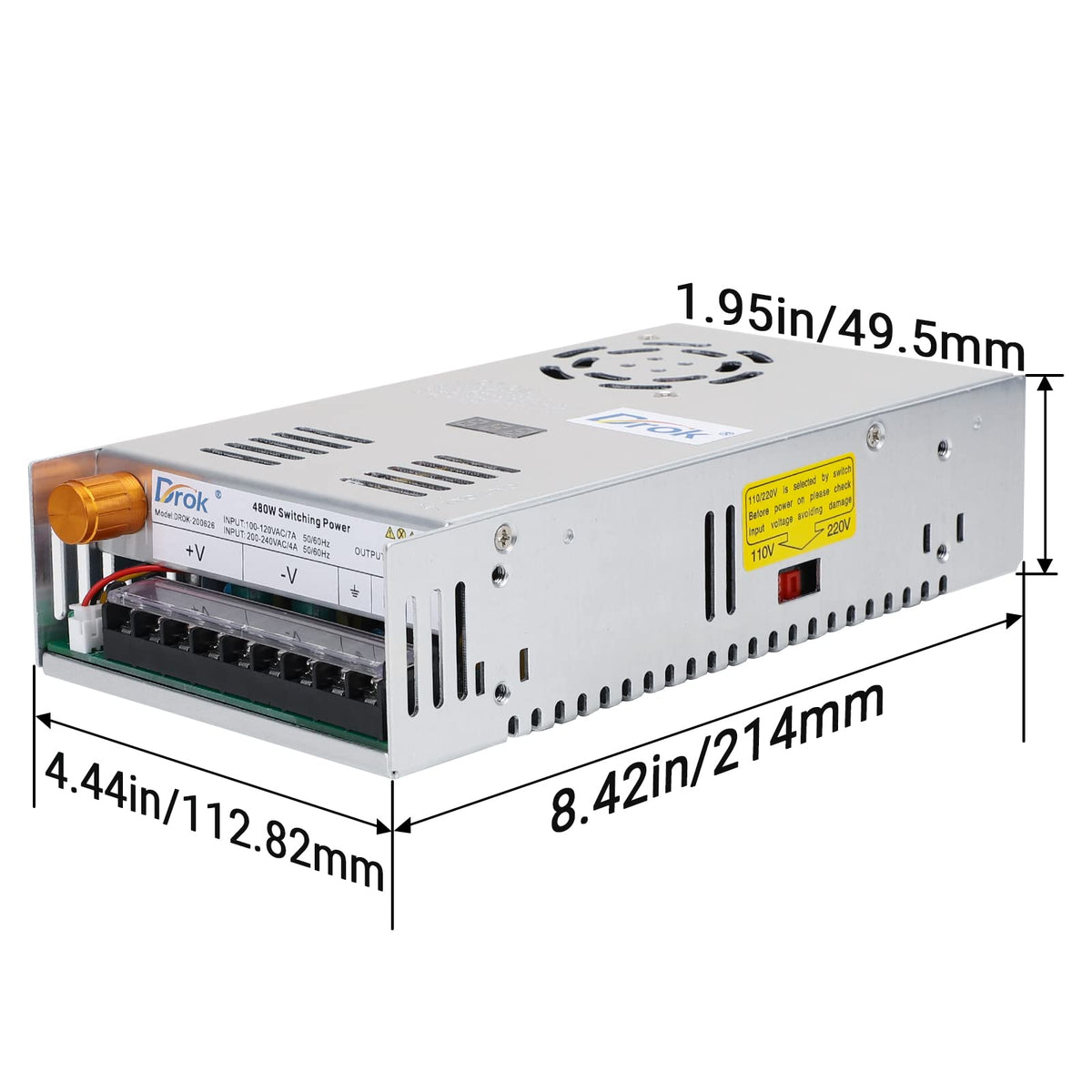

This compact, fan-cooled switching power supply accepts 110–220VAC input (selectable) and converts it to a regulated DC output with 0.1V precision. Built with an LED display, potentiometer control, heat sink and protective circuitry, it’s designed to power devices that require precise low-voltage DC — from single-board computers and LED arrays to motors and CCTV cameras — provided the connected load does not exceed the unit’s 40A limit.

How do I set the correct input voltage so I don’t damage the unit?

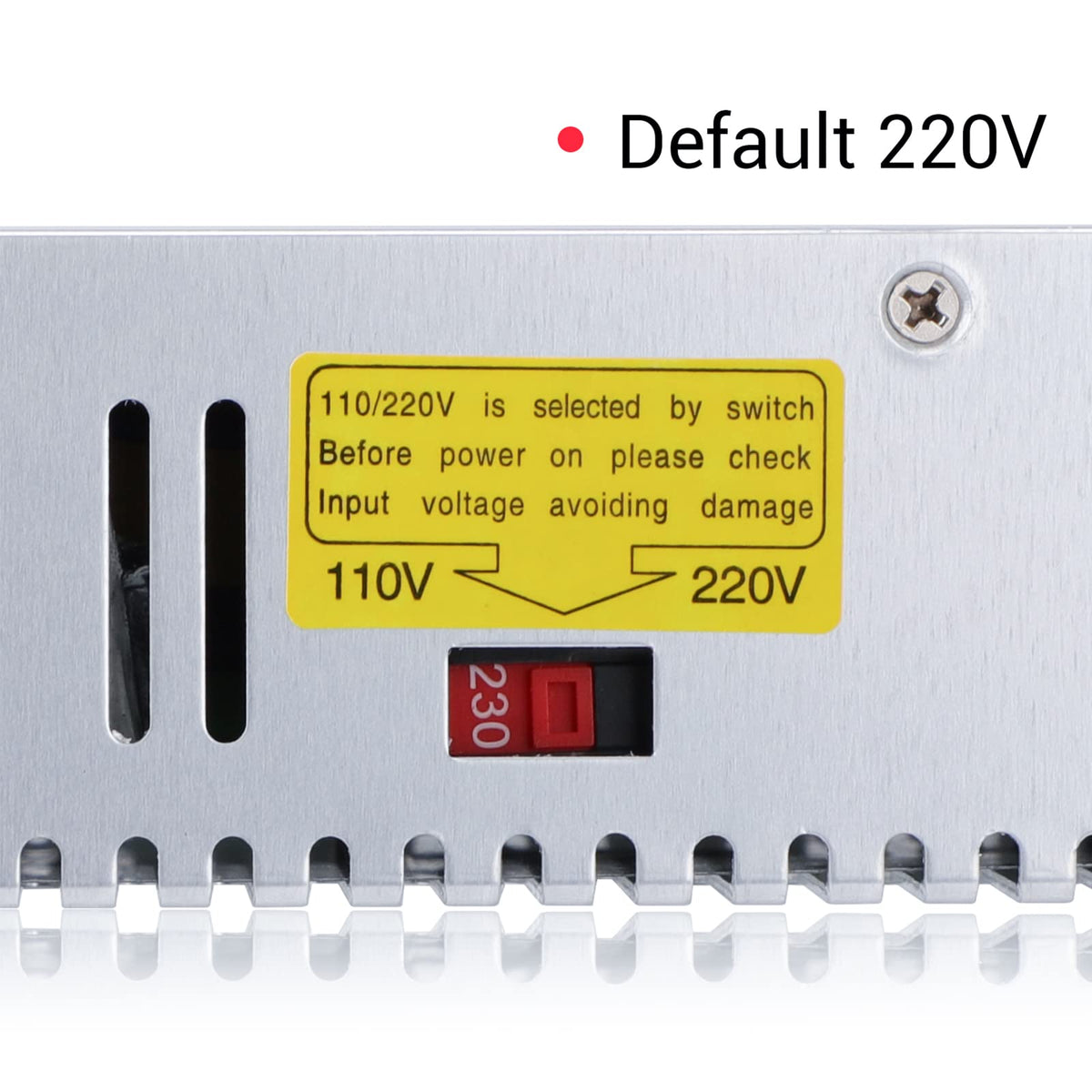

Before connecting to AC mains, identify your local supply and move the input-voltage selector to 110V or 220V accordingly. The selector switch is located on the right side of the enclosure. Failure to switch to the proper input voltage can permanently damage the converter.

• Locate the slide switch on the right side of the case.
• Set to 110V for regions with ~110–120VAC mains; set to 220V for ~220–240VAC mains.
• Confirm wiring: L = live, N = neutral, ⏚ = ground.
• Power on and verify the LED display shows expected output before connecting sensitive equipment.

What protections and cooling features prevent overheating or short circuits?

The DROK unit includes multiple safety layers: a heat sink for passive dissipation, an automatic cooling fan that activates under heavier load, and built-in protections to guard attached devices. These measures reduce thermal stress and help avoid damage from overloads and short circuits.

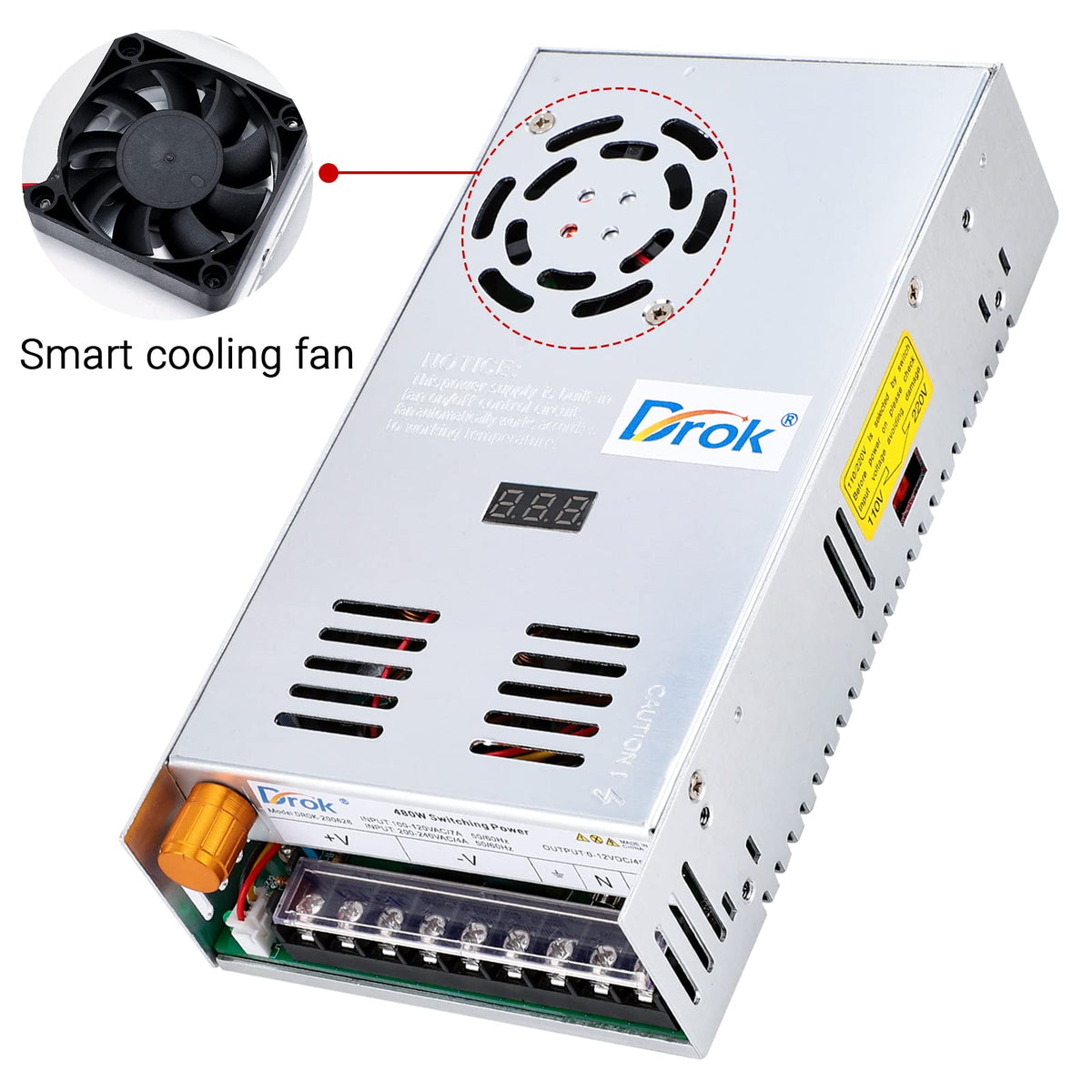

• Thermal control: large aluminum heat sink plus automatic fan activation.
• Electrical safeguards: over-current, over-voltage and short-circuit protection.

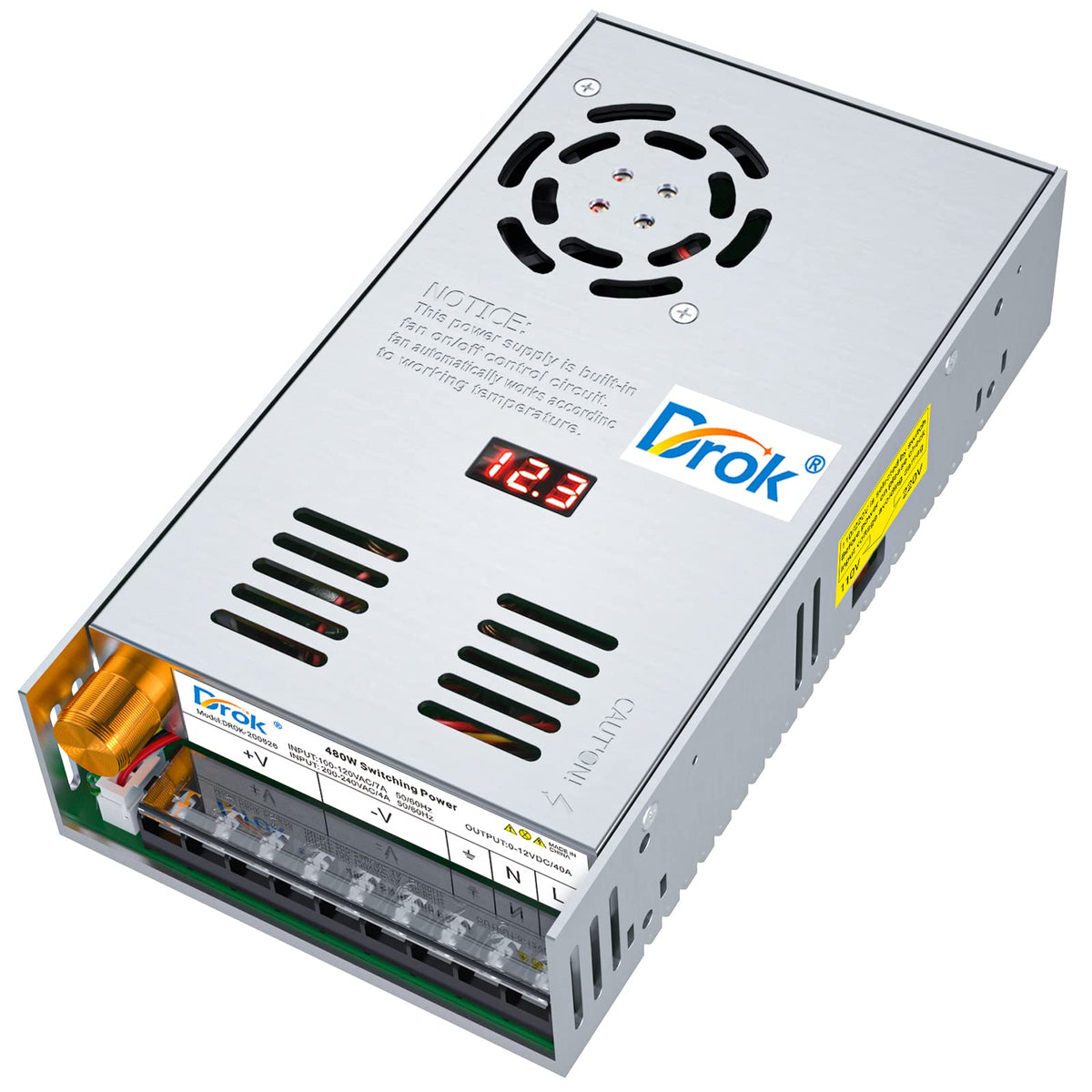

• LED screen provides real-time output monitoring to detect abnormal behavior.
• Note: motors and inductive loads may have high starting currents that require soft-start protection or separate current-limiting measures.

How do I adjust output voltage and what devices can I power?

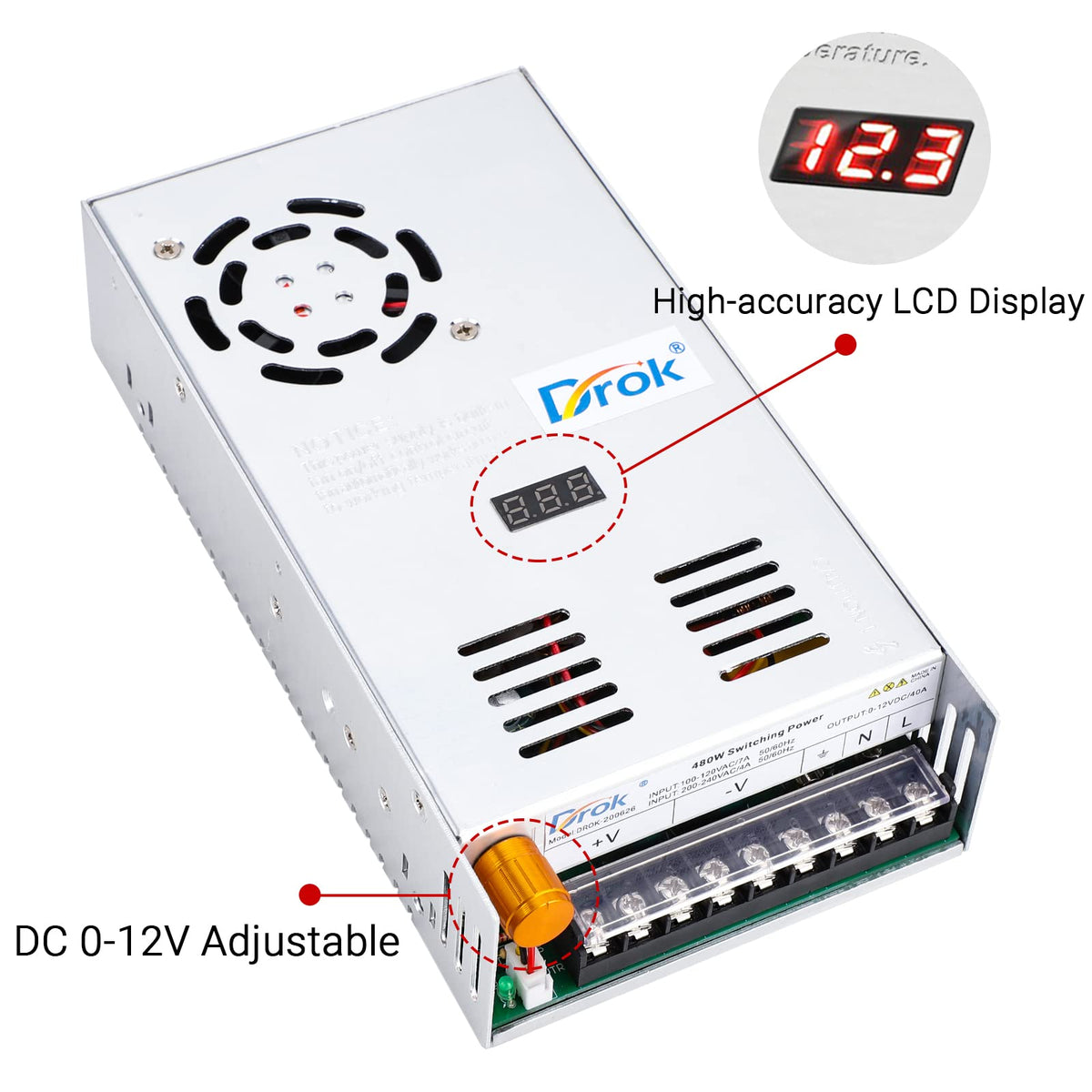

Output voltage is changed using the built-in potentiometer; the LED readout displays voltage to 0.1V accuracy. The converter supports a wide set of nominal voltages commonly needed for electronics, and the maximum continuous output current is 40A (480W total), so match your load accordingly.

• Voltage range: 0–12V DC, selectable points include 3V, 5V, 6V, 9V and 12V.
• Voltage resolution/precision: 0.1V on the LED display.
• Current capacity: up to 40A continuous; actual current equals load draw.
• Typical uses: CCTV systems, lab bench power, car/RV electronics, LED strips, single-board computers and certain low-voltage motors (if starting current is compatible).

What wiring and installation details should I follow for safe operation?

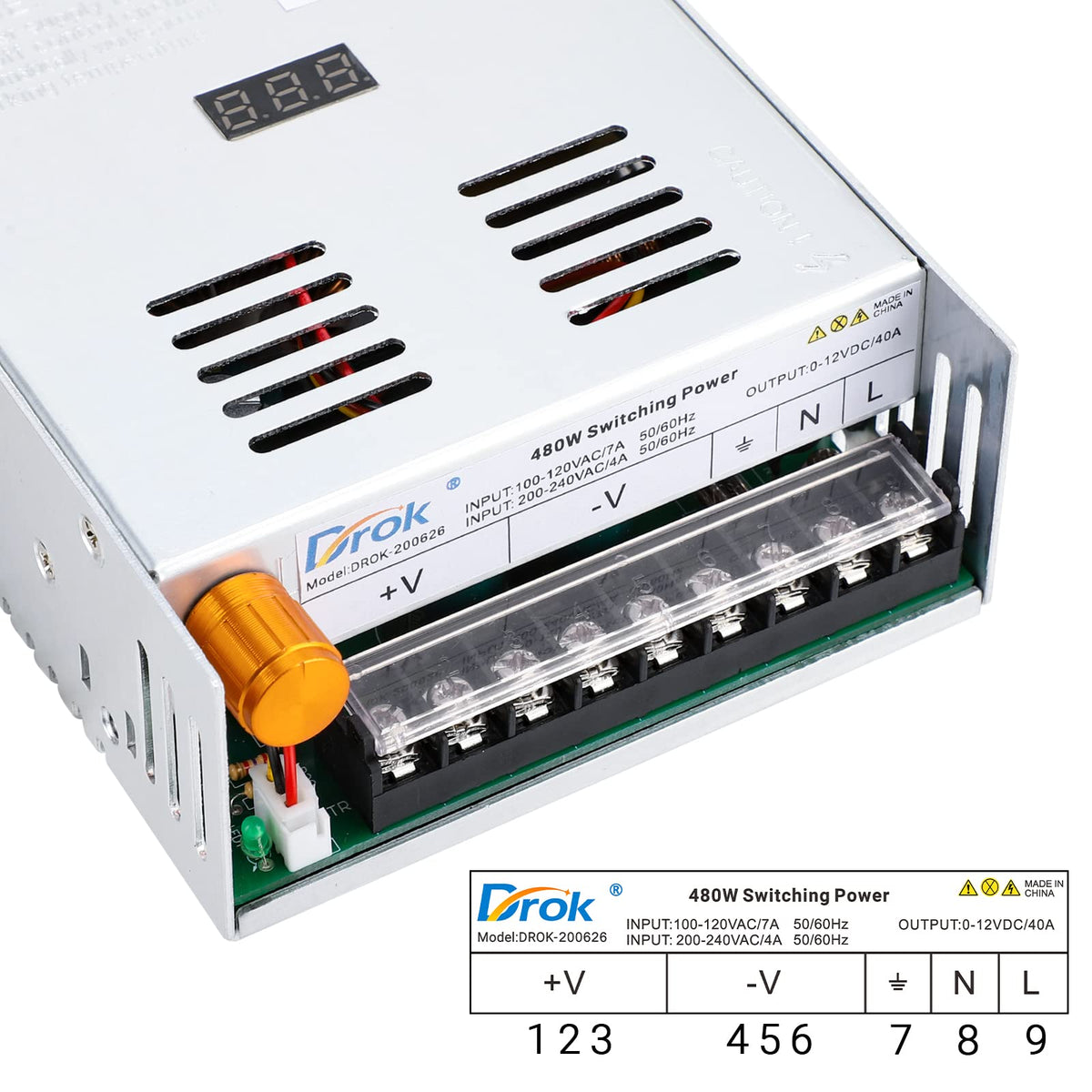

Wire the AC side to ground (⏚), N (neutral) and L (live). On the DC side, connect V+ for positive and V- for negative. Mount the unit in a ventilated location and avoid enclosing it where the fan cannot expel heat.

• AC input terminals: ⏚ (ground), N (neutral), L (live).
• DC output terminals: V+ (positive), V- (negative).
• Do not exceed 40A continuous or allow short circuits; install fuses or breakers appropriate to your load.
• For inductive loads, provide a soft-start or inrush protection to prevent damage from high starting currents.

Who this is for: Engineers, hobbyists and technicians who need a high-current, adjustable DC source for development benches, CCTV installations, automotive retrofits or lab testing will find the DROK 12V 480W buck converter useful. It suits anyone who requires compact, visible voltage control and robust protections, provided connected devices draw no more than 40A and any high inrush currents are managed externally.
