Douk Audio Nobsound AK2515 Pro VFD Spectrum Analyzer

The Douk Audio Nobsound AK2515 Pro is a compact, high-resolution VFD spectrum analyzer and sound level meter built for accurate frequency visualization and flexible input monitoring.

Compact enough for a studio rack or desktop, the AK2515 Pro merges precise VFD visualization with advanced input handling so musicians, audio technicians, and hobbyists can quickly inspect sound across 20Hz–20kHz. It combines a 25x15 VFD matrix, selectable gain and smoothing algorithms, and multiple display and clock modes to provide both practical measurement and attractive visual feedback.

How accurate is the AK2515 Pro for frequency and time measurements?

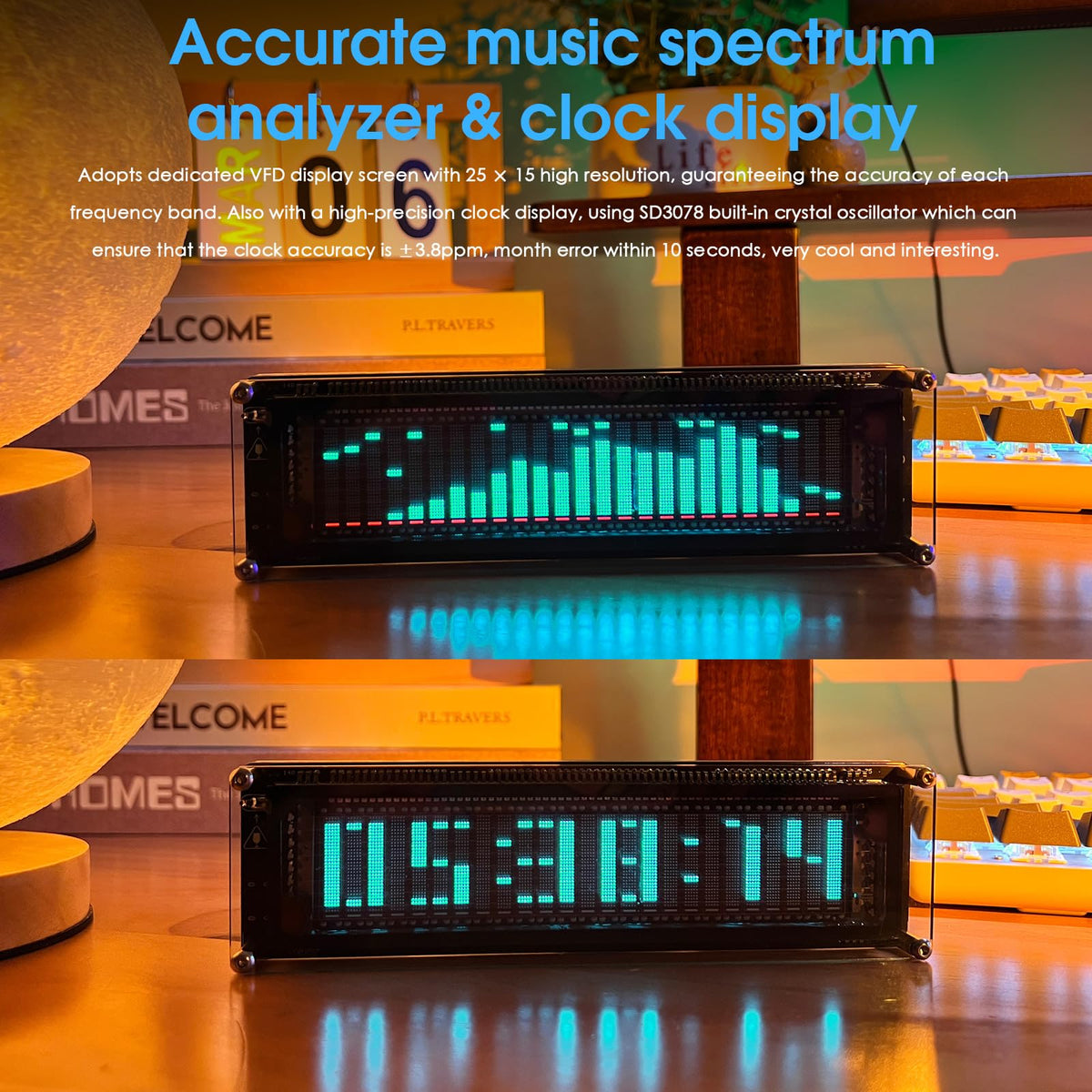

The AK2515 Pro uses a high-resolution VFD matrix to render clear frequency bands and an SD3078 crystal oscillator to maintain time accuracy. Its frequency sweep covers the full audible spectrum and the clock maintains tight drift limits for reliable time display.

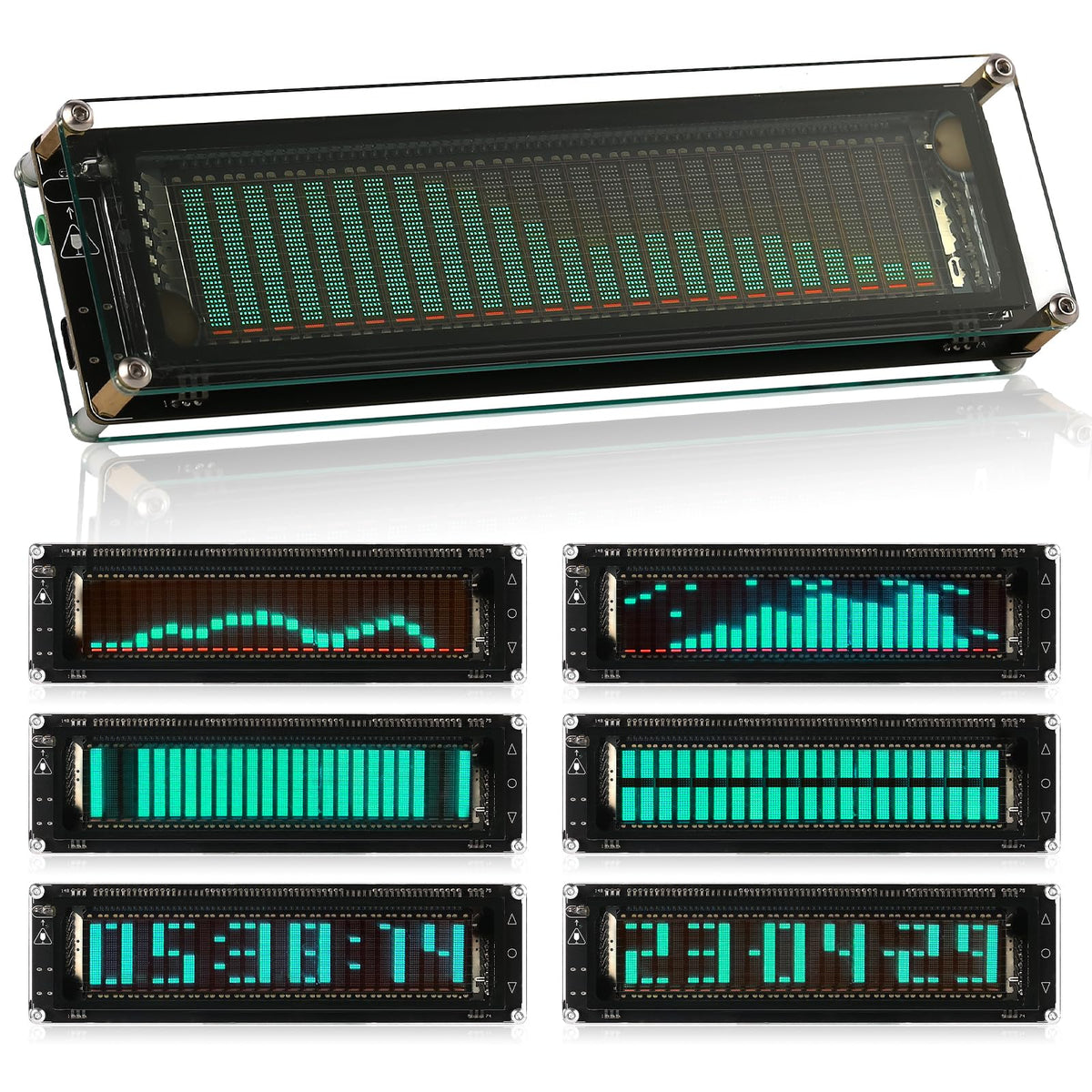

• 25×15 VFD display shows detailed band-by-band readings
• Frequency range: 20Hz–20kHz for full-audio inspection
• SD3078 crystal oscillator with ±3.8ppm precision
• Monthly clock error typically within ~10 seconds

Which inputs and connections work with the analyzer?

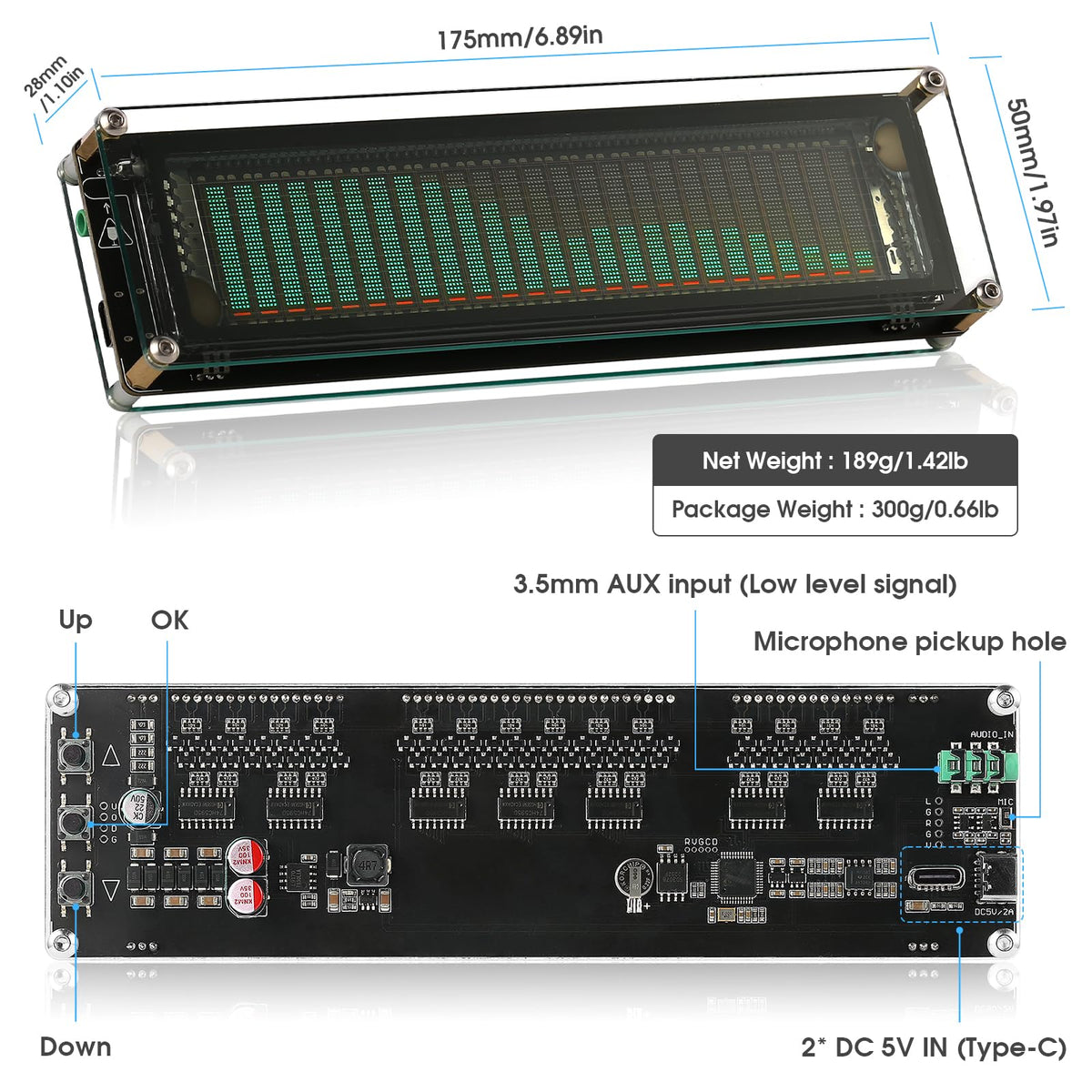

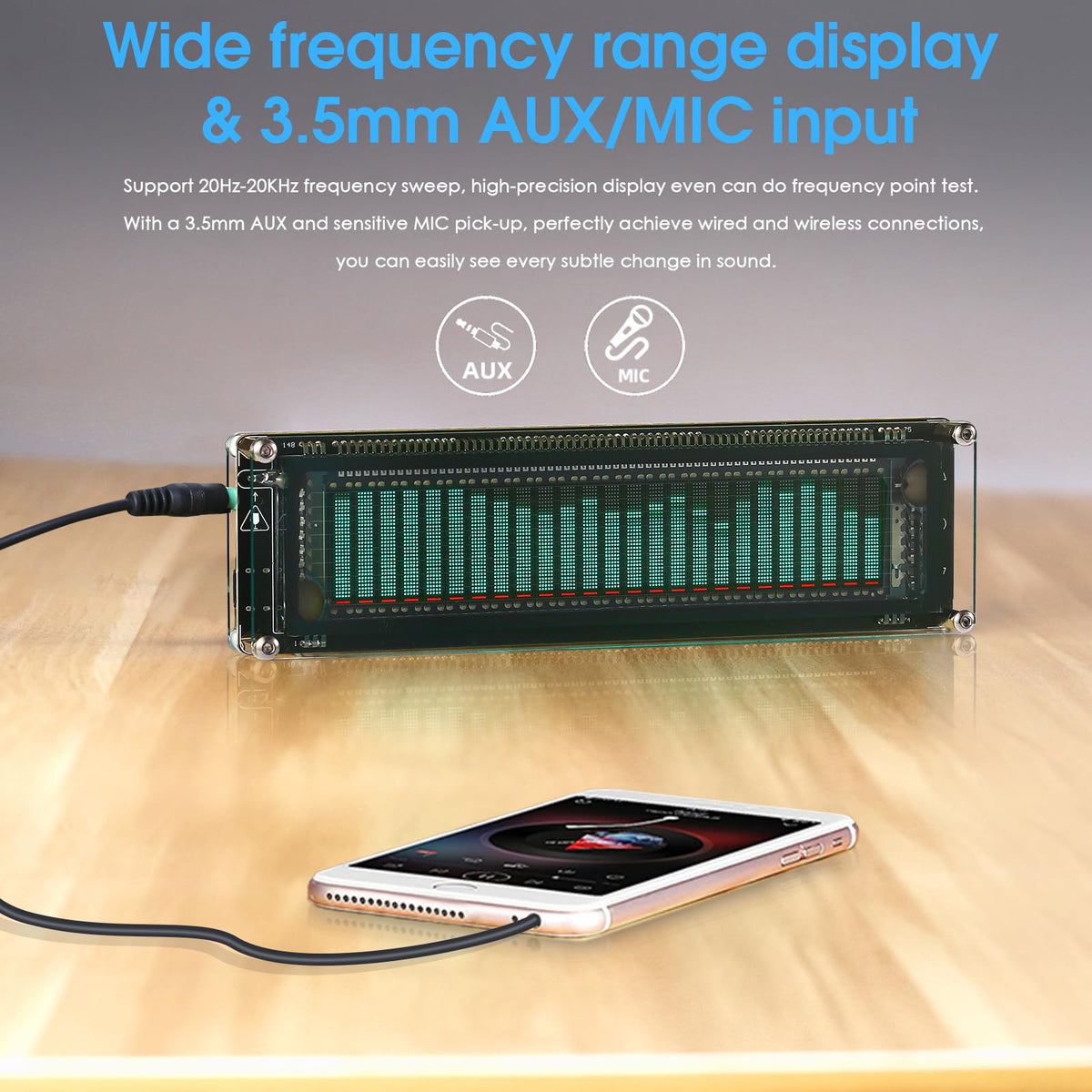

The unit accepts both AUX and MIC sources via standard 3.5mm jacks, making it suitable for wired line-level sources and microphone-level inputs. That flexibility lets you monitor outputs from mixers, instruments, Bluetooth receivers (via AUX), or direct mics for live and recorded sound analysis.

• 3.5mm AUX input for line-level devices or wireless receivers
• 3.5mm MIC input for direct microphone monitoring
• Captures nuanced signal changes across low to high frequencies
• Works with common studio and consumer audio gear

What visual modes and adjustments can I use to match my workflow?

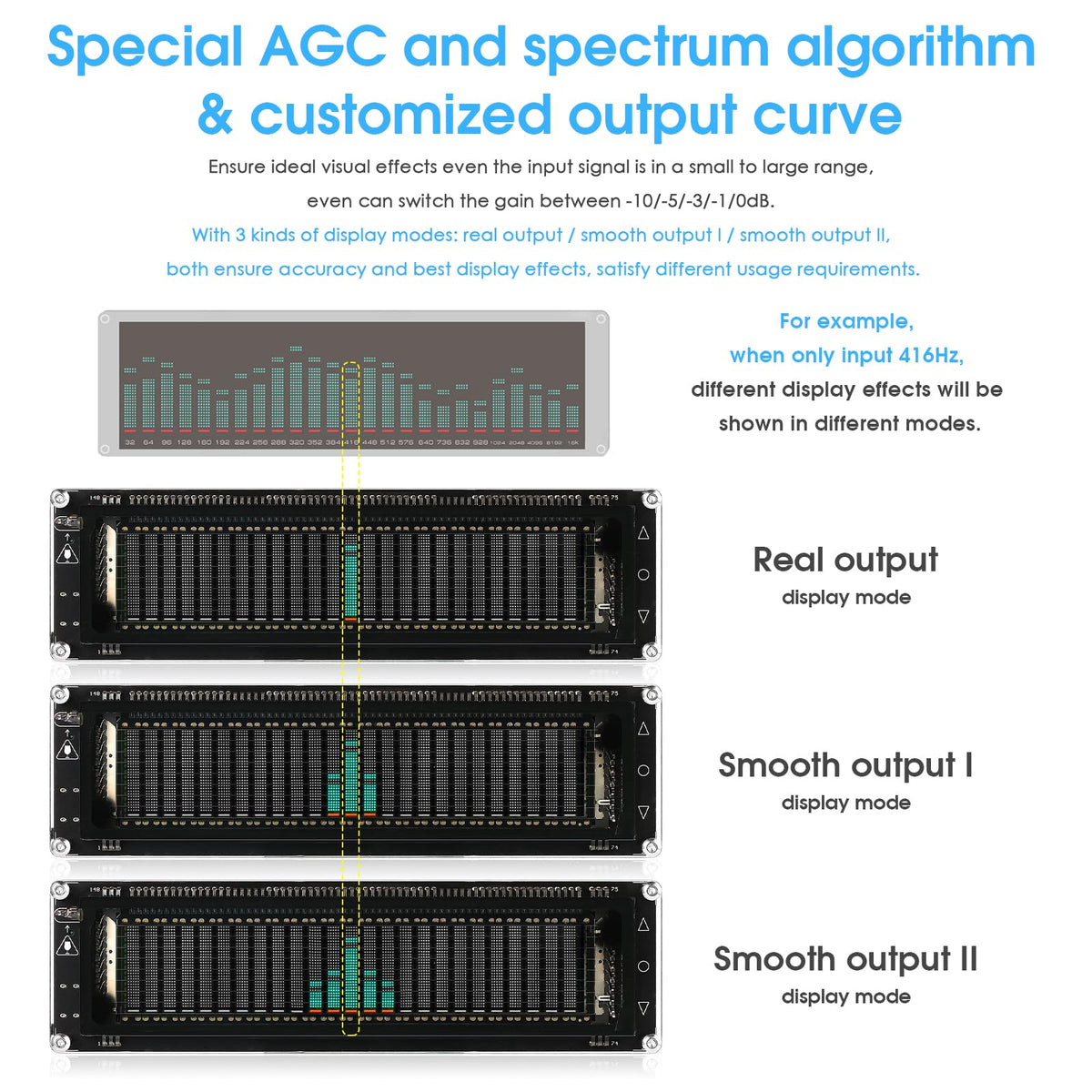

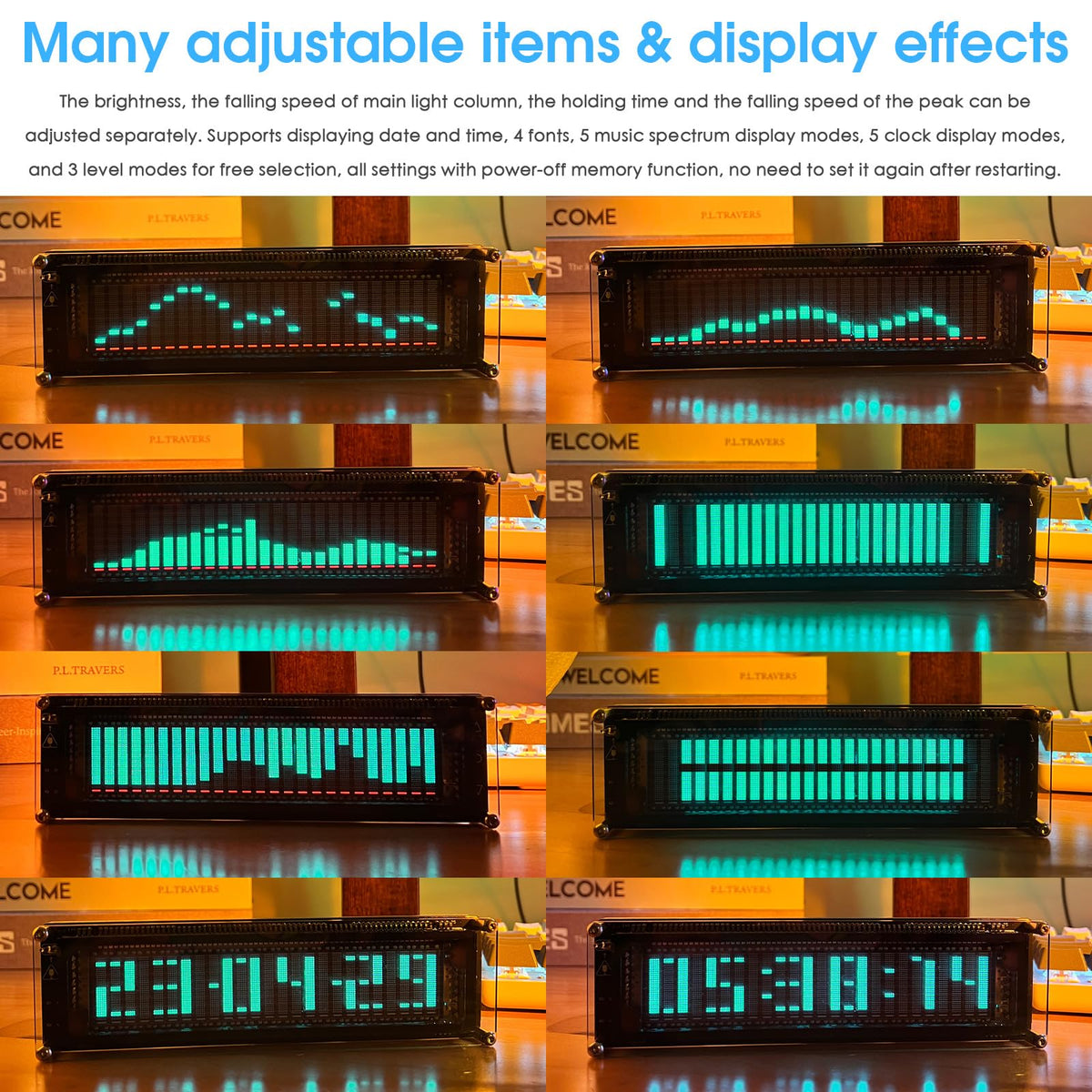

The AK2515 Pro offers multiple display algorithms, gain steps, and visual parameters so you can tailor how the spectrum responds and looks. Choose from real-time or smoothed outputs and fine-tune brightness, peak-hold, falling speeds, and more for either diagnostic clarity or eye-catching stage visuals.

• Selectable gain: -10, -5, -3, -1, 0 dB to match input levels
• Three display algorithms: real output, smooth I, smooth II
• Adjustable brightness, main column fall speed, and peak hold
• Power-off memory restores previous display state automatically

How does the AK2515 Pro handle noisy environments and different listening modes?

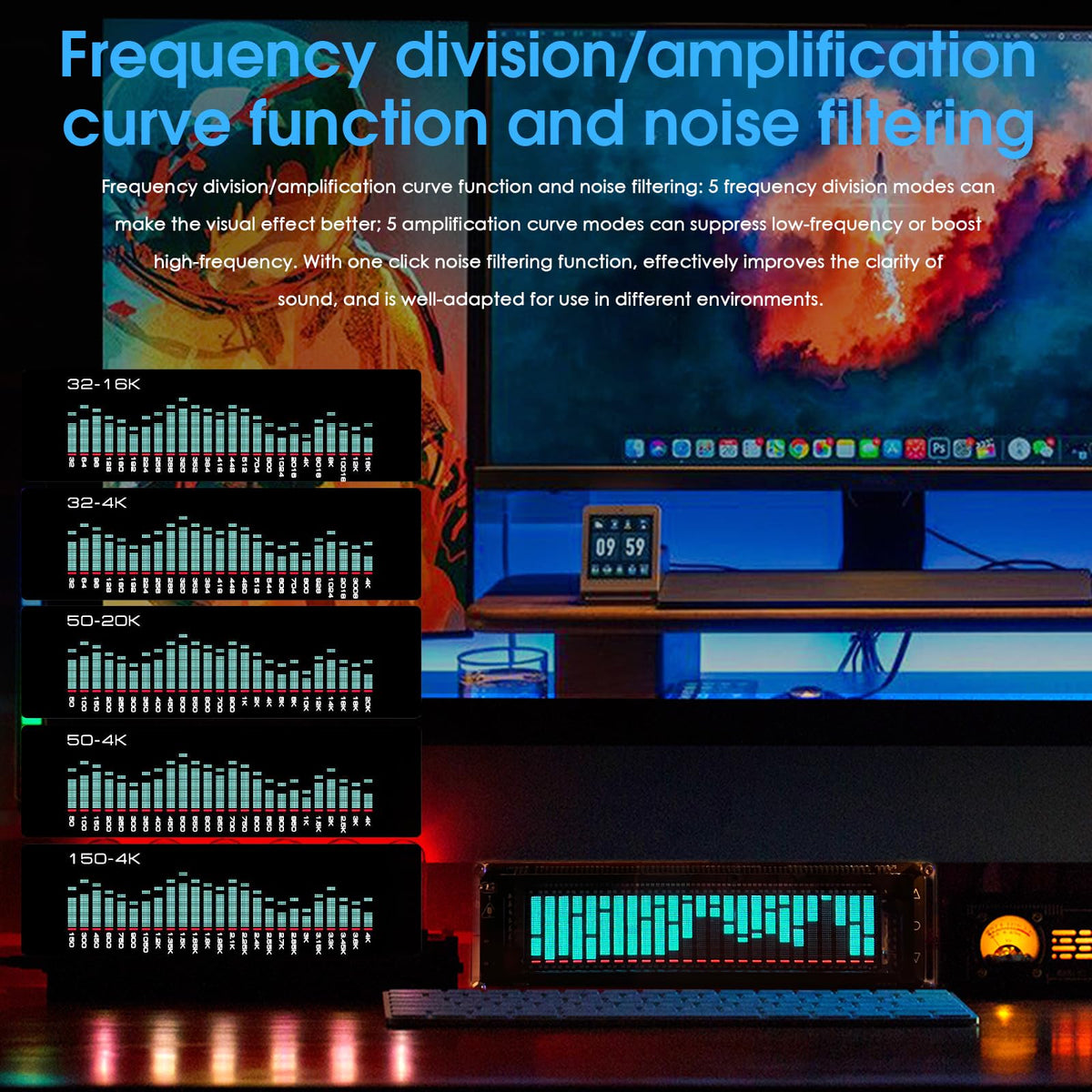

Built-in noise filtering and multiple spectrum curve options let the AK2515 Pro separate musical content from background noise for cleaner visuals. Several preset modes adapt to different uses—auto, deep sleep, music spectrum, and clock—so the device is equally useful in live shows, quiet studios, or as a desktop visualizer.

• Noise filter improves display clarity in louder or noisy rooms
• Five frequency division and amplification curves for tonal emphasis
• Five music spectrum modes and three level modes for varied content
• Clock and date display with selectable font and clock styles

Who is this for? The Douk Audio Nobsound AK2515 Pro suits musicians, sound engineers, streamer setups, and audio hobbyists who need a reliable, visually precise spectrum display. It’s ideal for anyone wanting a small, configurable analyzer to monitor mixes, tune systems, create stage visual effects, or simply add informed audio feedback to a studio or entertainment setup.
