DALLUX Backup Camera 130° Wide Rearview 12V 4-Pin

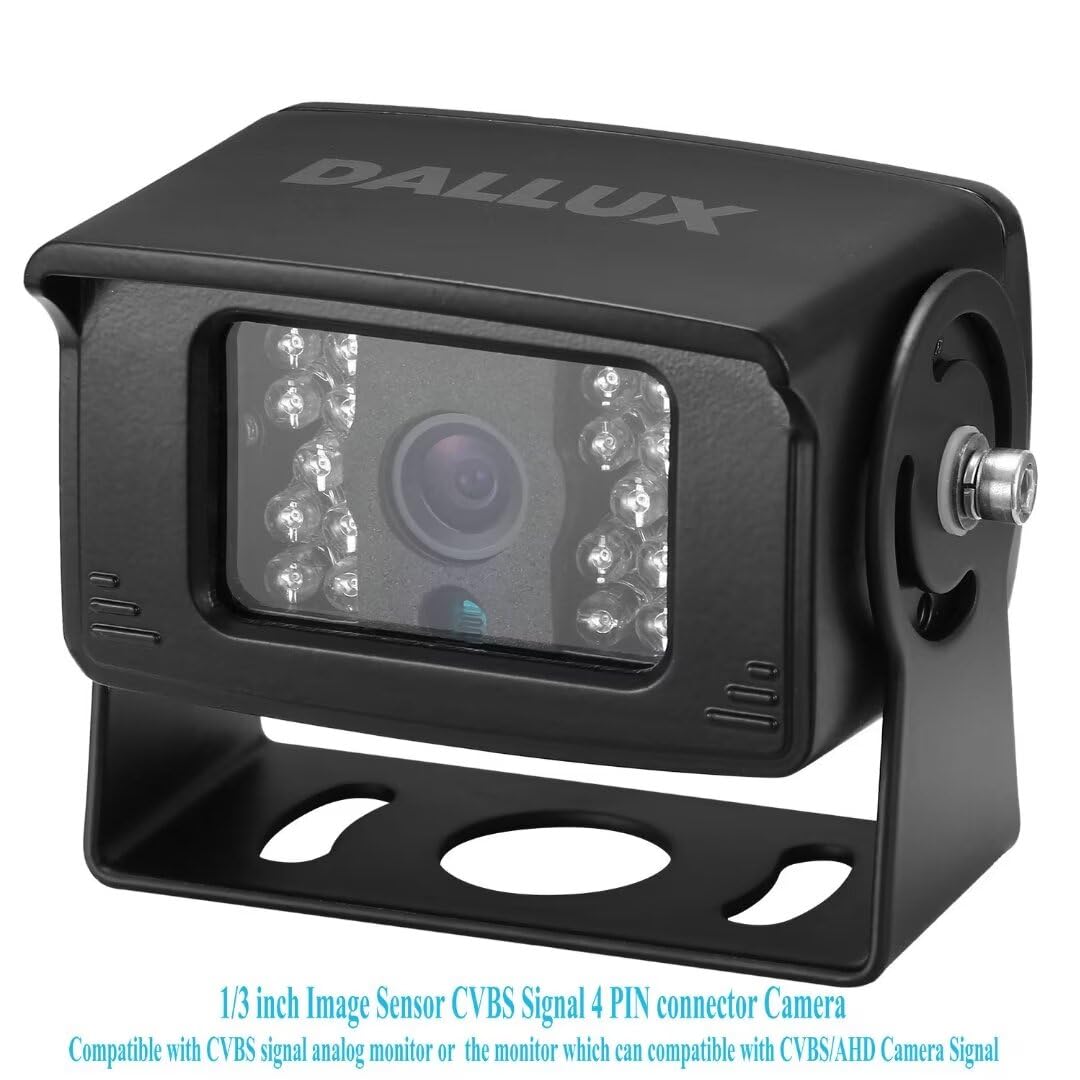

Designed for heavy-duty vehicles and towing setups, this DALLUX cab cam blends a high-resolution CCD sensor with a corrosion-resistant zinc housing to deliver a reliable rear view in rain, mud and low light. It uses a 1/3" color CCD delivering 800 TVL (976×576) resolution, combined with a six-layer glass lens to reproduce natural colors and reduce distortion across a wide field of view. The camera requires a 12V power source and connects via a 4-pin video connector (extension cable not included), making it suitable for most in-vehicle monitors and reversing systems.

How clear is the image for reversing and hitching?

The camera uses a 1/3" color CCD with 800 TVL resolution to produce sharp, natural-looking images with minimal color shift. The six-layer glass lens ensures edge clarity across the wide angle so you can see the whole scene behind your vehicle.

• 976 × 576 pixel image output for detailed views
• Six-layer glass lens reduces distortion and improves sharpness
• 130° ultra-wide viewing angle eliminates many blind spots

Will it work at night or in bad weather?

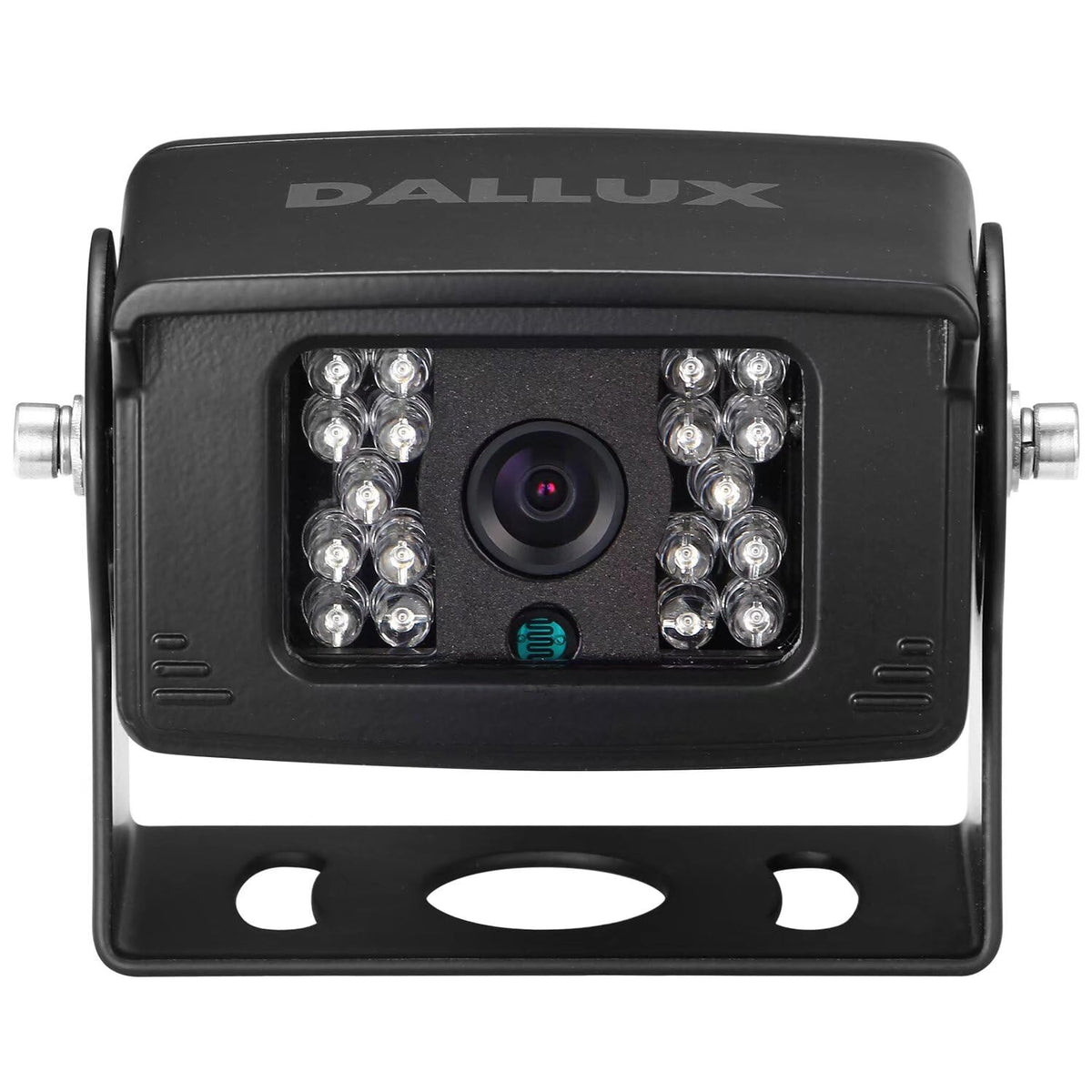

Yes — the DALLUX camera has 18 infrared LEDs that provide night illumination up to about 50 feet in no-light conditions. Its IP69K rating means the camera is protected against high-pressure, high-temperature washdowns and heavy weather, so it keeps working after exposure to rain, road spray, and cleaning.

• 18 IR LEDs for low-light visibility and up to 50 ft range
• IP69K waterproof rating for extreme wet conditions and washdowns
• Zinc housing and stainless-steel screws resist corrosion

How is the camera mounted and connected to my vehicle?

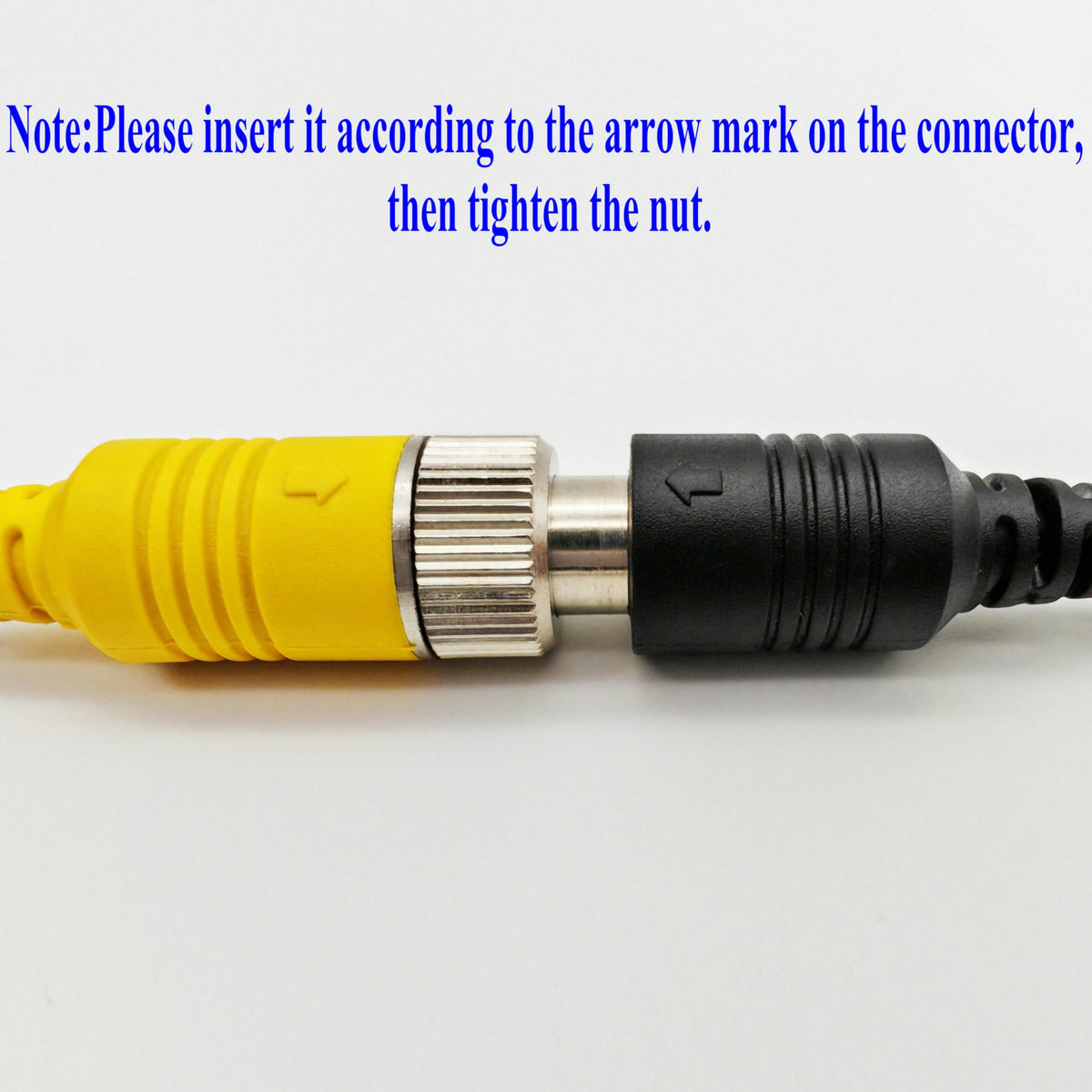

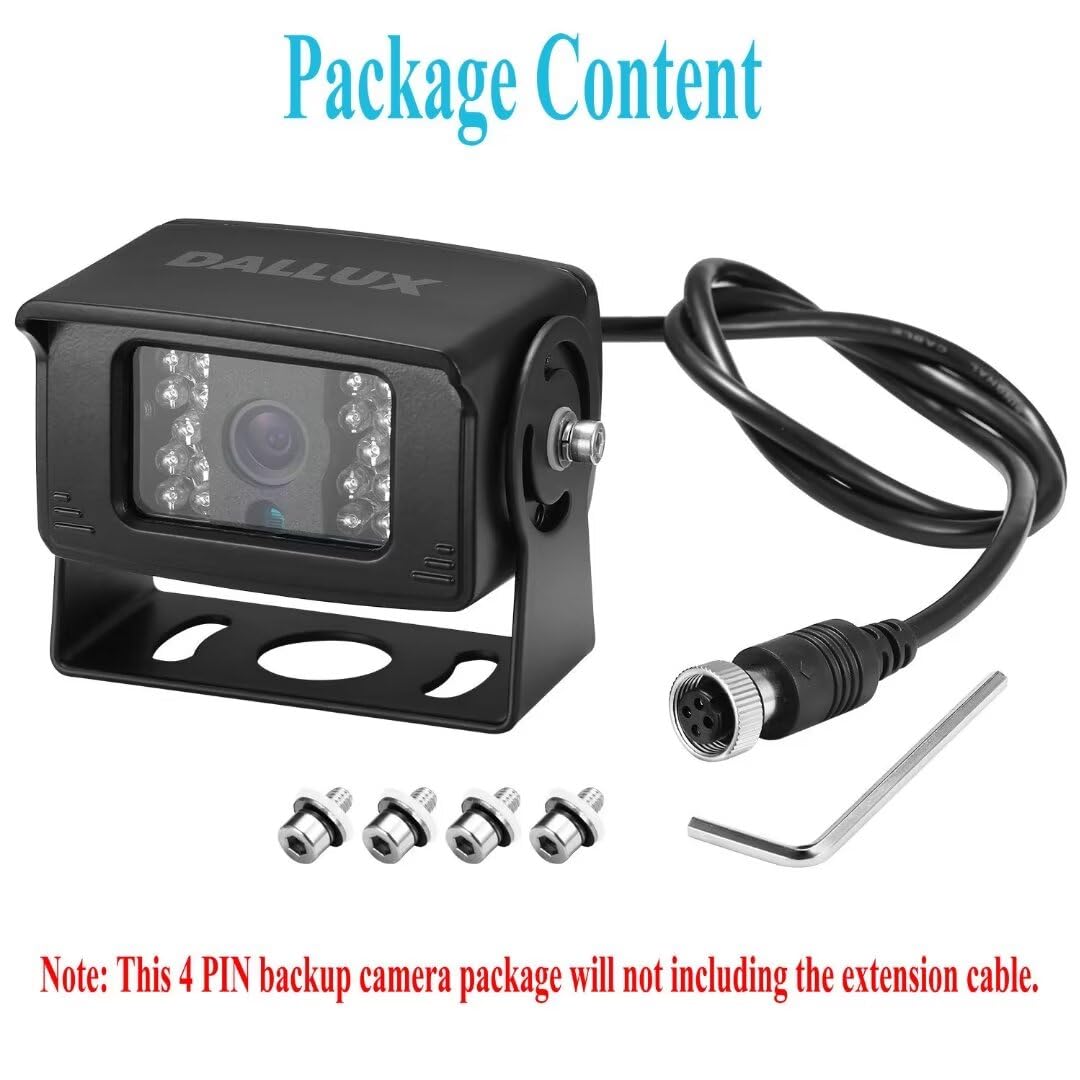

The unit includes a rotatable mounting bracket that supports top or bottom installation, allowing you to aim the camera where you need it most. It uses a 4-pin video connector for signal and requires a 12V DC supply; note that the package does not include an extension cable between the camera and monitor.

• Bracket allows adjustable angle for precise aiming
• Top or bottom mounting options for versatile installation

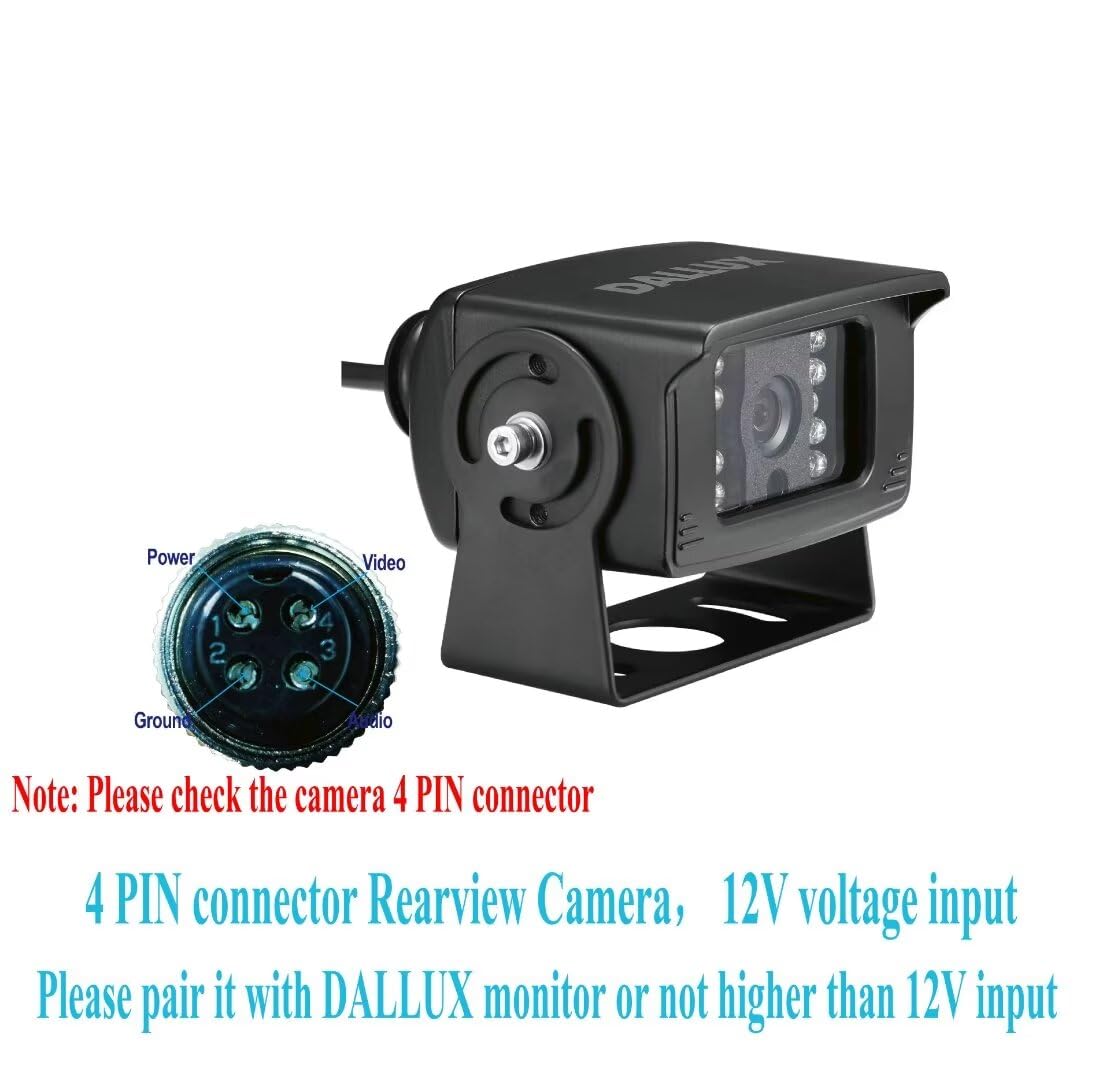

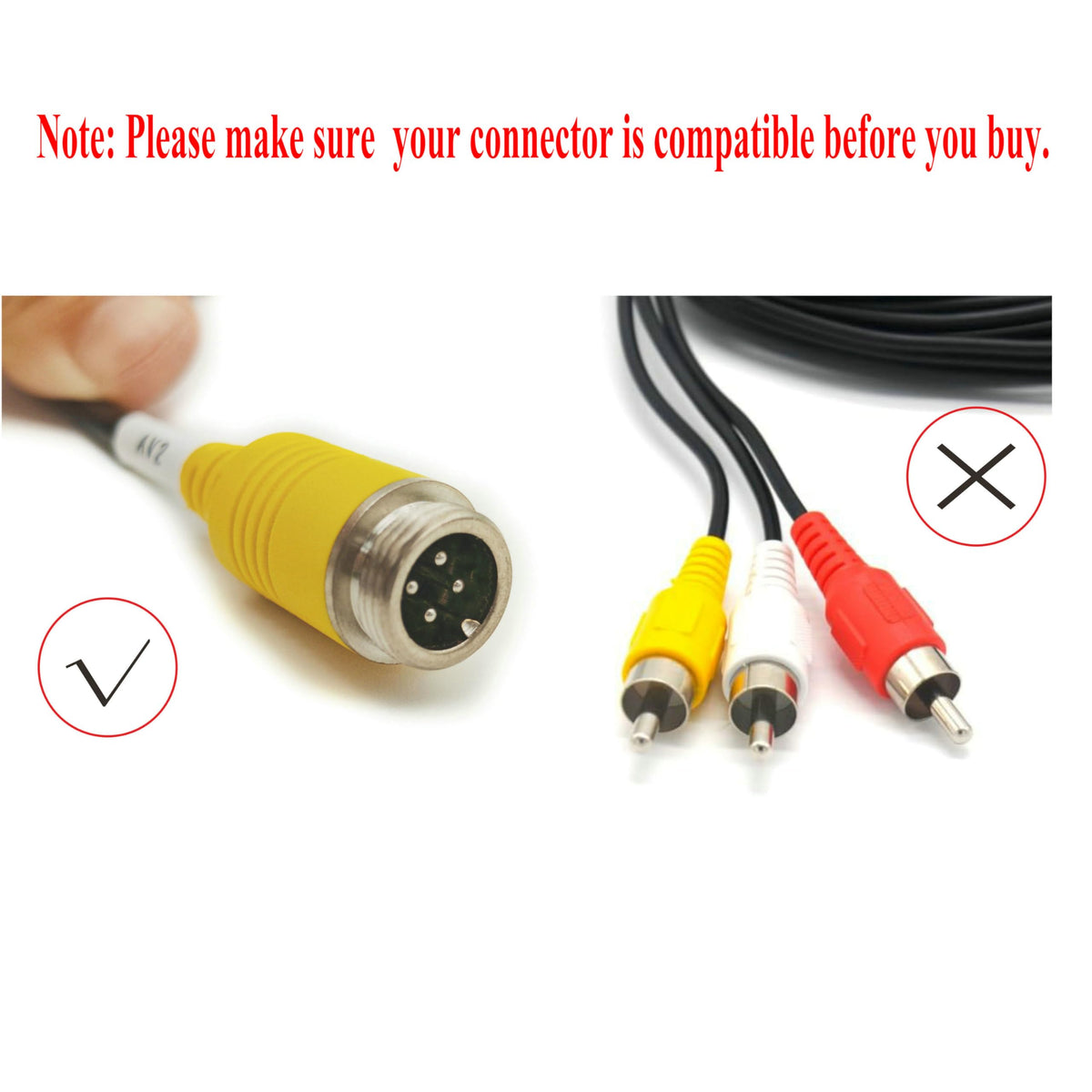

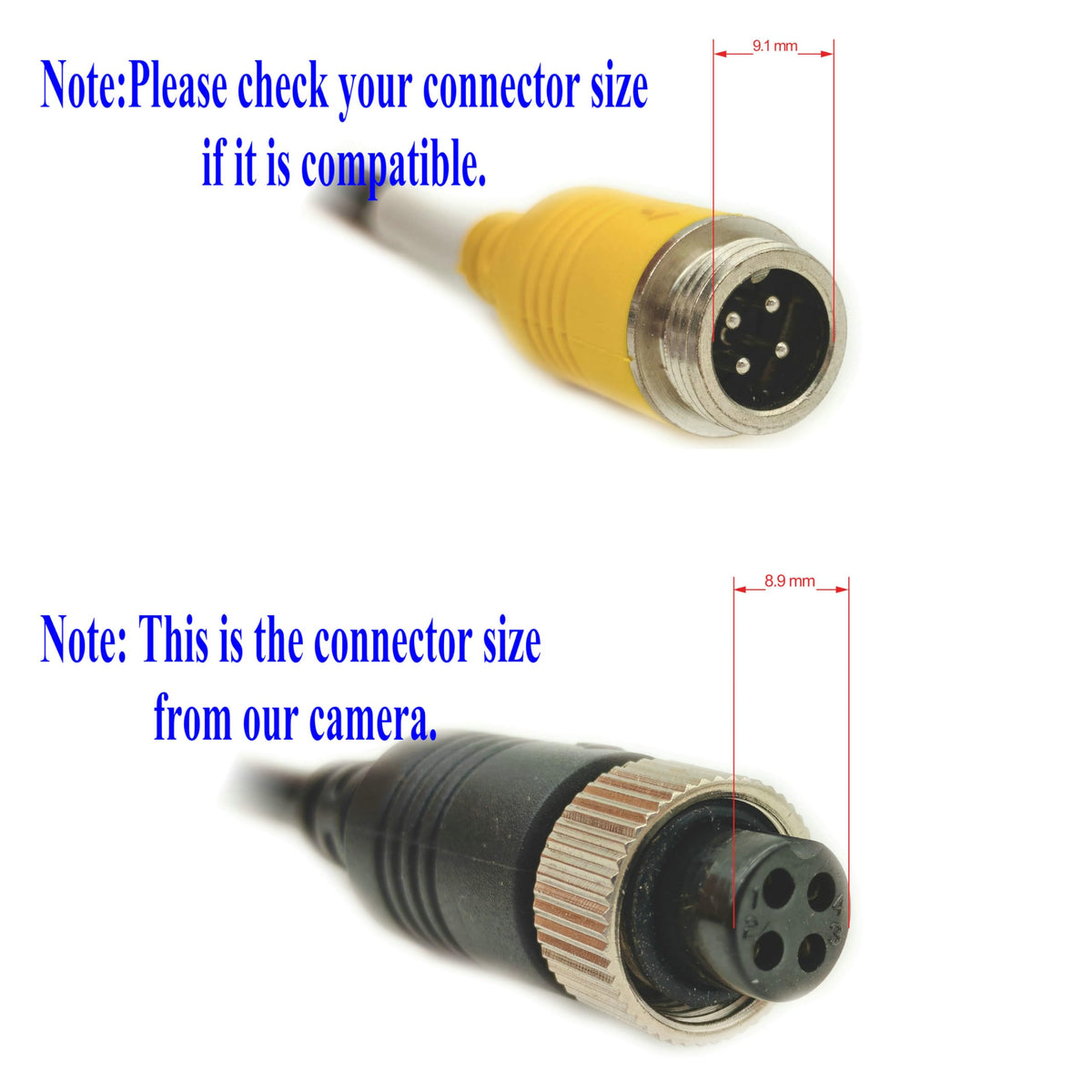

• 4-pin video connector; compatible with most 4-pin monitor inputs

Is this camera built to last on a trailer or RV?

Built with a zinc metal casing and stainless-steel fasteners, the camera resists rust and mechanical wear common on trailers and RV exteriors. The rugged design combined with IP69K protection makes it suitable for long-term outdoor use in demanding environments.

• Zinc metal casing for impact resistance and long life
• Stainless-steel screw hardware to prevent corrosion
• Engineered for 12V vehicle electrical systems

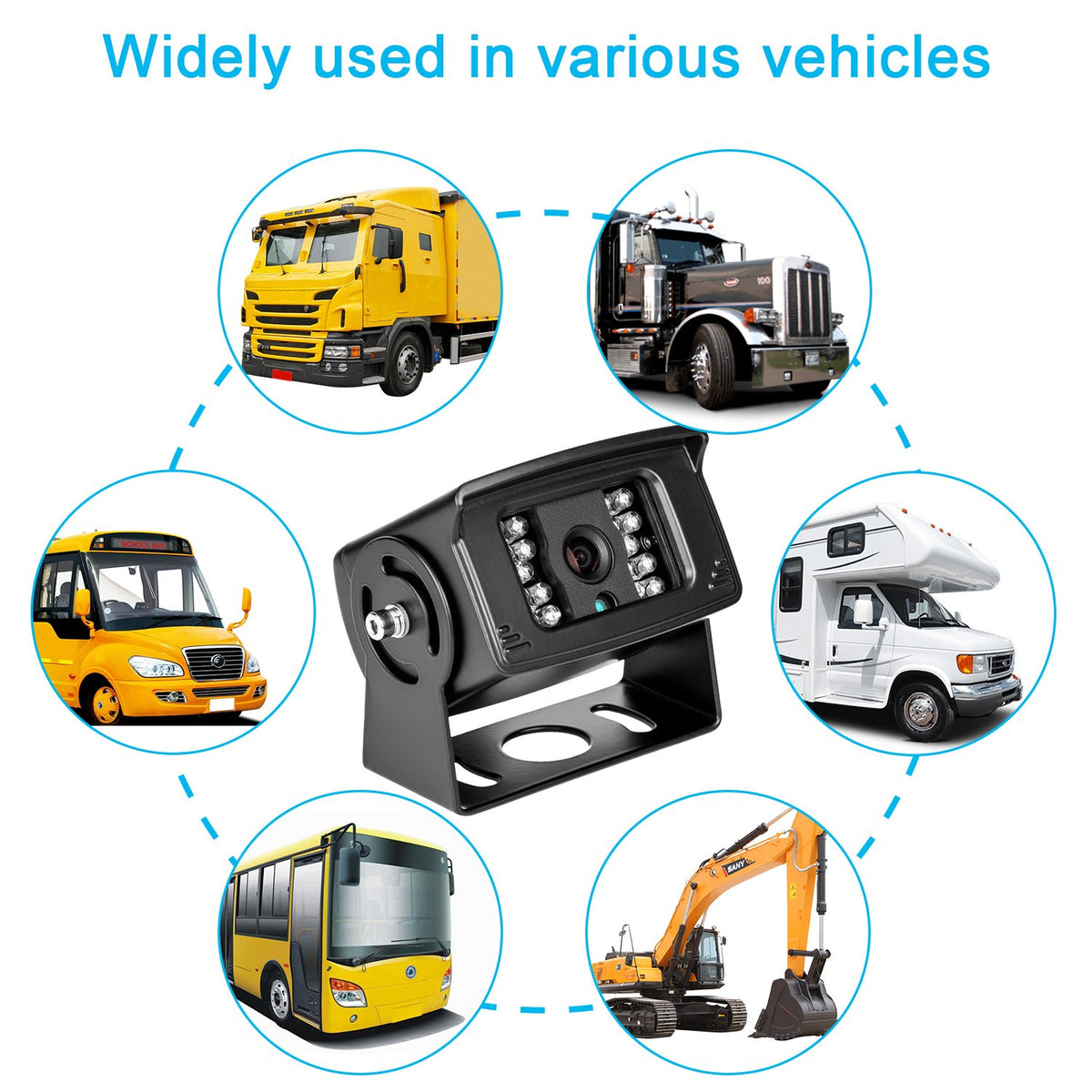

Who is this for: The DALLUX Bus Truck Vehicle Backup Camera is aimed at drivers of pickups, travel trailers, camper vans, motorhomes, and commercial trucks who need a dependable, wide-field rearview solution that works day and night and stands up to tough weather and washdowns. It’s a practical choice if you tow frequently, park large vehicles in tight spaces, or need a durable camera for off-road and commercial use. Before purchasing, confirm your monitor accepts a 4-pin video input and plan for an extension cable if your install requires extra length.
