CZSWCH Emblem Backup Camera for Ford F-150/F-Series, Flex, Ranger – 720p AHD, 170° Wide, IP68K Waterproof, RCA Connector

Overview

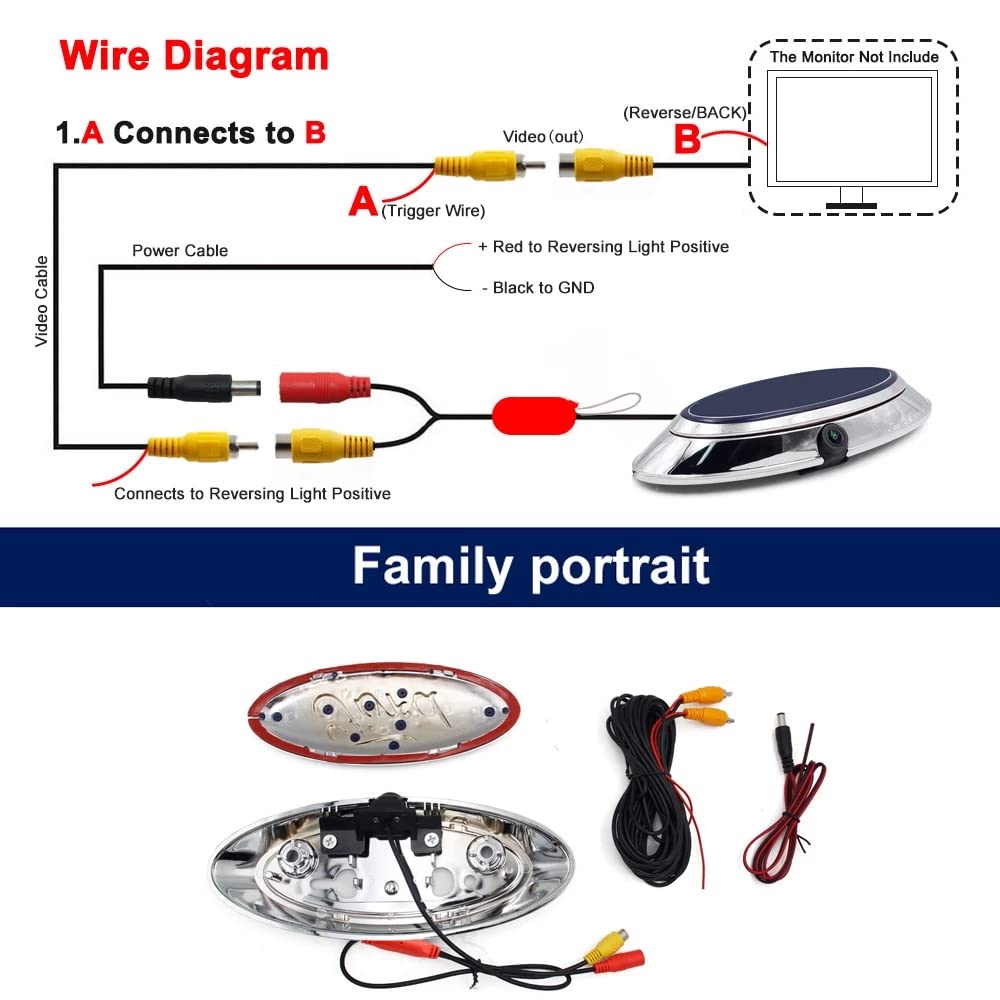

Upgrade your Ford lineup with the CZSWCH Emblem Backup Camera, designed to replace the factory emblem camera on select F-150 (2004–2014), F-Series heavy duties (F250, F350, F450 2009–2014), Flex (2009–2012), and Ranger (2012). This aftermarket module arrives ready to install in the emblem housing and includes a long 26-foot extension cable for flexible routing, helping you achieve a clean, integrated look on the tailgate.

Key imaging and viewing advantages

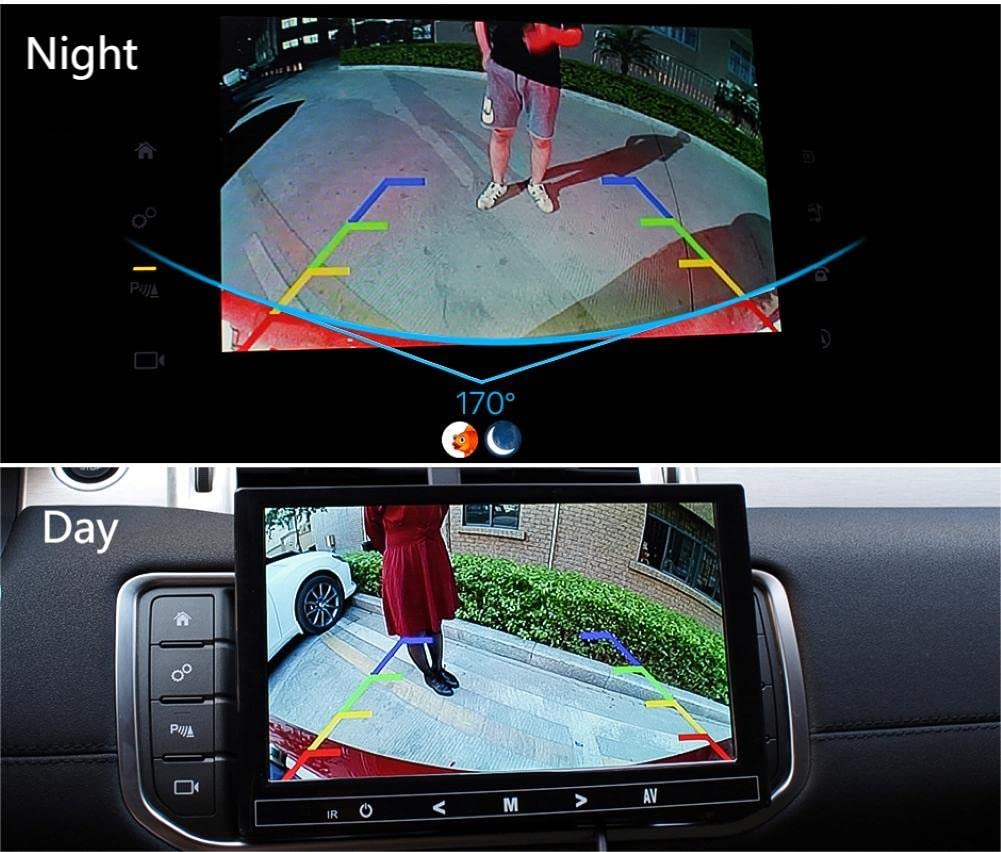

• High-resolution imaging at 720 TV lines with 0.05 lux sensitivity supports clear views in both daylight and dim lighting.
• 170° wide-angle CMOS lens provides broad coverage behind the vehicle, reducing blind spots and enhancing situational awareness.
• IP68K-rated waterproof housing protects the camera from rain, mud, and harsh weather for ongoing reliability.

Signal and compatibility options

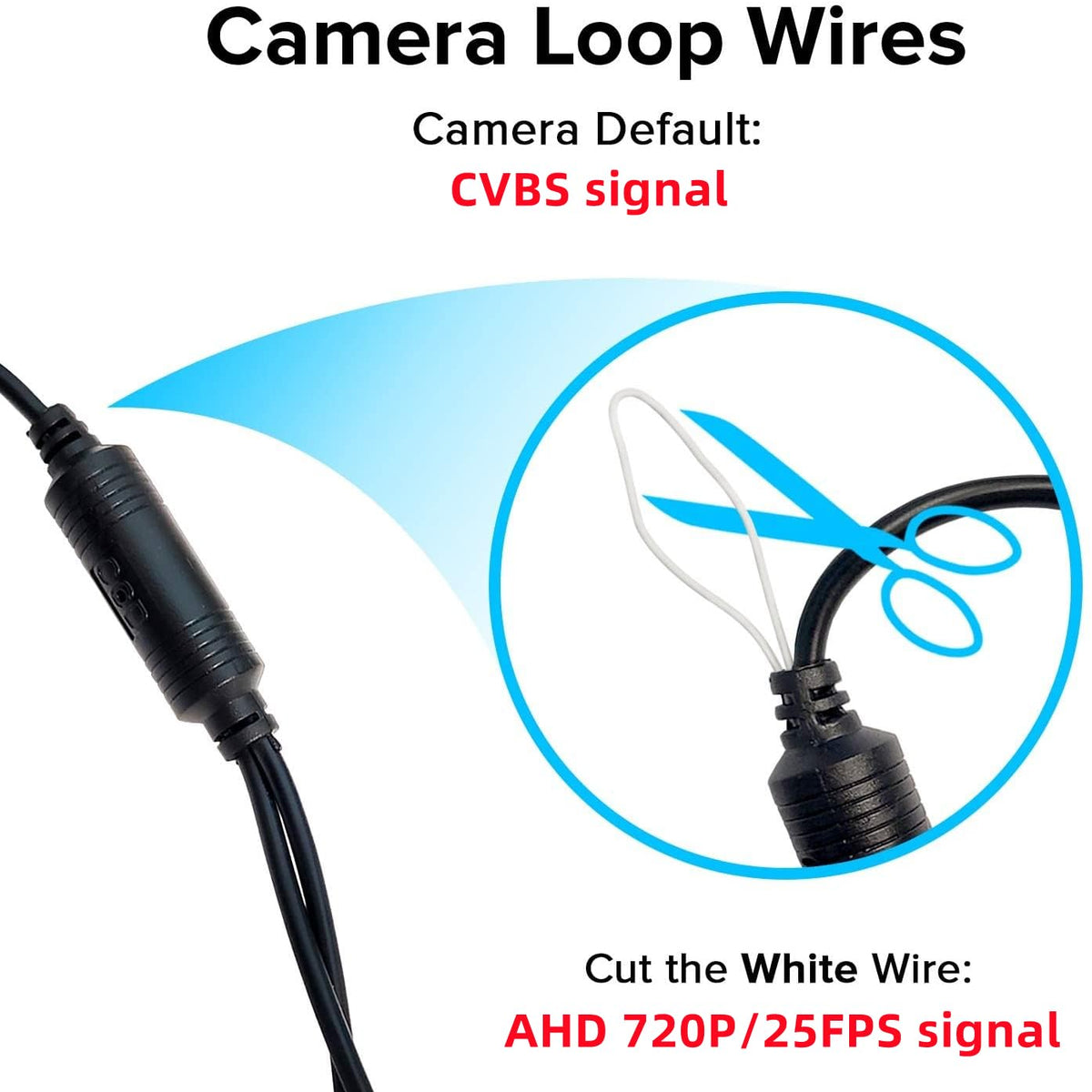

• The camera defaults to HD CVBS signal, with a path to ultra-clear AHD 720P/25FPS when wired to the right monitor or adapter setup.

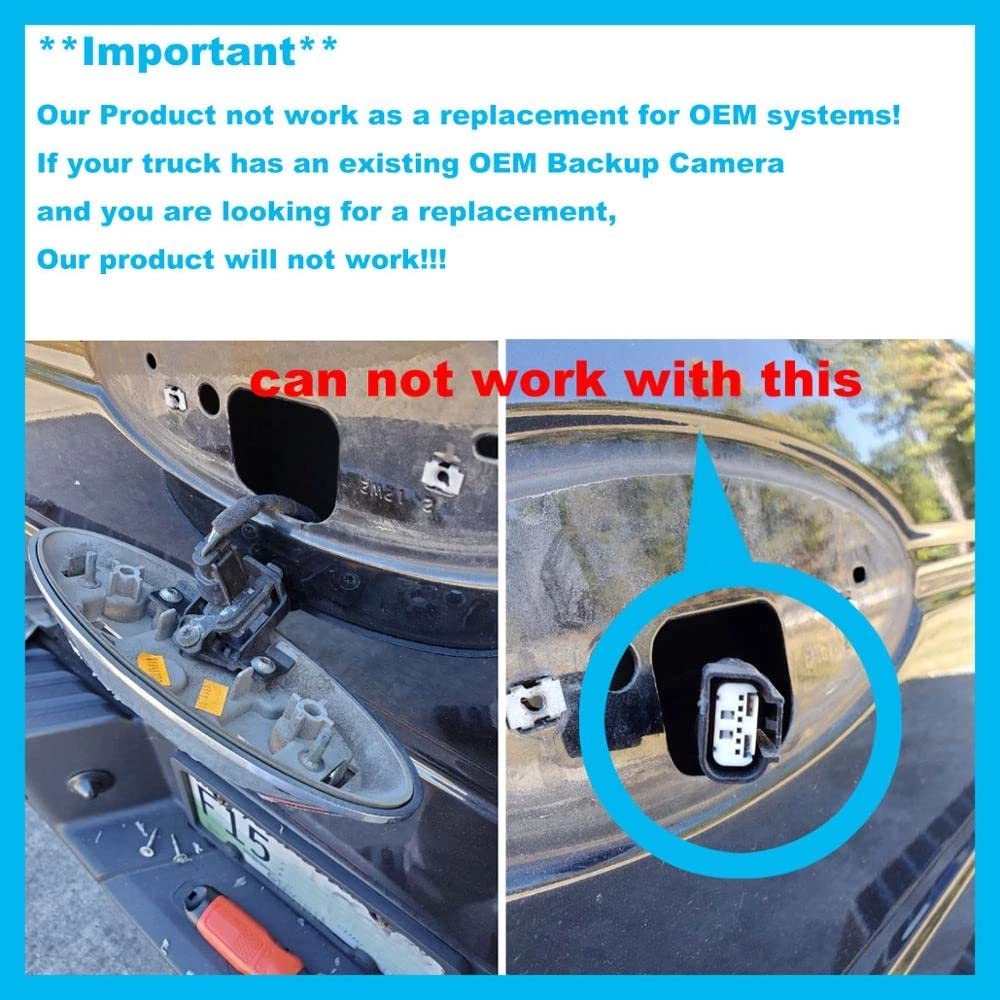

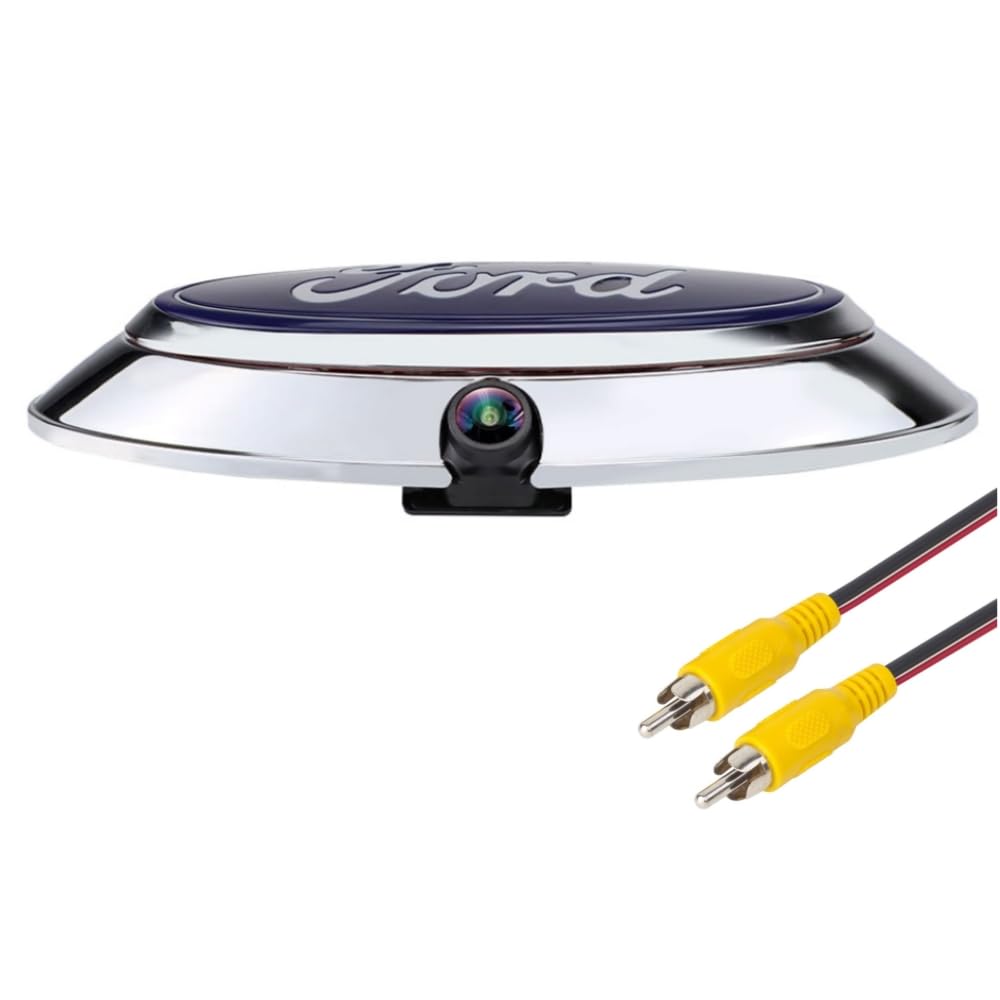

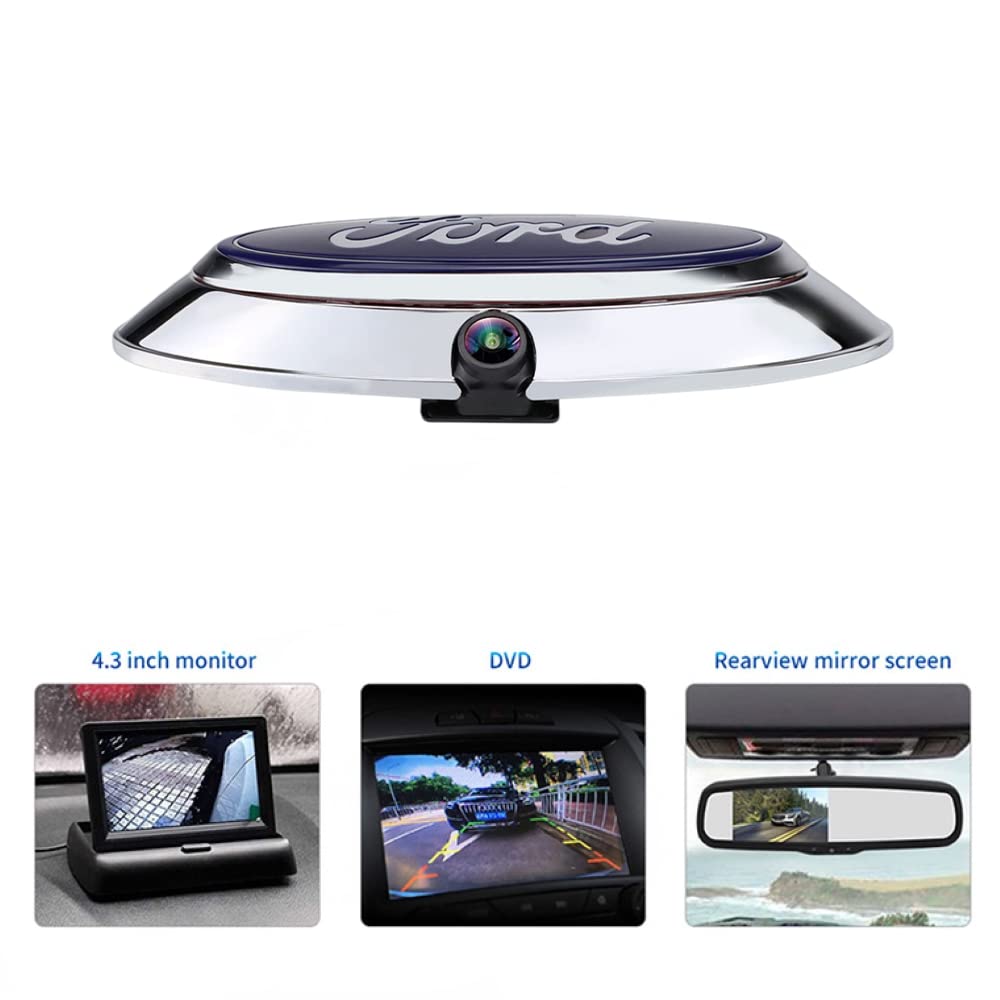

• RCA connector design supports compatibility with many aftermarket displays, but is not intended for factory-installed monitor systems.

Installation notes and practical considerations

Important installation notes: verify your monitor has a yellow RCA input before purchasing. For F-150 models from 2004–2008, some installations may require cutting a window in the tailgate to accommodate the emblem camera. The unit is preloaded into a secure emblem housing and ships with a long 26-foot cable to simplify routing behind trim components.

Real-world use and benefits

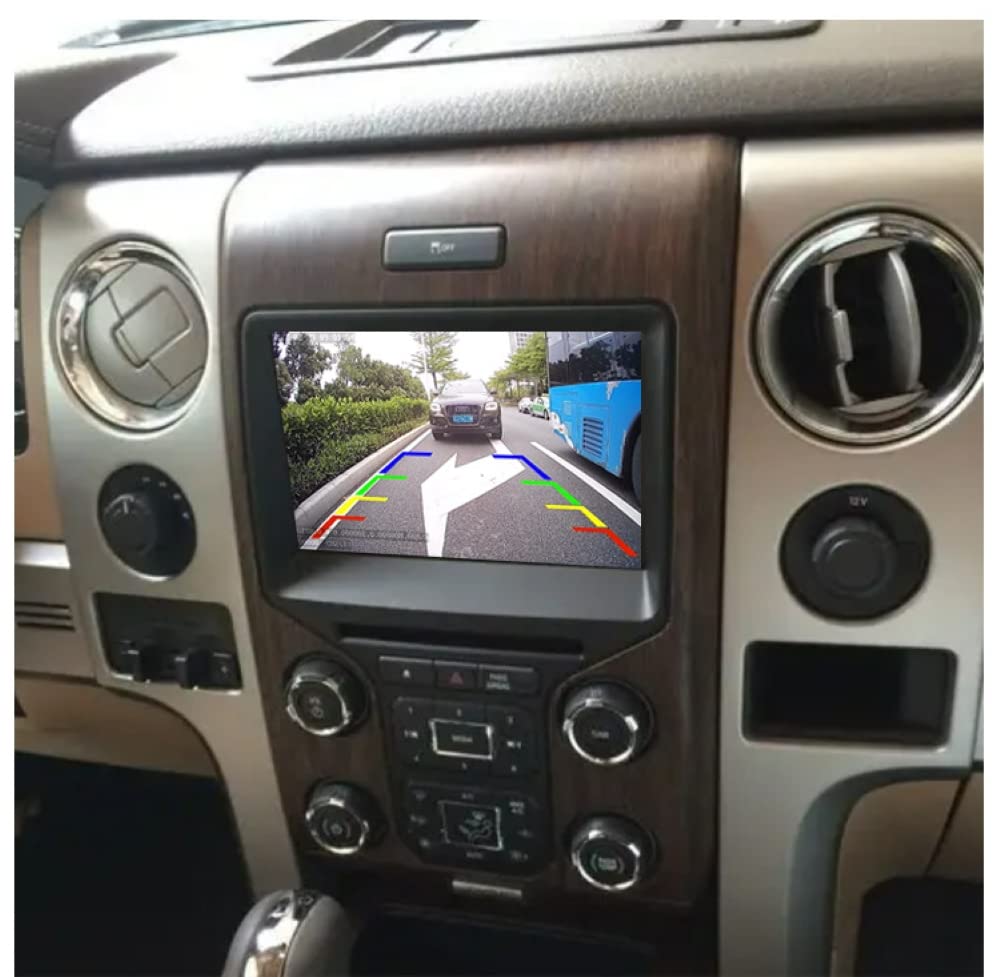

Users may notice easier parking in tight spots, better alignment when backing up to trailers, and enhanced rear visibility during dawn, dusk, or nighttime driving. The rugged housing and weather-ready design aim to deliver dependable performance across seasons and road conditions, without altering the vehicle’s interior or dashboard setup.

What’s included and long-term considerations

The kit focuses on a straightforward emblem replacement with a durable housing and a sufficient extension cable, enabling flexible installation paths and a clean exterior appearance. Consider this option if you’re seeking an aftermarket emblem camera with a broad view and resilient build for exterior use.
