cotsoco Phono Turntable Preamp MM Stereo RIAA

cotsoco Phono Turntable Preamp is a compact stereo preamplifier that converts low-level phono signals to line level so modern receivers and powered speakers can play vinyl with lower noise and correct RIAA equalization.

If your turntable lacks a built-in phono stage, the cotsoco preamp provides a simple plug-and-play solution to bridge vintage cartridges and contemporary audio gear. Designed for MM (moving magnet) style pickups with approximately 3 mV sensitivity at 50 kΩ, this unit accepts RCA stereo inputs, offers stereo RCA outputs, and runs from the included 12V DC adapter. The aluminum housing and low-noise operational amplifiers prioritise clear signal transfer and minimal hiss when placed near the source.

How does this preamp improve vinyl playback?

The preamp raises the tiny phono signal to a consumer line level so amplifiers and powered speakers can drive sound at normal volume. It applies the necessary RIAA equalization curve to restore balanced tonal response and reduces reliance on a receiver with a dedicated phono input.

• Converts phono-level (≈3 mV) to line-level output for standard RCA inputs.
• Applies RIAA equalization to correct frequency response of vinyl.

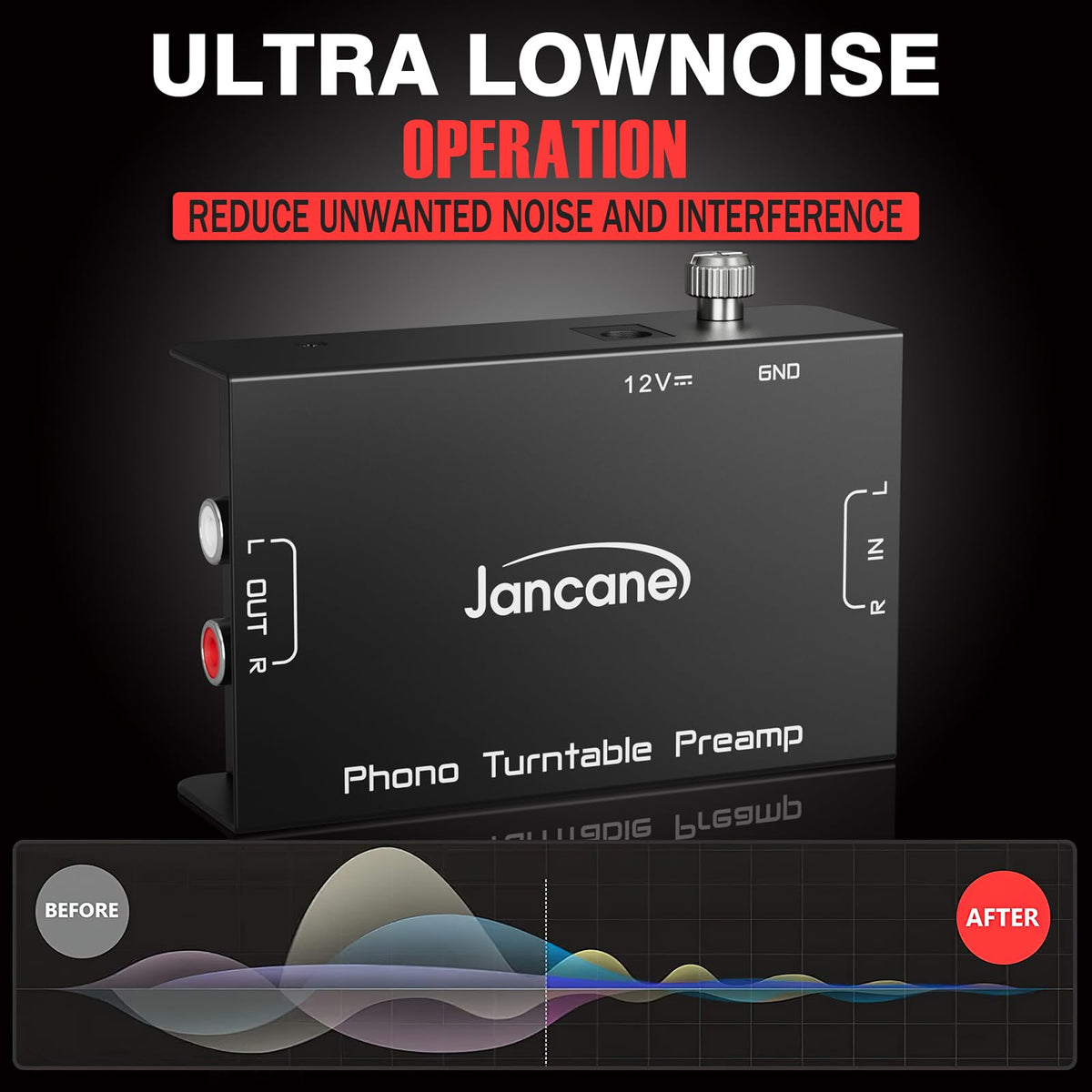

• Low-noise op-amps minimize hiss and preserve detail when placed near the turntable.

Will this work with my turntable and speakers?

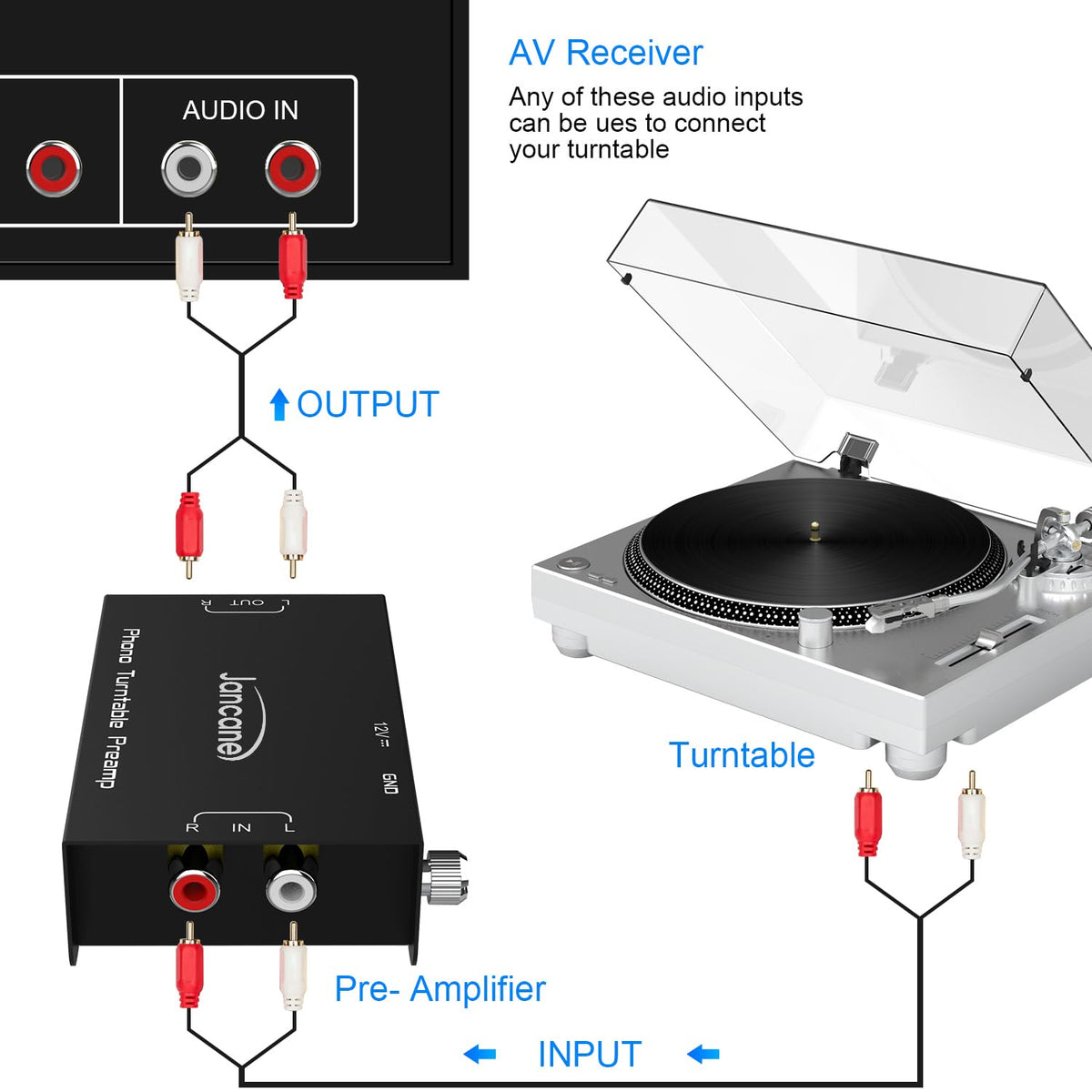

This preamp is compatible with most moving-magnet (MM) cartridges that do not already output line-level signals. Connect the turntable’s RCA output to the preamp input and the preamp output to your amplifier, receiver, or powered speakers; ensure the turntable’s built-in preamp (if present) is disabled to avoid doubled amplification and noise.

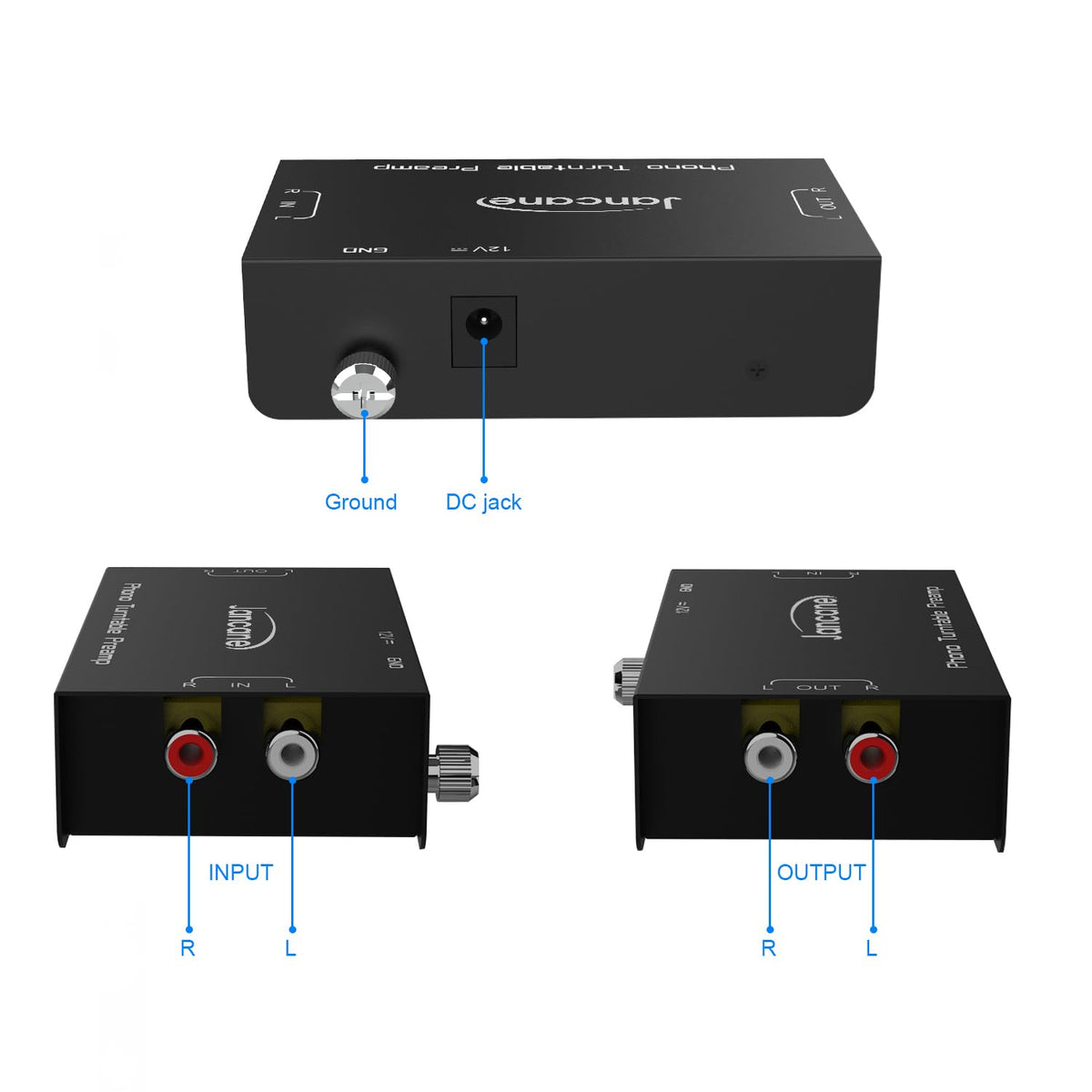

• Inputs: stereo RCA for turntable signal and ground connection.
• Outputs: stereo RCA to connect to amp, receiver, or powered speakers.

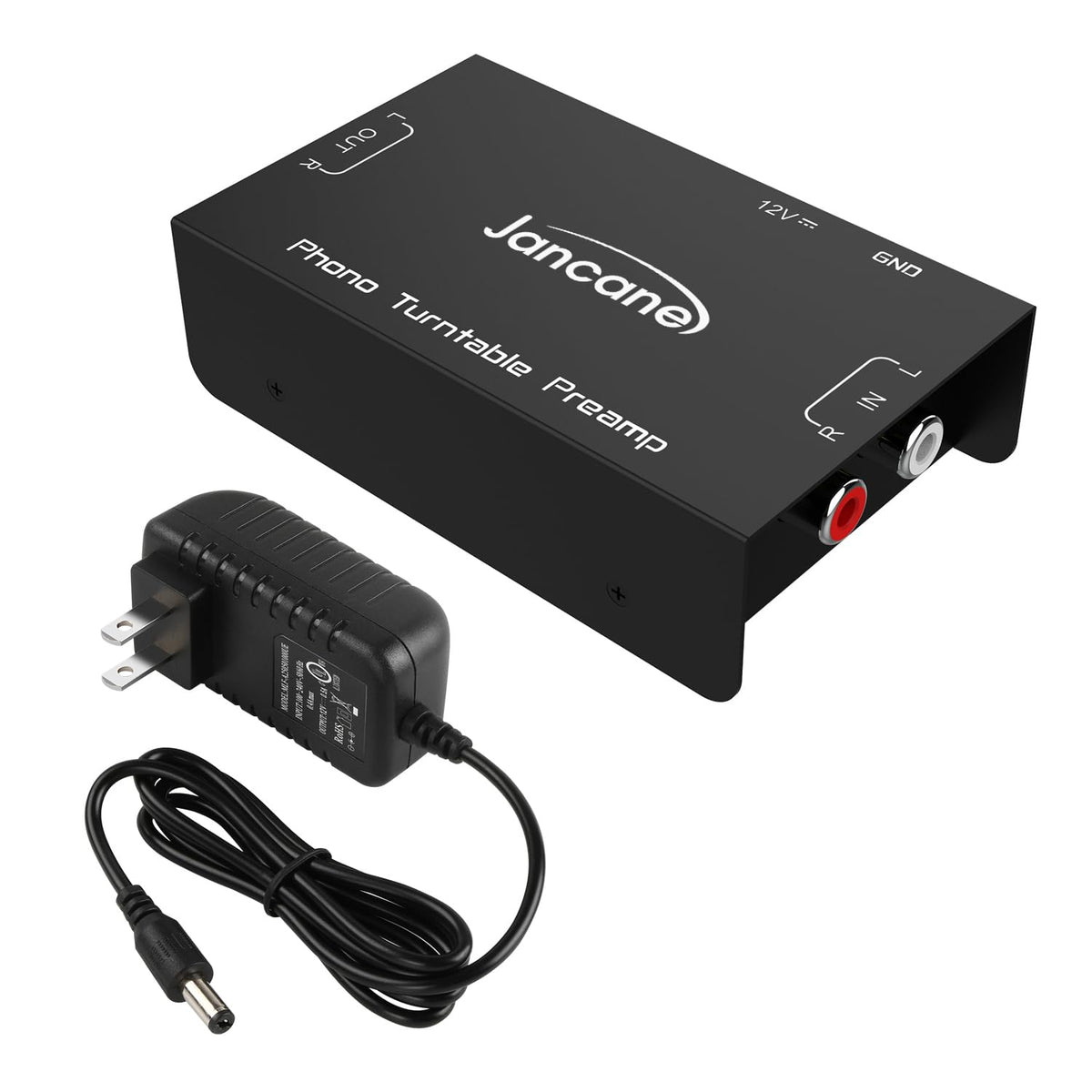

• Power: included 12V DC adapter; place close to turntable to reduce cable noise.

How simple is installation and daily use?

Installation is straightforward: plug RCA cables from the turntable into the unit, connect the unit to your audio device, and attach the 12V adapter. No driver, app, or special setup is required—ideal for quick integration into an existing home audio setup.

• Plug-and-play wiring with standard RCA connectors and ground lug.
• No software or configuration needed; power on and play.

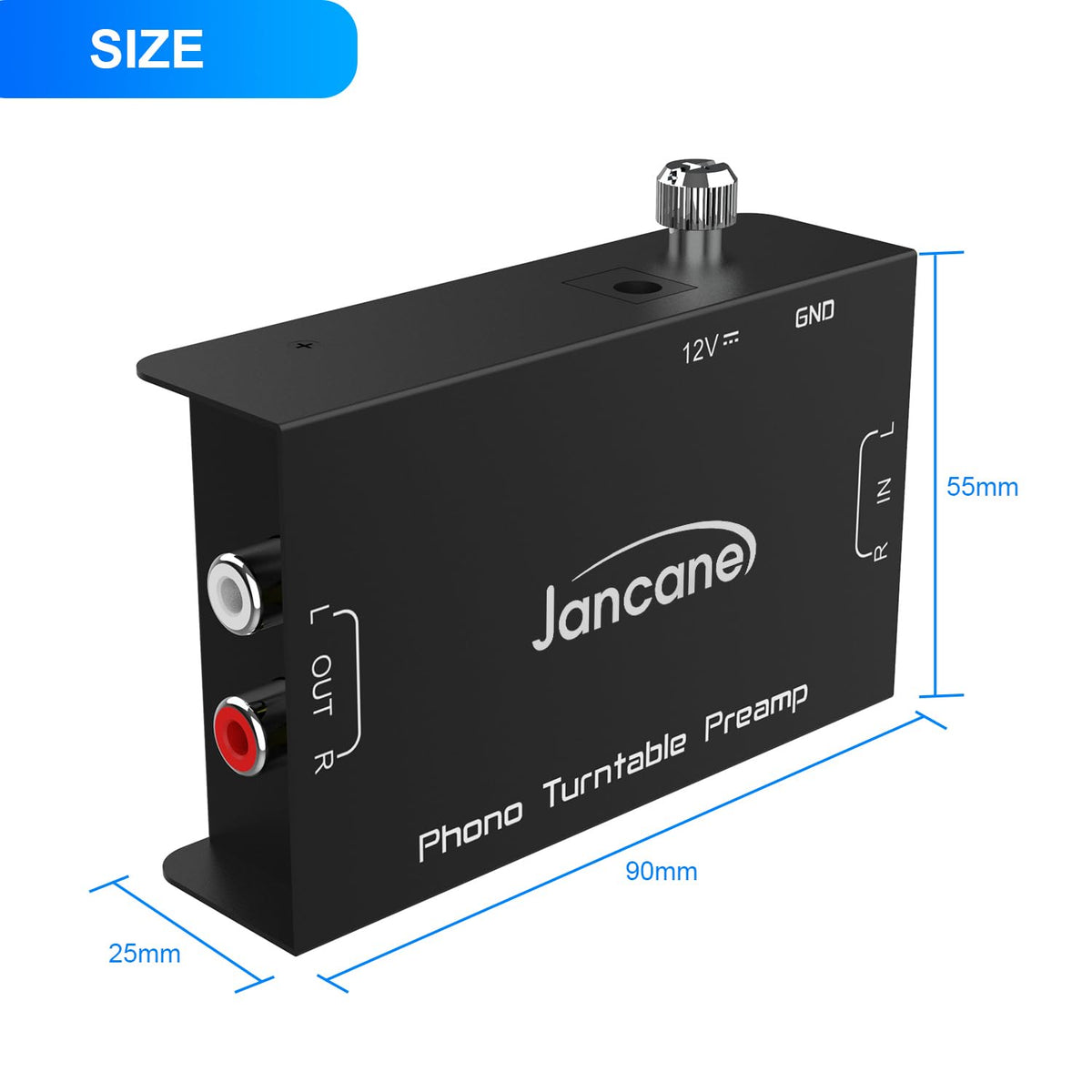

• Compact footprint fits near the turntable or on a shelf to shorten cable runs.

What performance details should I expect?

The preamp delivers up to about 2 V (peak-to-peak) output into a 10 kΩ load and is optimized for low-noise operation with its audio-grade op-amps. Positioning and quality of interconnects influence noise floor and fidelity, so place the unit close to the source and use shielded RCA cables for best results.

• Designed sensitivity: ~3 mV input at 50 kΩ for MM cartridges.
• Maximum output: ~2 V P-P into 10 kΩ load.
• Recommended: ground the turntable to the preamp and keep cables short.

Who is this for: The cotsoco Phono Turntable Preamp is aimed at vinyl listeners who own a turntable without a built-in phono stage and want a compact, low-noise way to connect to modern amplifiers, powered speakers, or computer audio setups. It's suitable for hobbyists and entry-level audiophiles who prefer an easy, hardware-based upgrade to enable correct playback of records without changing their existing amplifier or receiver. The product also includes a 30-day return policy and a 1-year manufacturer warranty for peace of mind.
