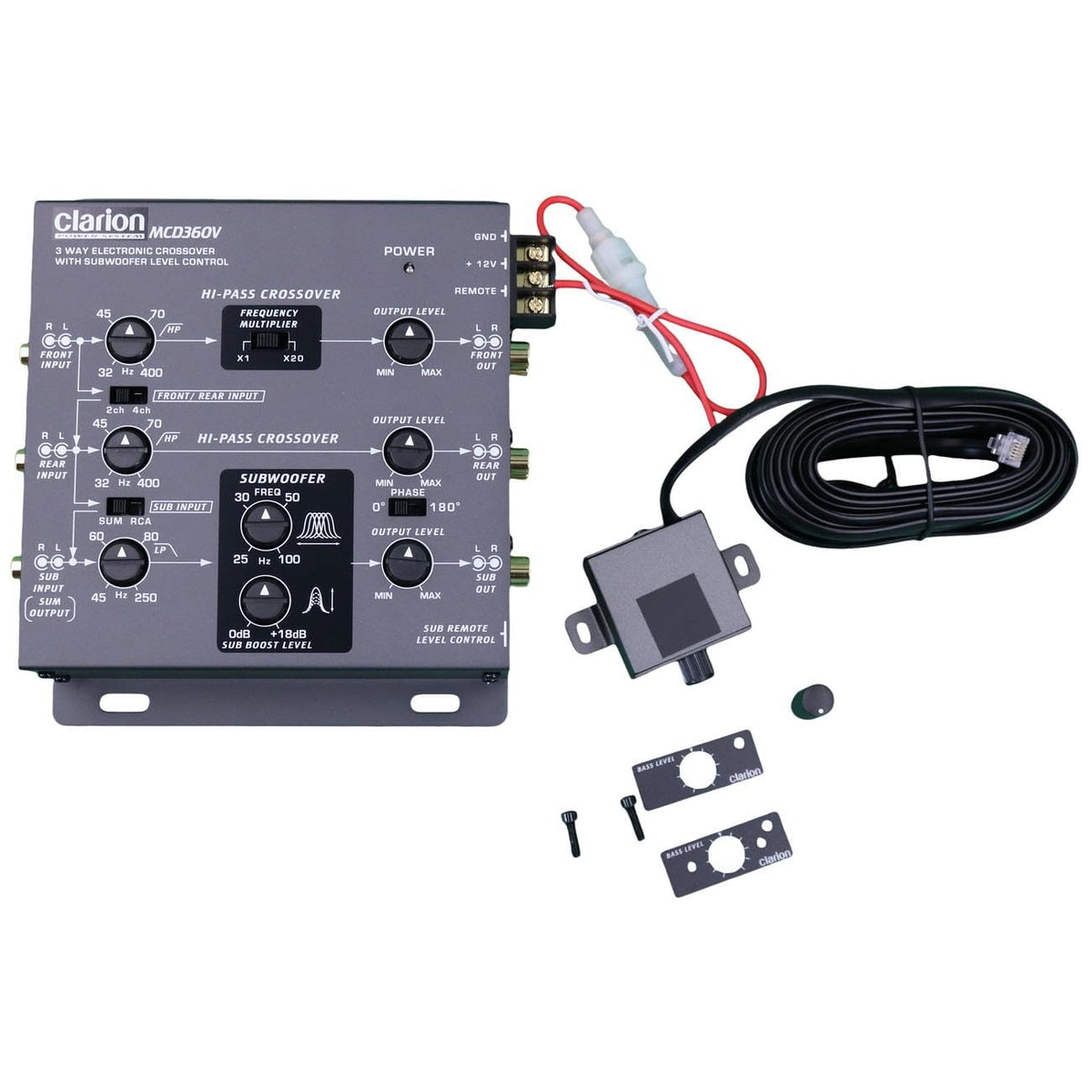

Clarion MCD360V — 3-Way 6 Channel RCA Electronic Crossover with Remote Subwoofer Level Control

Flexible sound routing for two- and three-way systems

Clarion MCD360V is a versatile three-way electronic crossover designed to give you precise control over your car audio signal. It accepts multiple input configurations, including six-, four-, or two-channel formats, and includes a wired remote subwoofer level control for on-the-fly bass adjustments. Built for both two-way and full three-way setups, the MCD360V lets you choose crossover points between front, rear, and sub outputs, helping you tailor the balance and clarity that matter most in your cabin.

In real driving conditions, this setup can reduce overlap between speaker ranges, create a more spacious soundstage, and let bass presence breathe without masking mids and highs. The unit emphasizes signal integrity with a high signal-to-noise ratio and gold-plated connections, helping minimize noise and maintain clean transmission from your head unit to amplifiers and subs.

Key capabilities at a glance

• 6/4/2 channel RCA inputs and 6-channel/5-volt outputs for flexible wiring
• Adjustable level output for Front, Rear, & Subwoofer to match your cabin acoustics

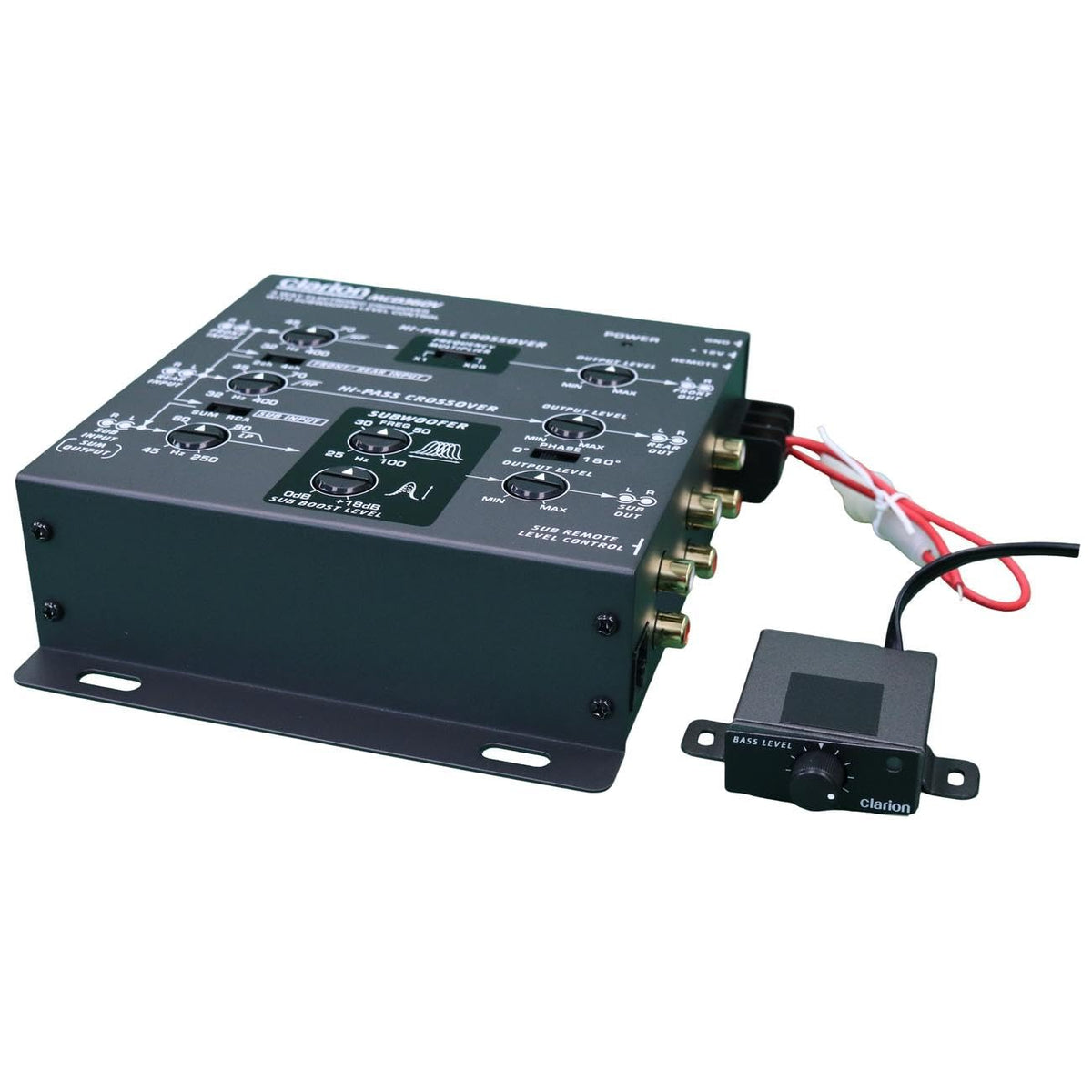

• Adjustable high- and low-pass crossovers with a multiplier for precise tuning
• Non-fade low-pass output for consistent bass transfer

Tuned sound controls and features

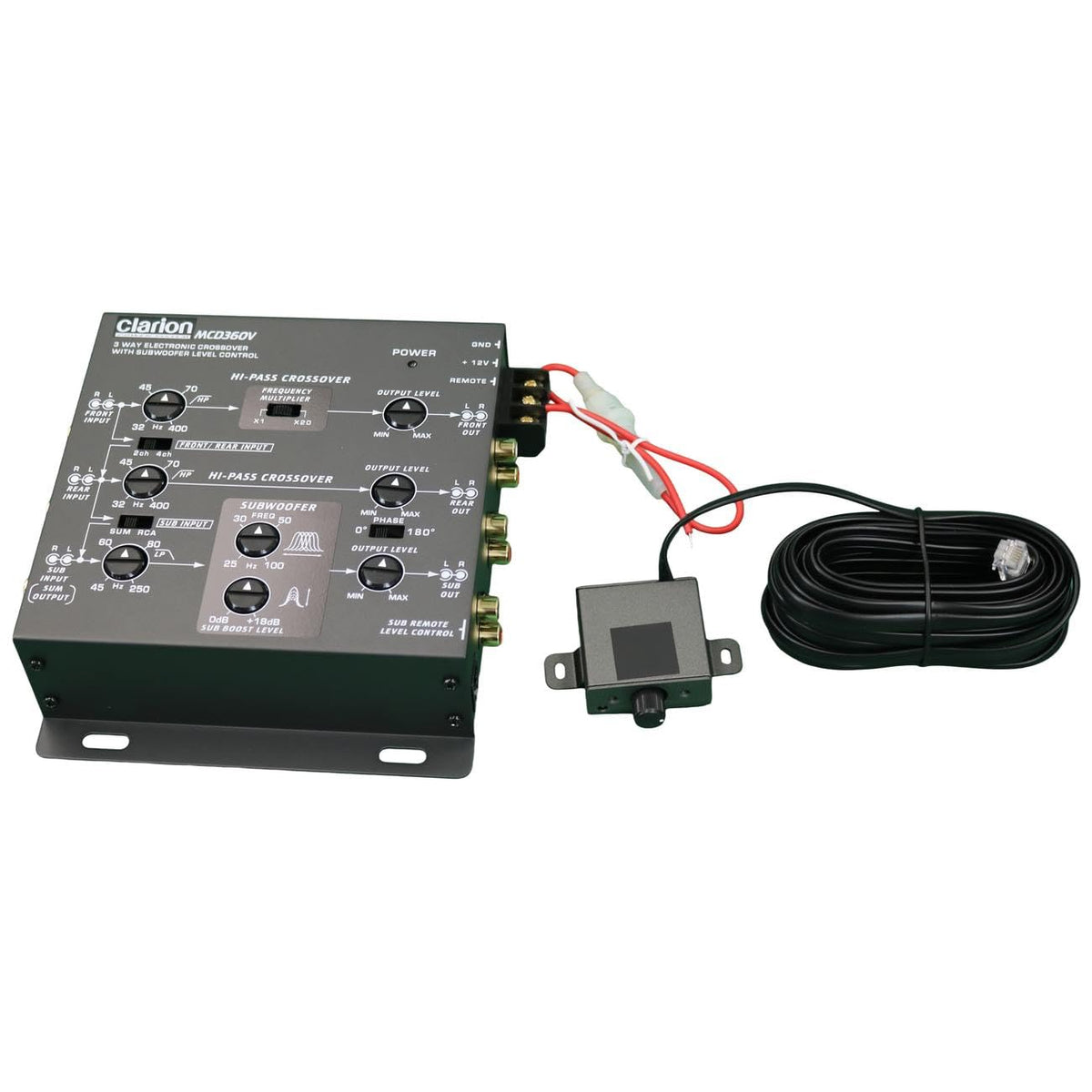

• Subwoofer equalizer and bass boost control to sculpt low-end presence

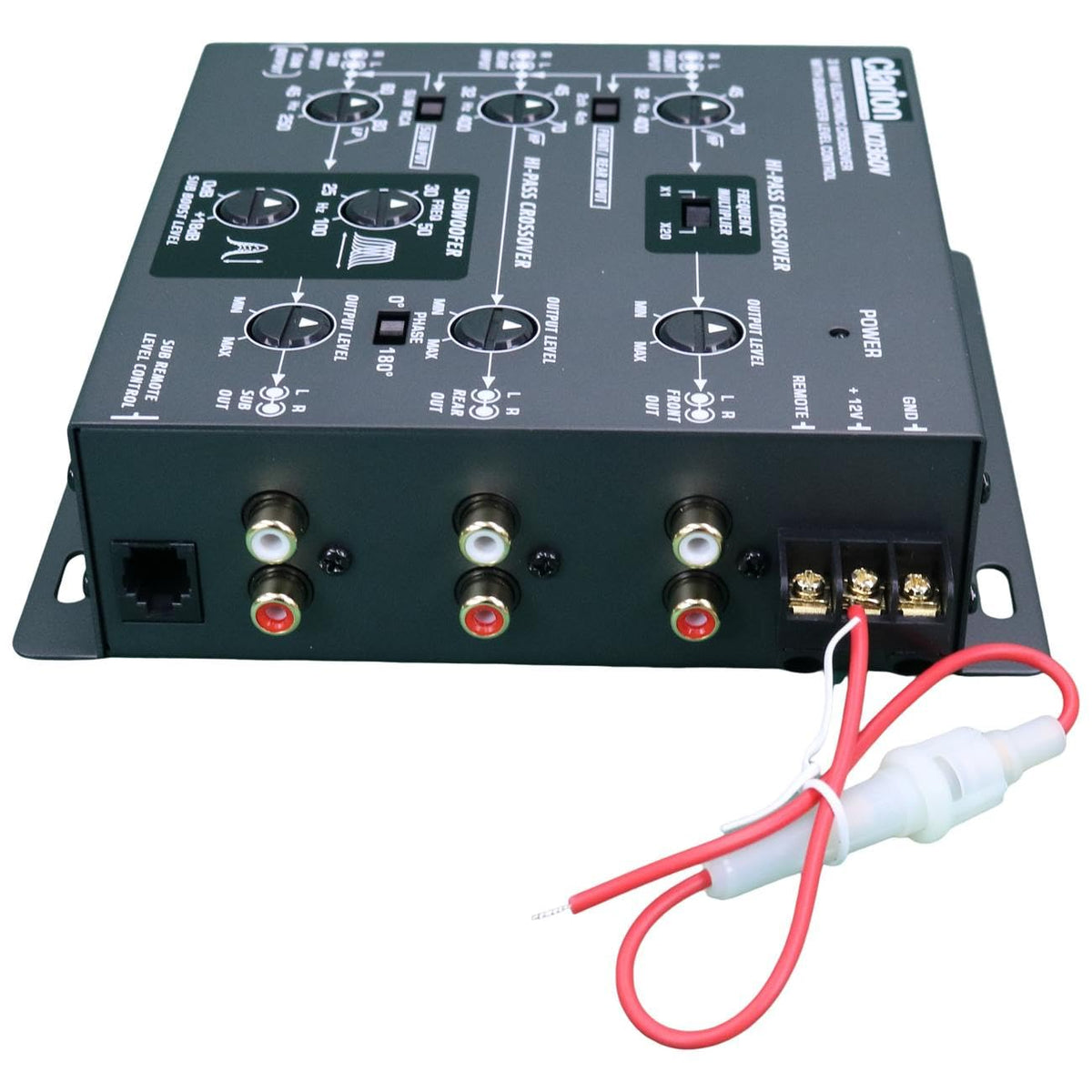

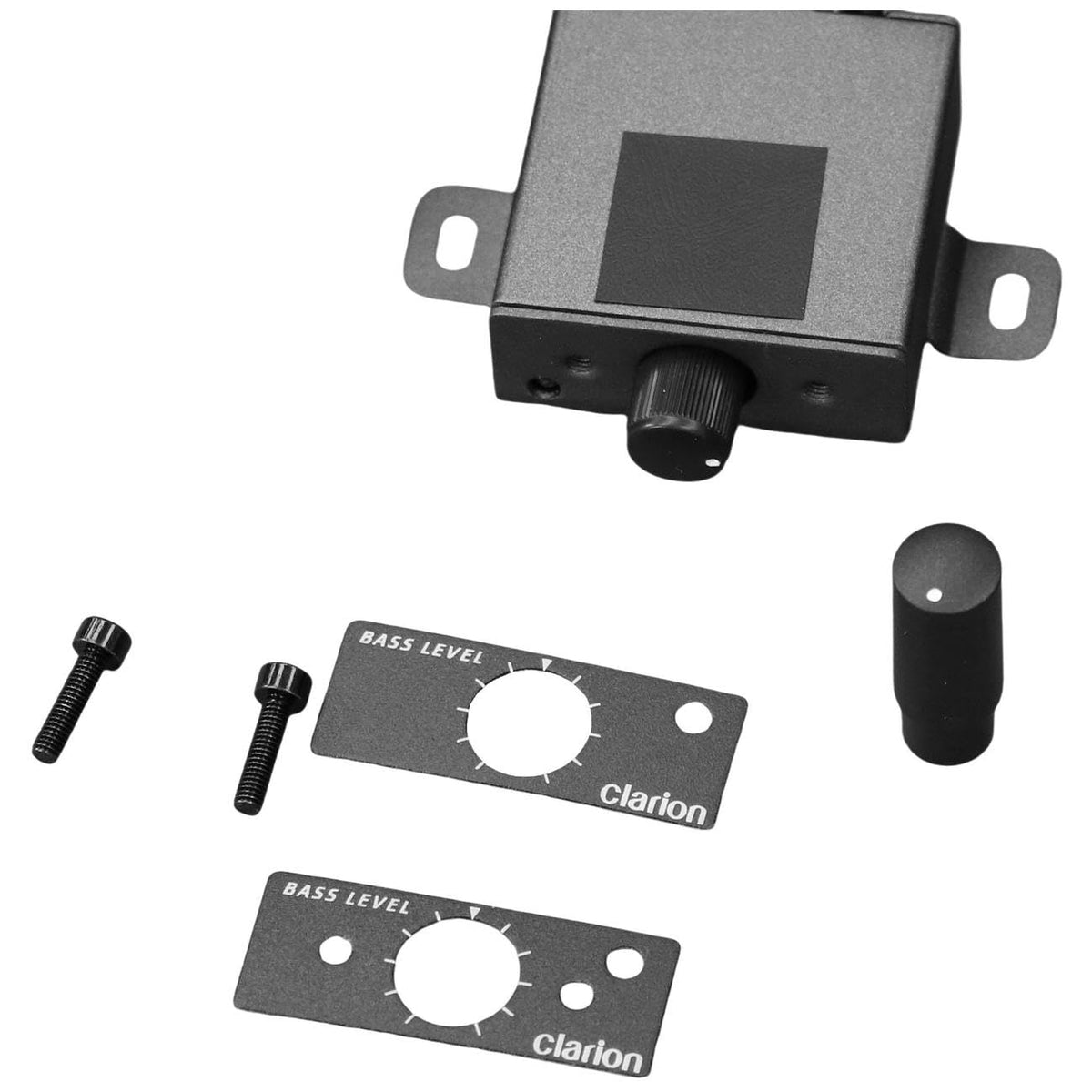

• Remote subwoofer level control for quick on-seat adjustments
• Ground loop isolation to reduce hum and external interference

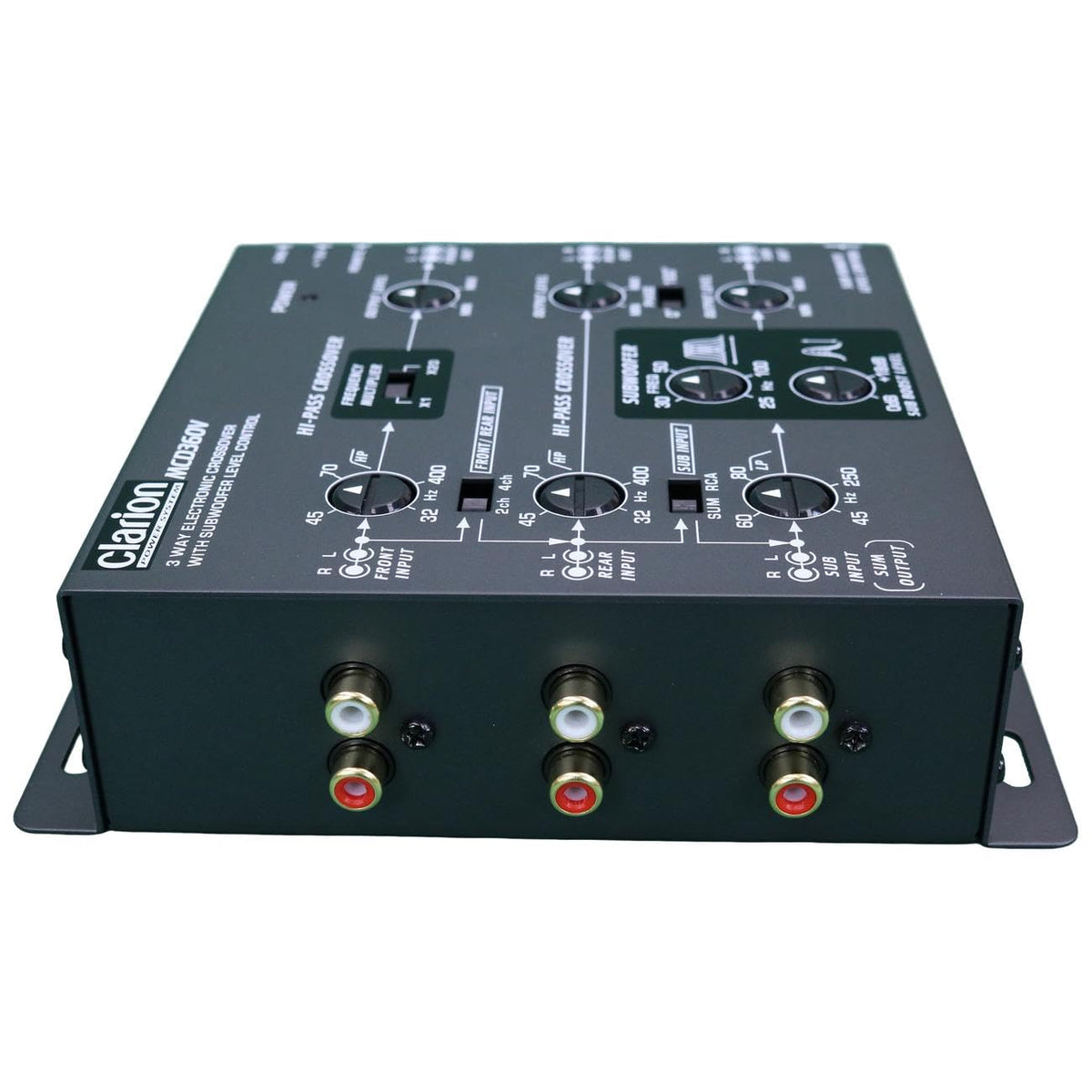

• Gold-plated RCA and power connections for reliable signal integrity

Technical highlights you can rely on

• Frequency response ranges from 10 to 50,000 Hz
• Signal-to-noise ratio around 100 dB for clean signal paths
• High-pass options cover 32 to 8,000 Hz (and 32 to 400 Hz for rear channels)
• Subwoofer line output adjustable from 0 to 18 dB; center equalizing frequencies from 25 to 100 Hz

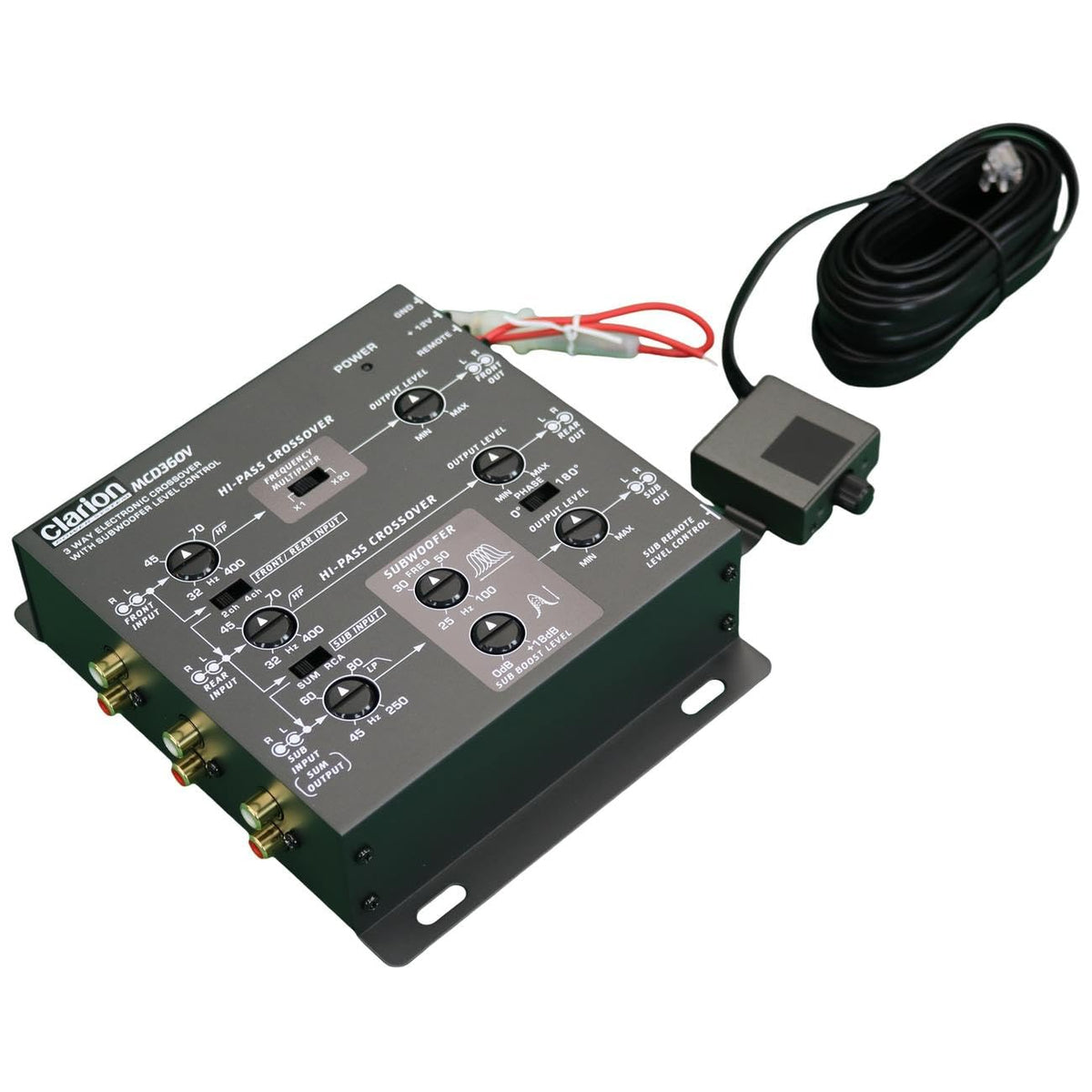

Compact, install-friendly design

With compact dimensions and gold-plated connectors, the MCD360V can fit into tight dashboards and enclosures while maintaining secure, low-noise connections. The wired remote lets you tune the subwoofer level without reaching behind the device. Dimensions: 6" W × 0.75" H × 7" D.

Overall, the Clarion MCD360V offers a flexible pathway to refine car audio routing. It supports different system configurations, gives you granular control over crossovers, and keeps the signal clean, so you can focus on enjoying your music the way you prefer—whether you’re cruising city streets or hitting the open road.
