Clarion EQS755V 7-Band Car Graphic Equalizer & Crossover | 1/2-DIN, Front 3.5mm Aux, Rear RCA, High-Level Inputs

Unlock More Sound Control with the Clarion EQS755V

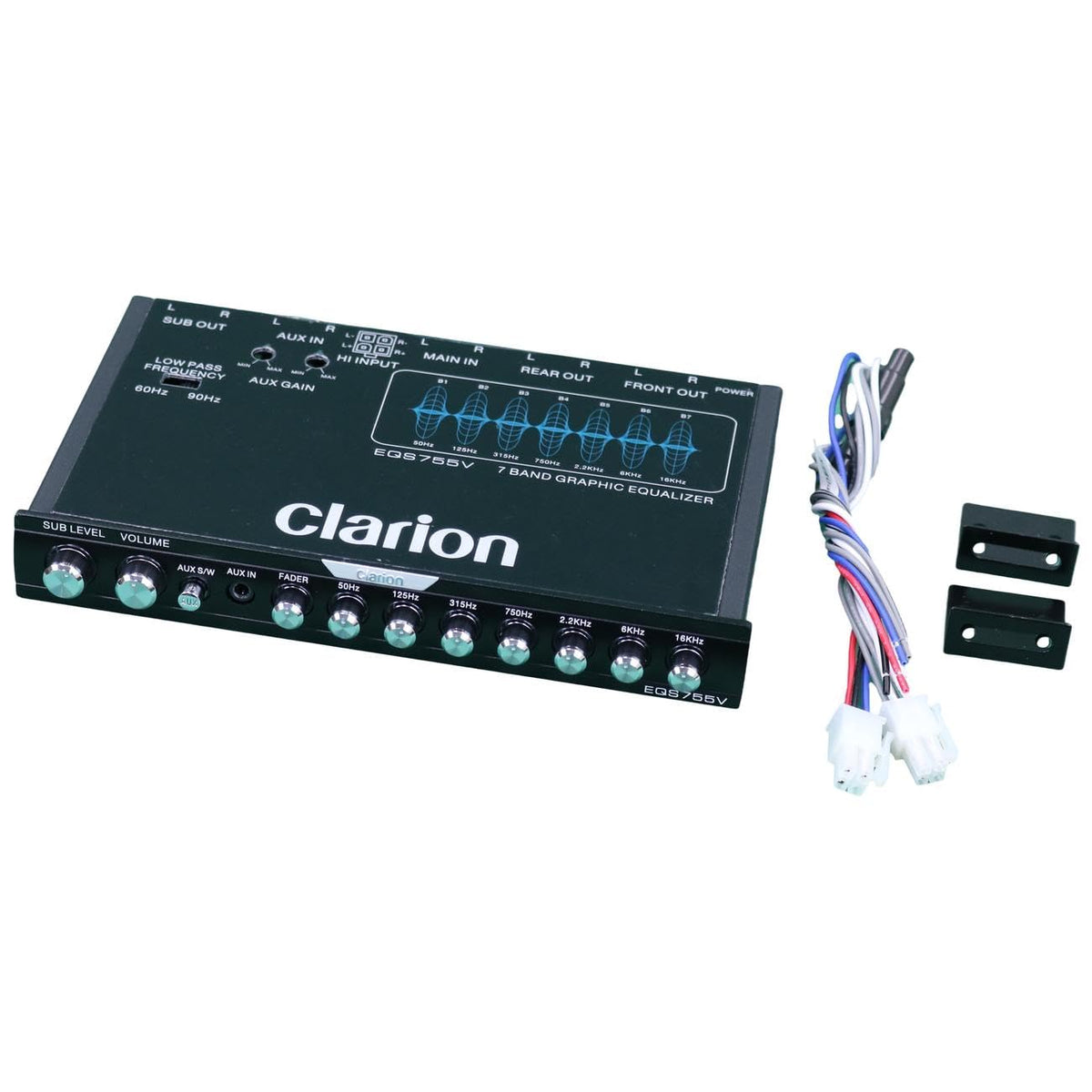

The Clarion EQS755V is a compact 1/2-DIN graphic equalizer and crossover designed to give you precise command over your car audio. With a full seven-band graphic EQ spanning from 50 Hz to 16 kHz, you can tailor tonal balance to your music and your vehicle’s acoustics without sacrificing headroom. The built‑in low-pass capability provides a clean path for subwoofers, while multiple inputs and outputs support a broad range of aftermarket configurations.

Key features and connections that empower your setup

• 7-Band Graphic Equalizer (50 Hz, 125 Hz, 315 Hz, 750 Hz, 2.2 kHz, 6 kHz, 16 kHz) for fine-grained tonal shaping.
• 6-Channel / 8-Volt RCA Outputs for Front, Rear, and Sub, enabling clear channel separation.

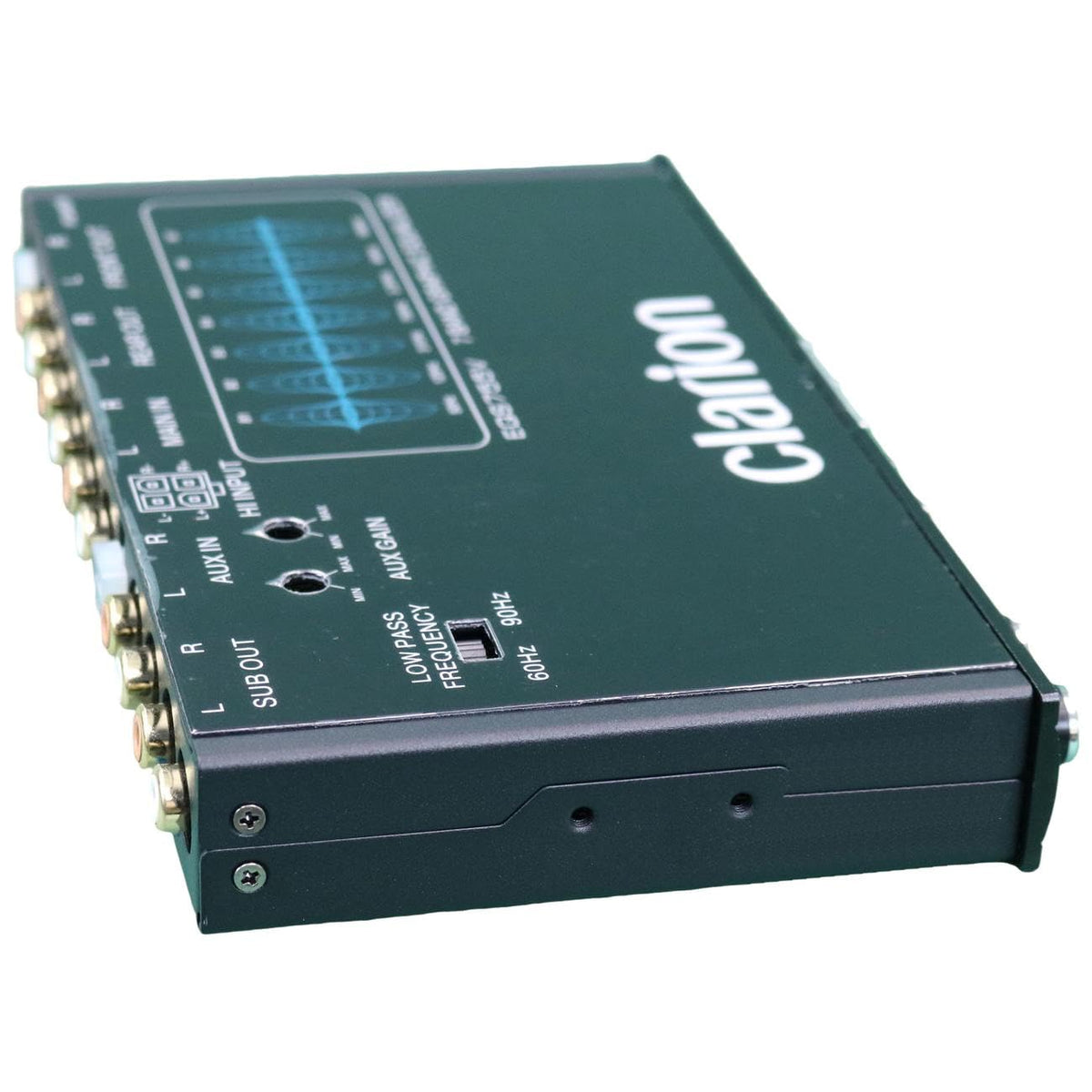

• Independent Master Volume & Subwoofer Level with a built-in Fader for quick adjustments on the fly.

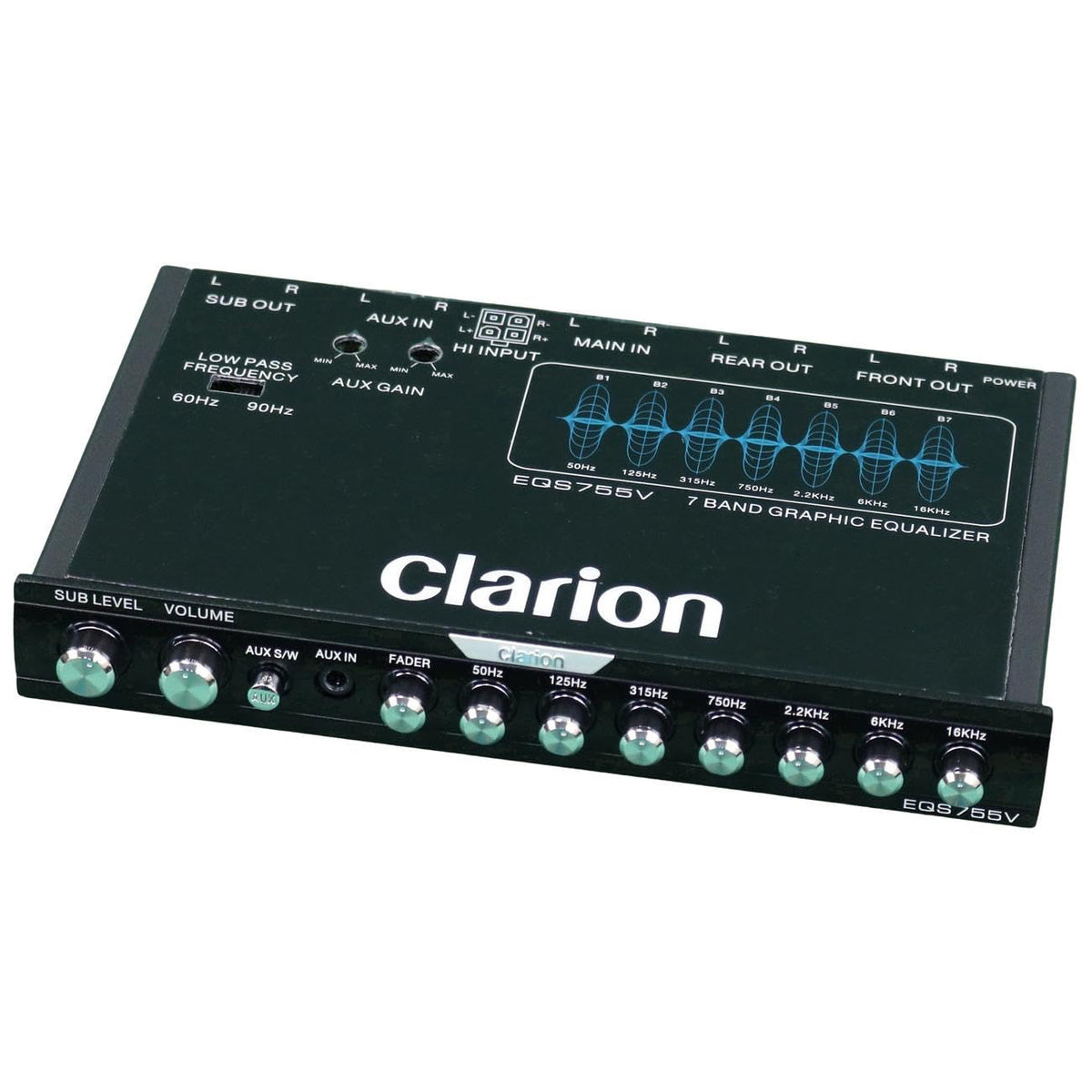

• Front 3.5 mm AUX Input plus 2-Channel RCA AUX Input with Variable Gain for flexible sources.
• Selectable 12 dB Low-Pass Filter at 60 Hz or 90 Hz to tailor bass handling.

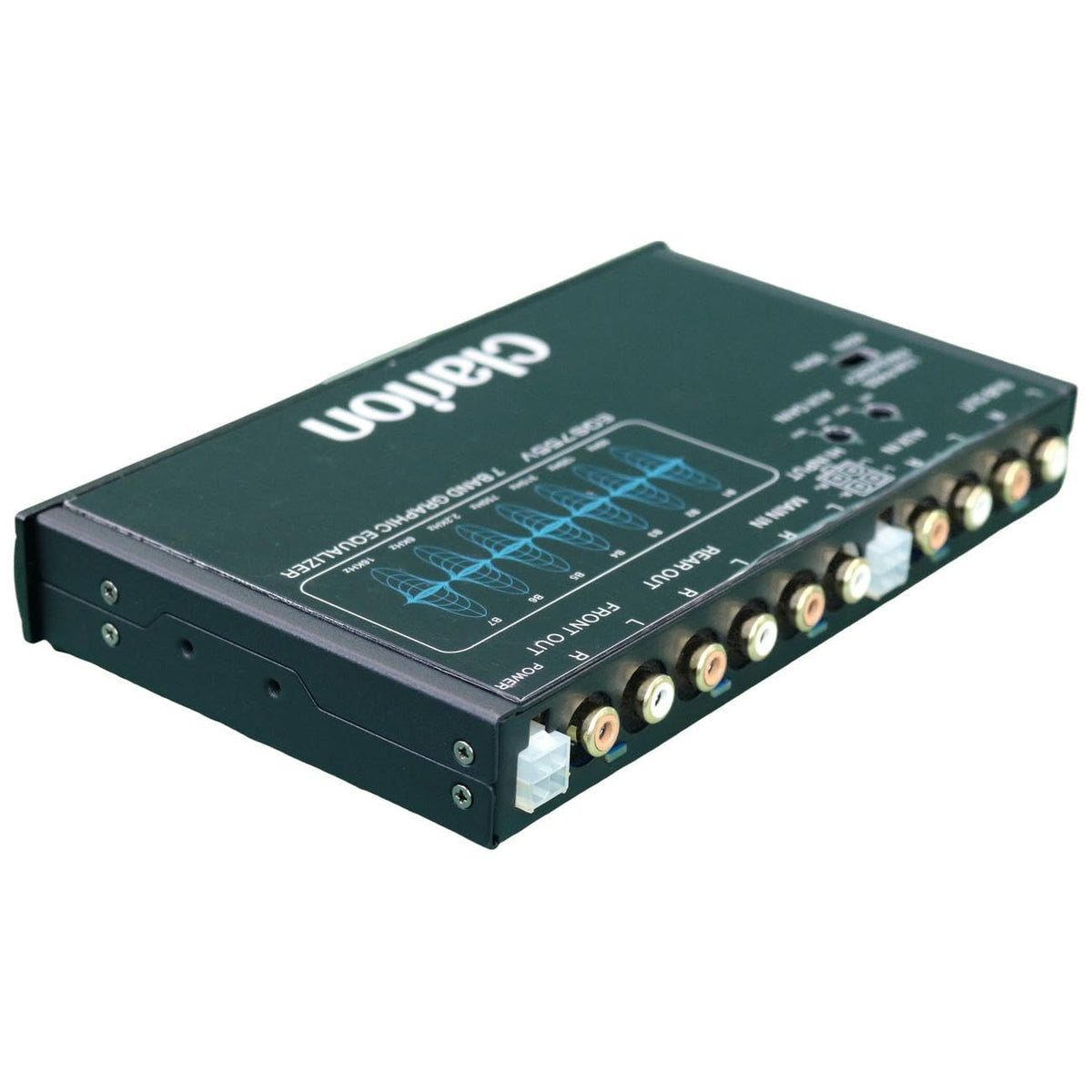

• Ground Loop Isolation helps reduce interference, while RCA and High-Level Inputs support a wide range of head units.

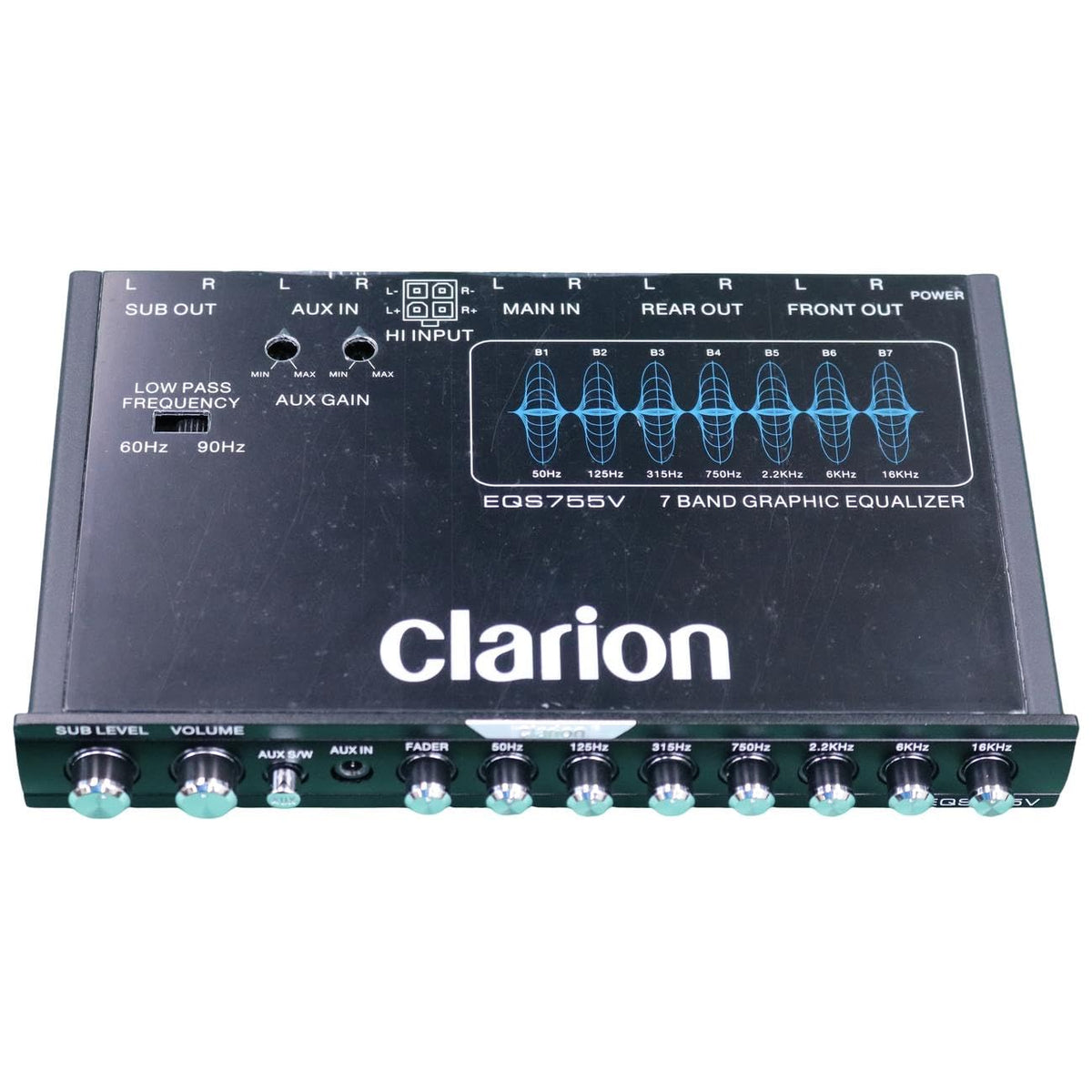

In practice, you can tune for clearer vocals during bustling commutes, emphasize punchy bass for road trips, or refine highs for acoustic tracks. The blue illumination adds a visual cue for night-time tuning without overpowering cabin lighting. The 1/2-DIN footprint keeps the module compact in the dash, while the built-in low-pass filter helps define the sub region without needing extra gear. As with any aftermarket upgrade, results vary with your overall system, vehicle acoustics, and source quality.

Specs and placement

Dimensions are 7 in wide, 4-1/4 in long, and 1 in high, making it compatible with a broad range of dashboards and aftermarket radios. The EQS755V is designed to deliver tonal control that aligns with your listening preferences and vehicle environment, offering possibilities rather than guarantees.
