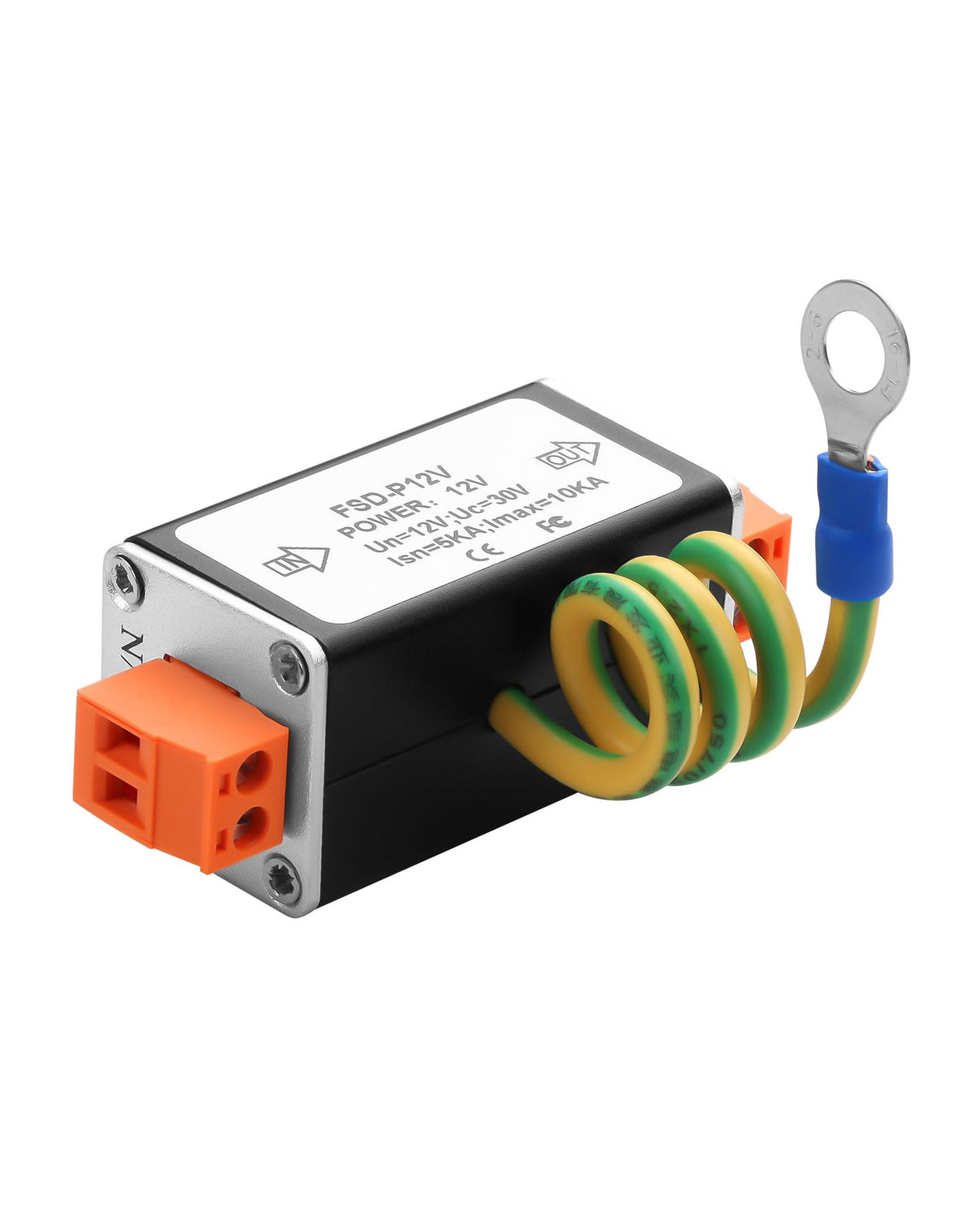

CERRXIAN DC12V 10kA Surge Protector for CCTV

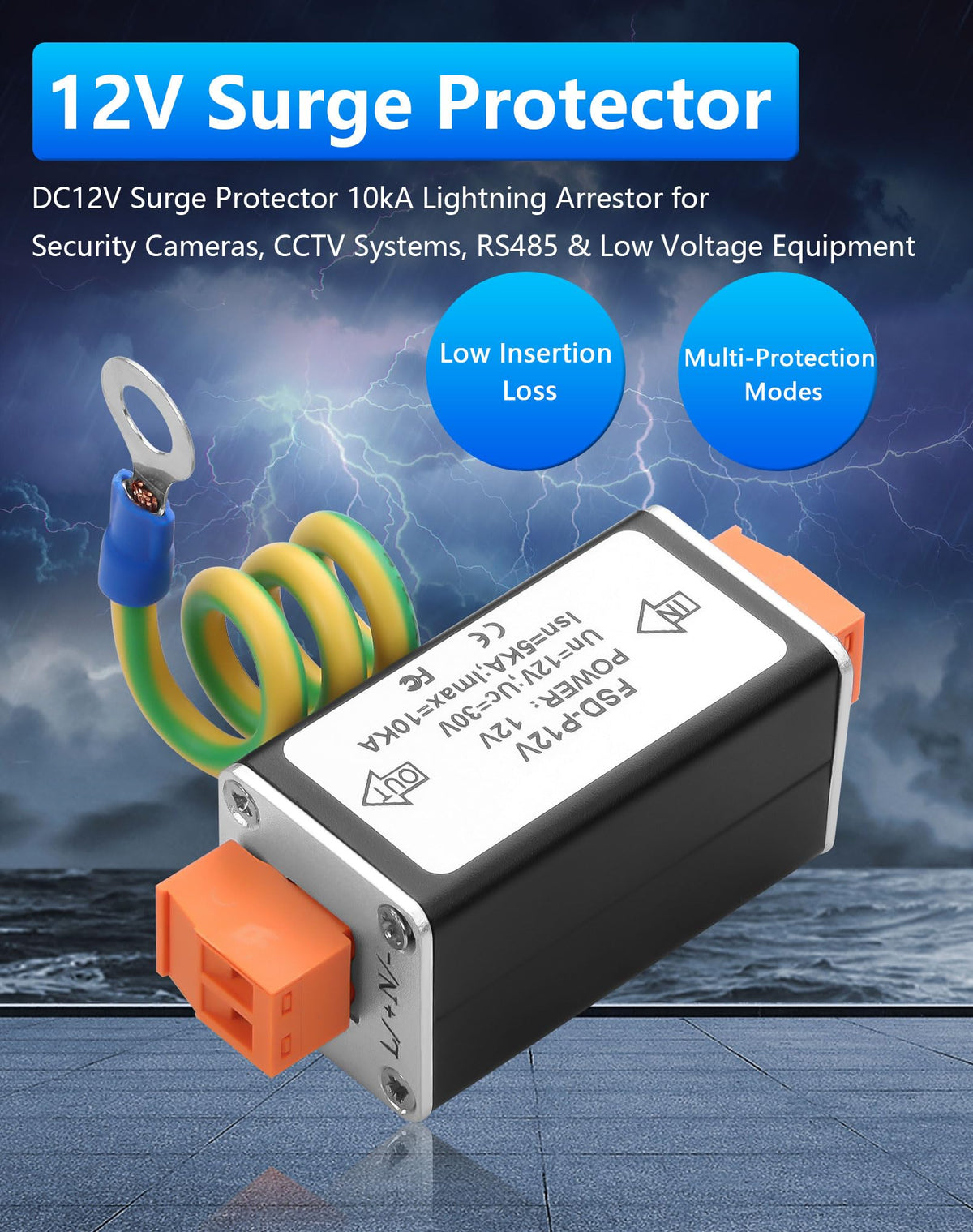

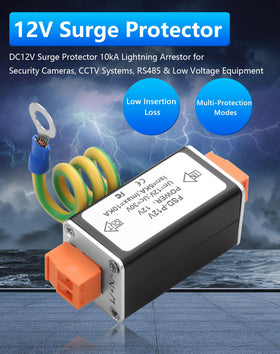

CERRXIAN DC12V Surge Protector 10kA is a compact lightning arrestor designed to protect 12V security cameras, RS485 devices and other low-voltage systems from lightning-induced spikes.

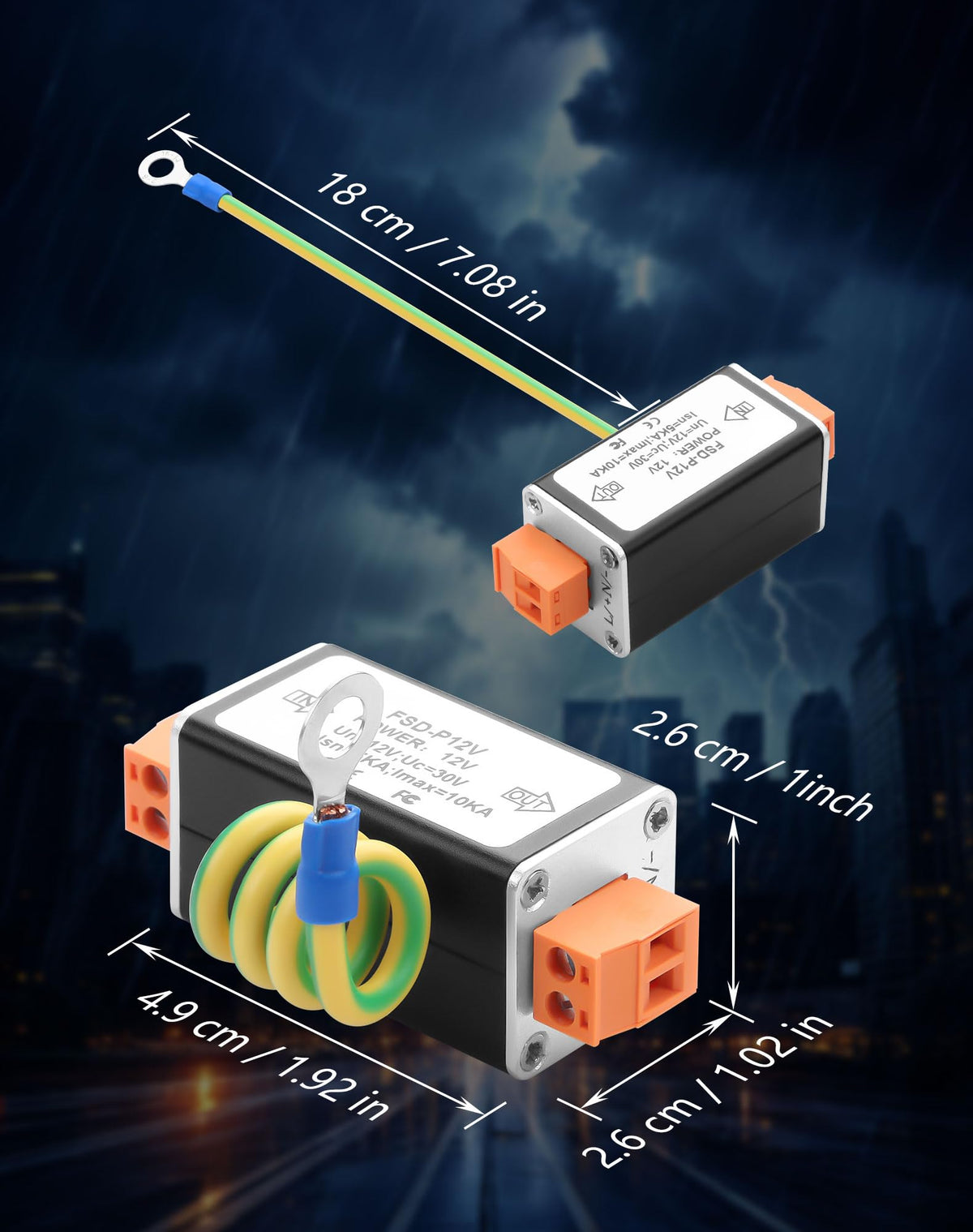

This rugged surge suppressor combines a high 10kA impulse rating with low insertion loss to shield CCTV systems, access control panels, intercoms and alarm components from transient overvoltages. Built in an aluminum-alloy housing with UL94-V0 fire resistance, it accepts L-PE and N-PE protection modes so installers can adapt it to varied grounding schemes. The unit is purpose-made for DC12V lines and sensitive communication circuits where preserving signal integrity matters as much as preventing damage.

How does this protector guard my cameras and low-voltage devices?

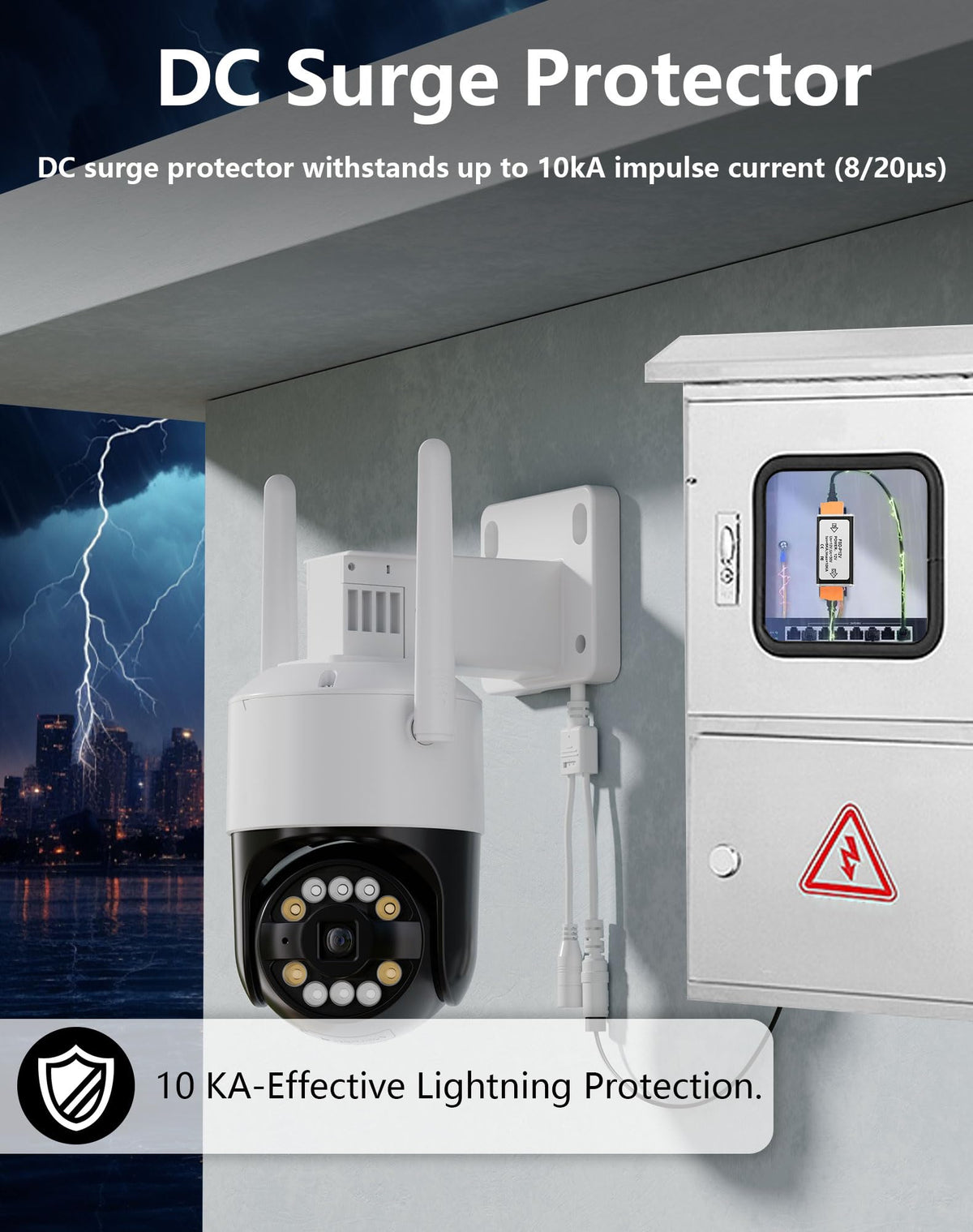

The CERRXIAN surge protector clamps sudden voltage spikes and diverts surge current away from connected equipment, minimizing stress on electronics. Its 10kA (8/20µs) impulse capability handles common lightning-induced transients encountered on exposed installations.

• 10kA impulse current capacity to absorb main surge energy
• L-PE and N-PE modes to match different grounding layouts
• Low insertion loss to maintain camera and RS485 signal quality
• Aluminum housing for fast heat dissipation and durability

Where should I install the CERRXIAN DC12V surge arrestor?

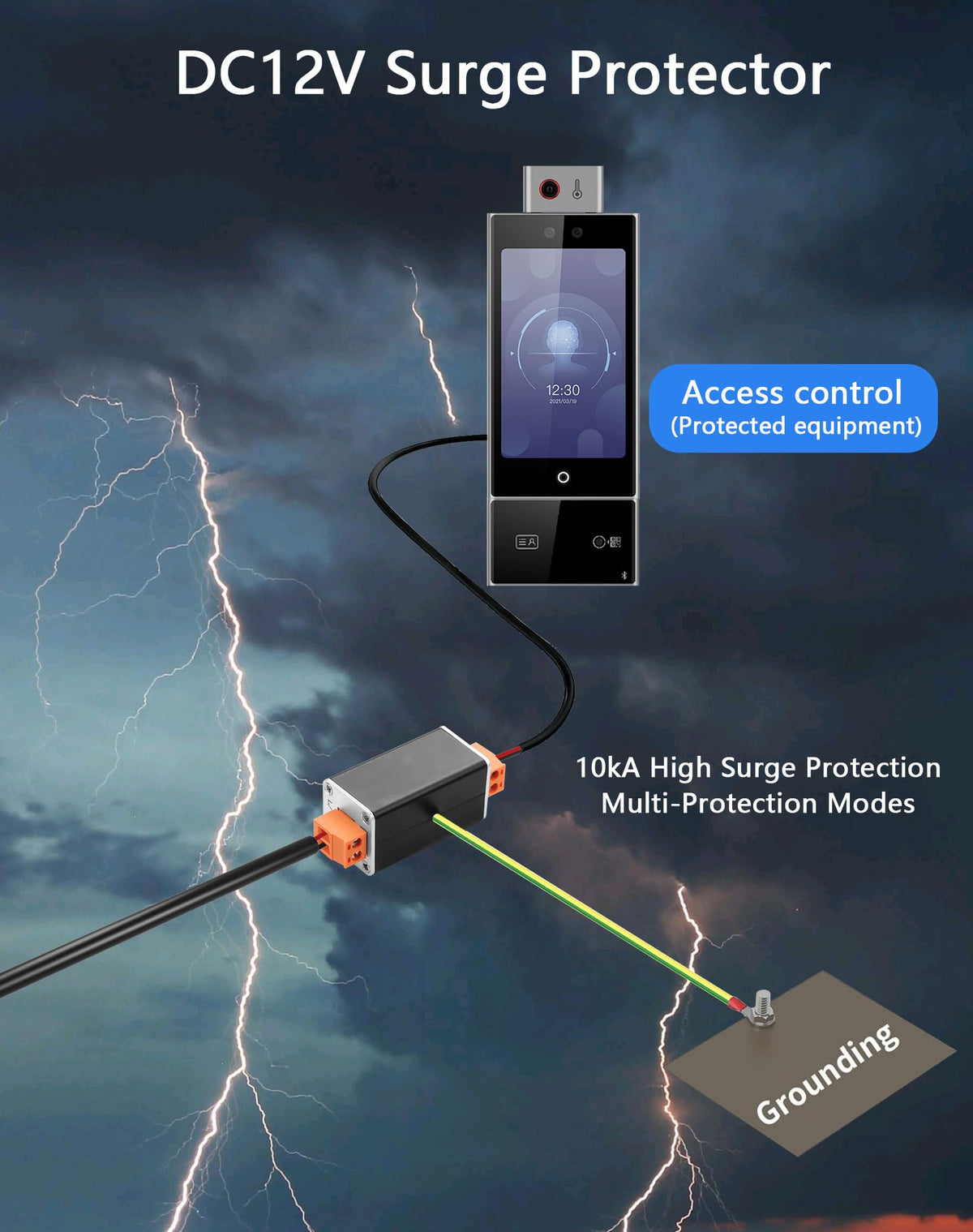

Install the protector at entry points where external cables connect to indoor equipment—typically at DVR/NVR inputs, alarm panels or where power and data enter a building. Placing it close to the protected device ensures the surge is clamped before reaching sensitive circuitry.

• Mount near camera power inputs or control panel terminals
• Use at cable entry/termination points for maximum effectiveness
• Combine with proper grounding to optimize L-PE/N-PE performance
• Ideal for rooftop, pole-mounted or perimeter camera lines

Will this affect signal or power delivery for RS485 and CCTV?

No significant signal degradation is expected—this model is engineered for low insertion loss so video and serial communications remain reliable. The protector clamps high-energy surges while allowing normal DC power and low-voltage signaling to pass with minimal interference.

• Designed for minimal insertion loss on 12V DC and RS485 lines
• Preserves video quality and serial link integrity during normal operation
• Specifically made to suit sensitive control and communication circuits
• Durable materials reduce performance drift over time

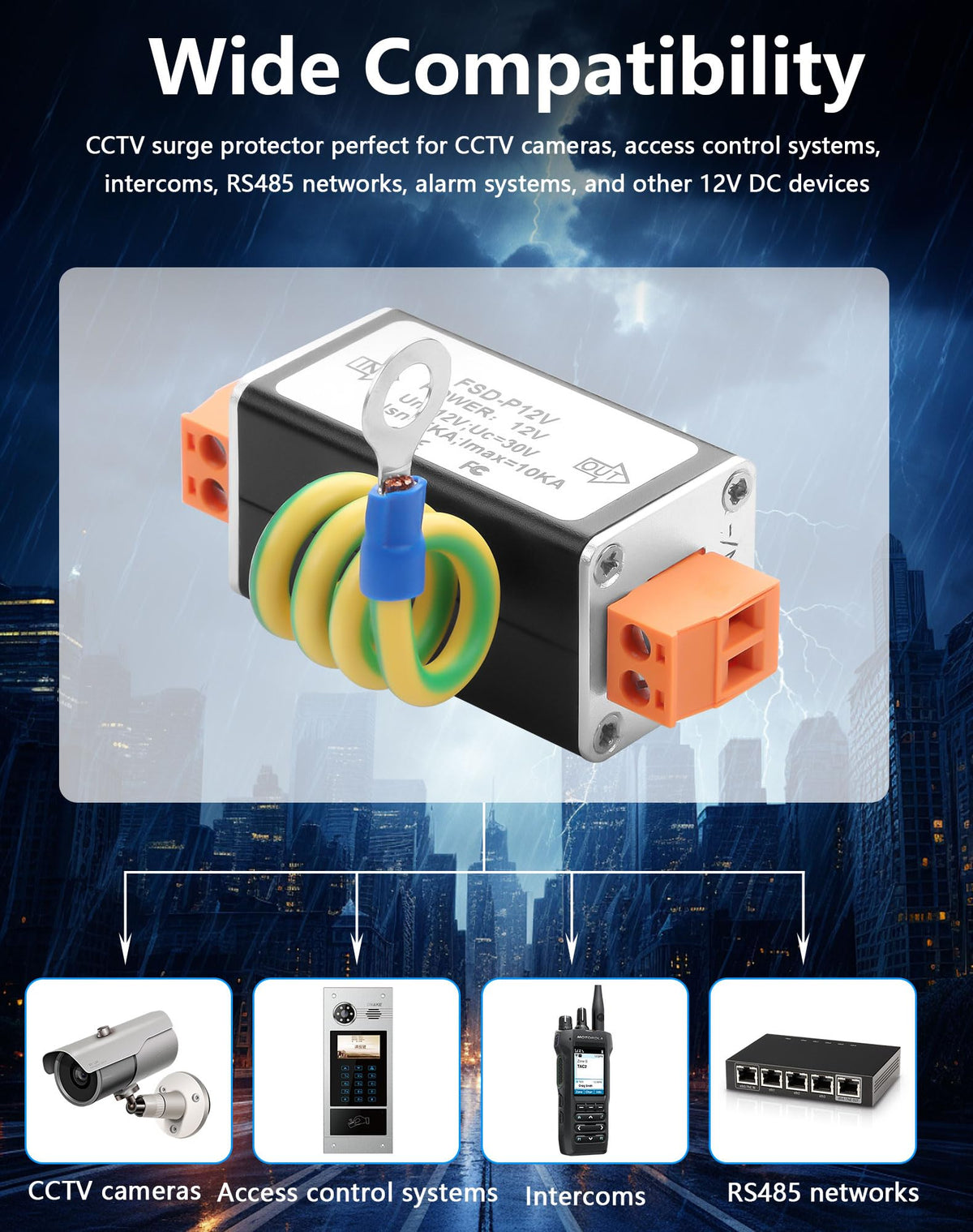

Who is this for? Installers, security integrators and building managers who deploy CCTV, access control, intercoms and alarm systems in locations exposed to lightning or electrical transients will find the CERRXIAN DC12V 10kA surge protector useful. It's a compact, installation-friendly unit for anyone wanting to add an extra layer of defense for 12V devices without compromising video or data signal quality. Pair it with correct grounding and complementary protection at service entrances for a layered surge-mitigation strategy.
