BXST Heavy Duty 220V 30A Surge Protector with LED

BXST Heavy Duty Wiring Surge Protector is a 220V, 30A inline protection unit with an LED voltage readout, adjustable low/high thresholds, delay timer, and 140J surge suppression designed to safeguard refrigerators, AC units, pumps and motors.

Power-sensitive equipment in homes and small commercial sites requires both surge suppression and intelligent voltage management. The BXST unit combines a visible LED voltage monitor with adjustable cut-in/cut-out thresholds and a programmable delay to prevent repeated short-cycling after an outage. With a 30 amp rating and a 6600W maximum load it’s made to handle larger appliances while offering 140 joules of surge absorption to blunt spikes that could damage compressors, controllers or motors.

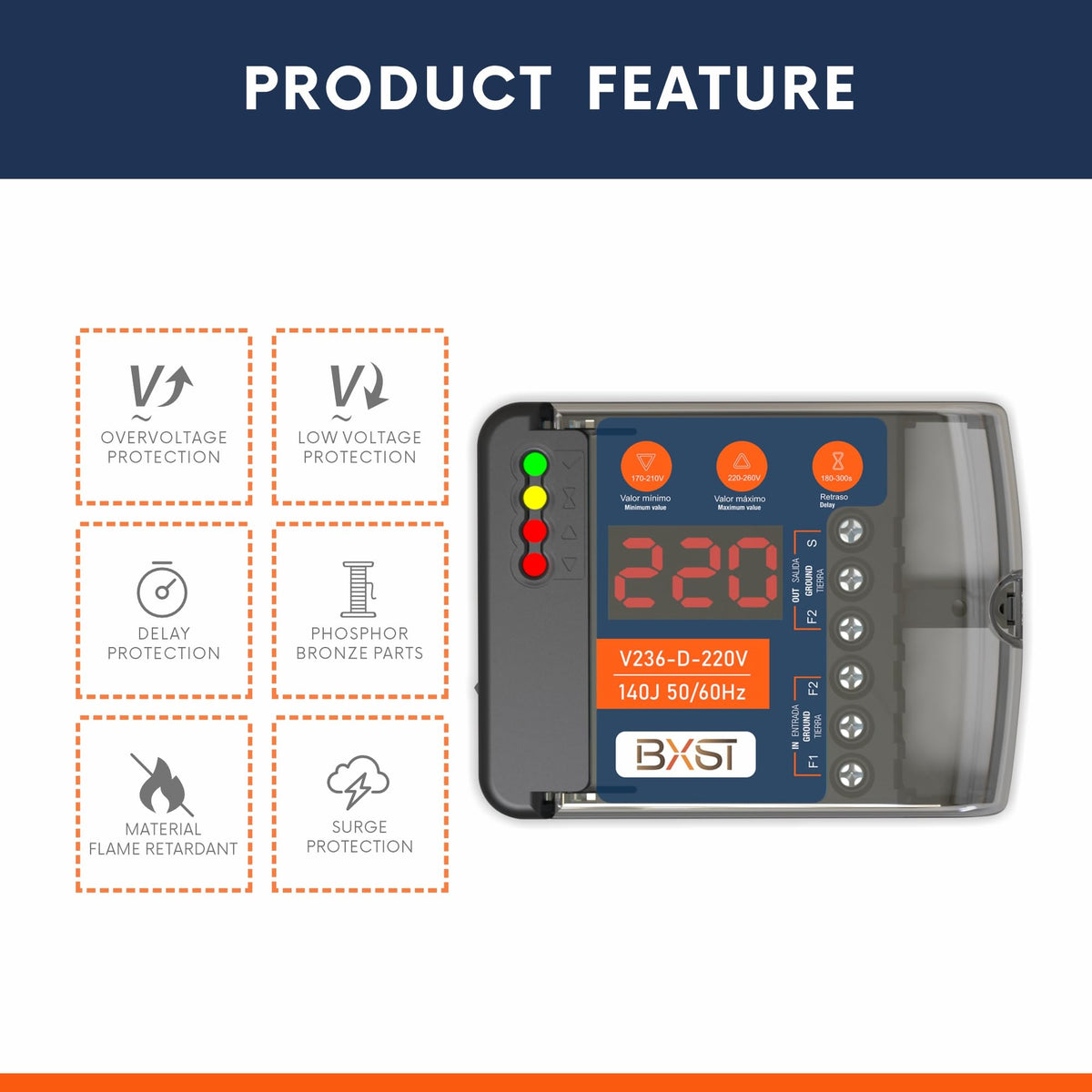

How does BXST protect compressors and motors from voltage problems?

The device prevents damage by disconnecting the load when incoming voltage falls outside user-set limits and by delaying reconnection until conditions stabilize. This reduces stress on start-up windings and electronic controls. It also includes surge suppression to absorb transient energy from lightning or grid events.

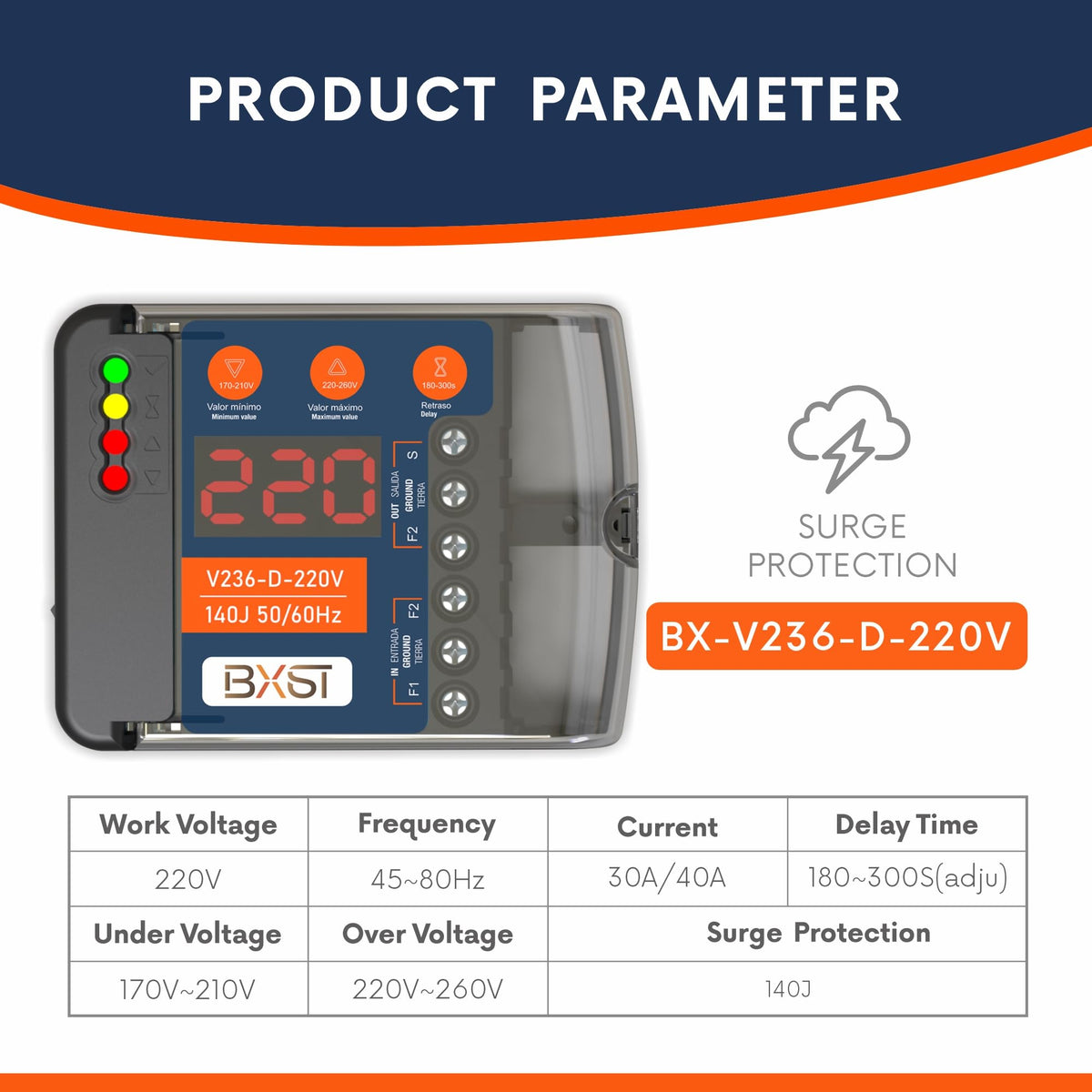

• Adjustable low-voltage trip: 170V–210V
• Adjustable high-voltage trip: 220V–260V
• Delay before restart: adjustable 180–300 seconds
• Surge capacity: 140 joules

What installation and load limits should I be aware of?

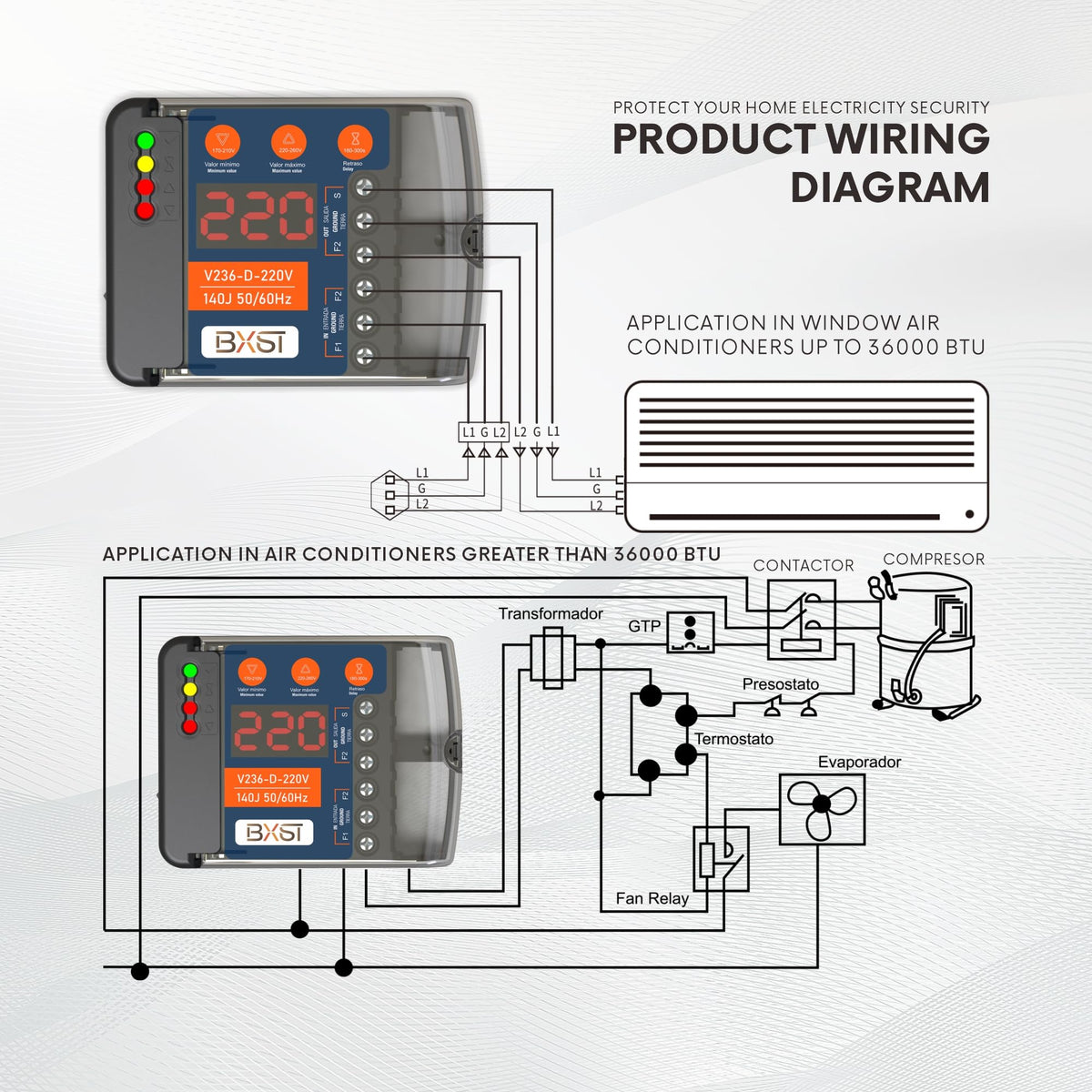

The BXST protector is designed for hardwired or inline installation in circuits up to 30A at nominal 220V. It supports both common mains frequencies and handles resistive and inductive loads typical of refrigeration and HVAC equipment, but it must be sized to the appliance’s startup current.

• Rated current: 30A
• Maximum continuous power: 6600W at 220V
• Frequency compatibility: 45–80Hz (50/60Hz systems)

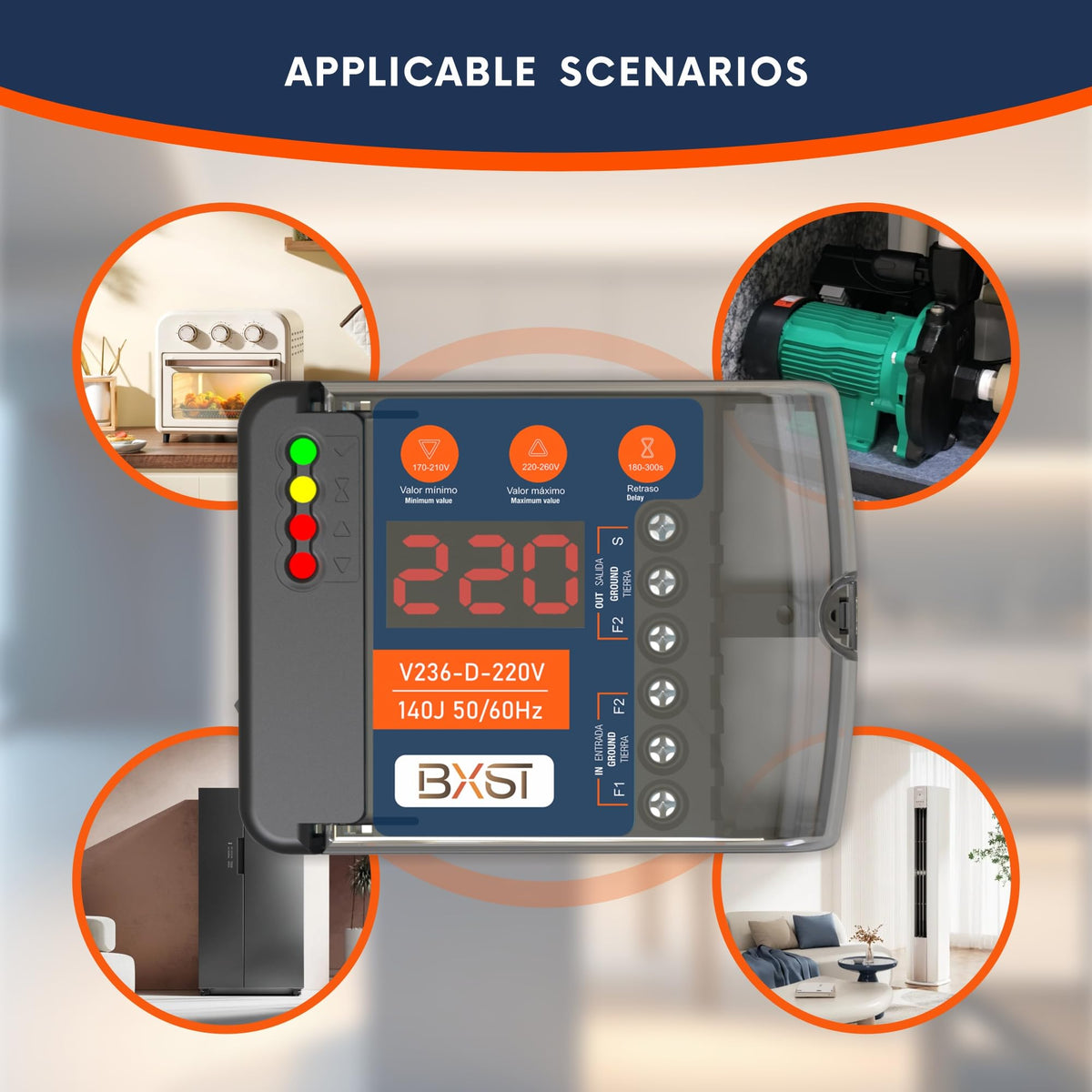

• Suitable for refrigerators, AC units, pumps, and motors

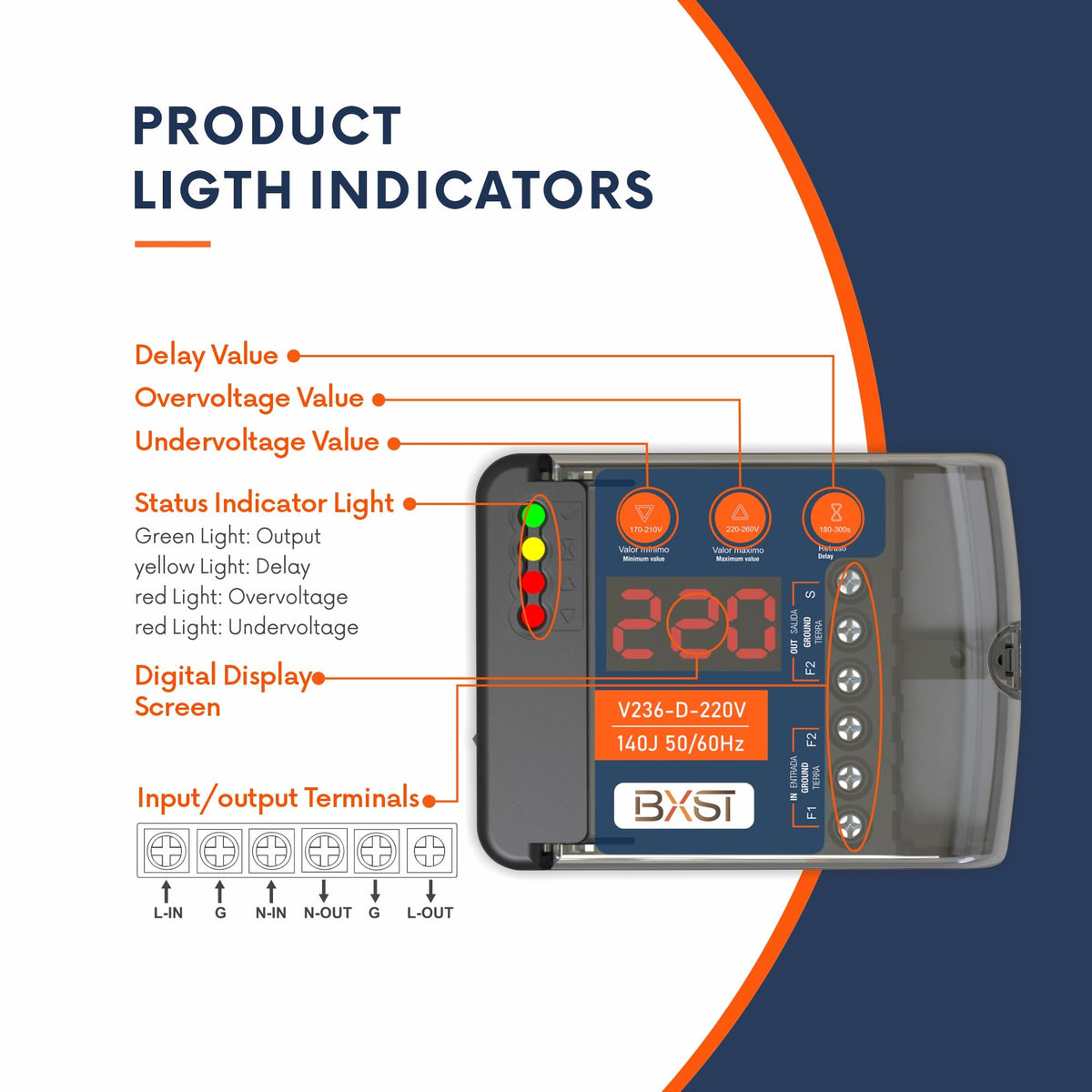

How do the LED display and adjustable settings make monitoring easier?

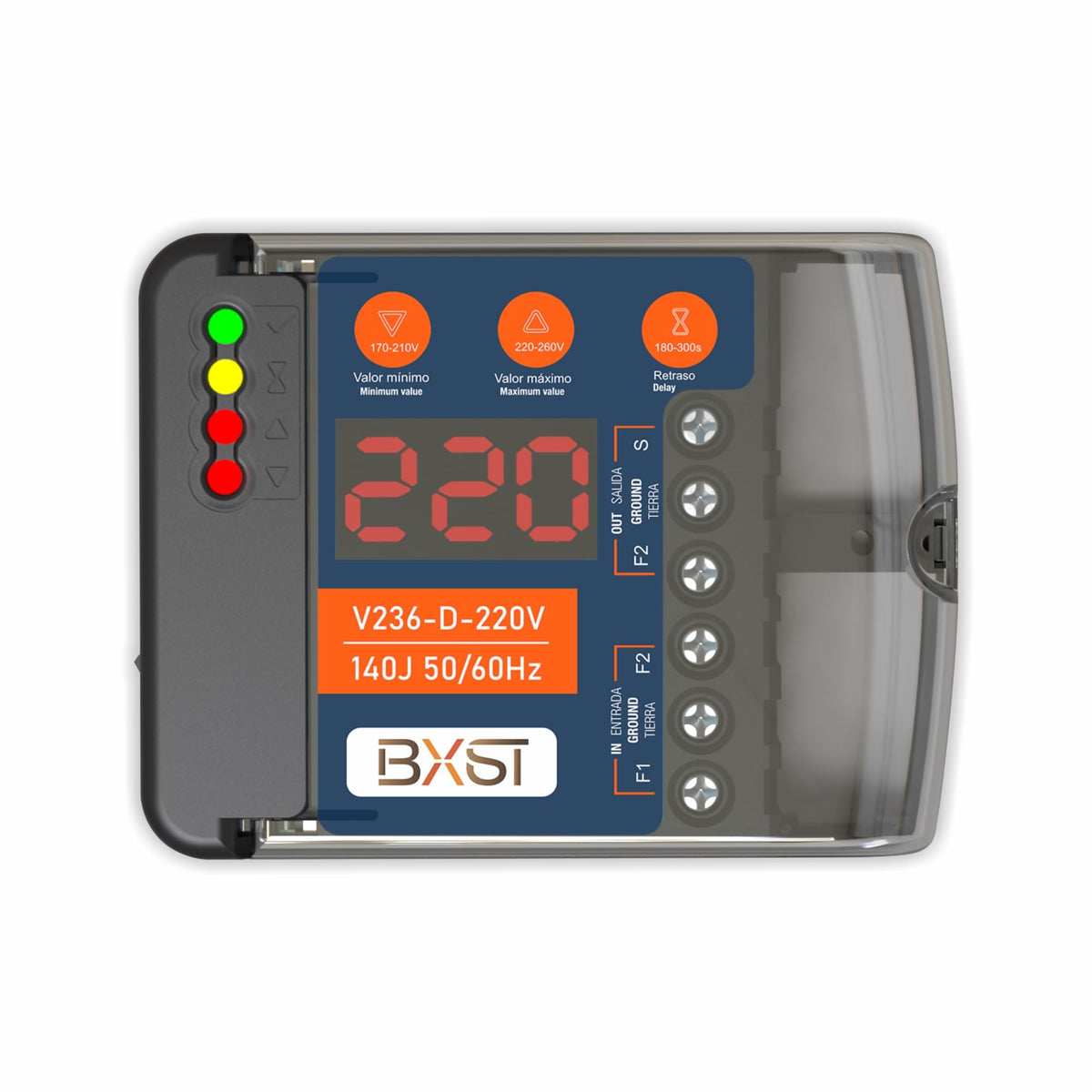

The front LED gives real-time line voltage so you can spot brownouts or overvoltage events before they trigger protection. Settings are user-configurable so you can match trip points and restart delay to the sensitivity of the connected equipment, helping prevent nuisance trips while maintaining safety.

• LED shows real-time input voltage
• Set low/high voltage thresholds to appliance tolerance
• Program delay time to avoid rapid cycling after outages
• Simple visible feedback for troubleshooting power issues

What kind of surge protection does this unit provide?

The unit offers 140 joules of surge absorption to reduce the energy of transient spikes reaching the load. While not equivalent to whole-site surge arrestors used at service panels, it provides targeted protection at the appliance branch to reduce the risk of damage from common surges and switching transients.

• Surge rating: 140J for transient energy absorption
• Reduces peak voltages reaching the appliance
• Complementary to, not a replacement for, service-panel protection
• Useful in areas with frequent small spikes or switching events

Who is this for? Install the BXST Heavy Duty Wiring Surge Protector if you operate compressors, motors, refrigeration or HVAC equipment on a 220V circuit and need visible voltage monitoring plus configurable protection. It’s aimed at homeowners, small business owners and technicians who want to limit equipment downtime and avoid repeated stress from voltage fluctuations without rewiring the mains. For best results have a qualified electrician install and verify the device sizing against the appliance’s inrush current and local electrical codes.
