Burris BTH35 v3 Thermal Handheld USM H35 Black | Night Vision Imaging

Overview

Built to extend night operations, the Burris BTH35 v3 Thermal Handheld blends high end components with a streamlined design to deliver a fast, straightforward experience after dark. The 400x300 VOX sensor and a 12 micron pixel pitch capture subtle heat differences, while the 1280x960 color OLED screen presents detail with clarity. Nine color palettes offer adaptable contrast for varied environments, from dense woodlands to open terrain. At roughly 22 ounces with compact dimensions, the device feels balanced in the hand and is ready to illuminate distant heat signatures without sacrificing portability.

With a rugged, waterproof build and a versatile lens system, the BTH35 v3 is designed for real-world field use. It pairs a broad field of view with a responsive control layout, making quick observations feasible even after hours outdoors. The mix of long-runtime power and modern connectivity opens up practical options for both solo missions and collaborative operations.

Core tech and performance

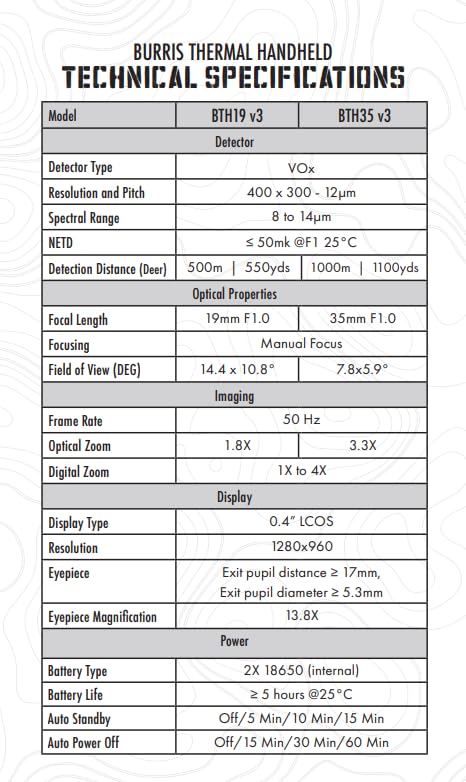

• 400x300 VOX sensor with a 12 micron pixel pitch delivers notable thermal detail and smooth motion in darkness.
• 1280x960 color OLED display provides crisp, vibrant imagery for fast target recognition.

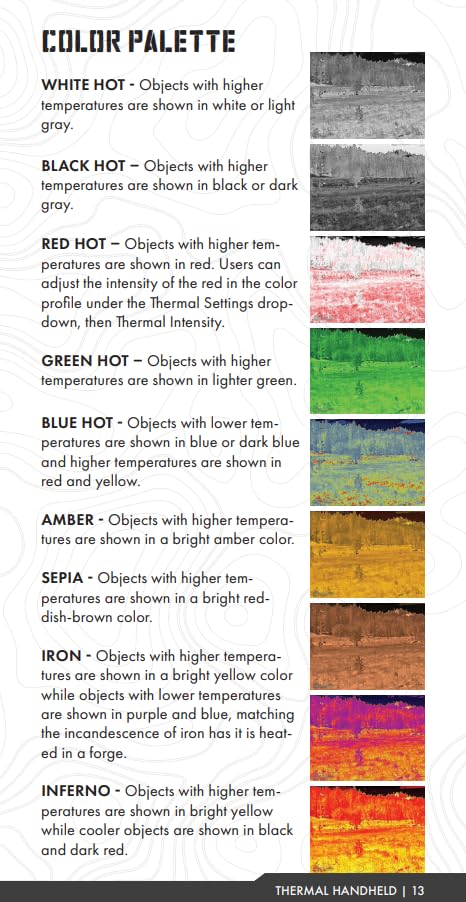

• Nine color palettes including White Hot, Black Hot, Red Hot and Iron for adaptable contrast across scenes.
• 7.8 by 5.9 degree field of view with a 35 mm F1.0 lens for broad scene framing.
• Digital zoom from 1x to 4x offers flexible magnification without moving position.
• Picture-in-picture and hot spot tracking help keep important targets in view.
• Video recording capability and BurrisConnect app control enable remote operation and review on the go.
• USB-C charging and extended runtimes support longer field sessions.
• Waterproof protection and a compact, lightweight handheld design designed for outdoor use.
• Includes M1913 Picatinny rail mounting for secure attachment to compatible platforms.

Practical use scenarios

• Nocturnal observation and wildlife scouting with clear heat signatures at distance.
• Search and rescue, perimeter monitoring, or security surveillance in low visibility conditions.
• Field scouting and terrain assessment while maintaining situational awareness.
• Camp or vehicle monitoring to observe activity around a base area.
• Training and practice with a reliable handheld thermal tool in varied environments.

Power, control, and usability

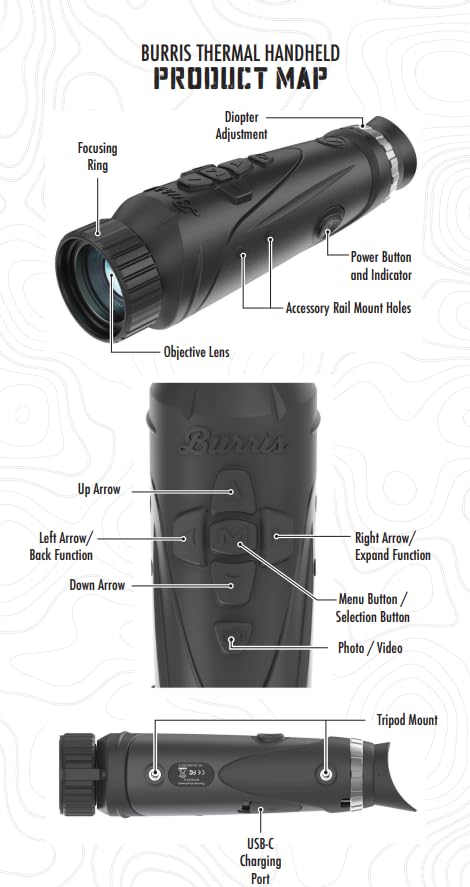

The BTH35 v3 emphasizes ease of use in challenging conditions with a rotary dial inspired by game menu navigation for fast, in-dark control. The combination of a bright display, robust battery life, and straightforward connectivity helps you stay focused on the task at hand without sacrificing accuracy or comfort.
