BEYONDTECH 1m LC to LC Single-Mode Fiber Patch Cable

BEYONDTECH's 1m LC to LC single‑mode fiber patch cable (5 pack) is a laser‑optimized, low‑loss duplex cable engineered for reliable long‑distance data transmission in professional networks.

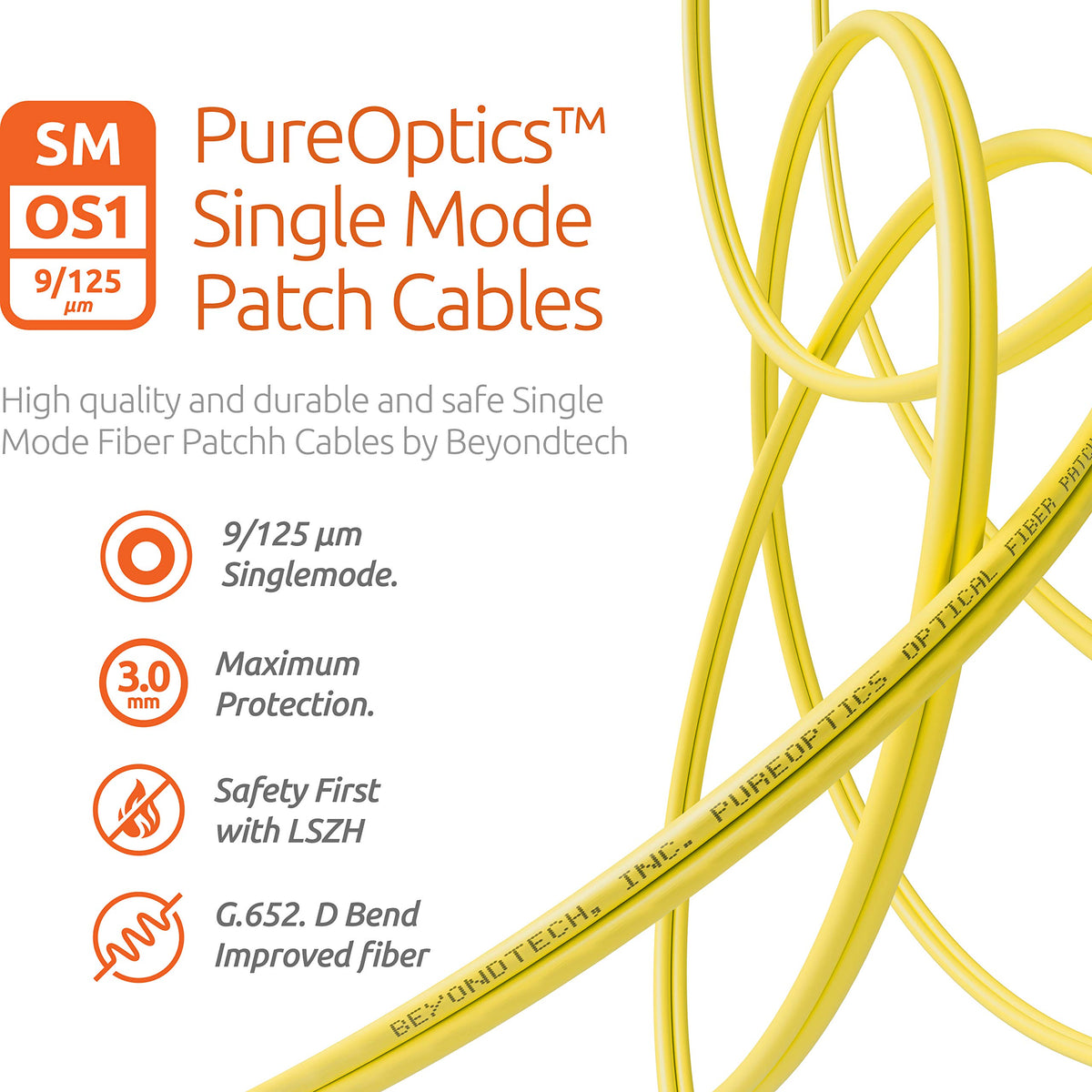

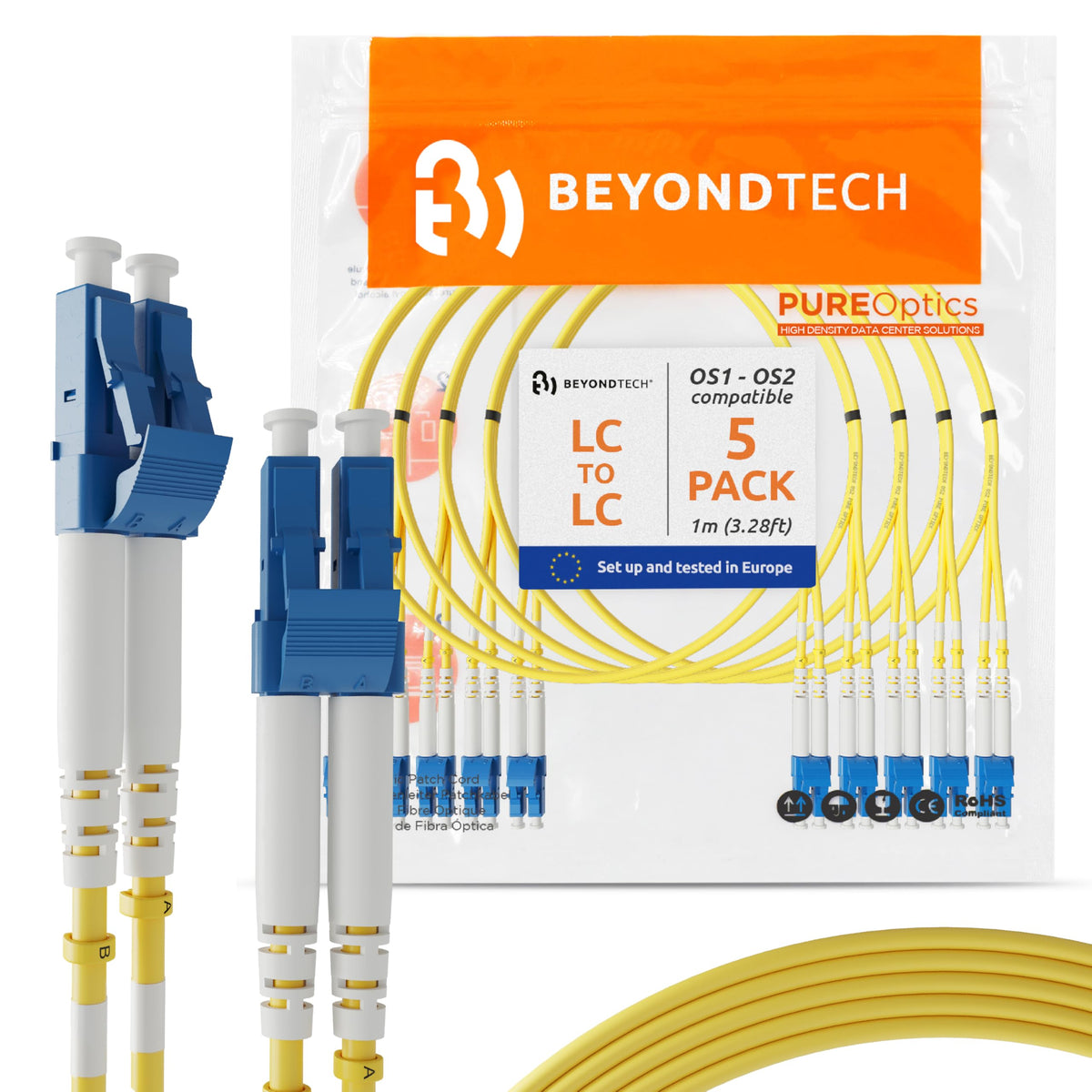

This five‑pack of 1 meter LC‑to‑LC patch cords delivers single‑mode performance (9/125µm) compatible with OS1 and OS2 systems. Built to industry standards and RoHS compliant, these LSZH PUREOptics cables suit telecom rooms, data centers, campus backbones, and any installation that requires compact, low‑attenuation connections between fiber ports or patch panels.

How does this cable maintain low signal loss over distance?

These cables are manufactured to tight specifications for single‑mode fiber, offering very low attenuation at common wavelengths used in networking. That helps preserve optical power across links used in GPON, FTTx, and high‑speed backbone circuits.

• Attenuation: approximately 0.35 dB/km at 1310 nm and 0.25 dB/km at 1550 nm.
• Core/cladding: standard 9/125µm construction for single‑mode performance.
• Standards: conforms to ITU‑T G.652 variants and IEC 60793‑2‑50 Type B1.1.

What connector type and polarity does the cable use?

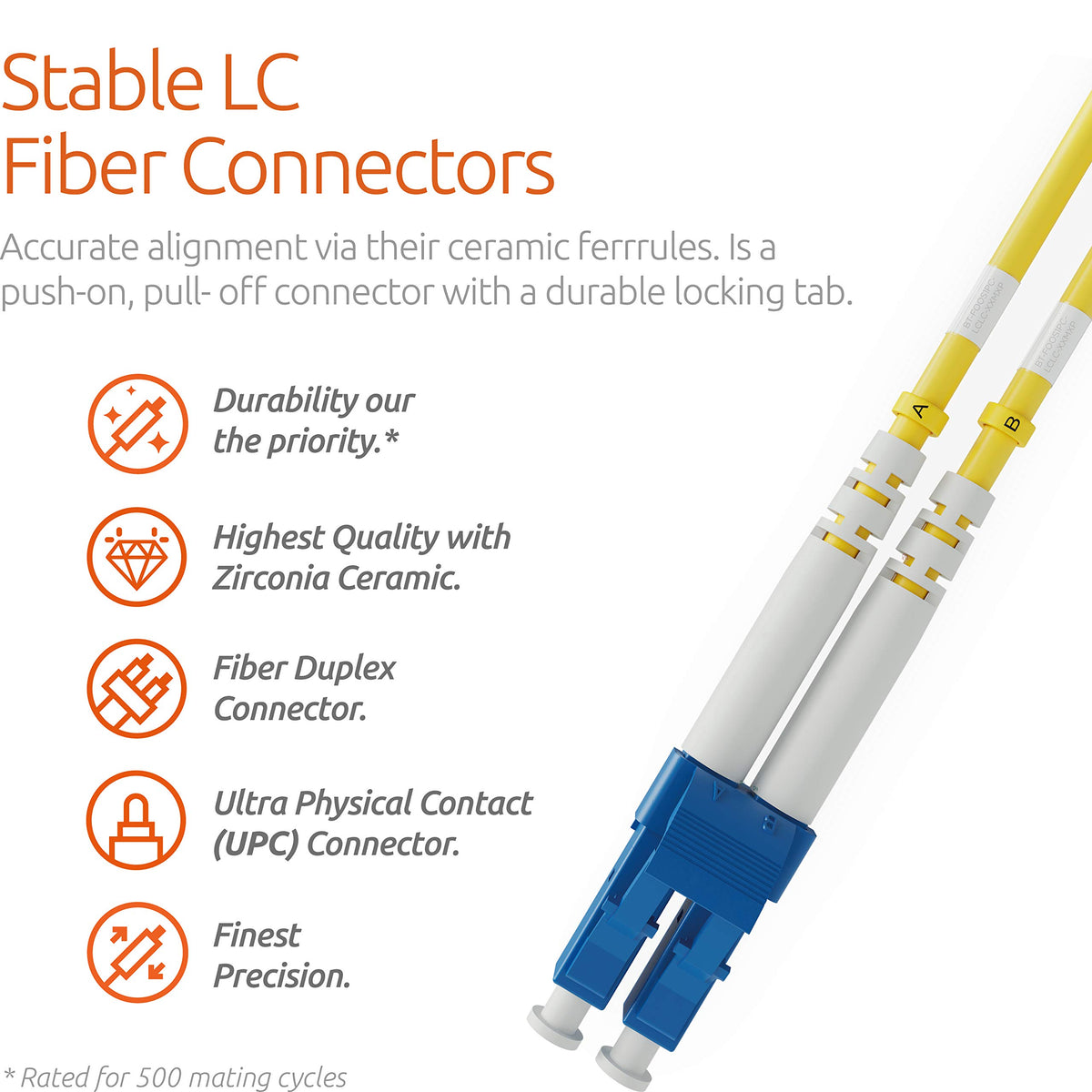

The product uses LC duplex connectors in a duplex LC‑to‑LC configuration, providing small form‑factor connections ideal for high‑density panels. The connectors are factory‑assembled and polished (UPC), promoting consistent mating performance and low reflectance in passive links.

• Connector: LC to LC duplex with UPC polish for low back‑reflection.
• Polarity: duplex wiring suitable for standard transmit/receive pairs.
• Compatibility: designed for equipment accepting LC connectors and OS1/OS2 single‑mode fiber.

Will these cables survive tight bends and typical installation environments?

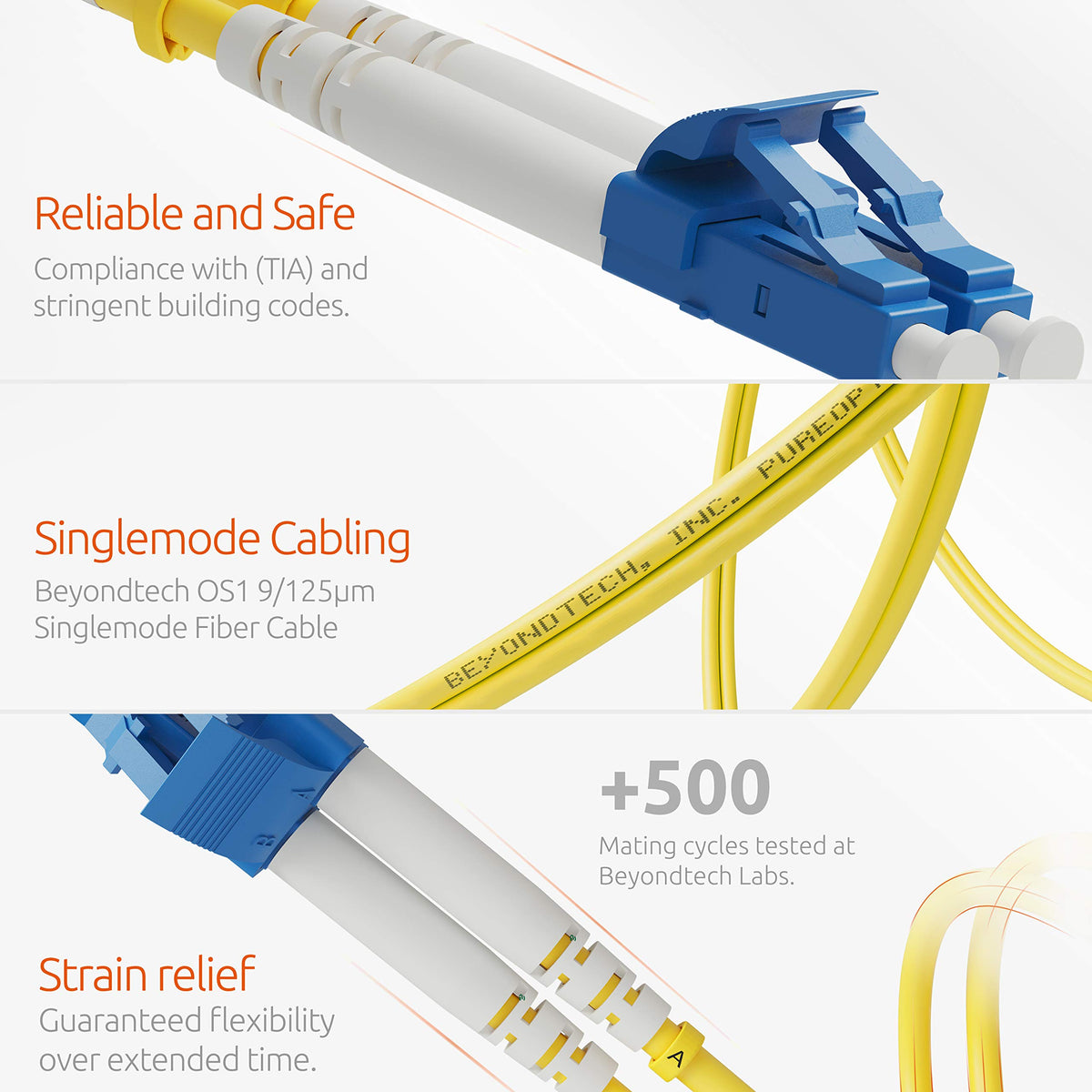

PUREOptics cables are engineered with a flexible jacket and fiber buffer that tolerate compact routing and constrained trays. The cables operate across a wide temperature range and specify minimum bend radii for safe installation and use.

• Operating temperature: -20°C to 70°C (-4°F to 158°F).
• Minimum bend radius: 5 cm during installation, 3 cm in service.
• Jacket: Low‑Smoke Zero Halogen (LSZH) for restricted environments.

Which network applications are best suited for these patch cords?

These single‑mode LC patch cords are intended for critical telecom and data applications that demand consistent optical performance. They are well matched to passive optical networks, campus and metro links, and any scenario where OS1/OS2 single‑mode fiber is specified.

• Common uses: GPON, FTTx, LAN/WAN backbones, SAN interconnects.
• Protocols supported: Gigabit Ethernet, Fiber Channel, ATM, Fast Ethernet.
• Installation: patch panels, transceivers, media converters and optical distribution frames.

Who is this for: Network engineers, telecom installers, data center technicians and IT managers who need compact, standards‑compliant single‑mode patch cords for medium‑ to long‑reach fiber links. The BEYONDTECH 1m LC to LC 5‑pack is especially useful when small form‑factor connectors, low attenuation, and LSZH jackets are required for safe, space‑efficient deployments.
