Bangun Uniboot LC-to-LC Armored 2m Single-Mode Duplex

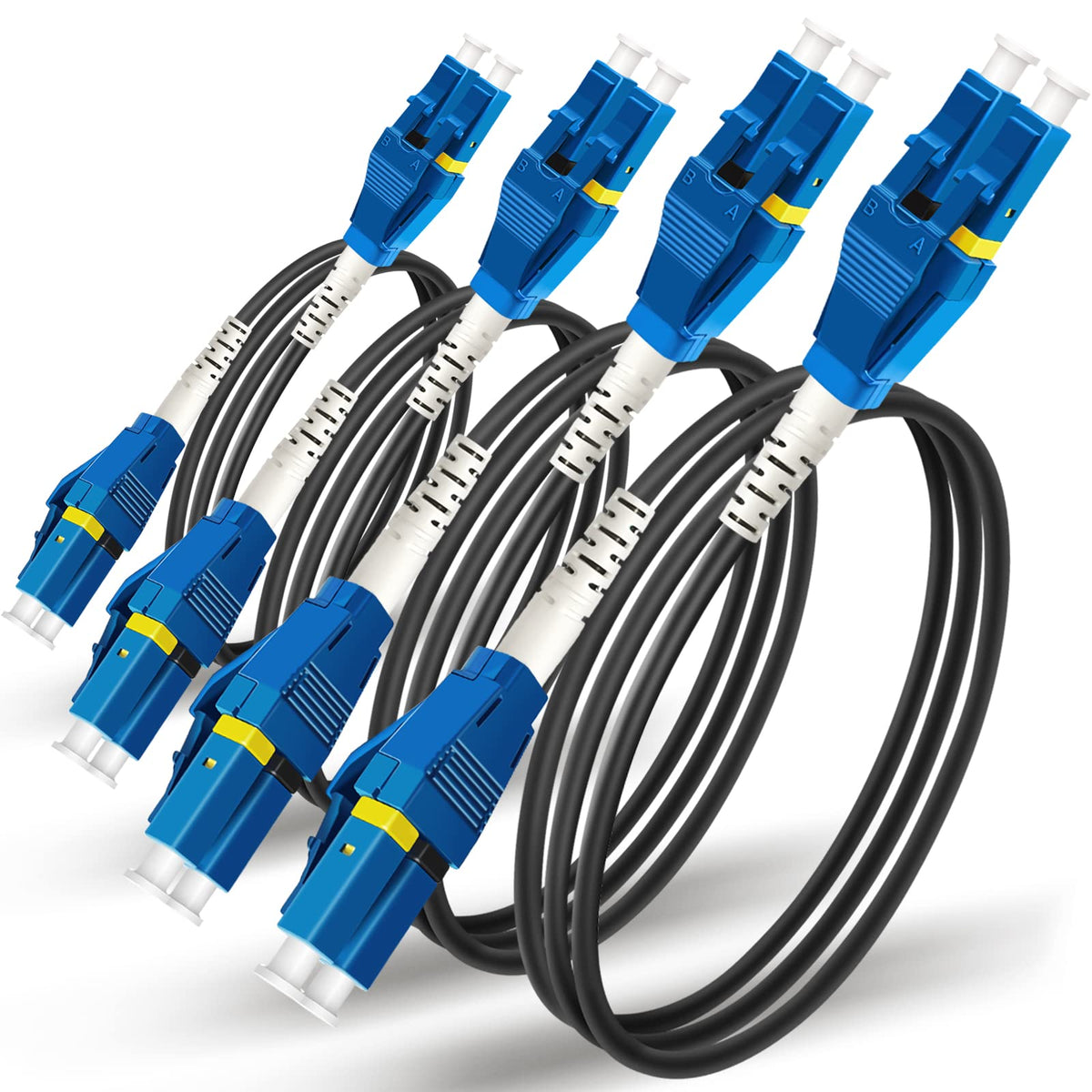

Bangun 2m Uniboot LC-to-LC armored single-mode duplex patch cables (4-pack) are space-saving, bend-tolerant optical jumpers built with Corning G.657.A2 fiber, stainless-steel armor and reversible LC uniboot connectors for quick field polarity changes.

These 2-meter LSZH black patch cords combine a uniboot LC duplex housing with a reinforced stainless-steel inner tube and low-loss Foxconn ceramic ferrules to deliver compact, durable single-mode links compatible with OS1/OS2 networks. Designed for high-density racks and fiber-rich environments, they support modern access and data center applications while protecting the glass fiber from abrasion, crushing and pet damage.

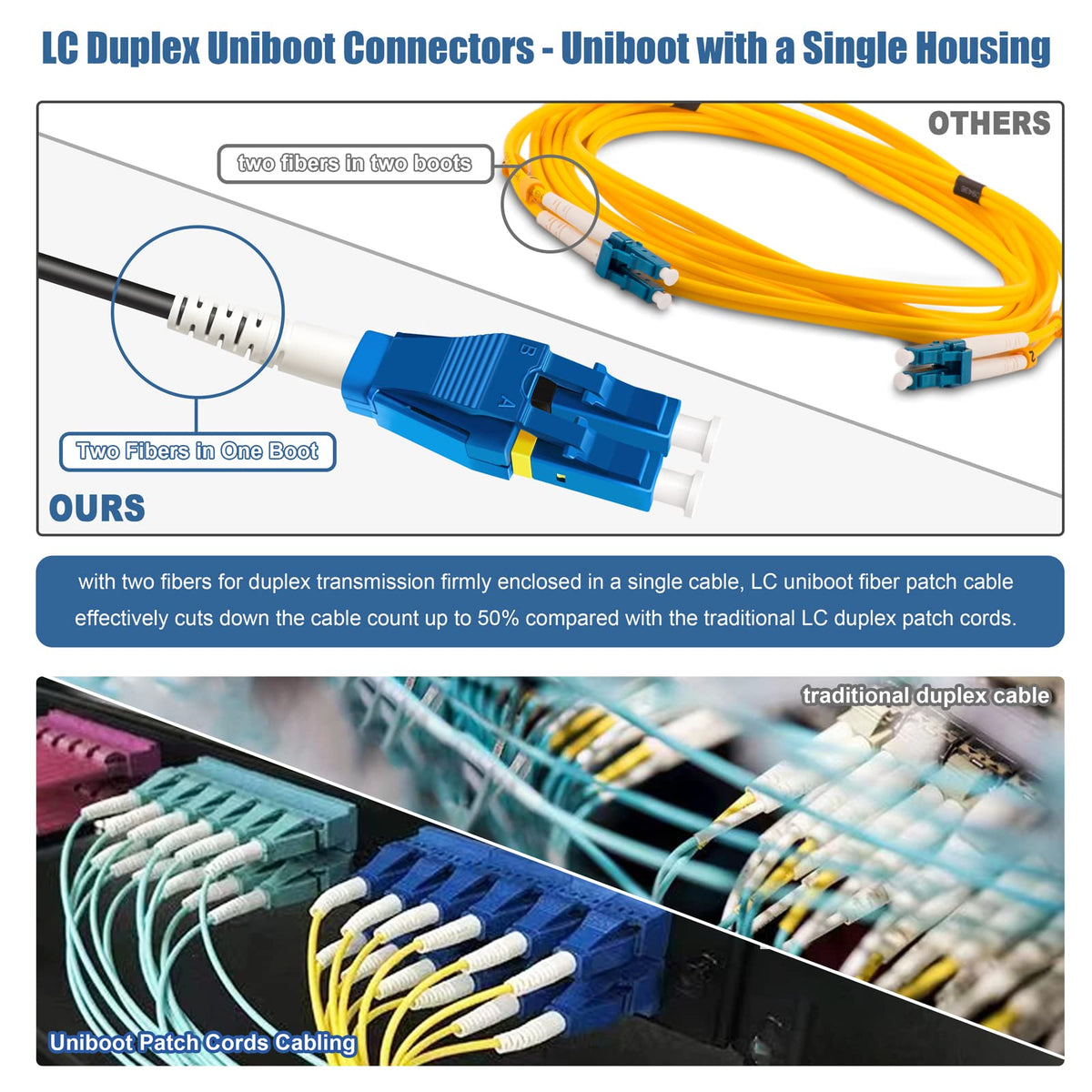

How do these uniboot cables save rack and panel space?

The uniboot LC design places two LC terminations inside one slim housing and single boot, reducing connector footprint compared with two separate LC plugs. That compact profile halves the space required for duplex connections on patch panels, enabling denser cable routing and easier labeling in congested frames.

• One twin-fiber round cable with a single uniboot housing for both fibers
• Slim boot profile reduces rear panel congestion
• Ideal for high-density patch panels and MPO-to-LC breakout points

What protection and durability features do these armored jumpers offer?

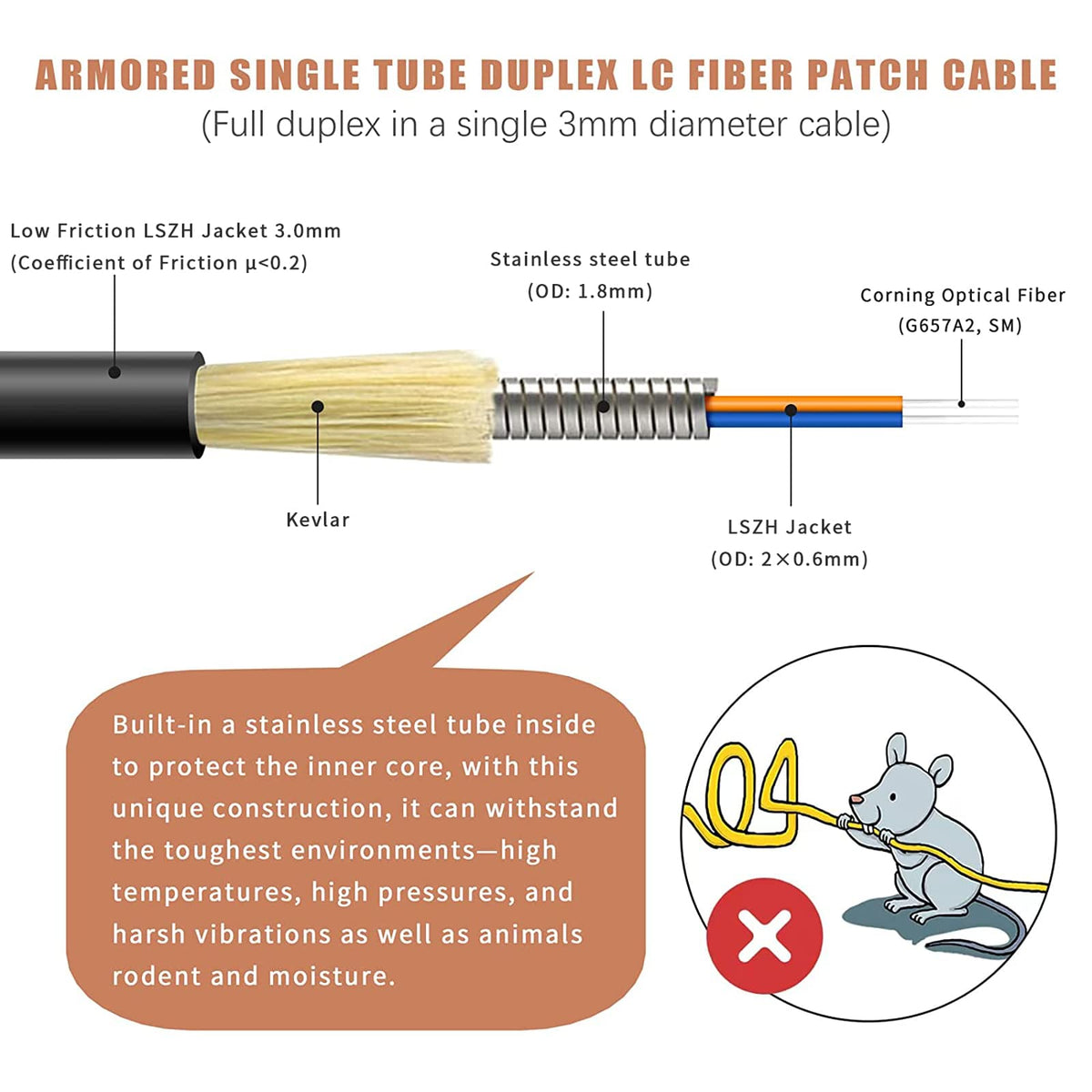

Each jumper includes a stainless-steel tube around the fiber core that provides crush and chew resistance while maintaining flexibility. The armored design delivers higher pressure and wear tolerance than standard jackets without sacrificing low insertion loss performance.

• Stainless-steel inner armor guards against pet bites and physical damage
• LSZH outer jacket minimizes smoke and toxic emission in case of fire
• Resistant to abrasion, heat and mechanical pressure for longer service life

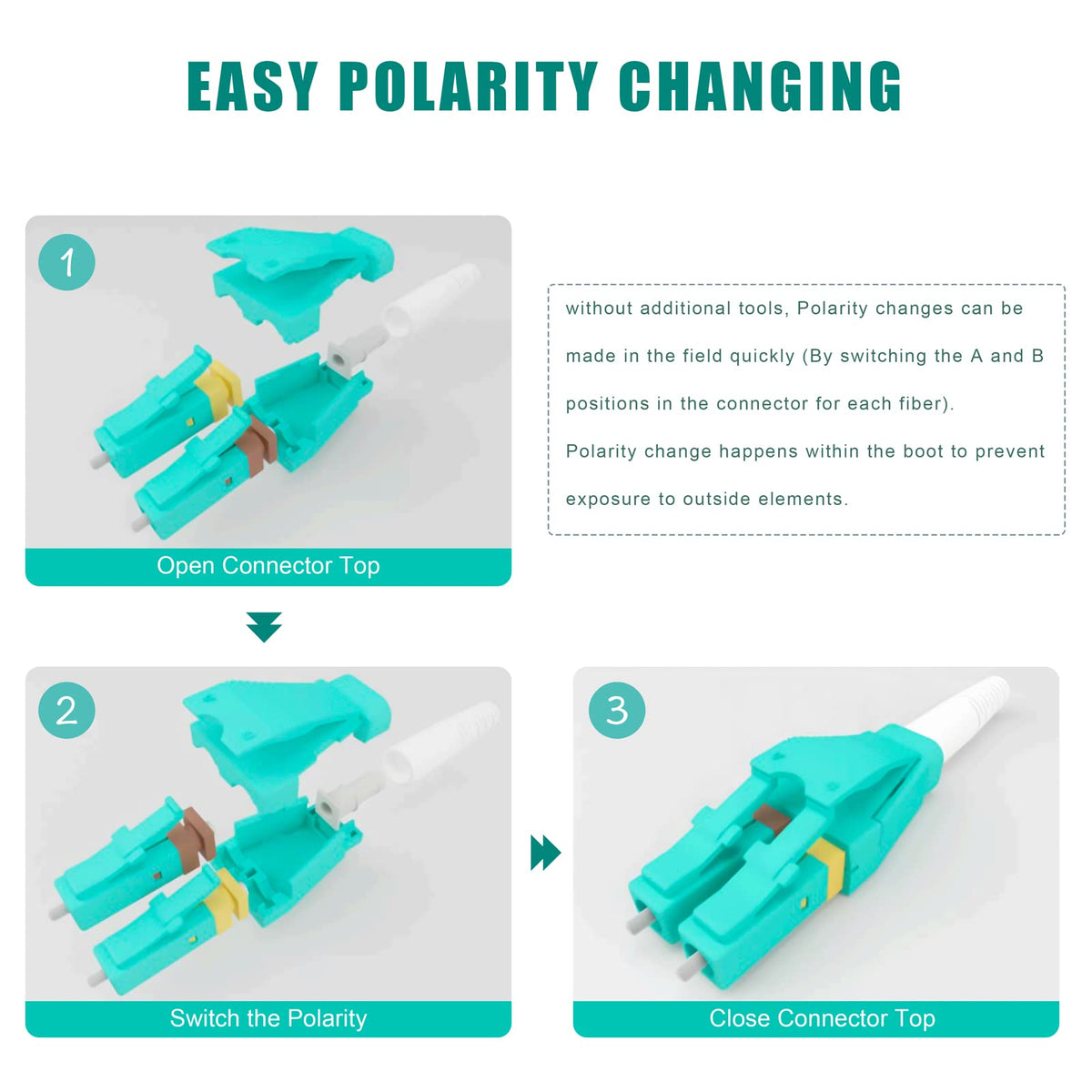

Can I change polarity quickly in the field without tools?

Yes — the reversible uniboot connector lets technicians switch fiber polarity by repositioning the A/B fiber positions inside the single housing. This makes in-field polarity corrections fast and safe, avoiding re-termination and reducing downtime when matching transmitter/receiver pairs.

• Tool-free polarity switching by swapping A/B positions in the uniboot
• No risk of ferrule or fiber damage from re-termination
• Speeds up commissioning and troubleshooting in live networks

What optical performance and compatibility should I expect?

Bangun terminated these cables with precision Foxconn ceramic ferrules, keeping insertion loss typically below 0.15 dB and ensuring low return loss for single-mode links. The internal fiber is Corning G.657.A2 (9/125 µm) which is fully compatible with G.652D systems but tolerates tighter bends, making it suitable for GPON, FTTx and data center interconnects.

• Single-mode 9/125 µm fiber; OS1/OS2 compatibility
• Low insertion loss: typically <0.15 dB per connector
• Supports 10GBASE-L, 1000BASE-LX, SFP transceivers and GPON/FTTx

Who is this for? Network engineers, installers and facility managers who need compact, reliable single-mode patch cords for high-density cabinets, fiber-to-the-home or service-provider access networks will benefit most. These 2 m uniboot armored jumpers are particularly useful where space is limited, frequent bending occurs, or extra protection is required against mechanical damage and rodent or pet chewing. The 4-pack gives you multiple links for cross-connects, spare inventory or immediate deployment in small racks and closets.
