Bangun SC/APC to SC/APC 25m Armored Single-Mode Fiber Cable

Bangun 25-meter SC/APC to SC/APC armored single-mode fiber patch cable is a durable, low-smoke, zero-halogen jumper designed to extend or relocate home fiber connections like Verizon Fios and Google Fiber.

This 25 m (82 ft) simplex patch cord uses SC/APC terminations on both ends and a 9/125 μm (OS1/OS2) single-mode fiber core, making it suitable for FTTH, FTTB and other in-home fiber network adjustments. The cable pairs a stainless-steel armored layer with an LSZH outer jacket for improved chew, crush and abrasion resistance while remaining RoHS compliant and safe for indoor installations that require reduced smoke and halogen emissions.

How will this fiber cable help me move my ONT or extend my fiber feed?

The Bangun 25m SC/APC to SC/APC cable lets you reroute or extend the link between your optical network terminal (ONT), fiber modem or wall outlet without splicing. Its SC/APC connectors provide low back-reflection for single-mode links, and the long 25 m length covers most room-to-room runs in homes or small offices.

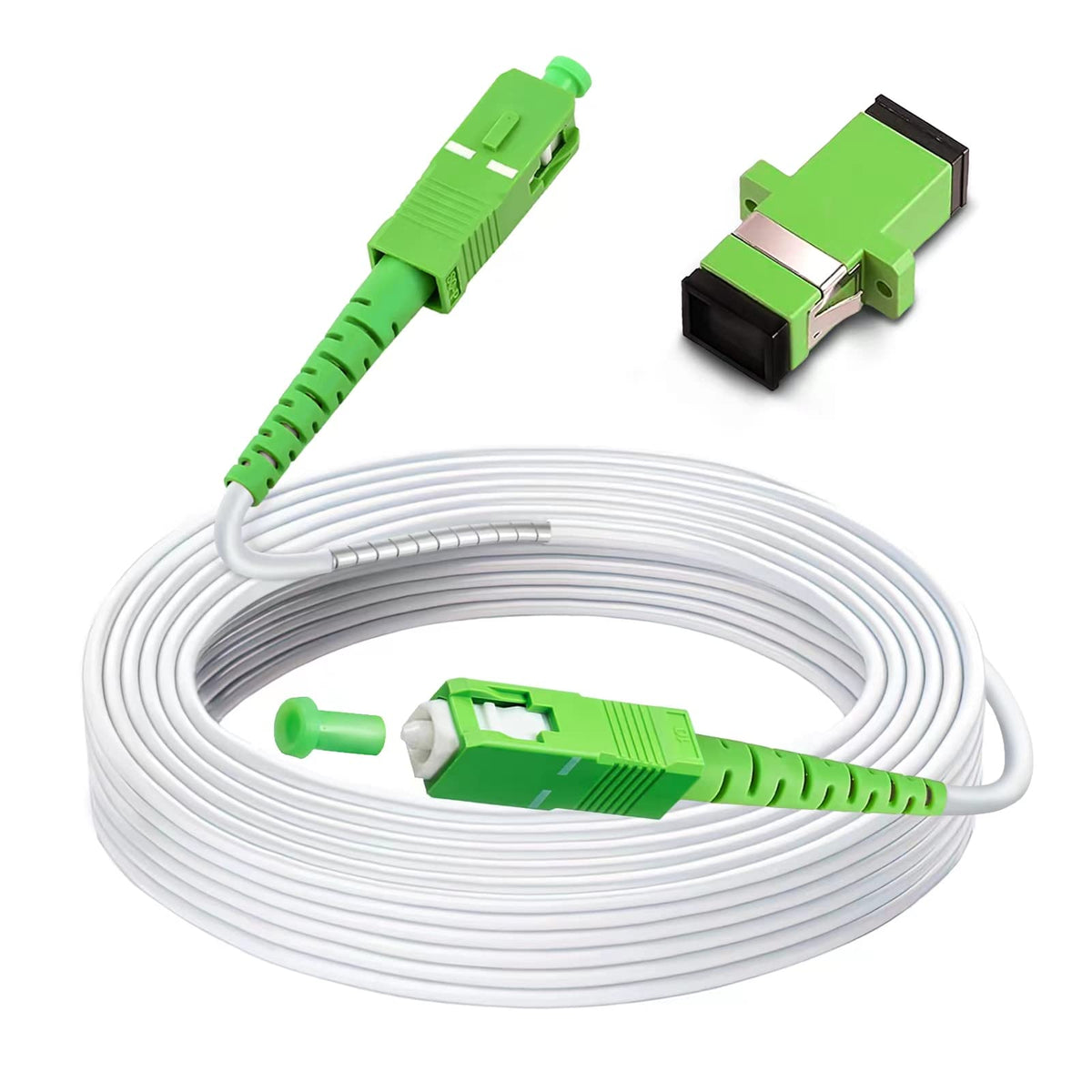

• 25 meters length for long runs without extra patch panels or splices
• SC/APC-to-SC/APC connectors for single-mode FTTH equipment compatibility
• Simplex design for one-direction optical links

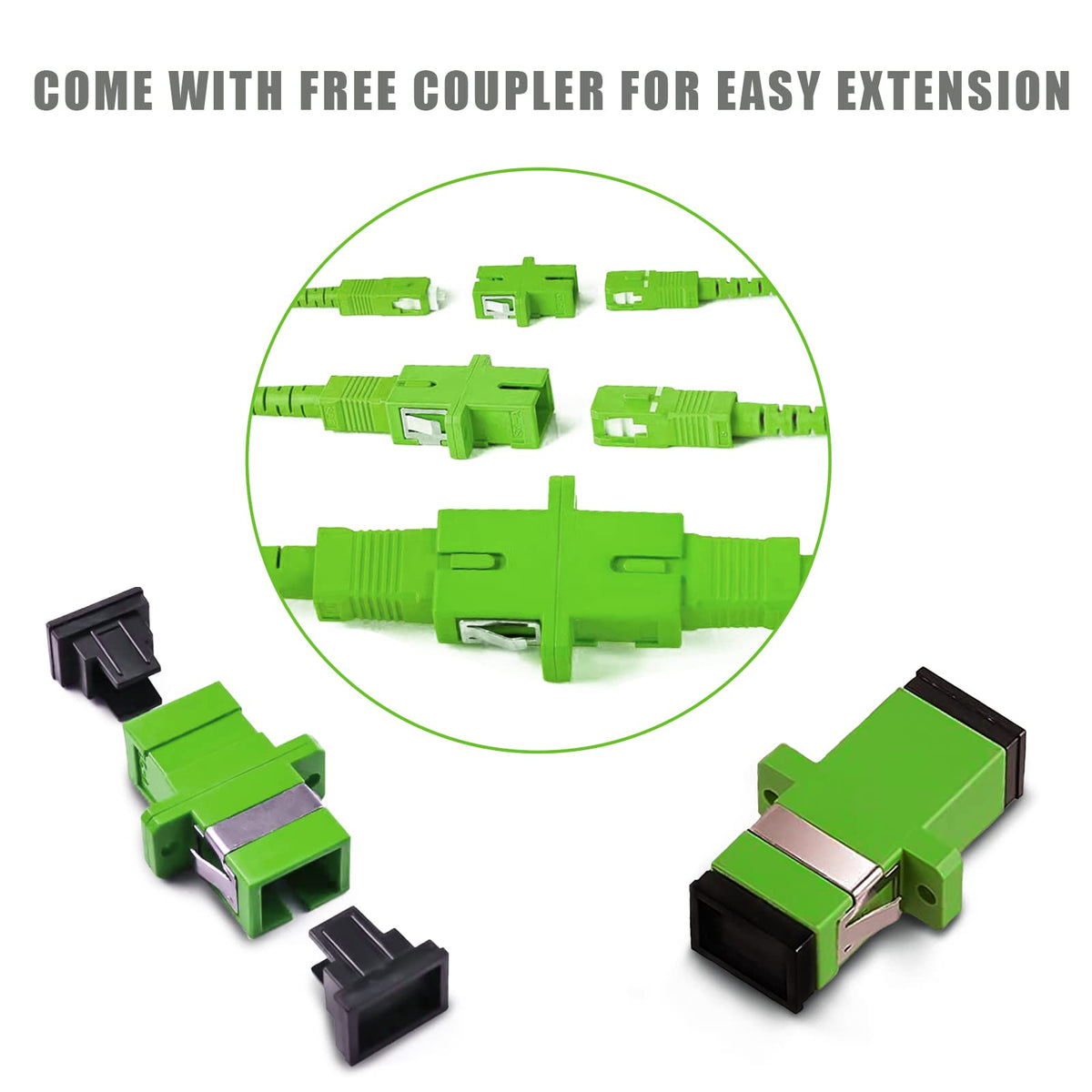

• Includes a free SC-APC coupler for seamless extension

Is this cable robust enough if I have pets or tight cable paths?

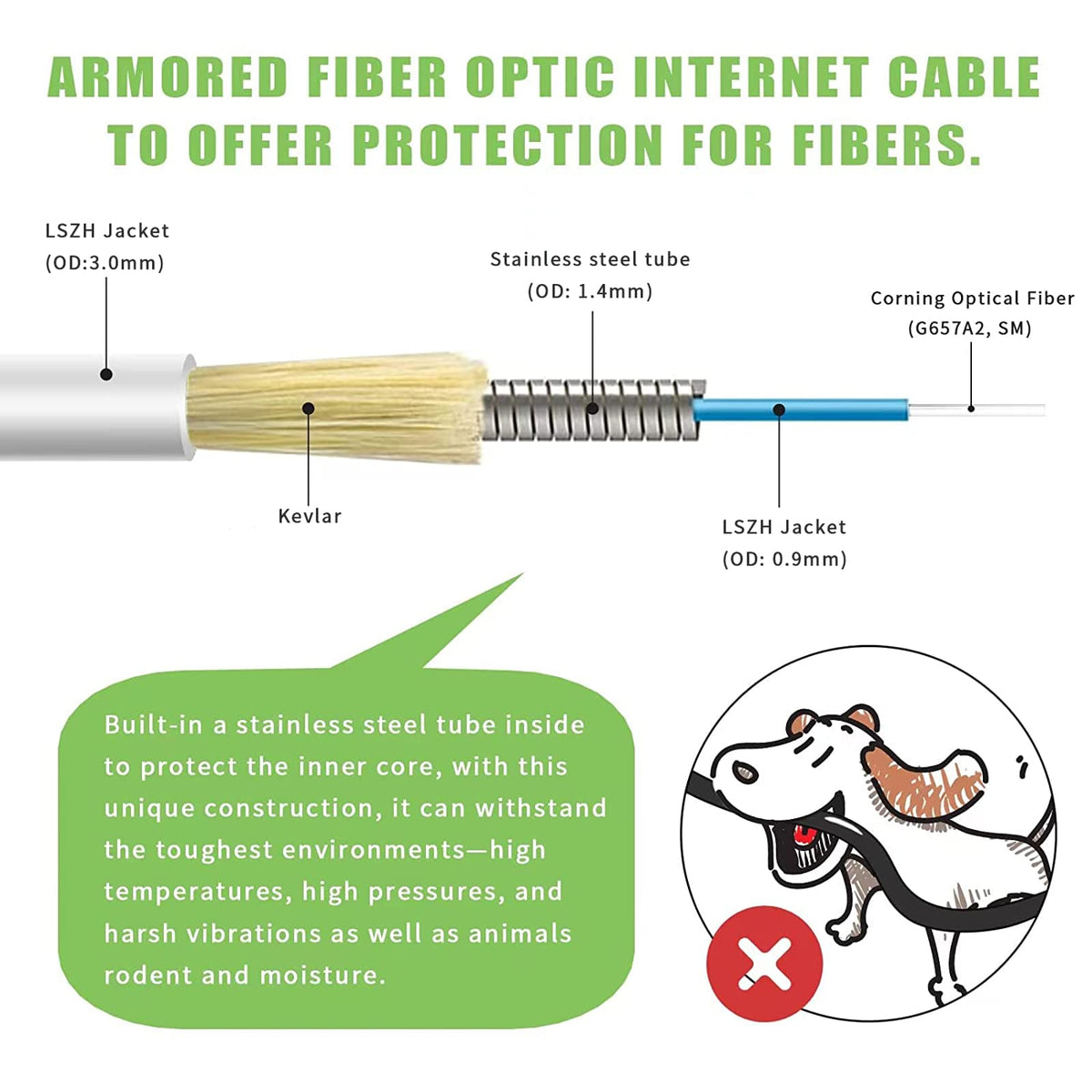

Yes — the cable includes an inner stainless-steel tube that reinforces the fiber glass core and resists bite, pressure and wear better than standard patch cords. The outer LSZH jacket adds mechanical protection while minimizing toxic smoke if there’s ever a fire in enclosed spaces.

• Armored stainless-steel internal layer prevents chew and crush damage
• LSZH outer jacket reduces smoke and halogen output in fires
• 3.0 mm outer diameter balances flexibility with toughness
• Pressure- and wear-resistant construction for long-term stability

Will this cable match my home décor and installed equipment?

The cord comes in white to blend with typical white ONTs, routers and trim, so visible runs look neater compared with darker cables. Bangun also offers customization options if you need a different color or length for specific installations.

• White outer jacket designed to match white networking gear and trim
• Clean SC/APC terminations for neat wall-plate or box connections
• Manufacturer customization available on request
• Minimal visual profile for in-home installations

What technical specs and compatibility should I expect?

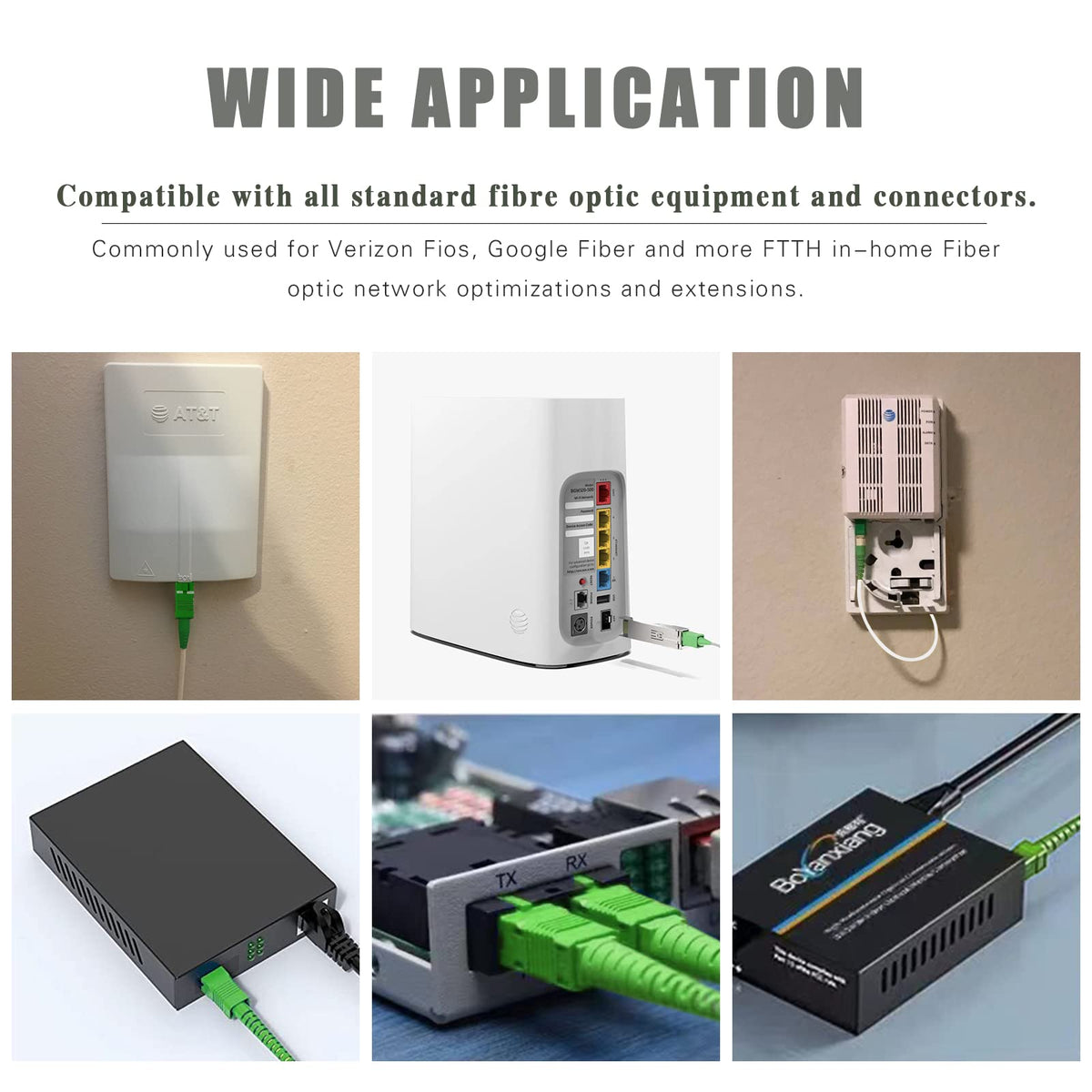

The cable is built for single-mode transmission with a 9/125 μm core and supports common FTTH wavelengths. It’s compatible with OS1/OS2 systems and typical consumer fiber services such as Verizon Fios and Google Fiber, and it meets RoHS standards for restricted substances.

• Connector type: SC/APC to SC/APC (angled physical contact)
• Core: 9/125 μm single-mode (OS1/OS2); wavelengths 1310–1550 nm
• Jacket: LSZH, white color, 3.0 mm outer diameter
• Compliant with RoHS and resistant to electrical interference

Who is this for? Installers, DIY homeowners and small-business users who need a reliable, long single-mode patch cord to relocate or extend fiber connections will find this Bangun armored SC/APC cable useful. It’s particularly suited for environments where mechanical protection and low-smoke materials matter — for example, pet-friendly homes, apartment runs, media cabinets and utility closets. If you require different colors, lengths or bulk orders, Bangun accepts custom requests to match installation needs.
