Bangun OM3 LC-to-LC Uniboot 75m 10Gb Multimode Cable

Bangun 75 Meters Uniboot OM3 LC-to-LC fiber cable is a 10Gb multimode duplex patch cable in LSZH aqua that saves panel space while allowing quick, tool-free polarity changes.

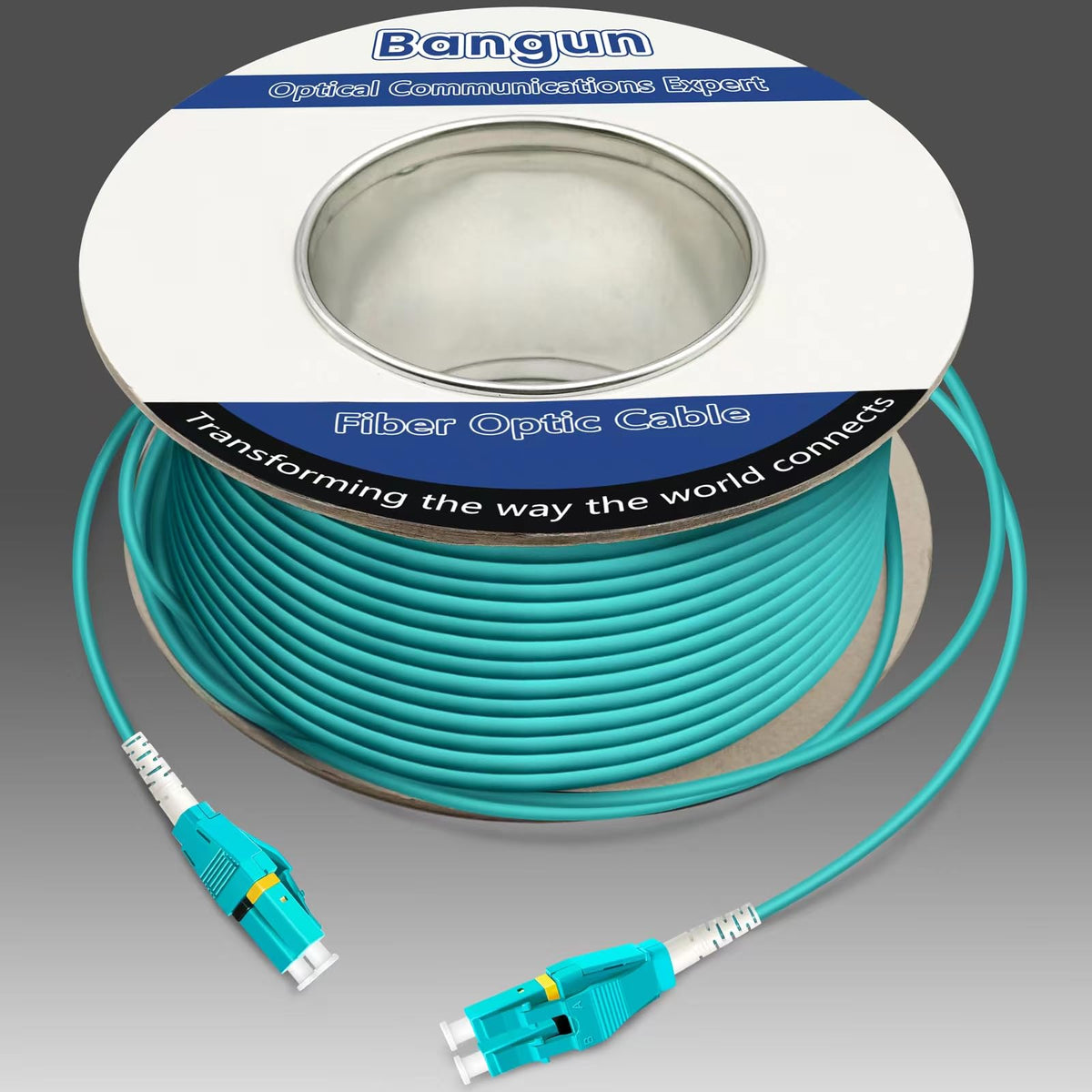

This 75-meter (250-foot) Bangun OM3 multimode fiber patch cable combines space-saving LC Uniboot connectors with reversible polarity and precision ceramic ferrules to deliver reliable 10Gb connectivity in high-density environments. Built on 50/125 multimode fiber with an aqua LSZH jacket and a 3.0mm outer diameter, it’s designed for data centers, enterprise racks, and campus backbone links where neat cable management, low insertion loss, and compatibility with SFP+/QSFP+ modules matter.

How does the LC Uniboot design help in crowded racks?

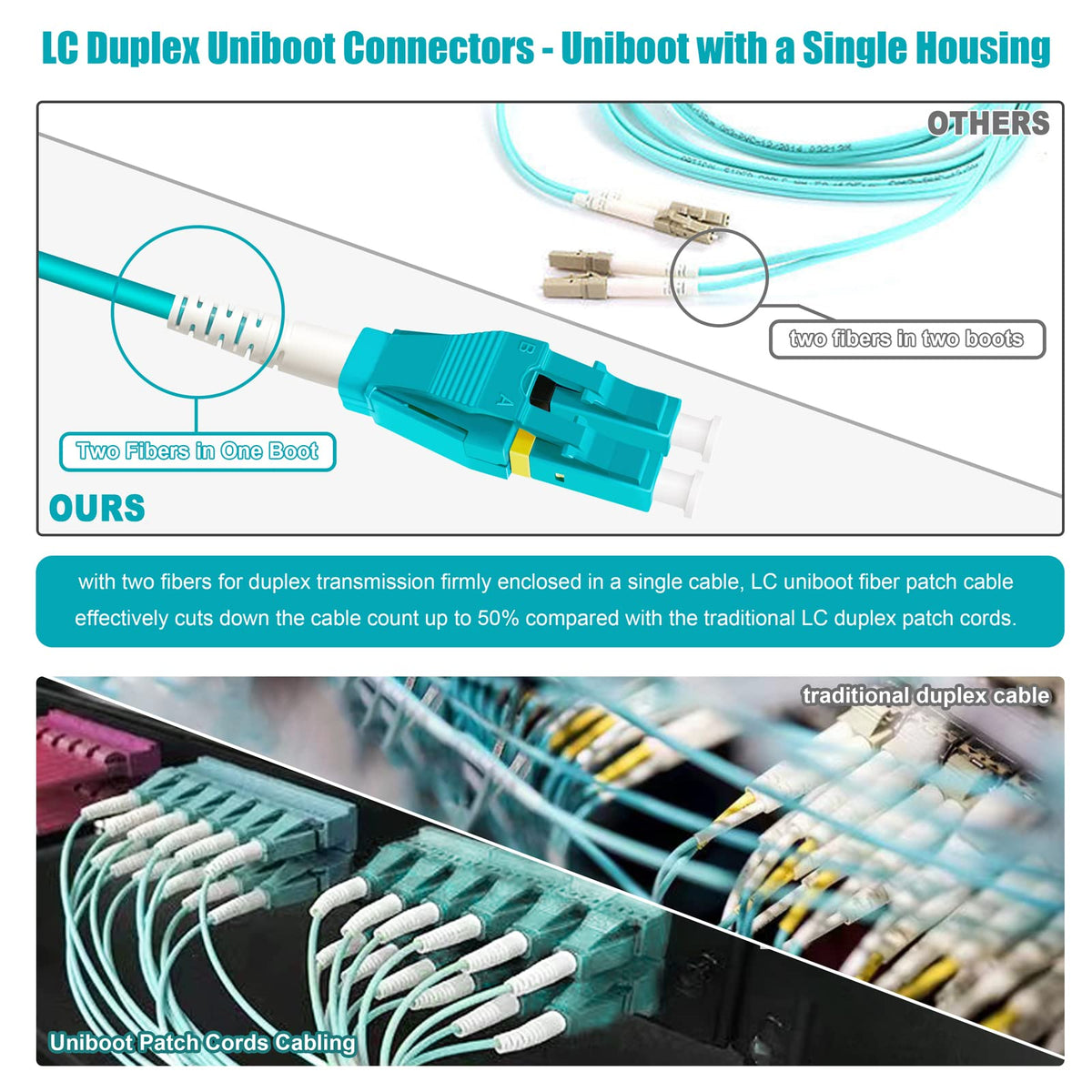

The Uniboot pairs two LC connectors in a single housing and uses one boot, halving the physical footprint compared with traditional duplex LC assemblies. That smaller profile reduces blockage on patch panels and makes routing through narrow channels simpler.

• Single housing stores two LC termini for compact port density
• Slim 3.0mm round cable eases bend and routing in crowded trays
• Cleaner patch panels and simplified labeling with reduced cable bulk

Can I change polarity in the field without special tools?

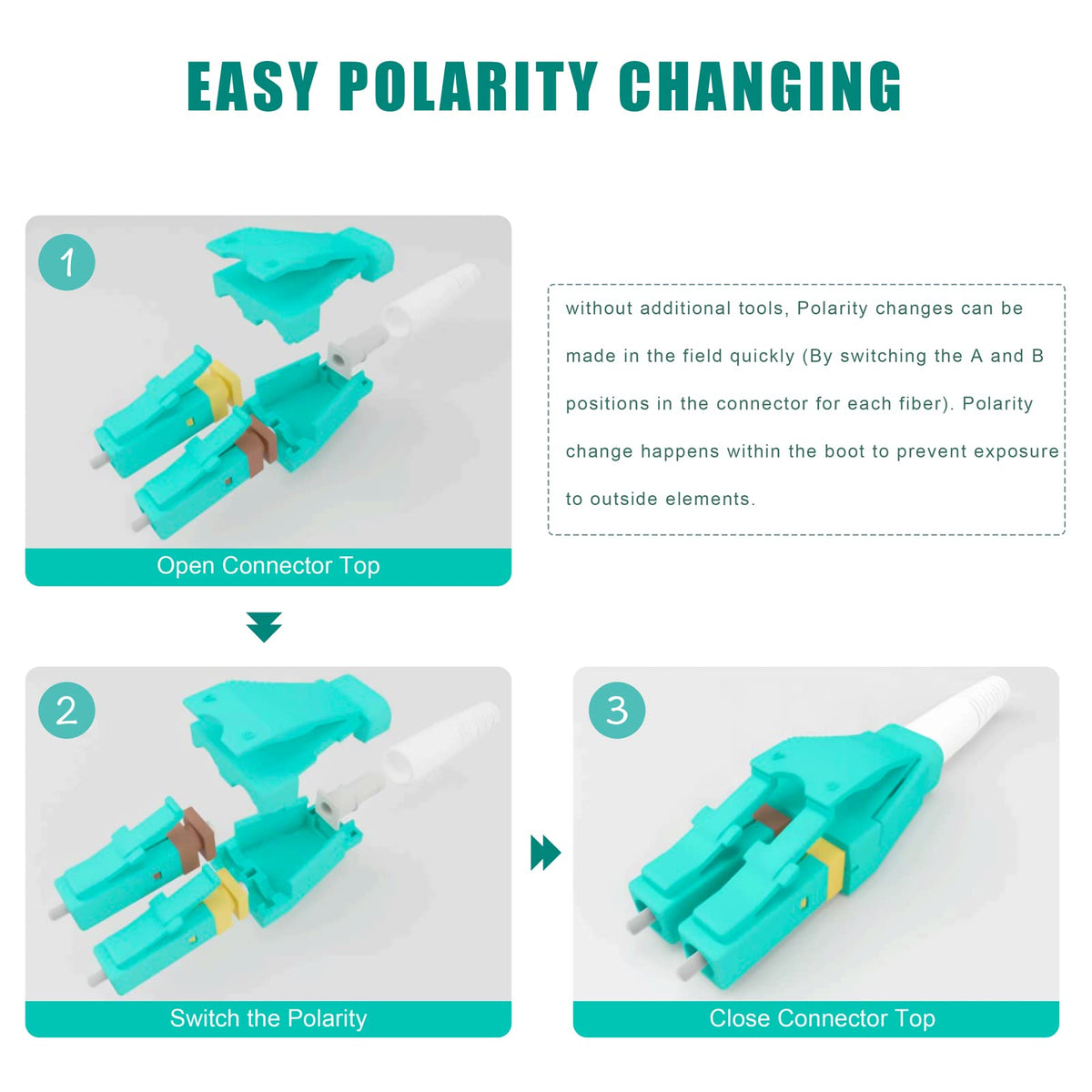

Yes — the Bangun Uniboot connectors are reversible so polarity can be swapped by flipping internal positions, eliminating the need for re-termination or tools. This makes field reconfiguration and troubleshooting fast and safe for the fiber.

• Tool-free polarity switching by changing A/B positions in the connector
• No need to cut or re-polish fiber when rerouting links
• Preserves connector integrity and minimizes downtime

What performance and compatibility can I expect from this OM3 cable?

The cable uses 50/125 multimode OM3 fiber terminated with Foxconn ceramic ferrule LC/PC connectors for low insertion loss (typically under 0.15 dB) and consistent optical performance. It supports 10GBase-SR, 10GBase-LRM, and is compatible with SFP+ and QSFP+ transceivers across vendors for 10Gb networks.

• OM3 multimode (50/125) optimized for 10Gb short-range links
• LC/PC to LC/PC duplex termination with precision ceramic ferrules
• Works with multimode SFP and QSFP transceivers from major manufacturers

Is the cable safe for indoor installations and how is it built?

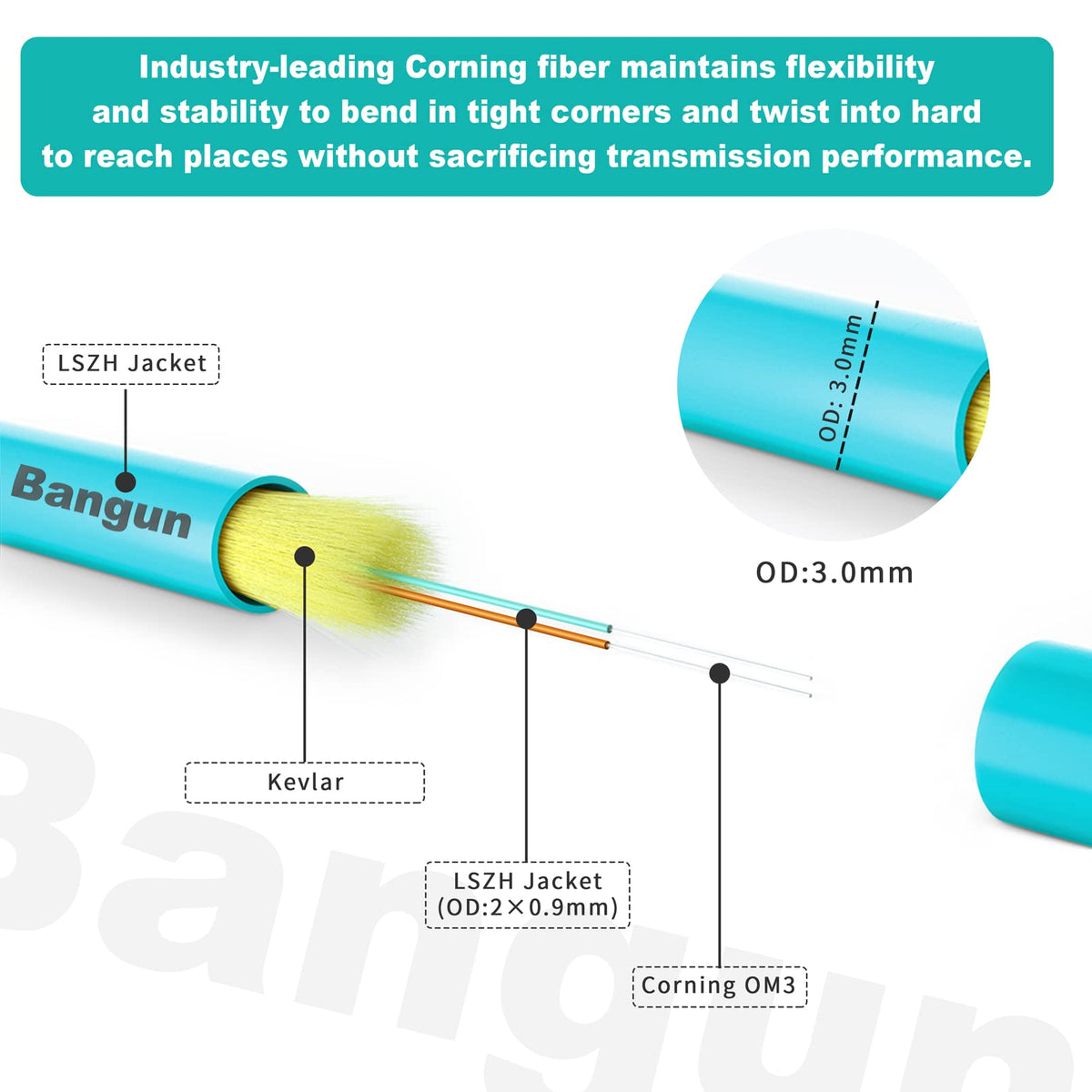

The jacket is Low-Smoke Zero Halogen (LSZH), which reduces toxic fumes during fire events and suits indoor installations, especially in enclosed or public spaces. The cable’s construction balances flexibility and durability with a 3.0mm outer diameter for manageable handling and routing.

• LSZH jacket minimizes smoke and halogen release in emergencies
• 3.0mm OD round cable supports easy routing and cabinet management
• Duplex construction for consistent channel pairing and performance

Who is this for? Network engineers, rack technicians, and IT managers who need high-density, reliable 10Gb multimode links will appreciate the Bangun 75-meter OM3 Uniboot LC-LC cable. It’s ideal when you must save valuable panel space, simplify polarity swaps during moves or troubleshooting, and maintain low insertion loss for short-range enterprise and data center connections. Use it for switch-to-switch, server-to-switch, or transceiver patching where clean cable management and cross-vendor compatibility are required.
