Bangun OM3 LC to LC Armored Duplex Fiber Cable 30m

Bangun 30-meter OM3 LC-to-LC armored duplex fiber cable is a pre-terminated, outdoor-ready multimode patch cable that delivers reliable 10Gb/Gigabit connectivity with a pulling eye kit already installed for straightforward conduit pulls.

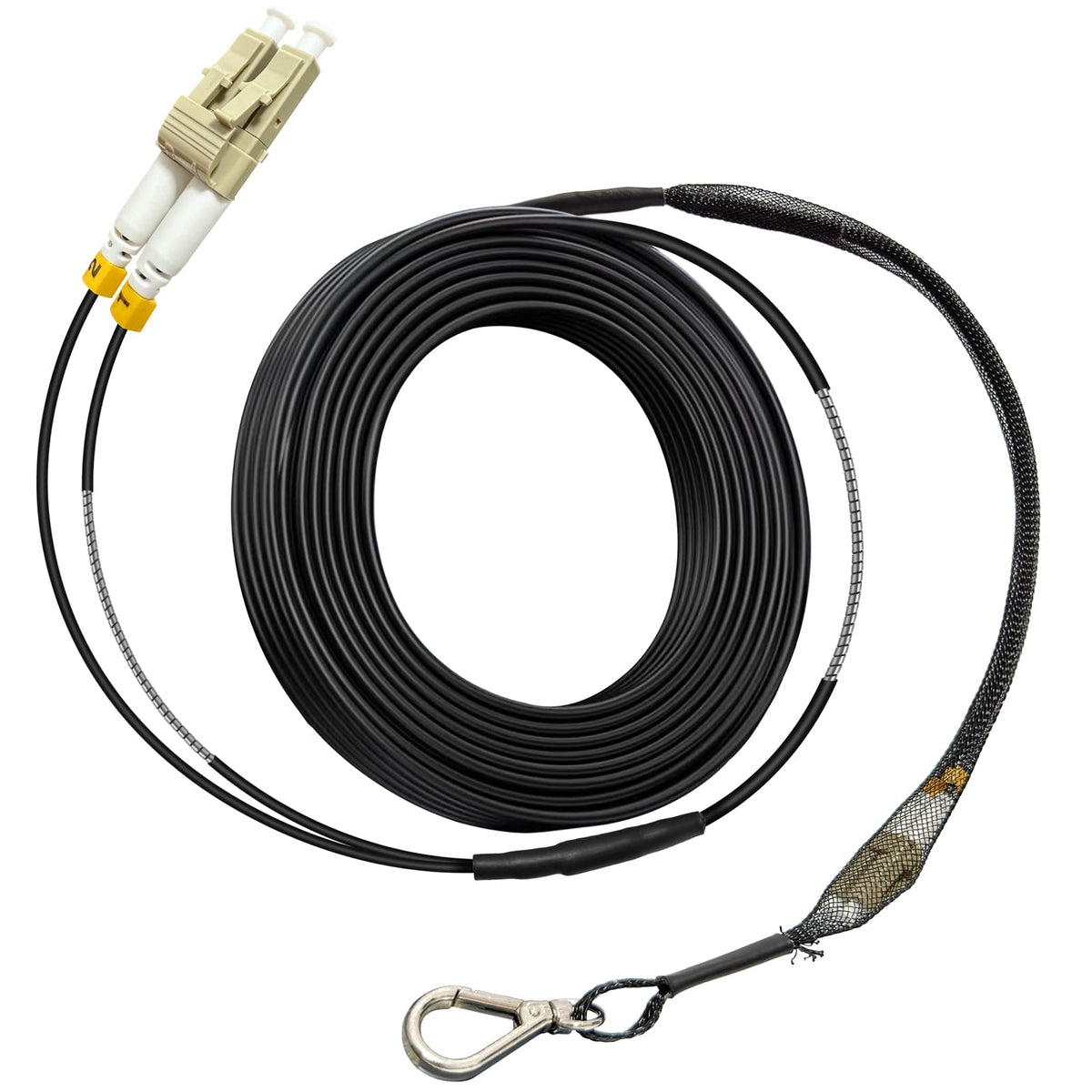

This armored OM3 fiber patch cable combines a multimode 50/125 core with a rugged HDPE, UV-resistant, water- and weather-proof jacket so you can run high-speed links between buildings, to cameras, or into challenging outdoor paths where copper Ethernet won’t reach. The cable arrives factory-terminated with LC connectors on both ends (duplex LC to LC) and a pulling eye fitted to one end to make installation through conduit and ducting faster and safer. At 30 meters (100 feet), it’s long enough for most short to mid-range campus, CCTV, and wiring-closet runs.

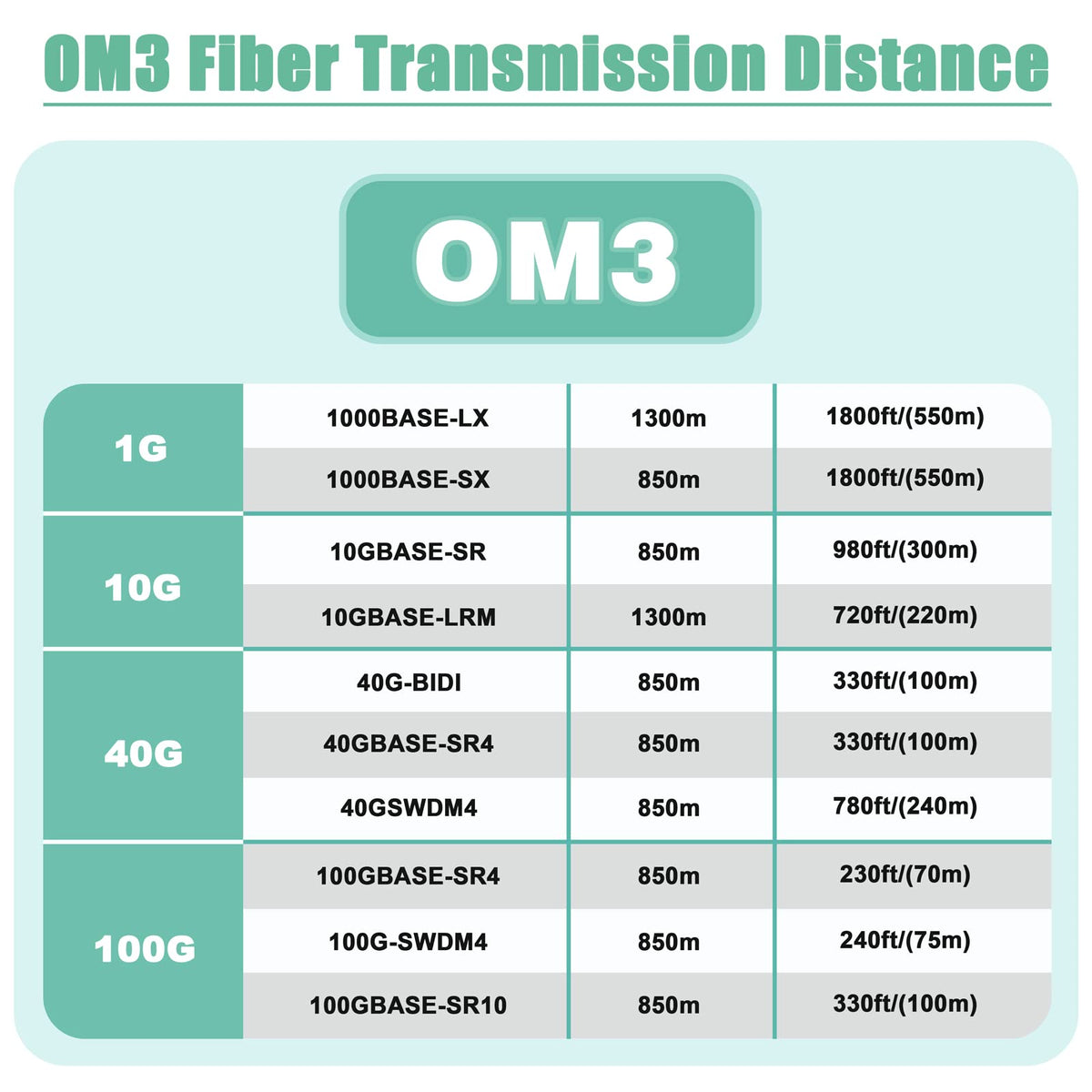

How does this cable support 10Gb and Gigabit networks?

The OM3 multimode fiber core (50/125 µm) is engineered for high-bandwidth short-range links and supports 10 Gigabit Ethernet at typical campus distances. Being factory-terminated with precision LC connectors ensures low insertion loss and predictable performance out of the box.

• OM3 graded multimode glass for high bandwidth and modal performance
• LC-to-LC duplex termination for standard network optics ports
• Designed for 10GbE and lower-speed Gigabit links over typical campus distances

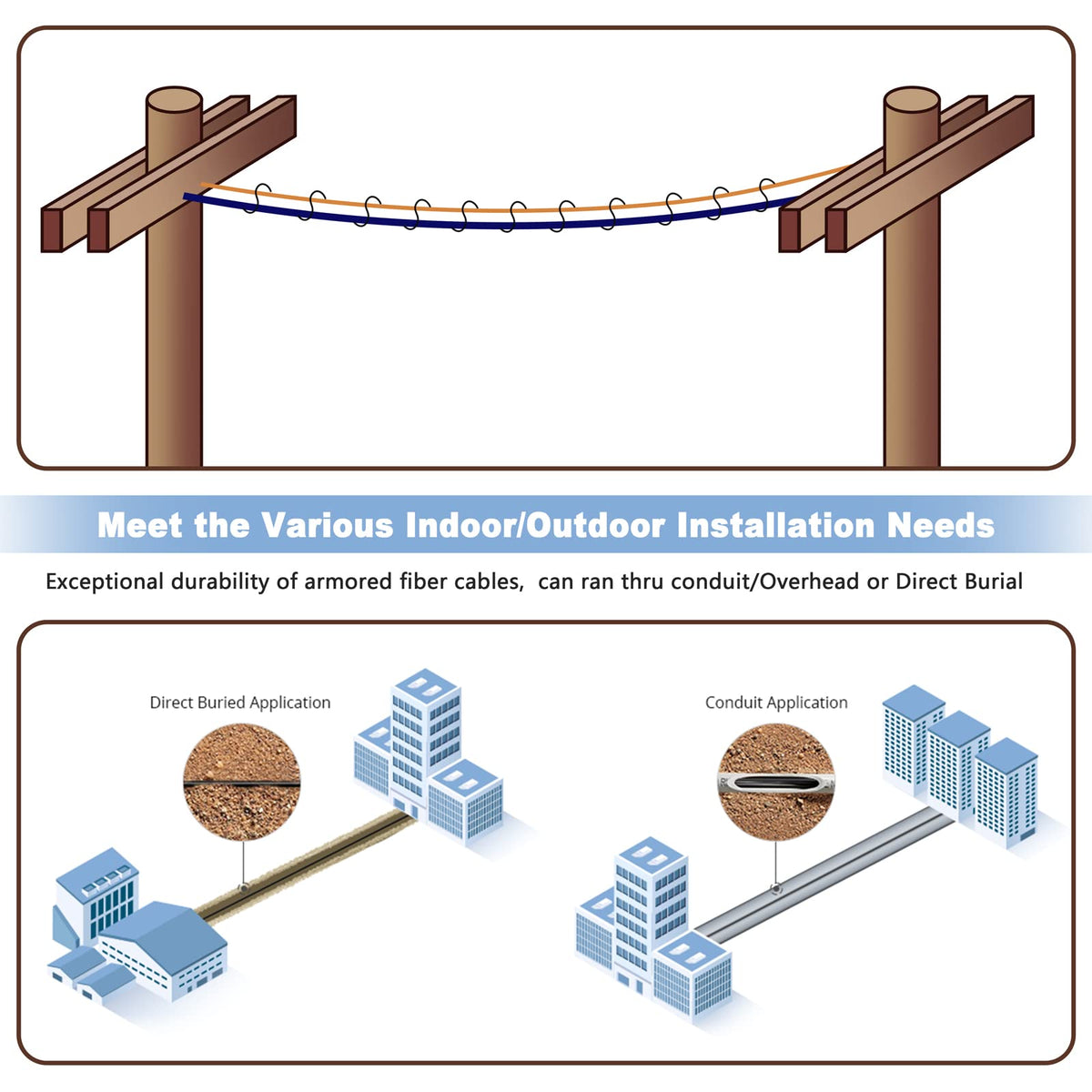

What makes the cable suitable for outdoor and armored applications?

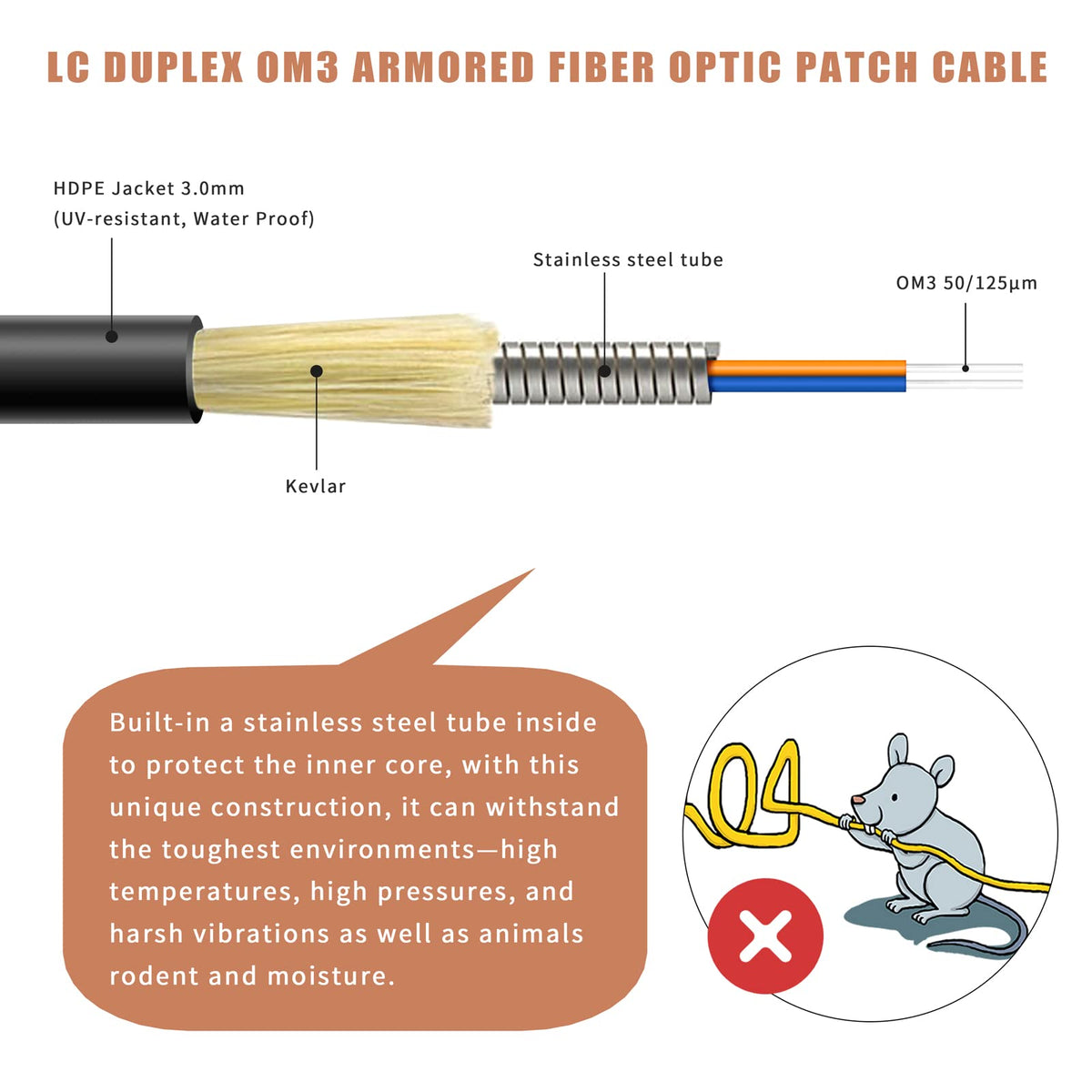

The outer HDPE jacket is UV-resistant and weatherproof to resist sunlight, rain, and typical outdoor conditions. An armored layer protects the fiber from crushing and rodent damage when running in exposed or potentially hazardous zones.

• HDPE jacket resists UV exposure and moisture
• Armored construction reduces risk of physical damage and crushing
• Waterproof design for entry points and exposed runs

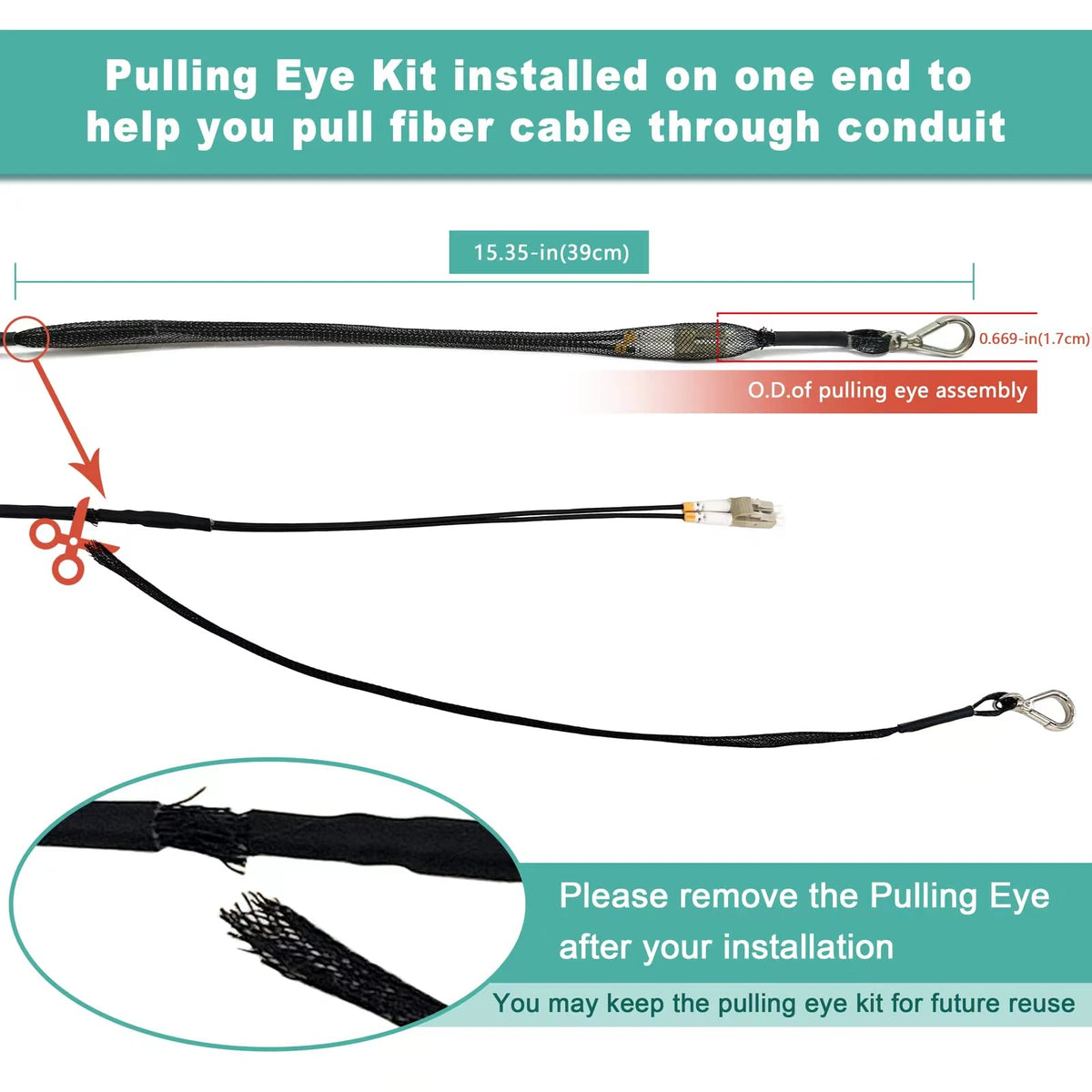

How does the pre-installed pulling eye help installers?

The pulling eye kit attached to one end turns the pre-terminated cable into an installer-friendly assembly for threading through conduit and ducts. It reduces stress on the connectors and speeds pulls by providing a secure attachment point for rope or winch lines.

• Pre-installed pulling eye prevents connector damage during pulls
• Saves time by avoiding separate field termination or temporary attachments
• Compatible with typical conduit and duct pulling methods

How easy is it to install and integrate into my network?

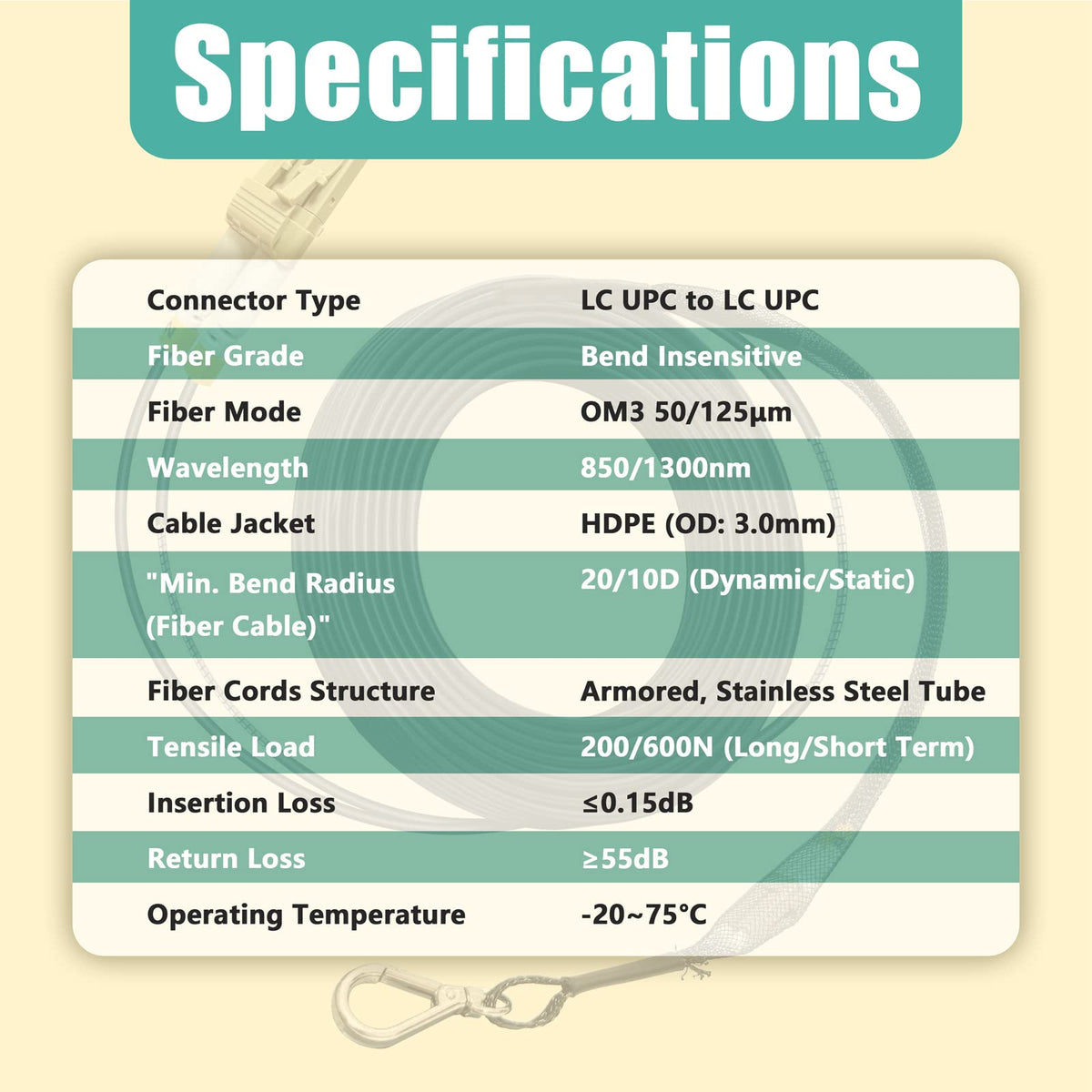

This cable arrives pre-terminated and ready to plug into LC ports on switches, transceivers, or media converters. With a minimum bend radius spec and a compact 3.0 mm diameter, it balances flexibility and durability for tight routing while protecting optical performance.

• Plug-and-play LC connectors reduce onsite termination work
• Cable diameter 3.0 mm and min. bend radius 7.5 mm for tight routing
• Commonly used for linking switches, camera systems, and building interconnects

Who is this for: This Bangun 30 m OM3 armored LC-to-LC duplex cable suits network installers, IT managers, CCTV technicians, and integrators who need a robust, pre-terminated fiber link for short to mid-range outdoor or indoor/outdoor runs. It’s especially useful where copper fails due to distance or interference and where a protected, weatherproof fiber route is required. For projects requiring longer lengths, higher armoring, or singlemode fiber, consider alternate Bangun SKUs tailored to those specifications.
