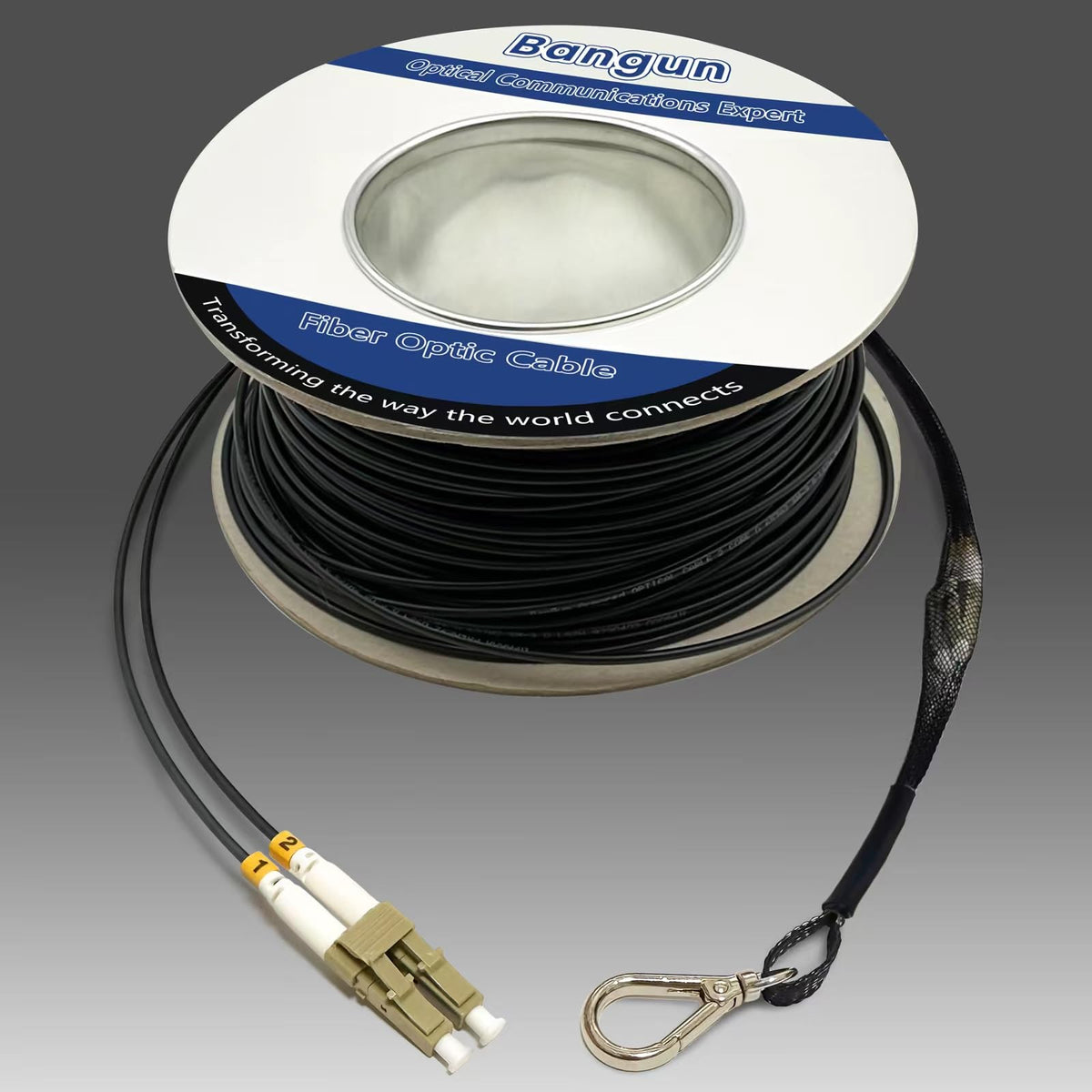

Bangun OM3 LC-to-LC 100m Armored Duplex Fiber Cable

This pre-assembled 100 m (328 ft) OM3 50/125 duplex fiber assembly from Bangun pairs LC connectors with a rugged armored jacket and an installed pulling eye kit so you can run a high-speed multimode link outdoors without field termination. The cable combines an HDPE UV-resistant outer jacket, water- and weatherproof properties, and a minimum fiber bend radius that keeps signal integrity in tight runs. It’s intended for installs where ethernet cannot reach or where a durable outdoor-rated fiber is required.

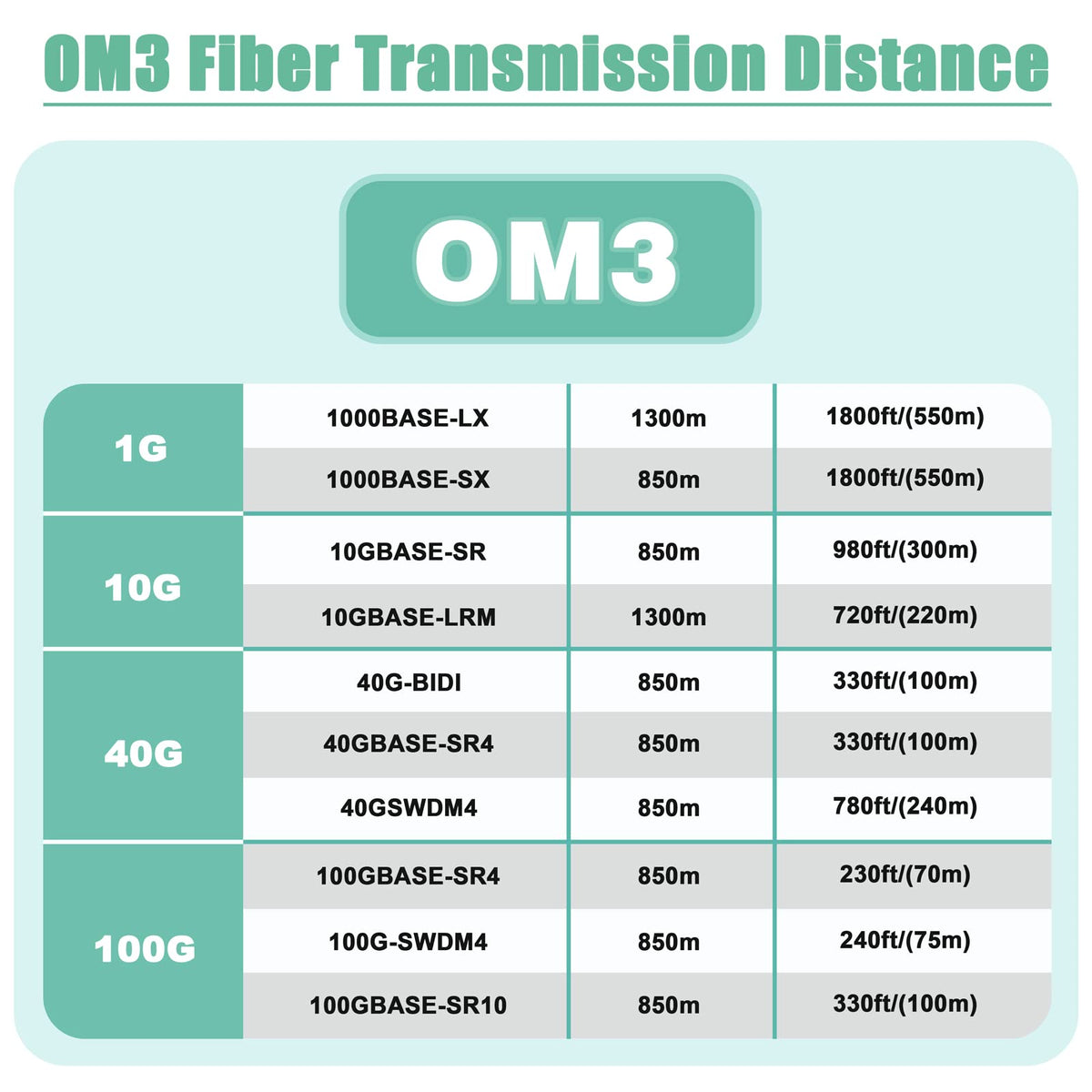

How does this cable support 10Gb networks?

The cable uses OM3 multimode fiber optimized for 10 Gigabit Ethernet over short to medium distances. Pre-terminated LC connectors ensure consistent termination quality and quick deployment — no onsite splicing needed. Armoring protects the fiber against crushing and rodent damage in exposed or buried runs.

• OM3 multimode core: 50/125 µm, suitable for 10Gb links
• Pre-terminated LC-to-LC duplex for plug-and-play setup

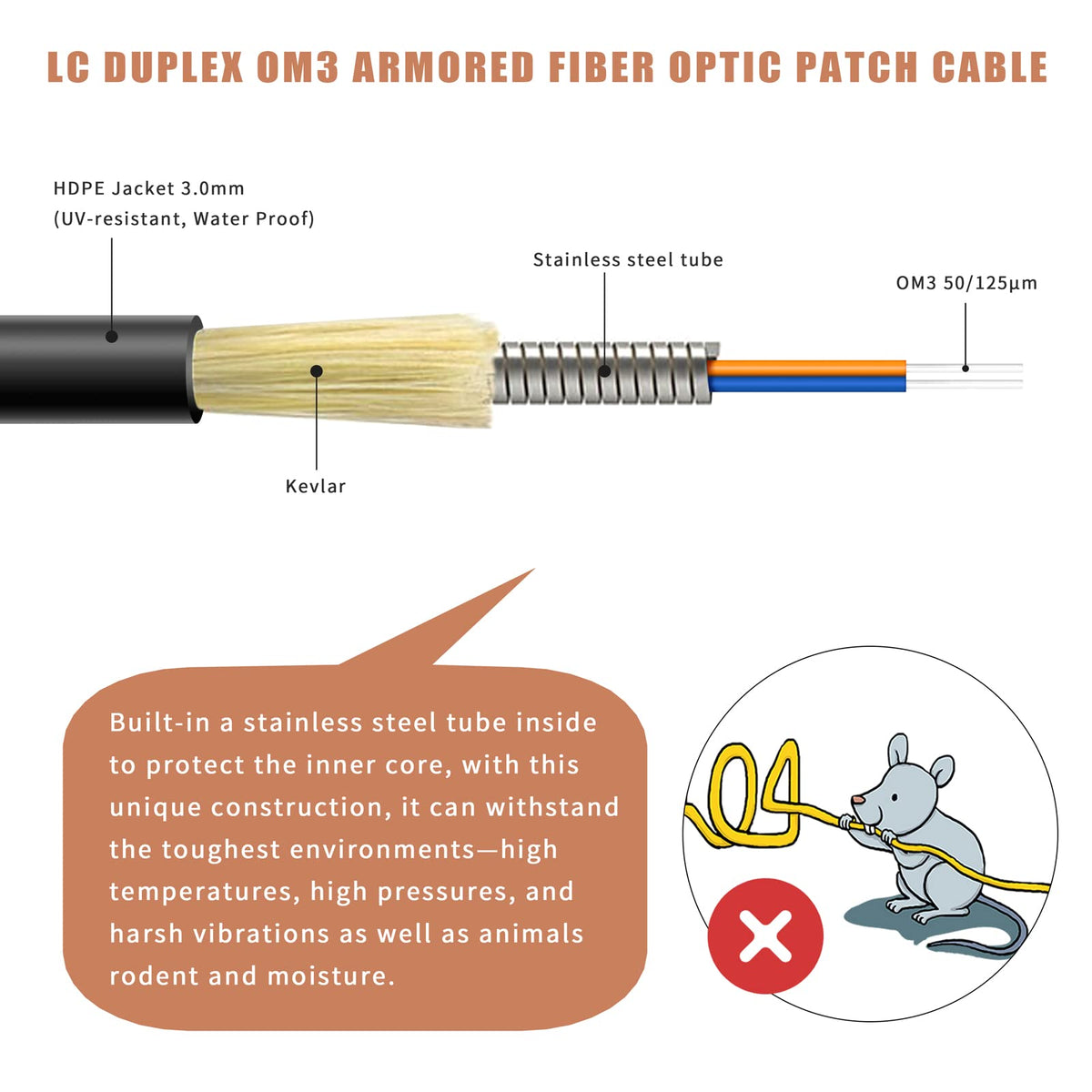

• Armored construction for mechanical protection and durability

Can I install this outdoors and pull it through conduit?

Yes — the cable’s HDPE jacket is UV-resistant, waterproof, and weatherproof for outdoor exposure. A pulling eye kit is pre-installed on one end to simplify pulling the run through conduit, ducts, or across rooftops. The armored core and specified bend radius help preserve performance during installation and routing.

• HDPE outer jacket resists UV and moisture

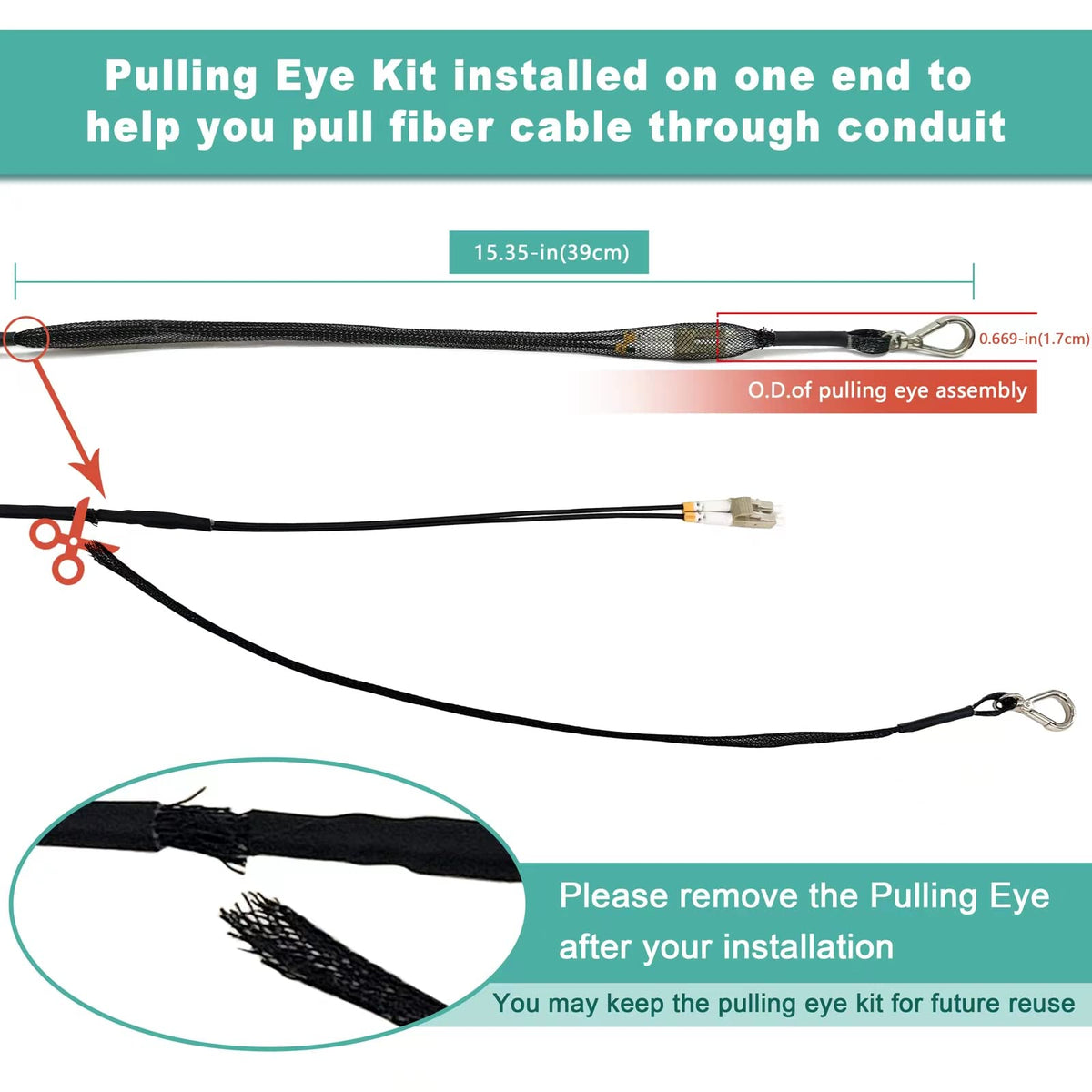

• Pulling eye included to ease conduit pulls and long runs
• 7.5 mm minimum fiber bend radius for safer routing around corners

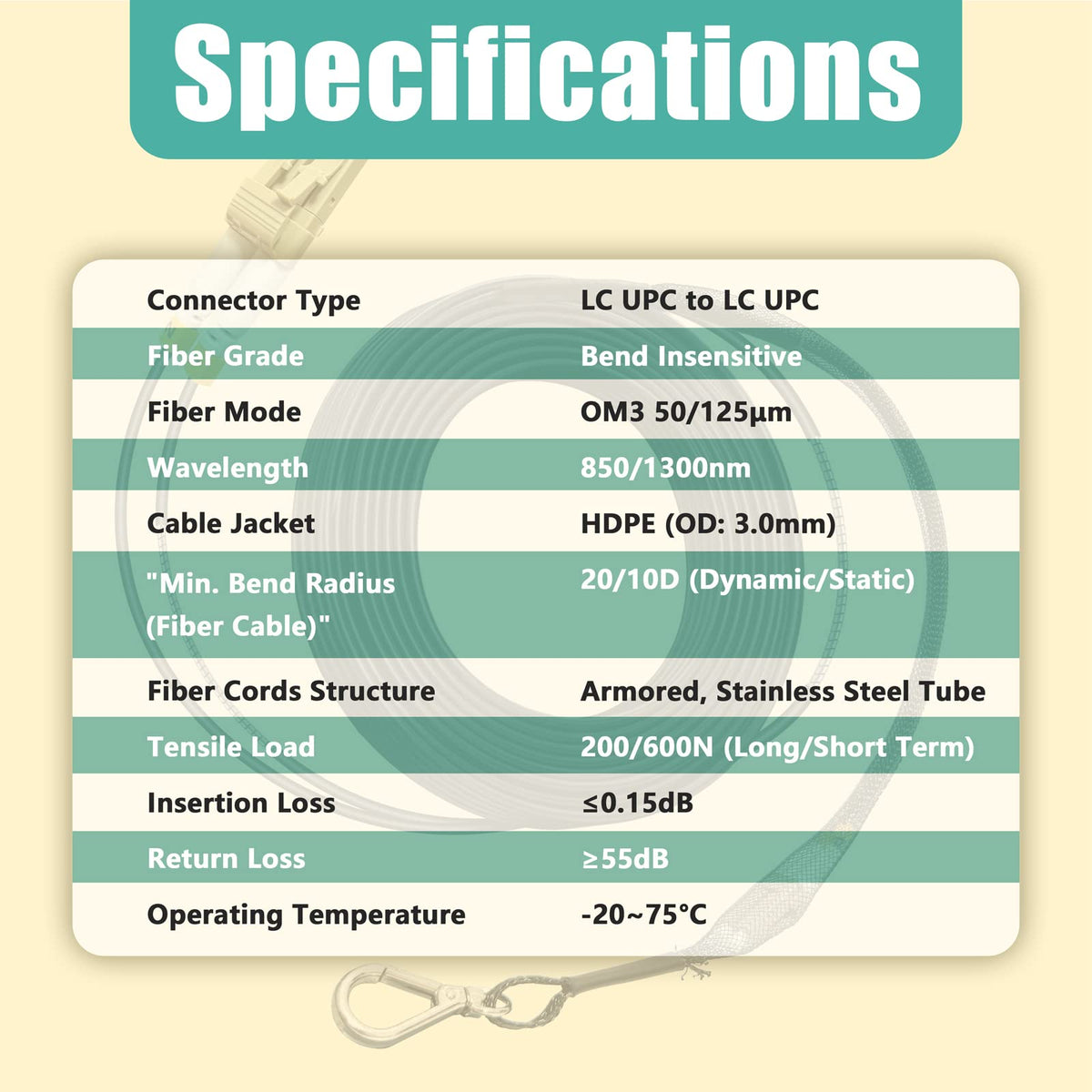

What are the physical specs and connector details?

The cable has a 3.0 mm overall diameter and contains duplex 50/125 multimode fibers terminated with LC connectors on each end. The LC-to-LC termination provides a compact duplex footprint for patch panels and transceivers. Standardized fiber dimensions and connector types ensure compatibility with most multimode network hardware.

• Cable diameter: 3.0 mm for flexible handling
• Fiber type: OM3 multimode (50/125 µm)
• Connector type: LC duplex to LC duplex, factory-terminated

How do I use this cable in my installation?

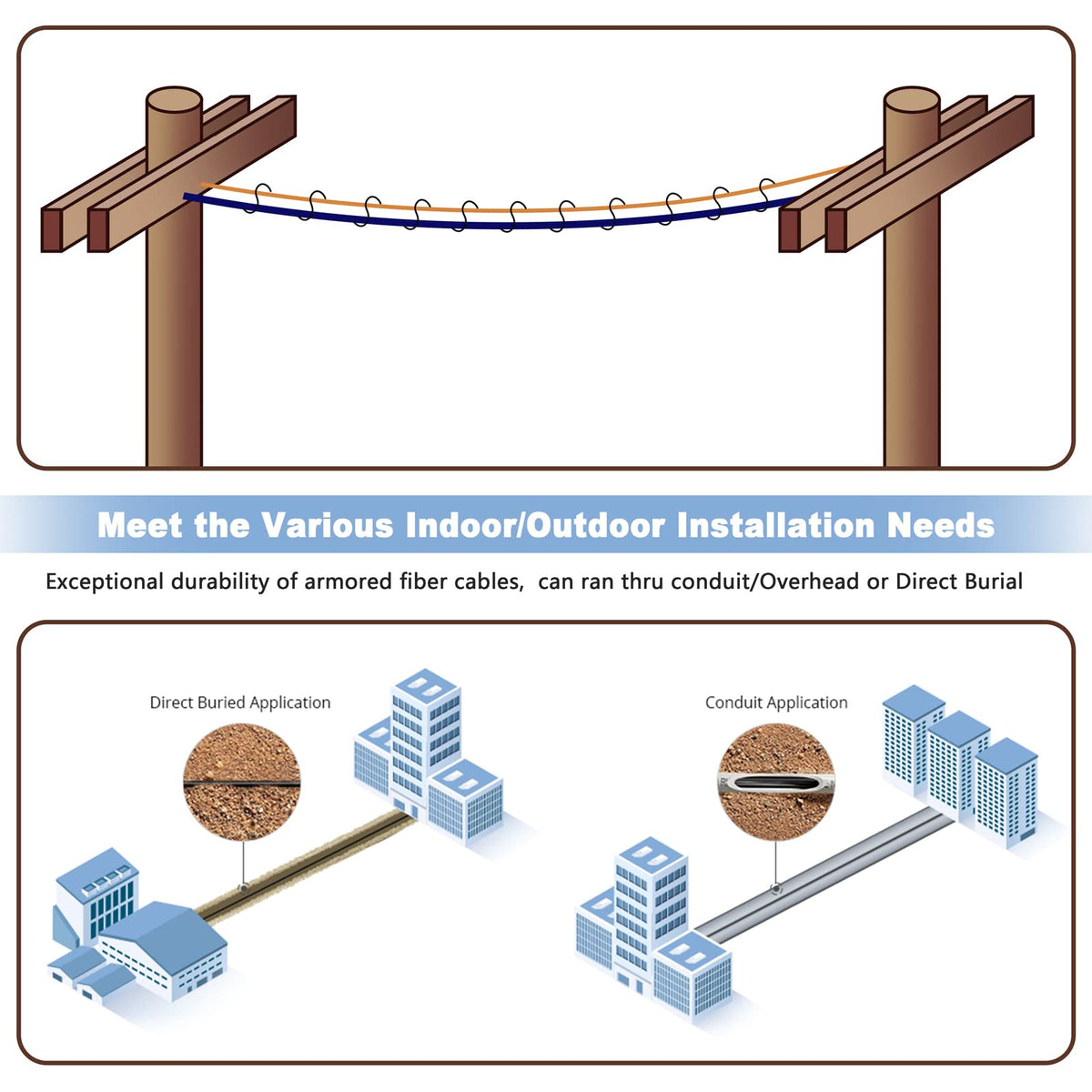

Use the pre-terminated LC ends to connect network switches, SFP+/transceiver modules, cameras, or fiber patch panels directly. The pulling eye helps you draw the cable through conduit while minimizing strain on the terminations. For buried or aerial runs, consider additional conduit or protective pathways as required by local codes.

• Plug LC ends into matching ports or transceivers — no field termination
• Use the pulling eye to guide cable through conduit with appropriate tension limits
• Pair with compatible OM3 SFP+/transceivers for 10Gb links

Who this product is for: Installers, integrators, and IT teams who need a ready-to-run outdoor multimode fiber link that supports 10 Gigabit Ethernet and survives harsh environments. It’s ideal for CCTV camera backhaul, campus or campus-to-building links, temporary event networks, and any application where a robust, pre-terminated duplex OM3 connection reduces onsite work and speeds deployment.
