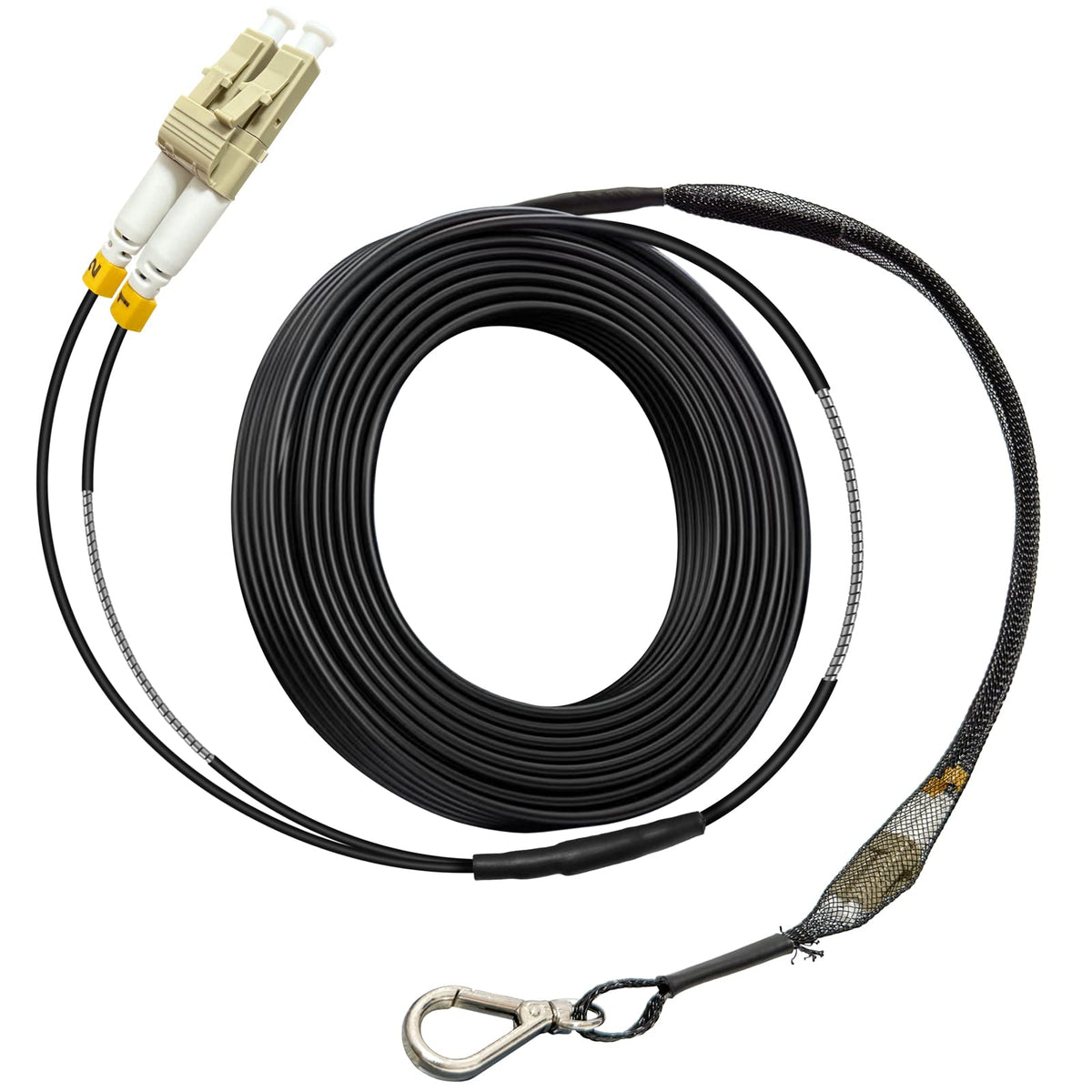

Bangun OM3 LC-LC 50ft Armored Outdoor Duplex Fiber Cable

Bangun's 50ft OM3 LC-to-LC armored duplex multimode fiber patch cable is a pre-terminated outdoor-ready jumper with a pulling eye installed for fast, damage-resistant installations.

This armored 15-meter OM3 multimode fiber jumper combines rugged weatherproof construction with LC duplex connectors to bridge networks where copper struggles. Built with a 50/125 µm core, UV-resistant HDPE jacket and stainless armor, it’s designed for short-range high-bandwidth links in outdoor or mixed indoor/outdoor pathways. The included pulling eye lets technicians feed the cable through conduit and ducts without stressing termination points.

How does this cable improve outdoor and harsh-environment runs?

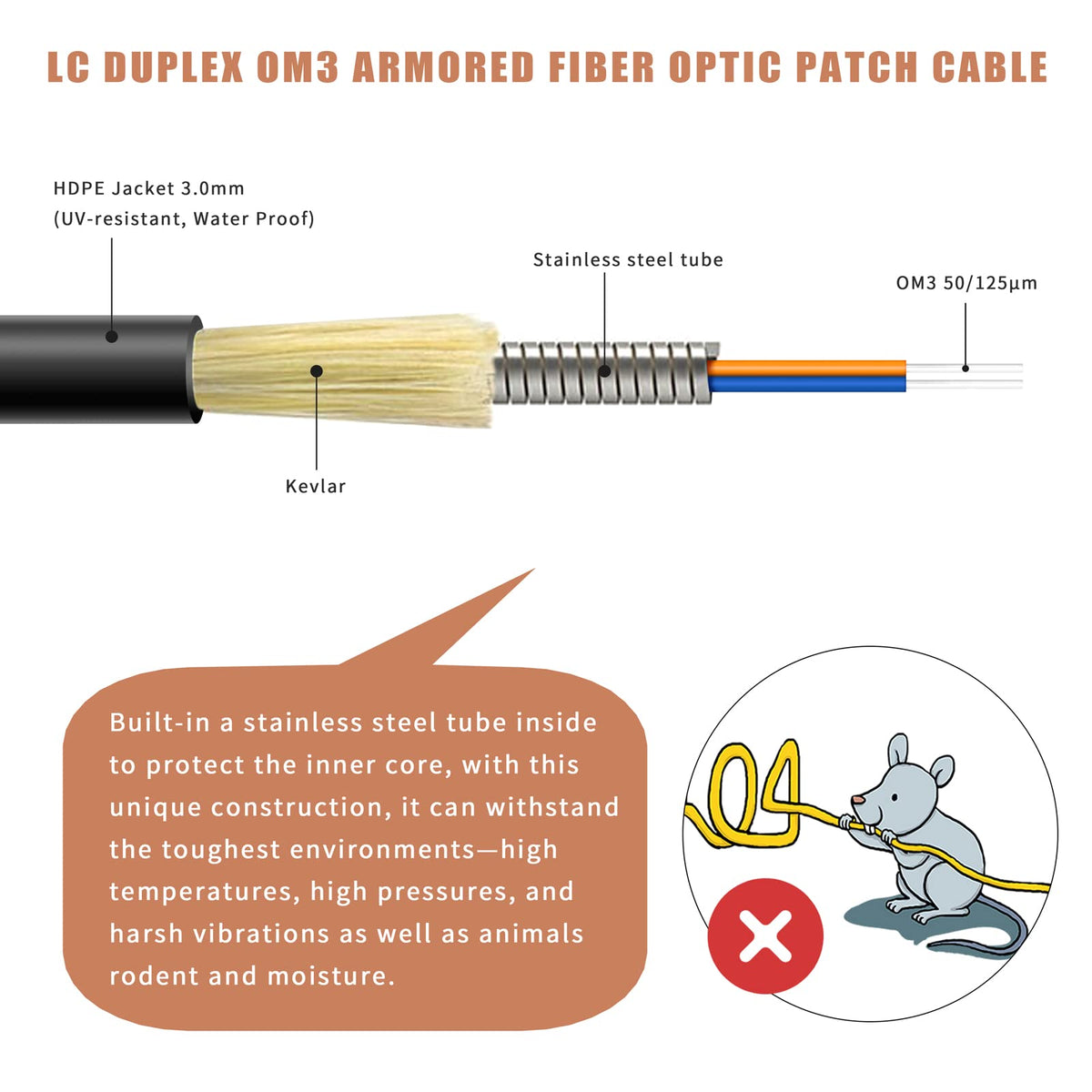

The stainless armored layer and HDPE jacket protect the fiber from crushing, rodents and UV exposure while remaining flexible enough for conduit pulls. The construction lowers service interruptions in exposed or semi-exposed runs where normal patch cords would fail.

• Armored stainless layer prevents crushing and rodent damage
• UV-resistant HDPE outer sheath for sunlight-exposed installations
• Waterproof and weatherproof for damp or variable climates
• 3.0mm cable diameter balances strength and conduit compatibility

What performance can I expect from an OM3 multimode LC-to-LC jumper?

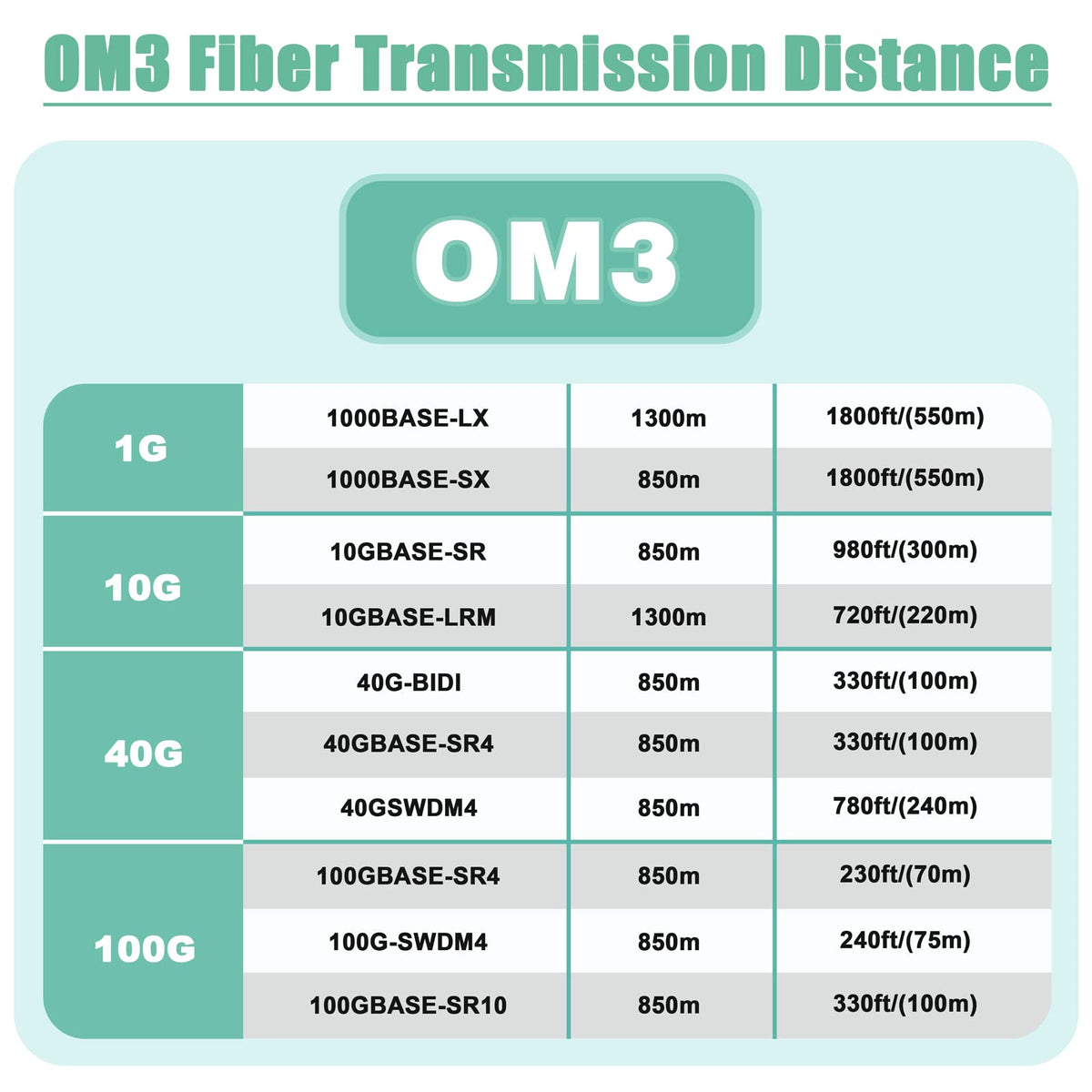

OM3 multimode fiber supports high-speed short-range applications such as 10G and 40G links depending on network equipment and distance. The LC duplex terminations maintain low insertion loss for reliable connectivity in data closets, camera runs, or fiber backbone extensions.

• 50/125 µm multimode core for short-range high-bandwidth links
• LC-to-LC duplex connectors for common enterprise and telecom ports
• Factory-terminated for consistent low-loss performance
• Minimum bend radius (fiber core) 7.5mm to protect signal integrity

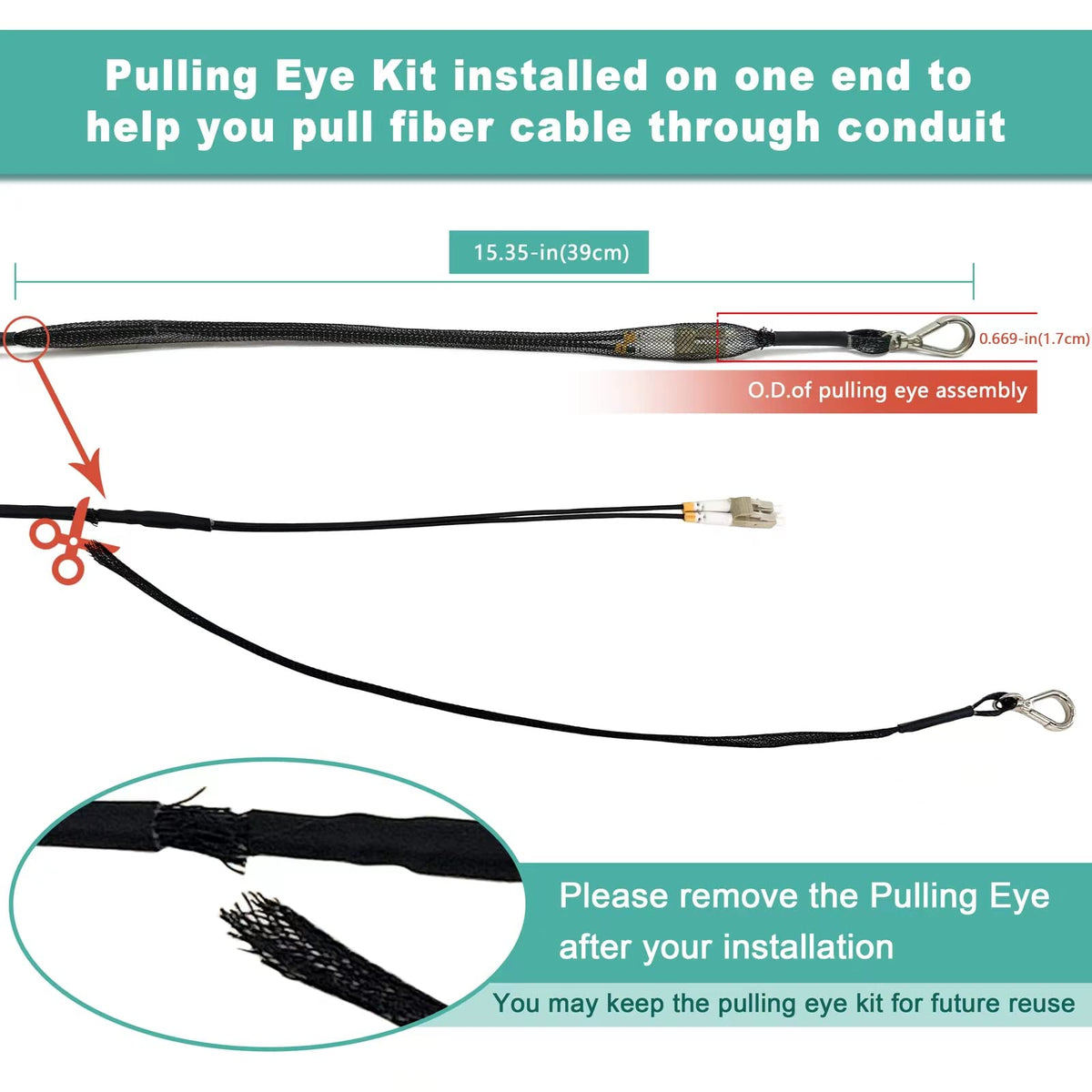

How does the installed pulling eye simplify installation?

The pre-installed pulling eye allows technicians to pull the cable through conduit or ductwork without touching the connectors, reducing the risk of damaging terminations during routing. It speeds installs and minimizes the need for temporary protective fittings on-site.

• Pulling eye securely attaches to the cable end for safe conduit pulls
• Reduces connector stress and contamination during installation
• Eliminates extra site labor to prepare temporary pulling hardware
• Works with standard pulling grips and fish tape setups

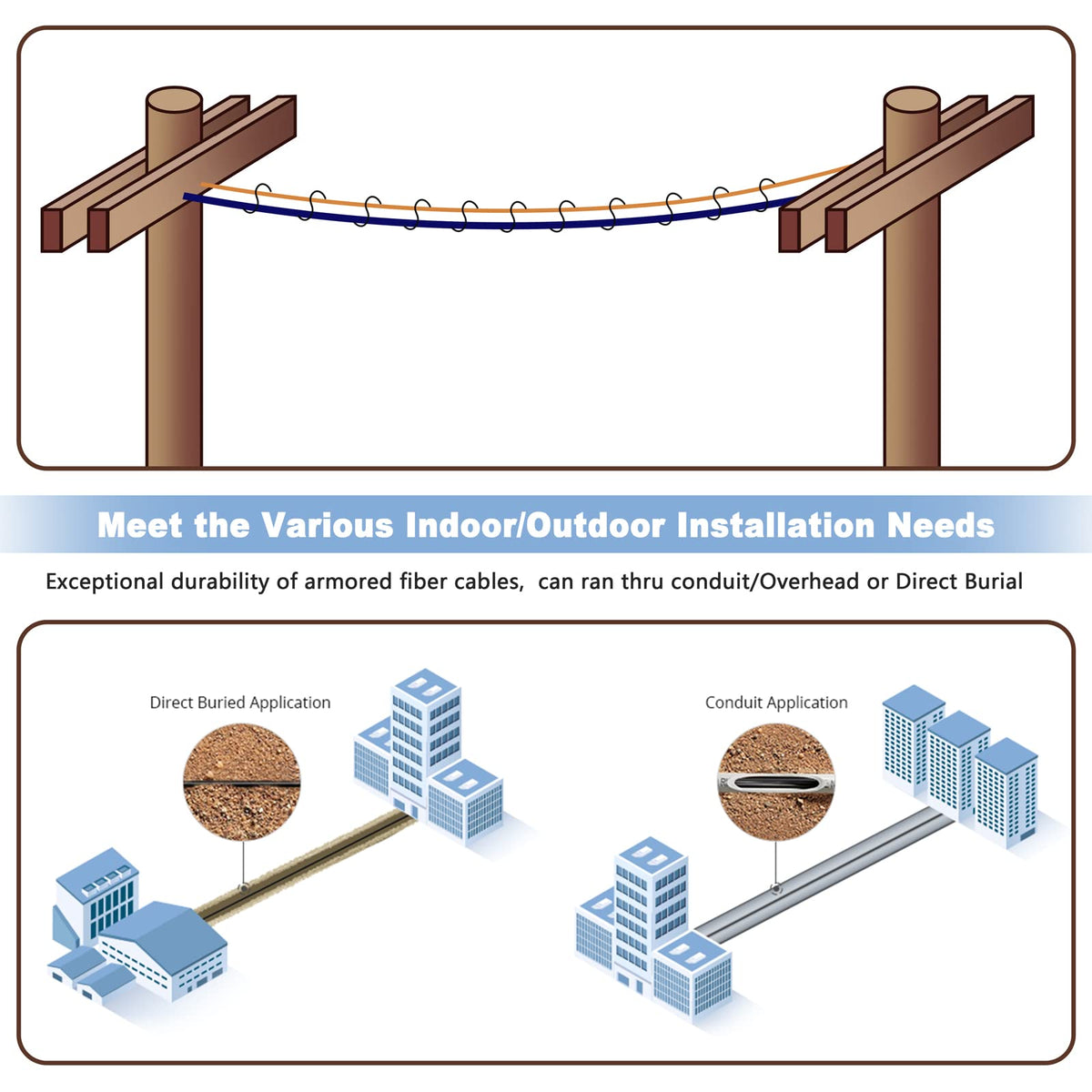

Where is this jumper best used in a network?

Use this armored OM3 LC duplex jumper for outdoor runs to cameras, between buildings, or as a short protected feed where ethernet is unreliable. It’s also suitable for connecting equipment in mixed indoor/outdoor transition spaces like junction boxes and entry points.

• Camera and CCTV fiber links exposed to weather
• Building-to-building fiber patches and campus backbones
• Entry-point and transition duct installations
• Anywhere copper fails due to distance, interference, or environmental risk

Who this is for: Technicians, network installers and IT teams who need a ready-to-use, rugged multimode fiber jumper for outdoor or semi-exposed runs. If you need a pre-terminated LC-to-LC OM3 cable that balances durability, easy installation and short-range high-bandwidth performance, this Bangun armored cable with pulling eye is engineered for those deployments.
