Bangun 30m SC/APC to SC/APC Armored Singlemode Fiber Cable

Bangun 30 Meters SC/APC to SC/APC armored singlemode fiber patch cable is an outdoor-rated, LSZH-jacketed simplex jumper built to protect your 9/125µm OS1/OS2 fiber runs and extend or relocate in-home FTTH connections.

This 30-meter SC/APC–SC/APC fiber optic jumper from Bangun is designed for extending or rerouting fiber internet lines for ONT relocation and other FTTH/FTTP needs. The cable combines a stainless-steel armored core with a low-friction, low-smoke zero-halogen (LSZH) outer jacket, making it suitable for indoor or outdoor protected runs where durability, low attenuation and compliance with common telecom standards matter.

How will this cable help when moving my ONT or extending fiber inside the house?

The Bangun SC/APC to SC/APC patch cable provides a plug-and-play way to lengthen the distance between your fiber modem/router (ONT) and the wall termination. It uses SC/APC connectors to maintain low back-reflection for singlemode links and avoids splicing when you only need a cleaner, longer connection.

• 30 meters length for flexible placement of ONT or equipment
• Pre-terminated SC/APC ends for simple insertion into adapters or ONT ports

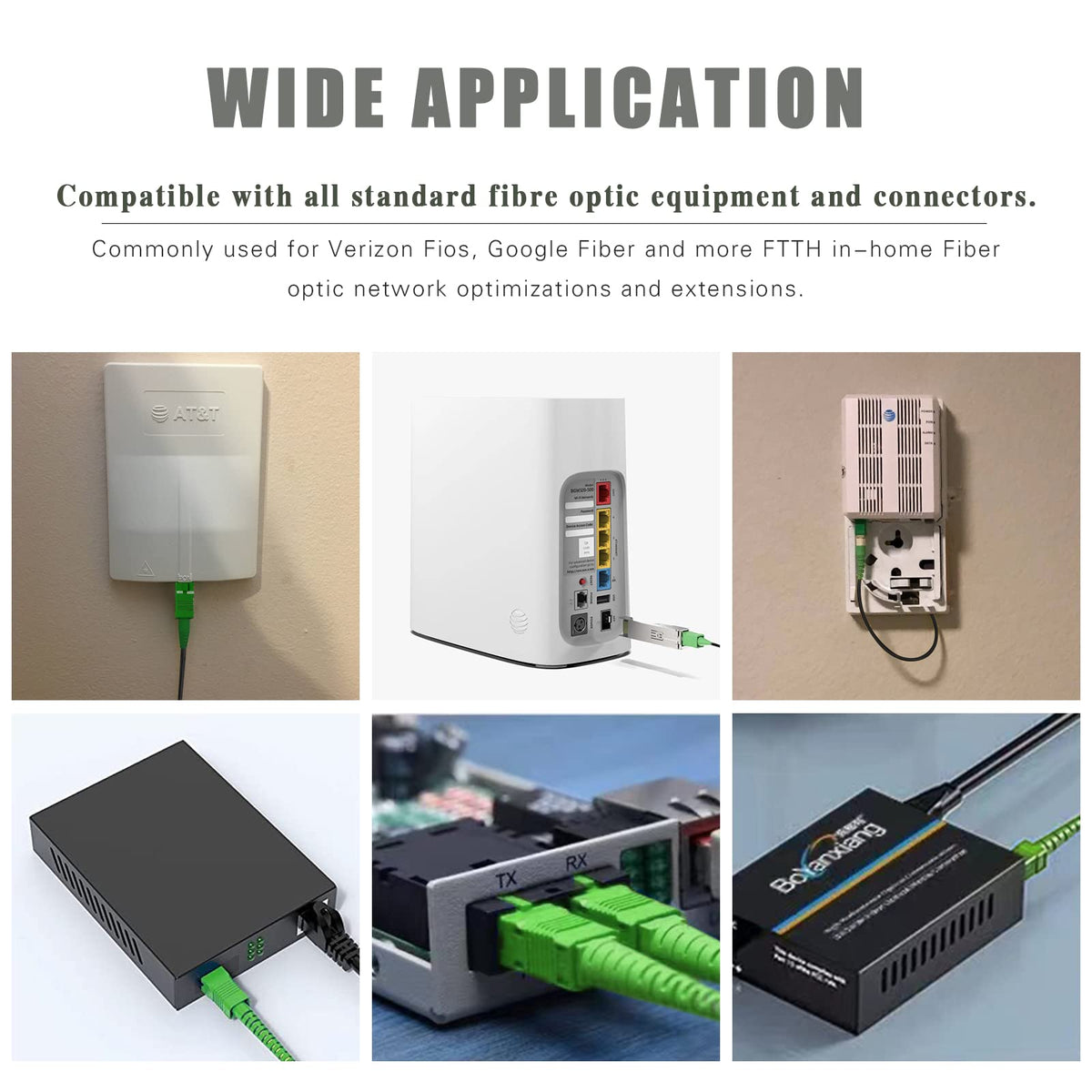

• Compatible with Verizon Fios, Google Fiber and most FTTH systems

What makes the armored LSZH construction better than a standard patch cord?

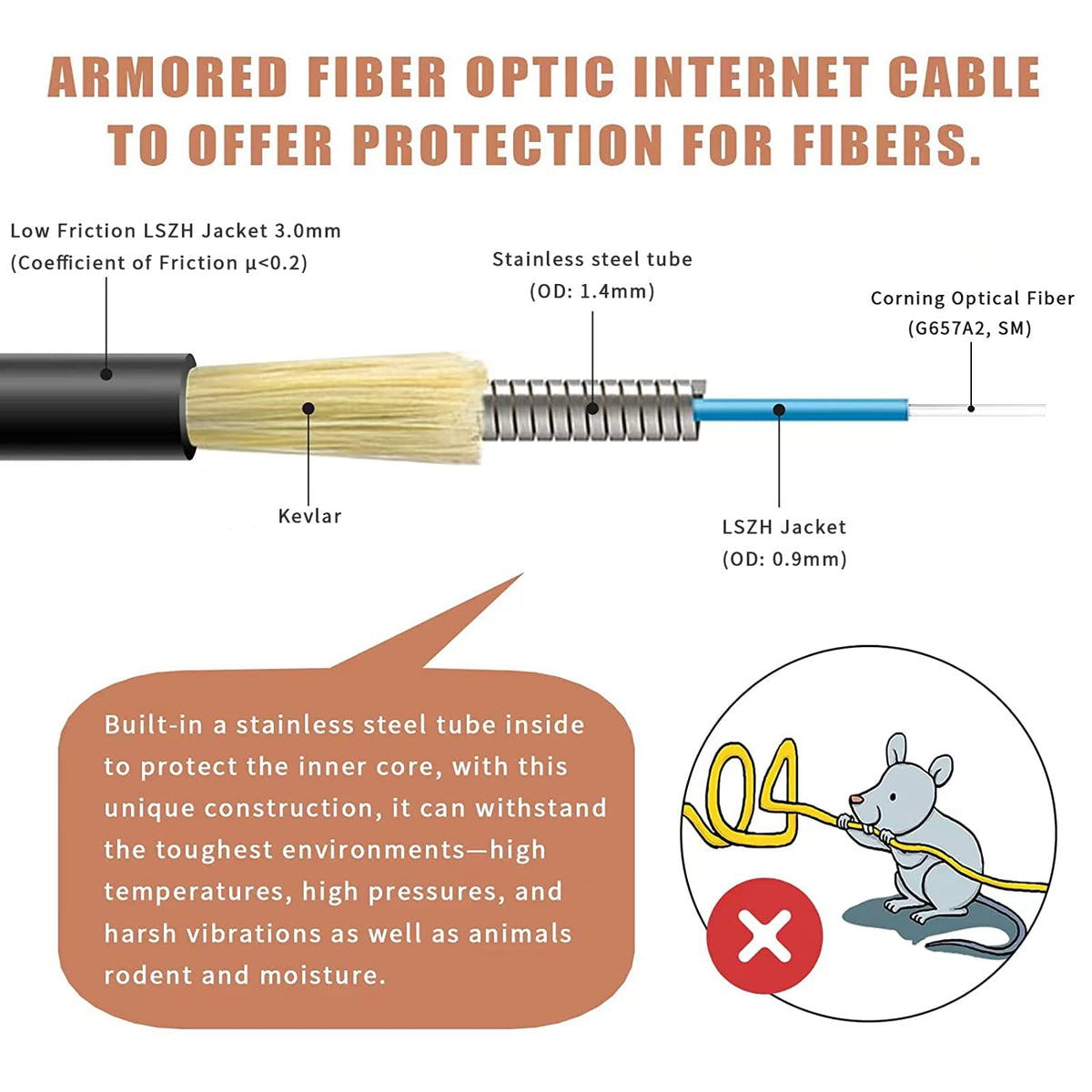

This jumper contains a stainless-steel tube around the glass fiber to resist chewing, crushing and abrasion while maintaining fiber integrity. The LSZH jacket reduces toxic smoke if exposed to fire and the low-friction surface eases installation through tight conduits.

• Stainless steel inner armor for bite and crush resistance
• LSZH jacket for lower smoke and flame-retardant properties

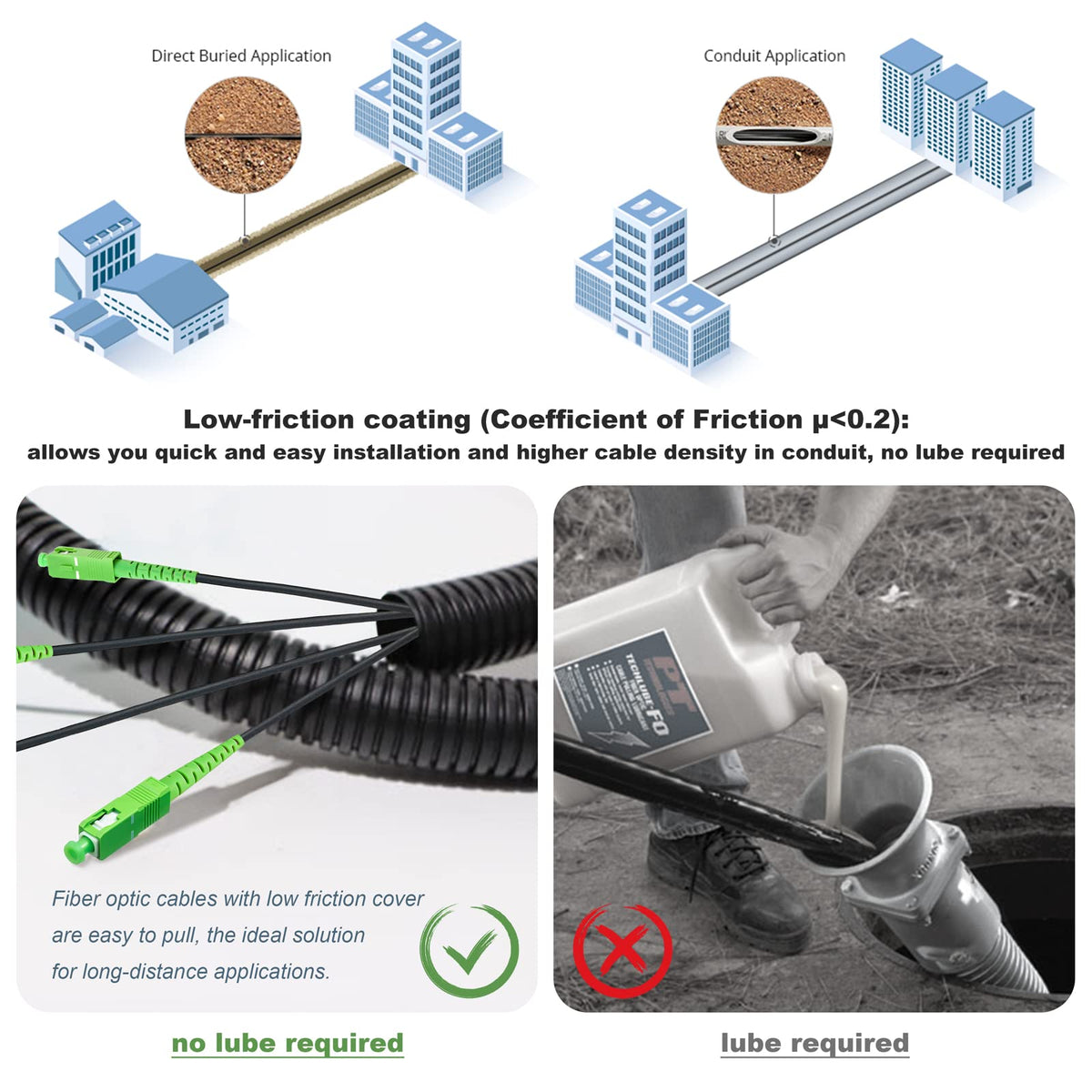

• Low friction (μ < 0.2) for pushing or pulling through congested runs

Will this cable meet singlemode performance and connector requirements?

Yes — the Bangun cable is 9/125µm singlemode (OS1/OS2) and operates across common telecom wavelengths (1310–1550 nm). SC/APC connectors give a good match for passive optical networks and equipment that require angled physical contact to minimize return loss.

• Core/cladding: 9/125µm singlemode fiber suitable for OS1/OS2 links
• Wavelength range: 1310 nm to 1550 nm for telecom signals

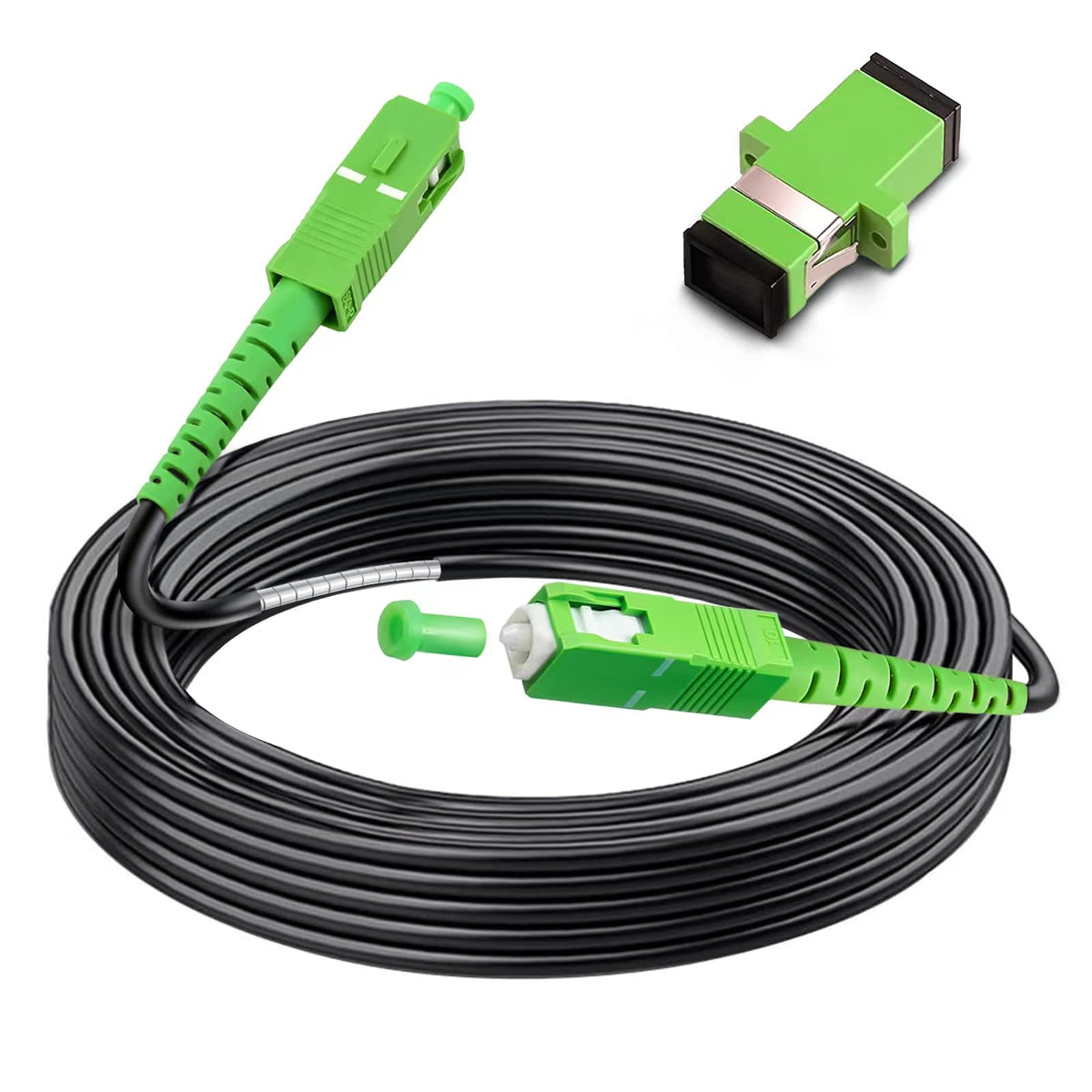

• SC/APC to SC/APC termination for low back-reflection

What else comes with the cable and are customization options available?

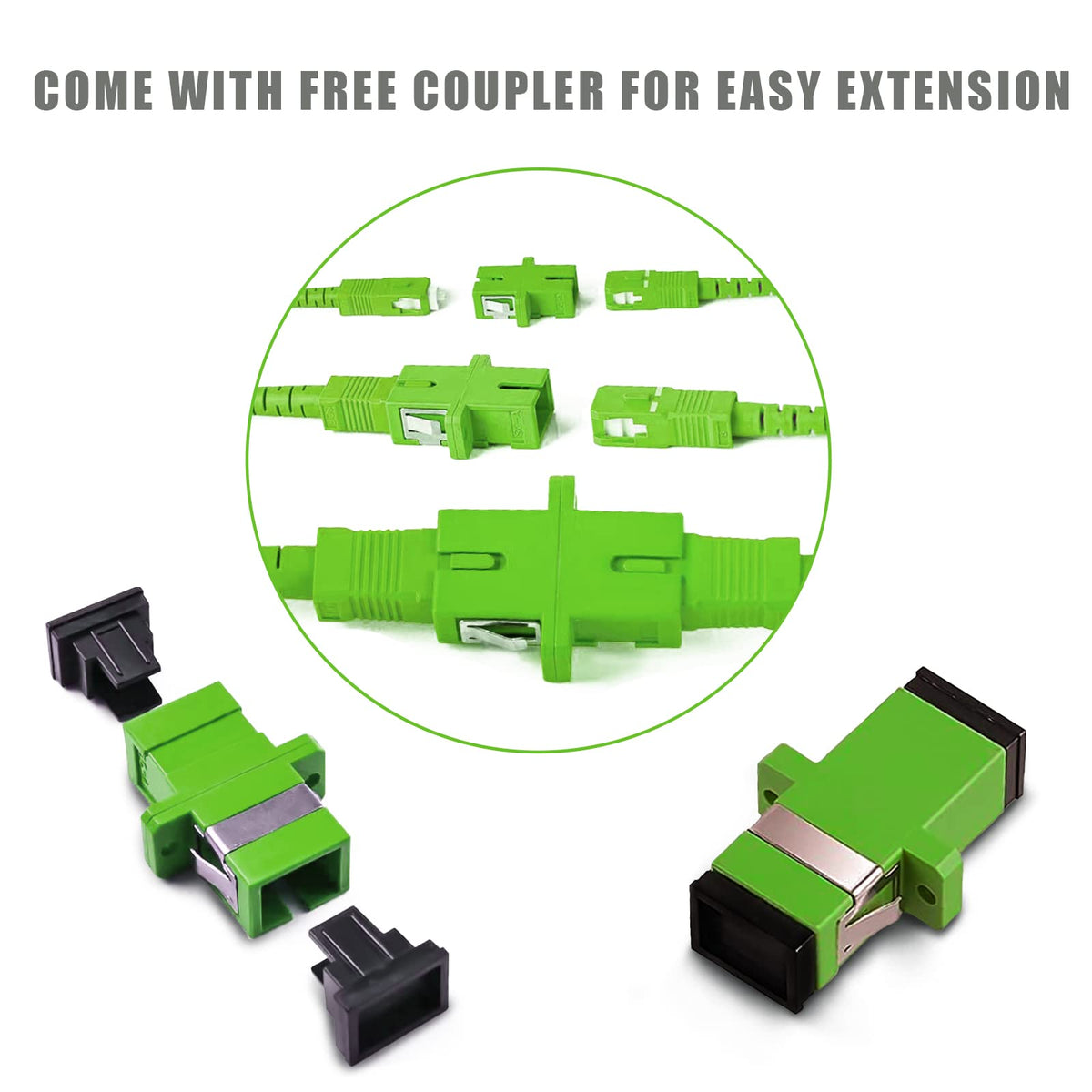

Each cable ships with a free SC-APC adapter (coupler) so you can easily join two patch cords without tools. Bangun also accepts custom orders if you need a different length, connector pair, or jacket color for a specific installation.

• Included SC/APC fiber adapter for immediate extension
• Outer diameter 3.0 mm — slim yet armored for space-constrained runs
• RoHS compliant and resistant to electrical interference

Who is this for? Technicians, installers and homeowners who need a tougher alternative to standard fiber patch cords will appreciate this Bangun armored singlemode jumper. It’s aimed at anyone relocating an ONT, extending FTTH/FTTP runs, or installing fiber in areas prone to pet damage, tight conduit runs, or where reduced-smoke cabling is required. If you need a pre-terminated, easy-to-install SC/APC-to-SC/APC solution with mechanical protection and singlemode performance, this cable is a practical, standards-compatible choice.
