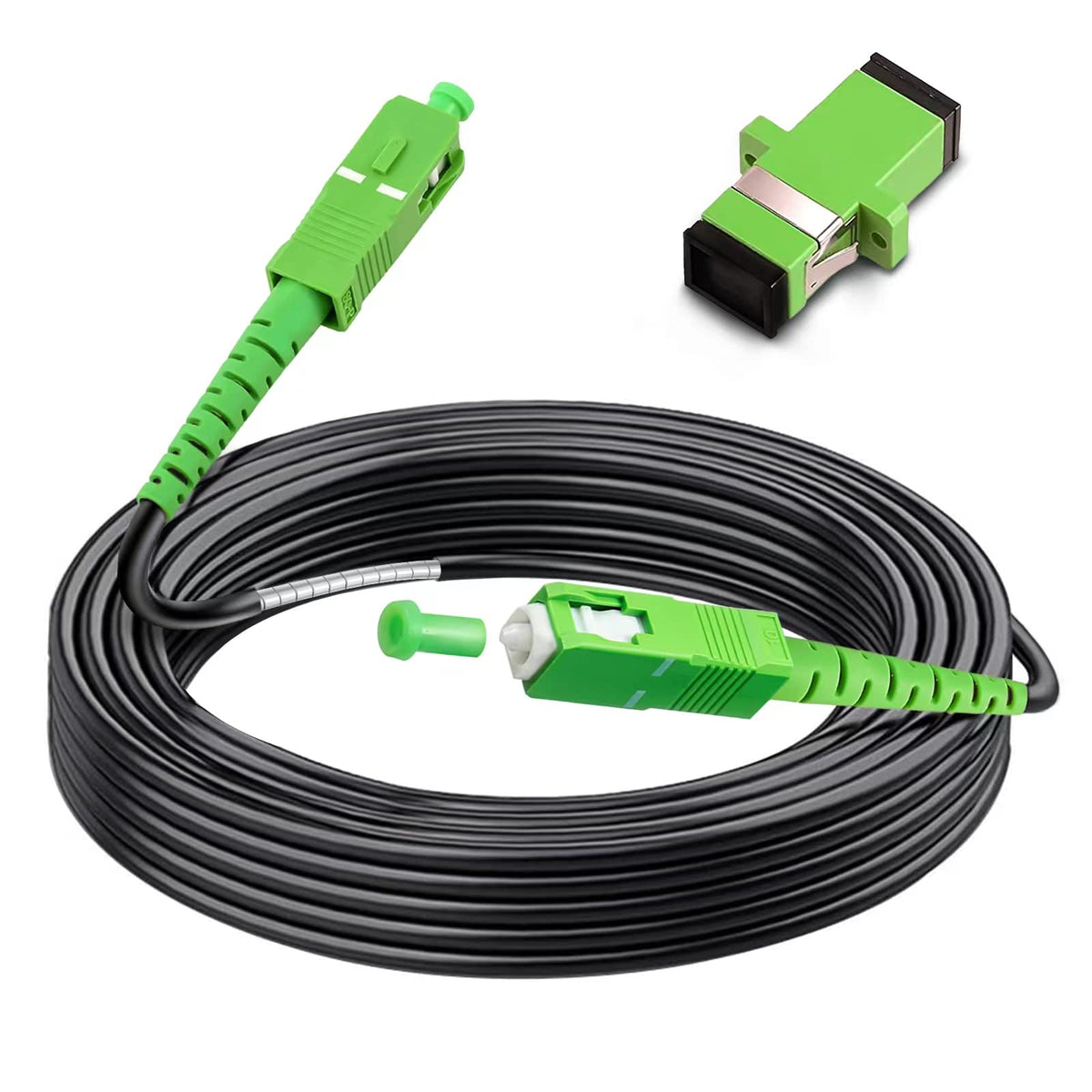

Bangun 25m SC/APC to SC/APC Armored Singlemode Fiber Cable

Bangun 25-meter SC/APC to SC/APC armored singlemode fiber patch cable is a rugged, low-smoke zero-halogen (LSZH) simplex jumper built for in-home FTTH/FTTB connections and ONT relocation.

This 25 m Bangun SC/APC to SC/APC fiber optic jumper delivers a protected singlemode connection for home or office fiber networks, compatible with OS1/OS2 systems and common ISPs such as Verizon Fios and Google Fiber. Designed to replace or extend the fiber run between your Optical Network Terminal (ONT), router or patch panel, the cable combines a 9/125 µm singlemode core with an armored stainless-steel tube and a low-friction LSZH outer jacket for safer installation and increased durability in tight spaces or pet-prone environments.

How does this cable improve reliability for a home fiber connection?

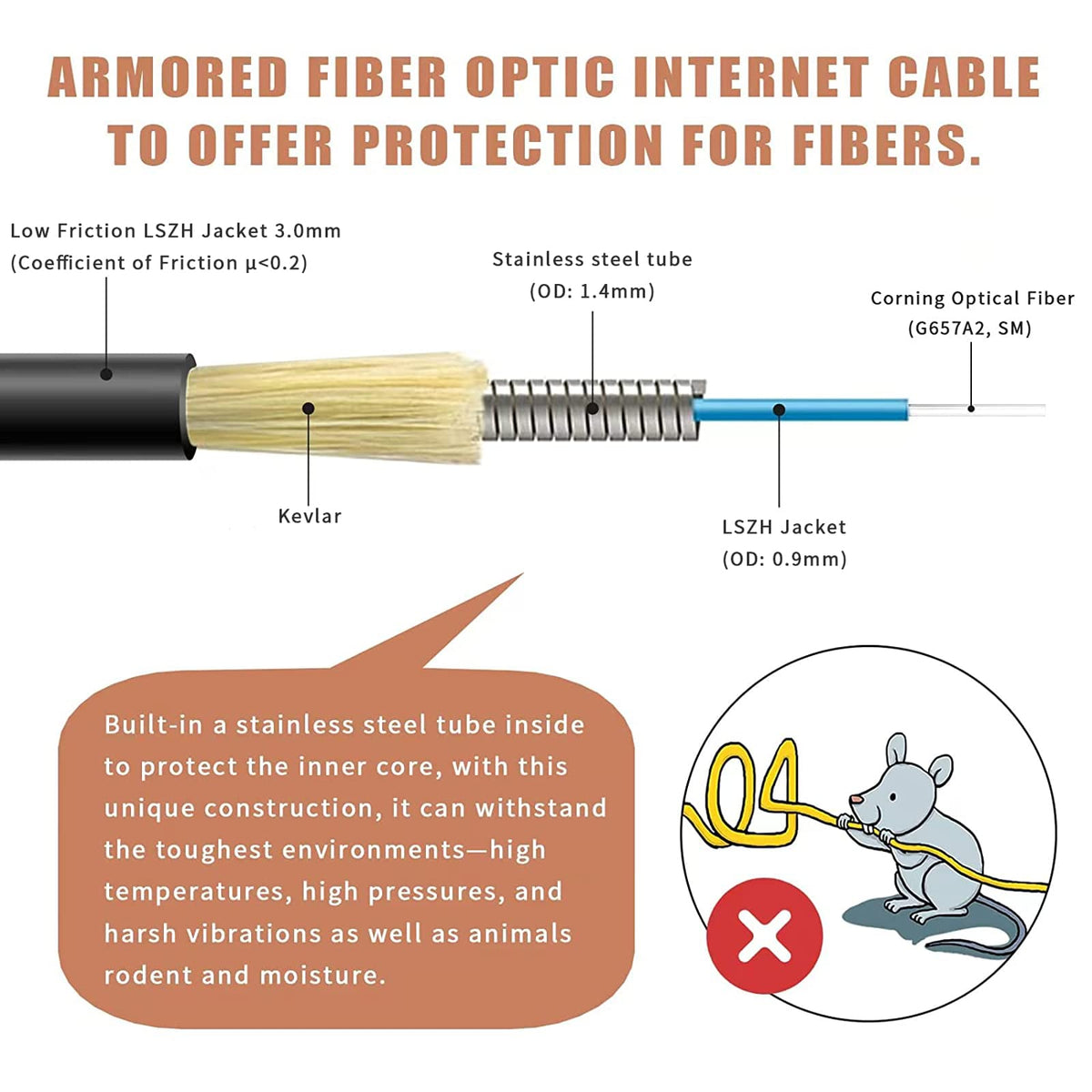

The Bangun armored jumper protects the delicate glass fiber inside using a stainless steel strengthening tube and an abrasion-resistant LSZH jacket, helping prevent breaks from pulls, impacts, or pets. Its singlemode construction supports long-distance signals with minimal attenuation.

• 9/125 µm singlemode core compatible with OS1/OS2 networks
• Armored stainless steel tube resists chewing and crushing
• LSZH jacket reduces smoke and toxic gas in case of fire
• Low insertion loss at 1310–1550 nm wavelengths

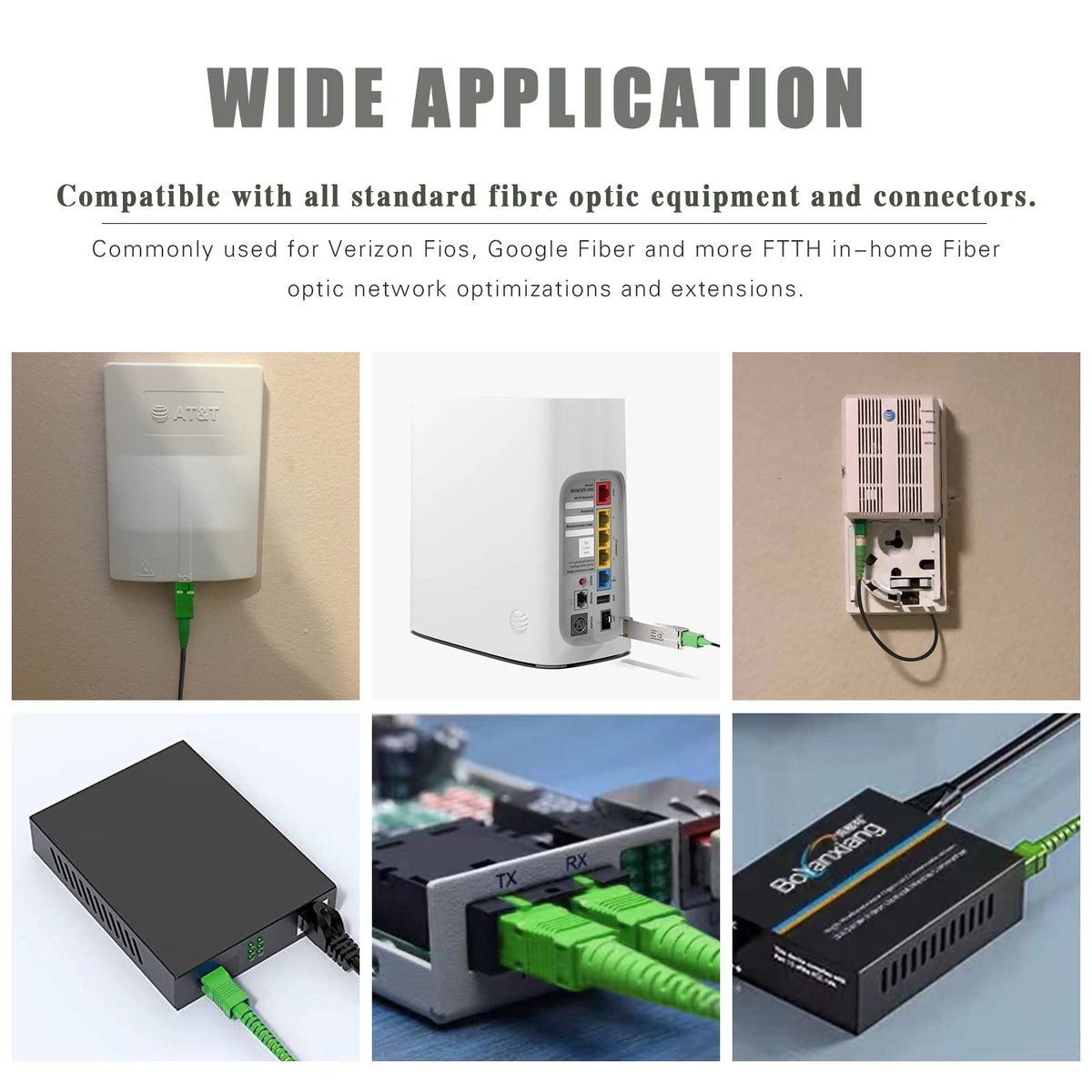

Will this cable work with my Verizon Fios or Google Fiber setup?

Yes — the SC/APC to SC/APC terminated cable is commonly used for FTTH installations and ONT relocations. It fits standard SC/APC ports found on consumer ONTs and indoor fiber termination boxes, letting you reroute or extend the fiber path without changing equipment.

• SC/APC connectors on both ends for direct ONT-to-router or patch-panel connections
• Designed for FTTH, FTTB and FTTP use cases

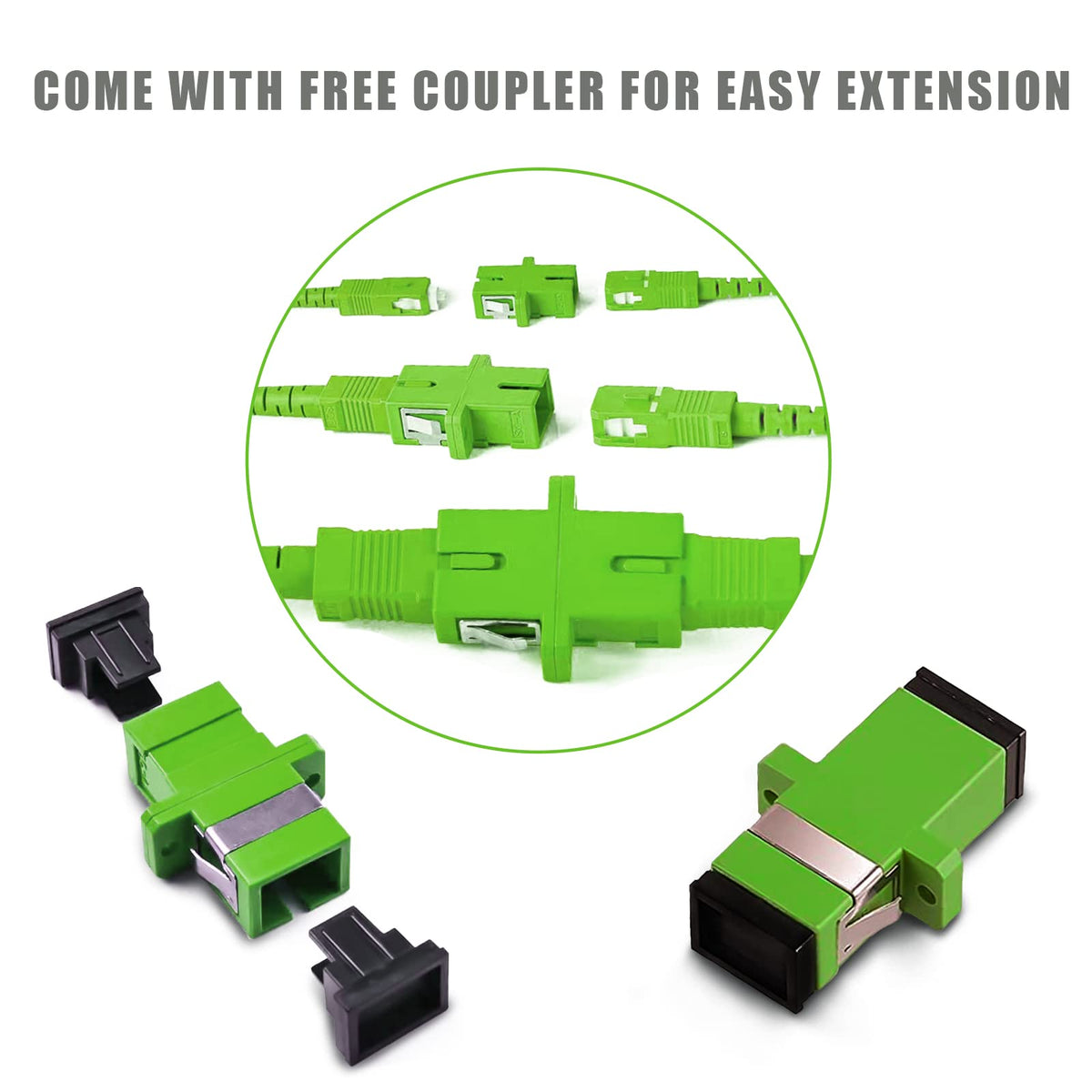

• Includes a free SC-APC coupler for easy extension or temporary joins
• RoHS compliant and resistant to electrical interference

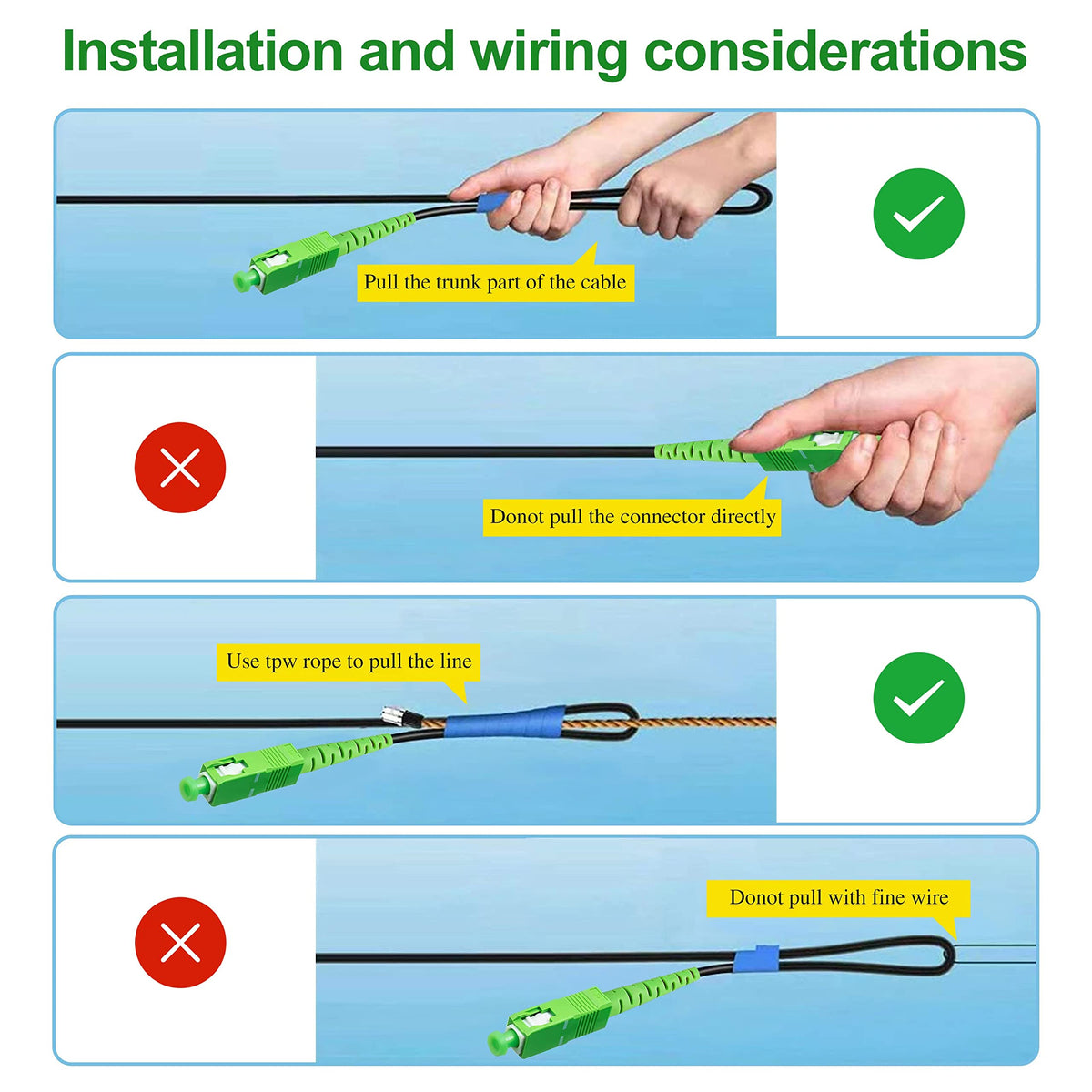

How easy is it to install this armored simplex fiber cable?

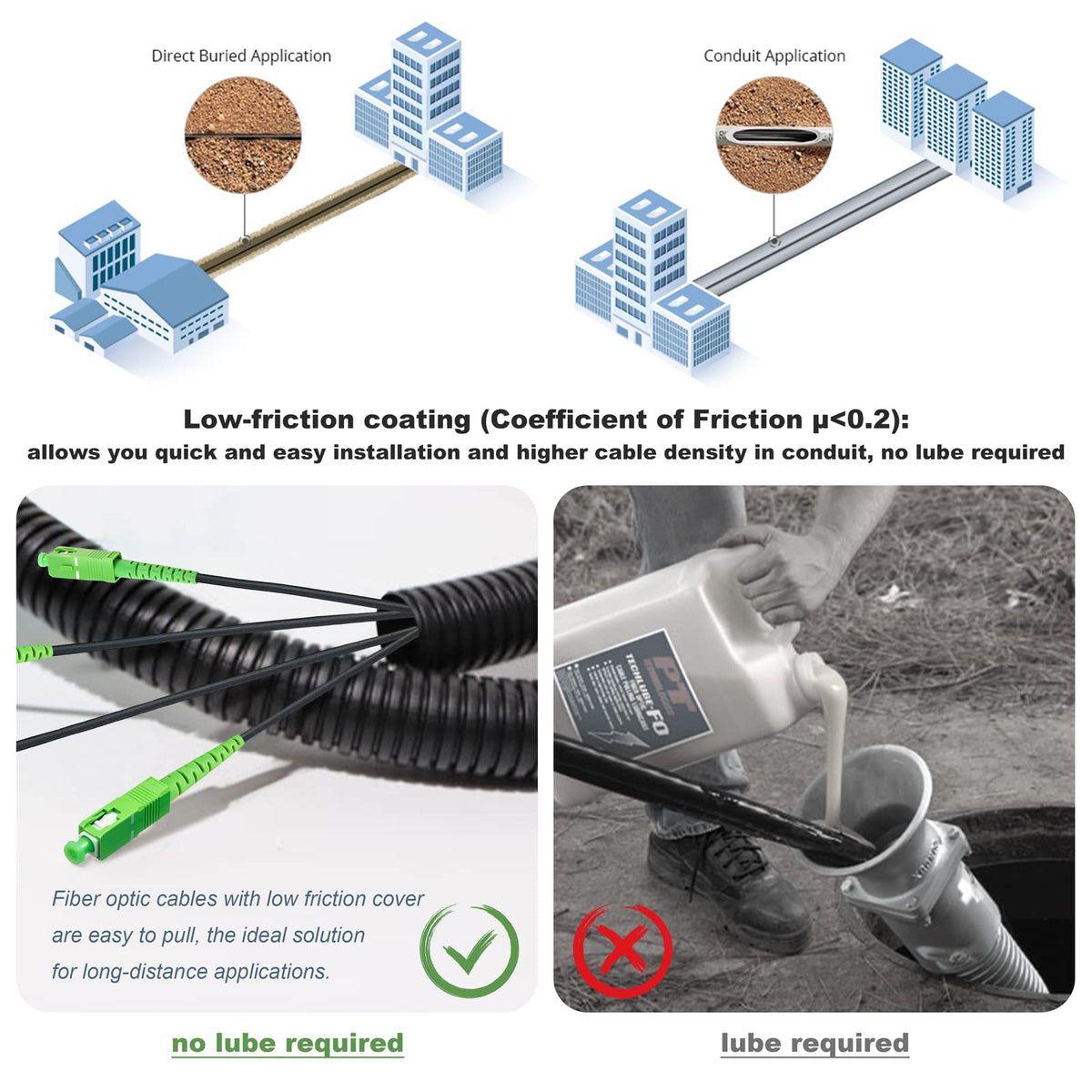

Installation is straightforward: the cable’s low-friction LSZH jacket and moderate stiffness allow both pushing and pulling through conduits and raceways. The 3.0 mm outer diameter balances flexibility with protection, and the SC/APC connectors are plug-and-play for compatible ports.

• Ultra low-friction jacket (μ < 0.2) eases routing in tight conduits
• 3.0 mm OD suitable for most in-home cable management setups
• Simplex design for single-fiber point-to-point runs

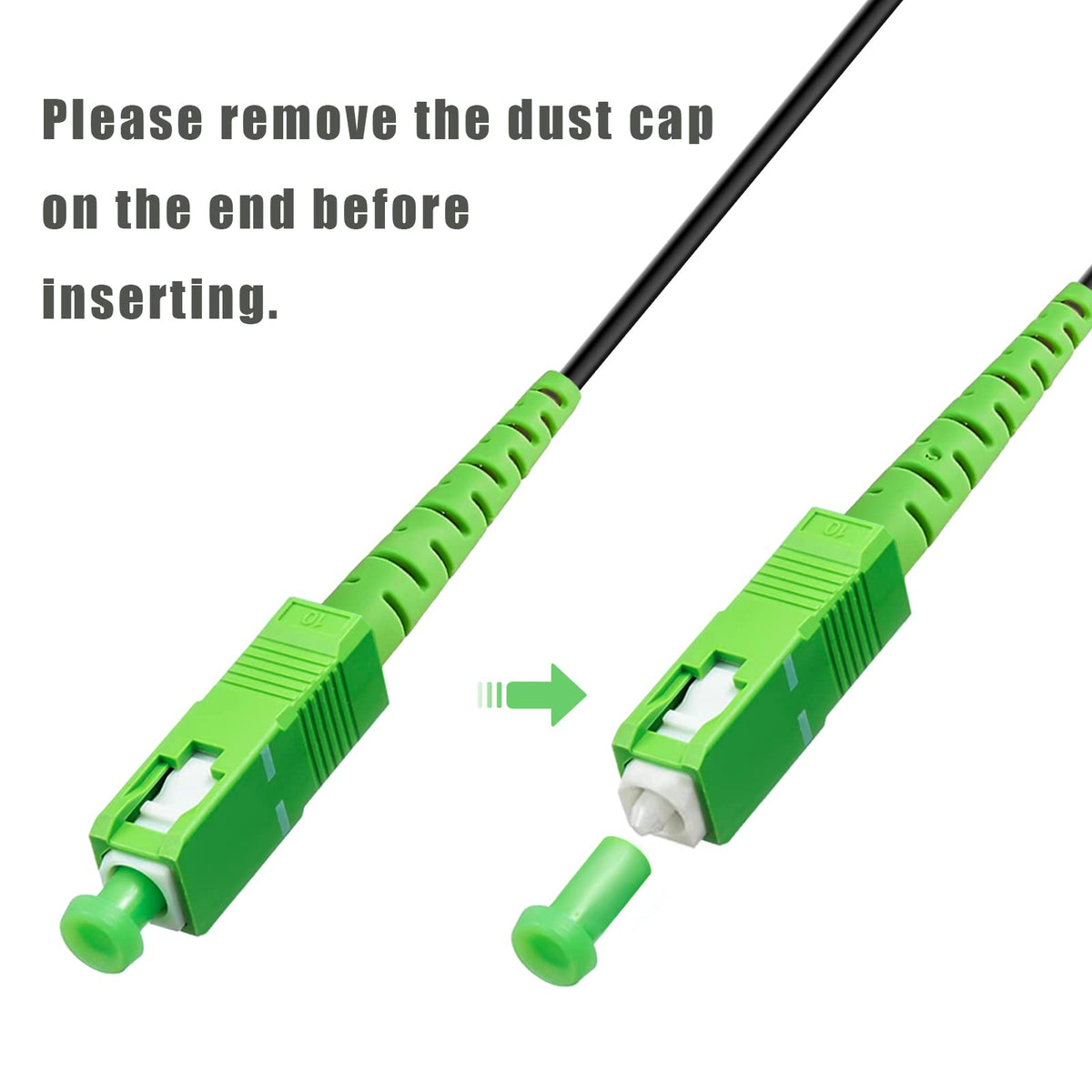

• Pre-polished SC/APC connectors reduce installation fiddliness

What specs should I know before buying?

Key technical details help confirm compatibility: this cable is singlemode 9/125 µm, supports 1310–1550 nm wavelengths, and comes with an LSZH armored jacket in black. It’s intended for indoor environments where reduced-smoke materials and mechanical protection matter.

• Connector: SC/APC to SC/APC (simplex)
• Mode: Singlemode 9/125 µm (OS1/OS2 compatible)
• Wavelength range: 1310 nm — 1550 nm
• Jacket: Armored stainless-steel tube with LSZH outer sheath, 3.0 mm OD

Who is this for: This Bangun armored SC/APC simplex cable suits homeowners and technicians who need a robust, code-friendly fiber patch for FTTH or in-building rewiring. It’s ideal for anyone relocating an ONT, extending a fiber run inside a dwelling, or installing fiber in areas where bite, crush or fire-safety concerns exist — particularly when a plug-and-play SC/APC connection is required.
