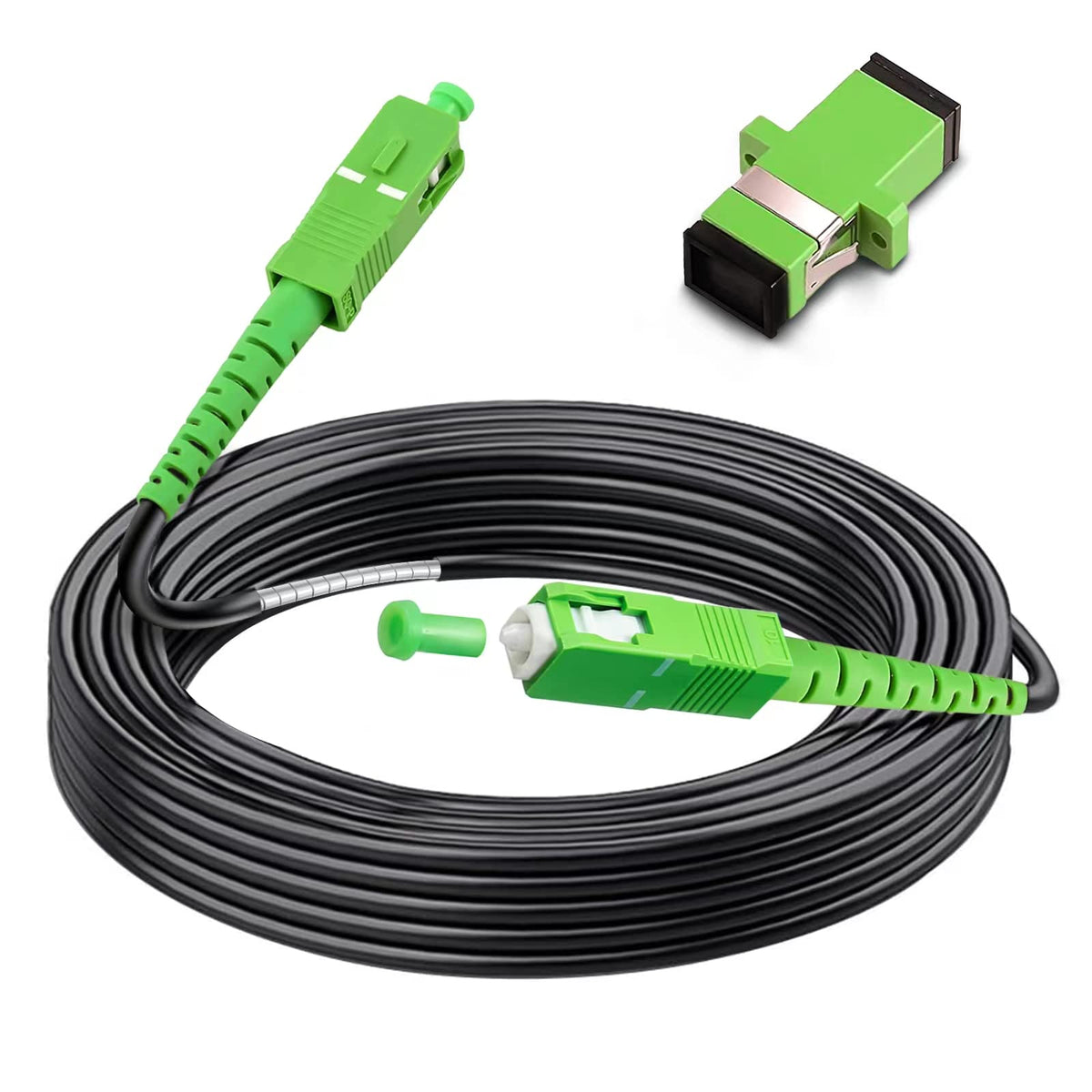

Bangun 100 Meters Outdoor Armored SC/APC to SC/APC Fiber Patch Cable – Low Friction Simplex LSZH

Overview

The Bangun 100 Meters Outdoor Armored SC/APC to SC/APC Fiber Patch Cable is designed for reliable outdoor runs and flexible indoor extensions. This simplex, single‑mode link supports a 1310 nm to 1550 nm wavelength range and uses a Low Smoke Zero Halogen (LSZH) jacket for safety. With a 3.0 mm outer diameter, the cable blends rugged protection with easy routing in tight spaces, conduits, and congested installation areas. This is a solution built to adapt to both home networks and more demanding deployments.

Built for real world use, the cable features an armored design with an internal protection tube that helps safeguard the delicate glass fiber from bending and minor impacts. The result is a patched connection that remains smooth when threaded through walls, ceilings, or exterior conduits. The LSZH jacket not only reduces smoke risk in case of fire but also keeps the sheath flexible enough for long runs in various climates.

Below you’ll find how this patch cable could fit into your fiber setup. It is intended to offer possibilities rather than guarantees, so you can weigh whether the features align with your installation goals and the layout of your space.

Key Benefits

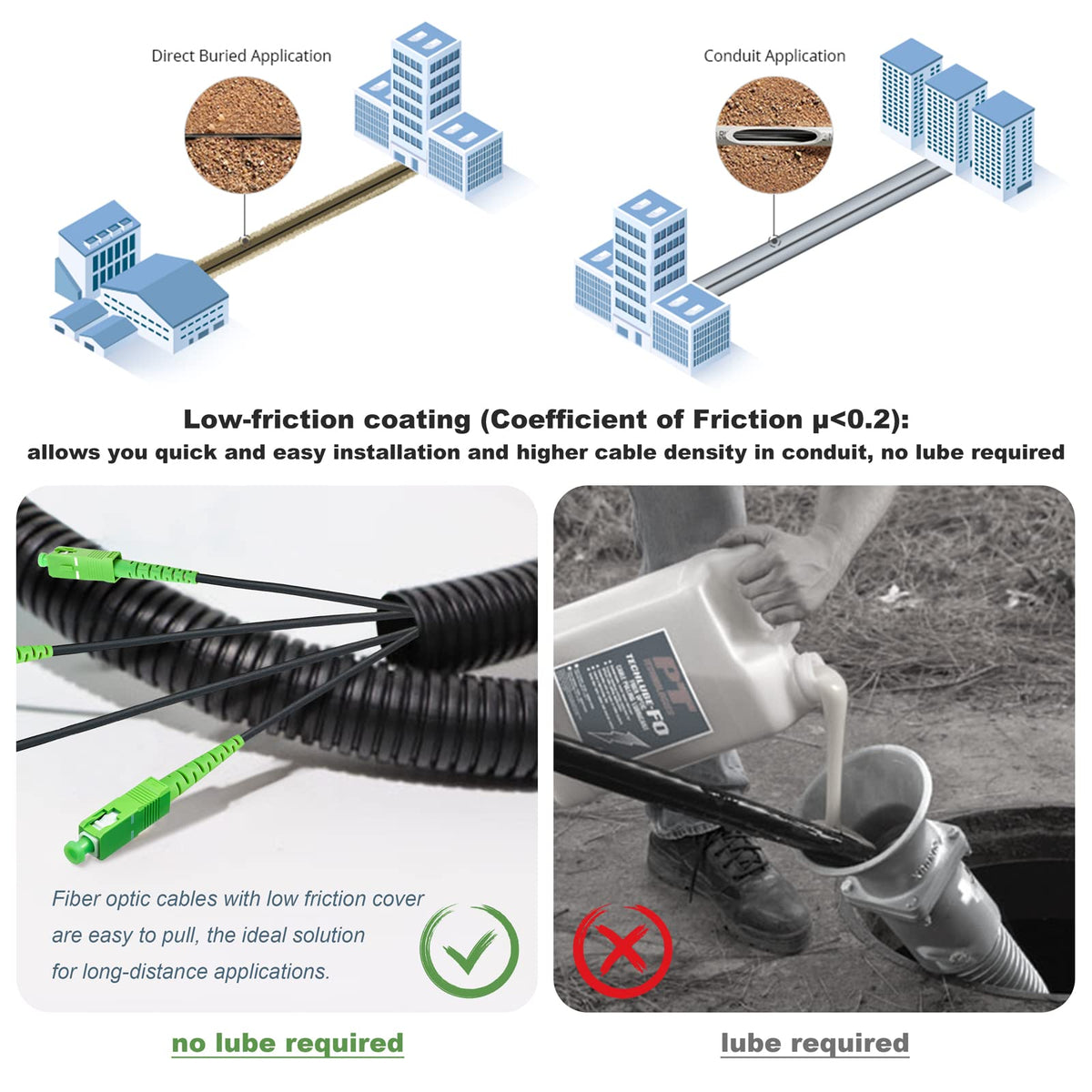

• Low friction LSZH jacket with a friction coefficient under 0.2, aiding easier conduit routing.

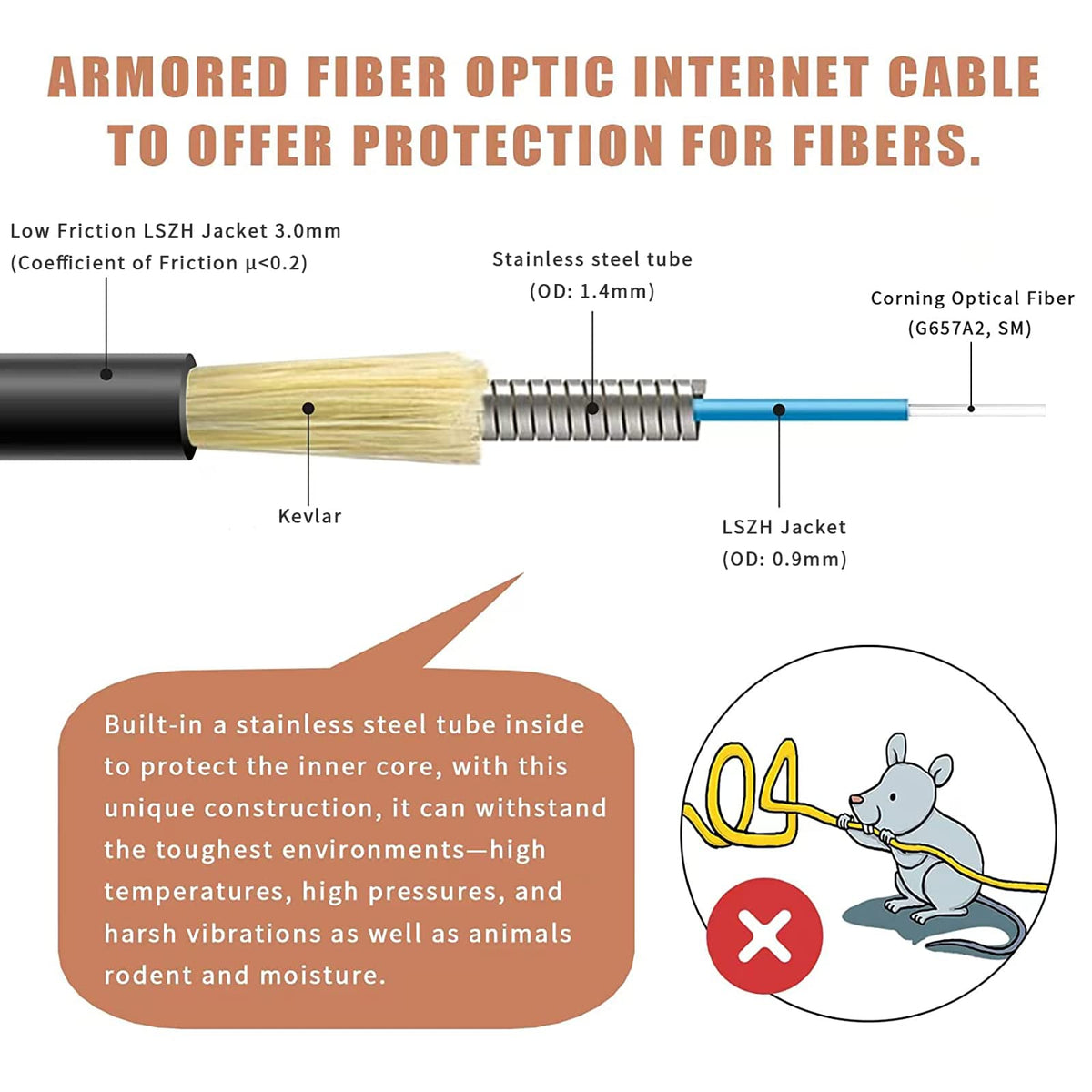

• Armored stainless steel tube inside protects the fiber core from damage and everyday wear.
• Compact 3.0 mm outer diameter supports installation in crowded conduits and tight spaces.
• OS1/OS2 compatibility covers common single-mode networks and supports 1310–1550 nm operation.

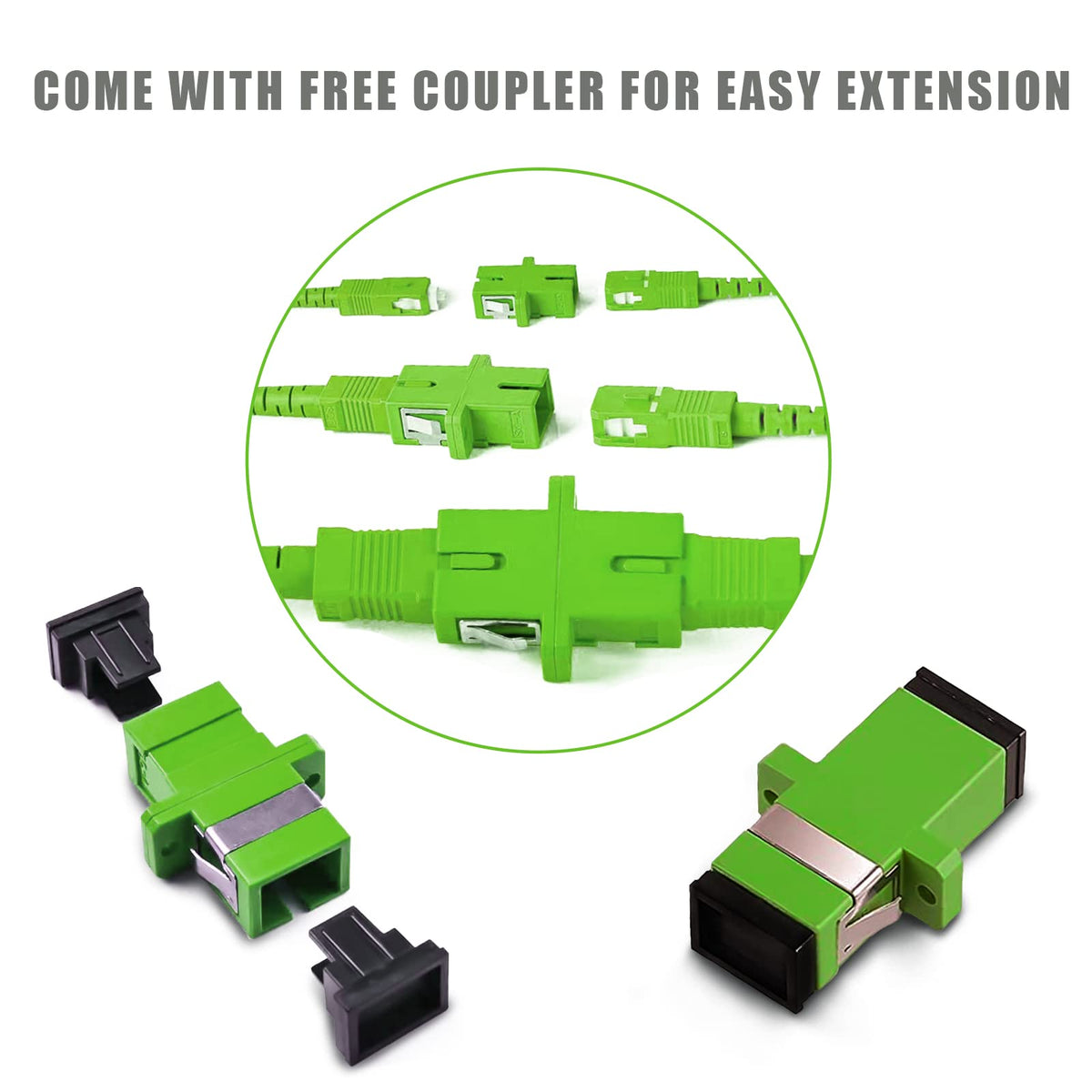

• Includes a free SC/APC adapter coupler for simple extensions and reconfigurations.
• RoHS compliant and designed to minimize electrical interference along the run.

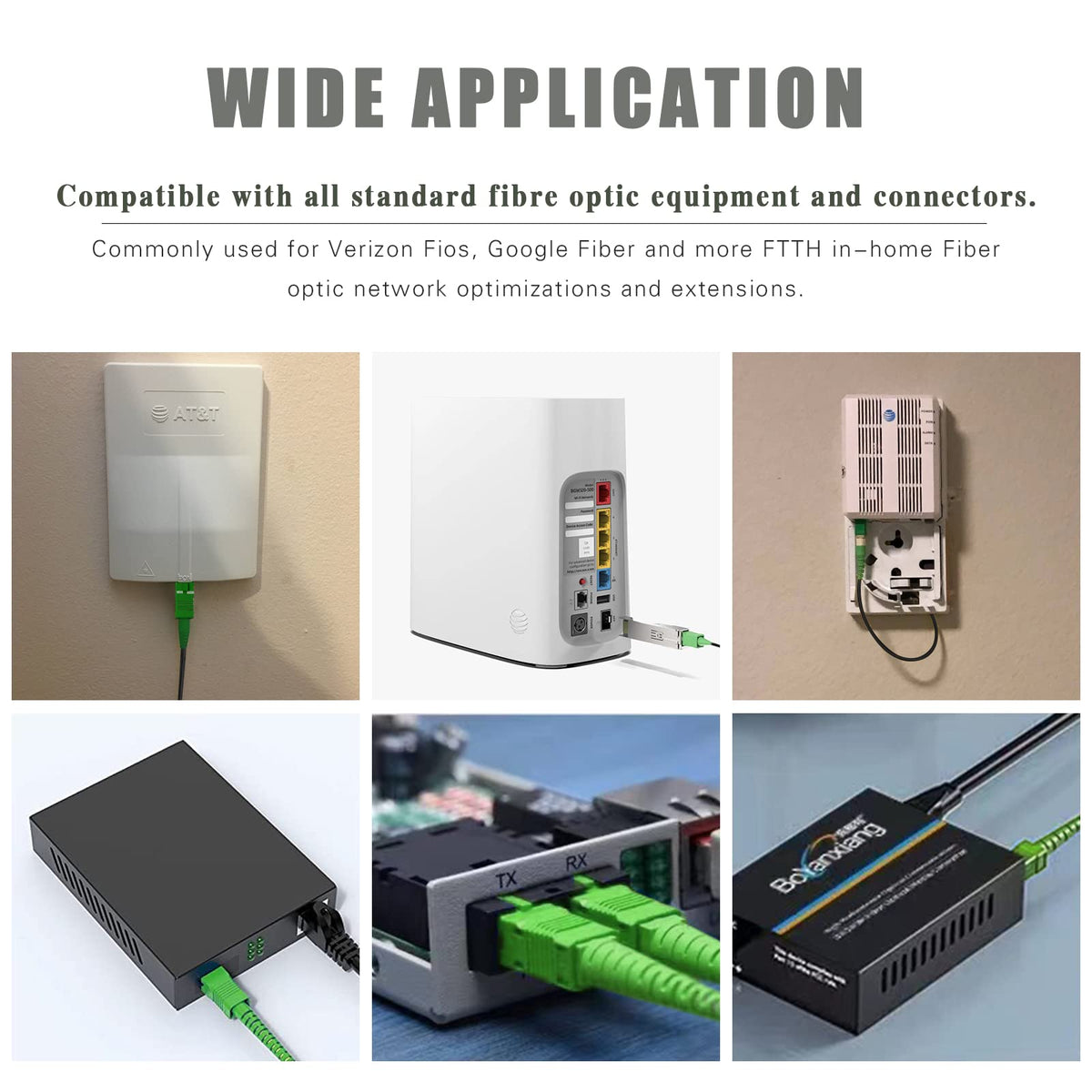

Ideal Use Scenarios

• Outdoor fiber runs from building exteriors to ONTs or network hubs, with durable protection against the elements.
• Indoor relocations or extensions of fiber within homes or small offices, especially in congested ceilings or walls.
• FTTH, FTTB, and FTTP network deployments where a reliable single-mode patch is needed for clean signal paths.
• Renovations or re-routes for existing fiber networks, including tasks like moving an ONT or reconfiguring a home network.

What’s Included & Specifications

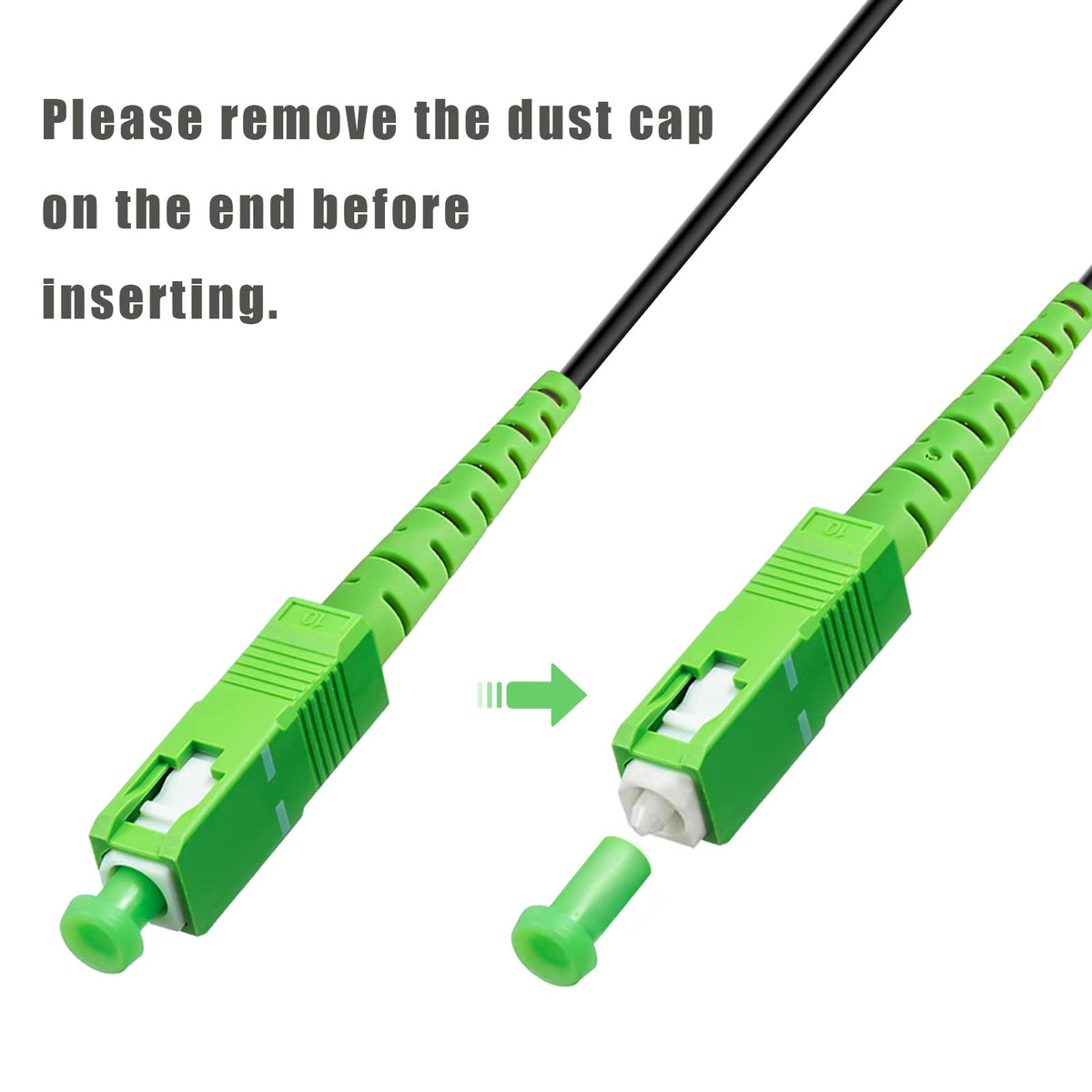

• Includes one free SC/APC fiber optic adapter coupler for easy extension.
• Length: 100 meters; Connectors: SC/APC to SC/APC; Mode: 9/125 μm simplex.
• Wavelength: 1310–1550 nm; Jacket: LSZH armored; Outer diameter: 3.0 mm.
• RoHS compliant; Compatible with OS1/OS2 single-mode networks.
