AUTO-VOX 180° Front/Backup OEM Mini Camera

The AUTO-VOX 180° OEM mini front/backup camera is a compact, screw-free vehicle camera that delivers a true-color, ultra-wide 180° view with IP69K waterproofing and 0.1 lux low-light sensitivity for cars, SUVs, trucks, RVs and campers.

This slim, OEM-style camera is designed to blend into your vehicle while expanding visibility for front, side and rear use. Built to accept multiple video formats and withstand harsh weather, it offers a practical upgrade for drivers who need a discreet, hard-wearing camera with broad compatibility and clearer nighttime performance than many standard backup cameras.

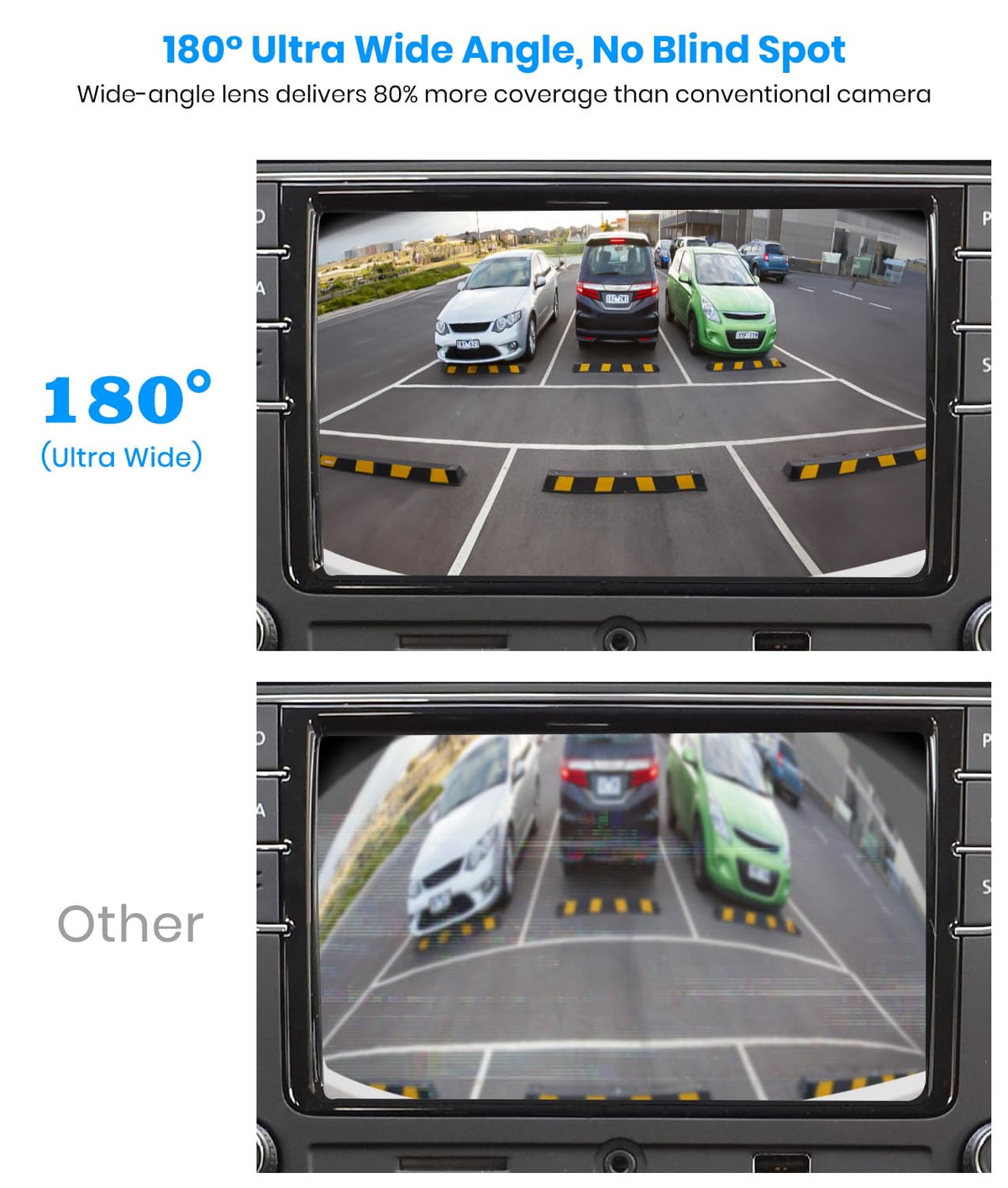

How does the 180° field of view improve parking and tight maneuvers?

The 180° ultra-wide lens captures a broad scene that significantly reduces blind zones compared with narrow-angle cameras. Rather than producing extreme fisheye distortion, this camera preserves a natural perspective so you can judge distances and obstacles more reliably when reversing or maneuvering in tight spaces.

• Ultra-wide 180° coverage to include curbs, low obstacles and adjacent lanes.
• Reduced blind spots when mounted centrally on the rear or front of the vehicle.
• Designed to minimize distortion so objects remain proportionate and easier to judge.

Will this camera work with my vehicle and monitor system?

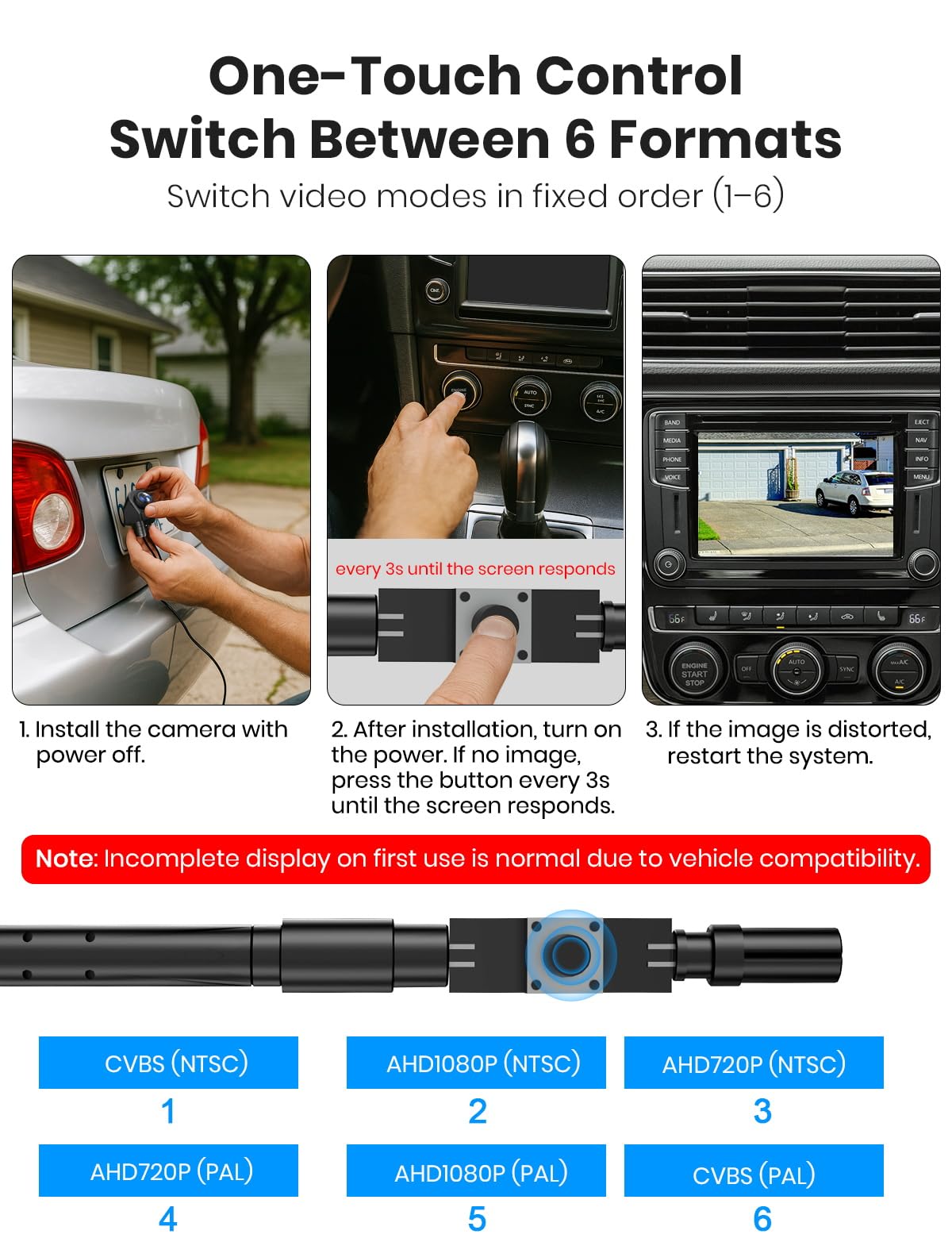

AUTO-VOX built this camera for broad compatibility across popular analog and AHD formats, making it suitable for many factory and aftermarket displays. The camera cycles through six supported video standards so it can match NTSC and PAL systems in AHD and CVBS modes; if an image doesn’t appear initially, reattempting the connection will cycle the format.

• Supported formats: CVBS (NTSC/PAL), AHD720P, AHD1080P (NTSC/PAL).
• Works with most cars, trucks, SUVs, vans, RVs and campers when connected to a compatible monitor or recorder.
• Simple wiring and compact OEM-style housing for front, rear or side installs.

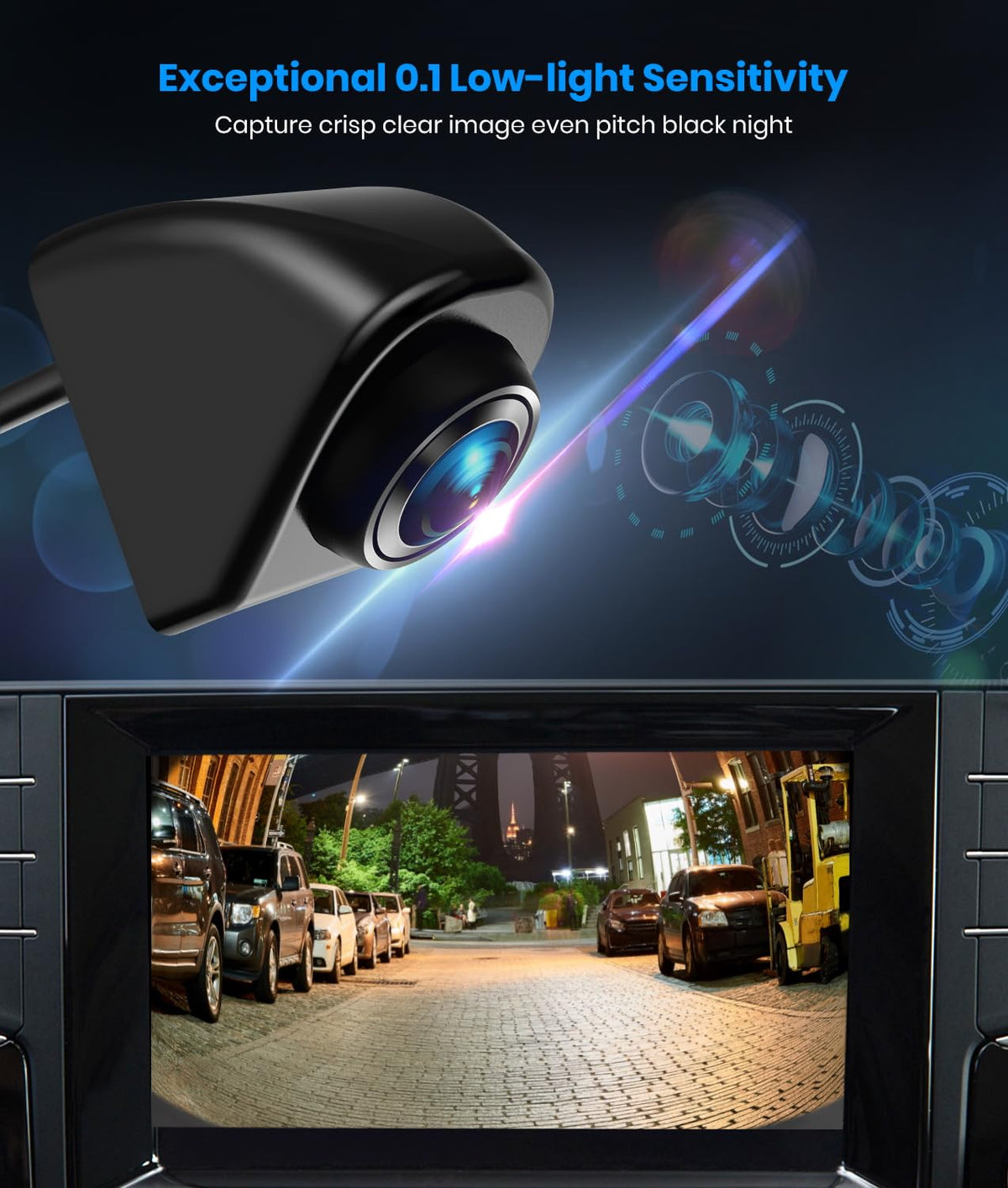

How does it perform in low light and bad weather?

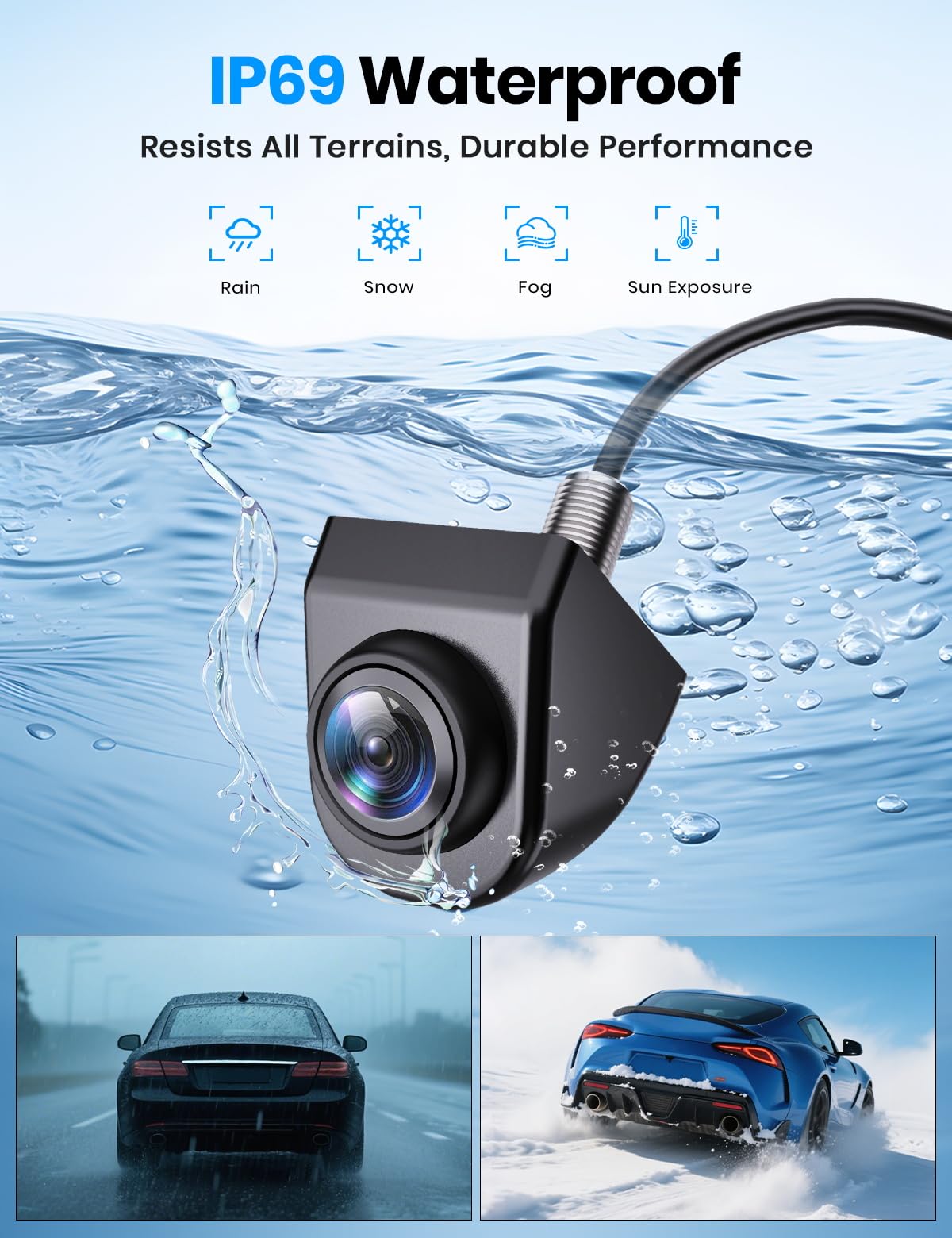

The camera’s 0.1 lux sensitivity provides clearer nighttime images than basic backup cameras, helping retain color and detail in dim conditions without heavy grain. IP69K-rated protection and a four-stage waterproofing process — including PCB coating, sealing adhesive, potting and a purpose-built housing — make it highly resistant to water, fog and mist from pressure washing or severe weather.

• 0.1 lux low-light sensitivity for improved detail and color after sunset.
• IP69K durability and multi-layer sealing to prevent moisture entry and corrosion.
• Engineered to handle road spray, rain, fog and high-pressure washdowns.

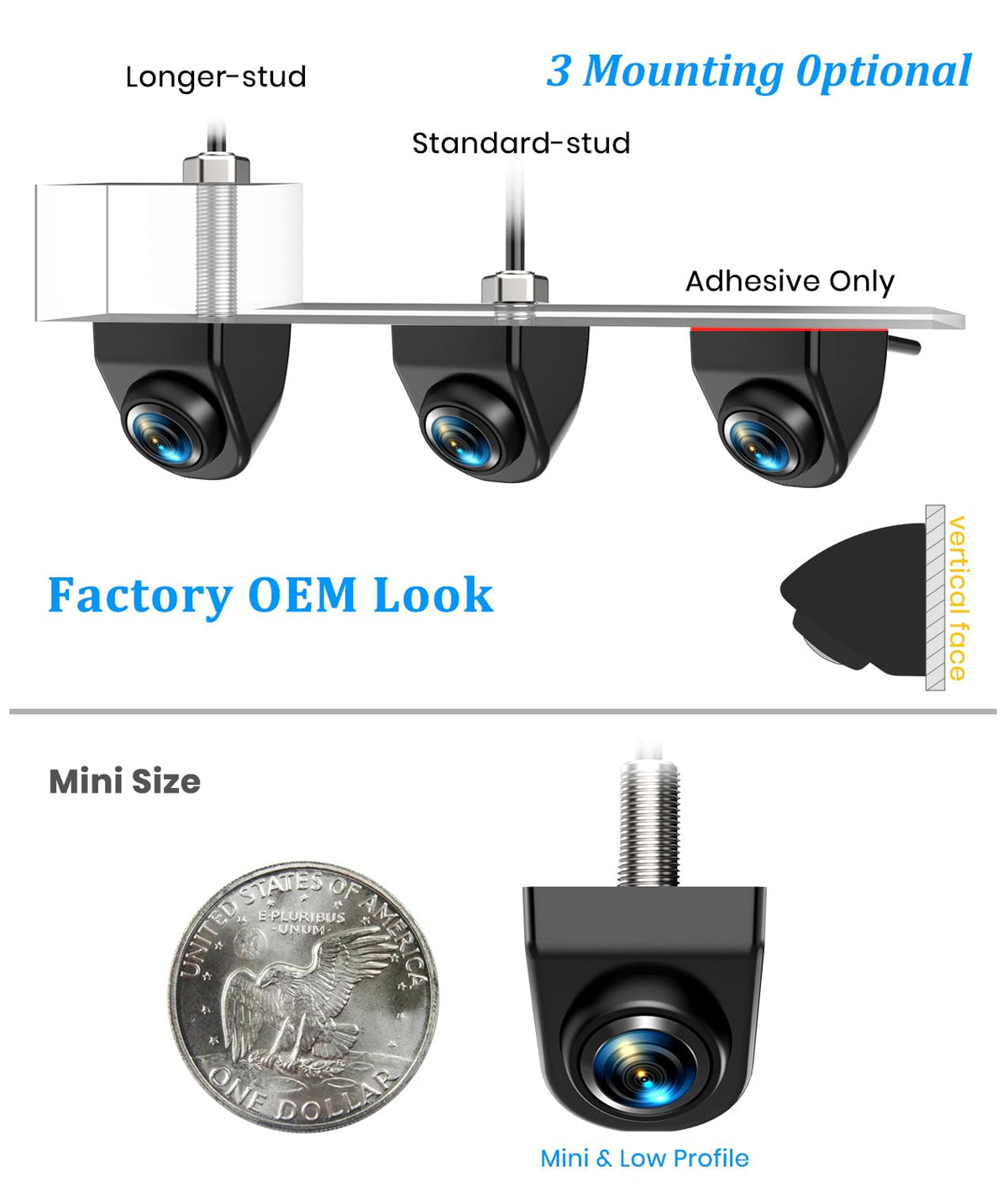

How easy is the installation and what mounting options exist?

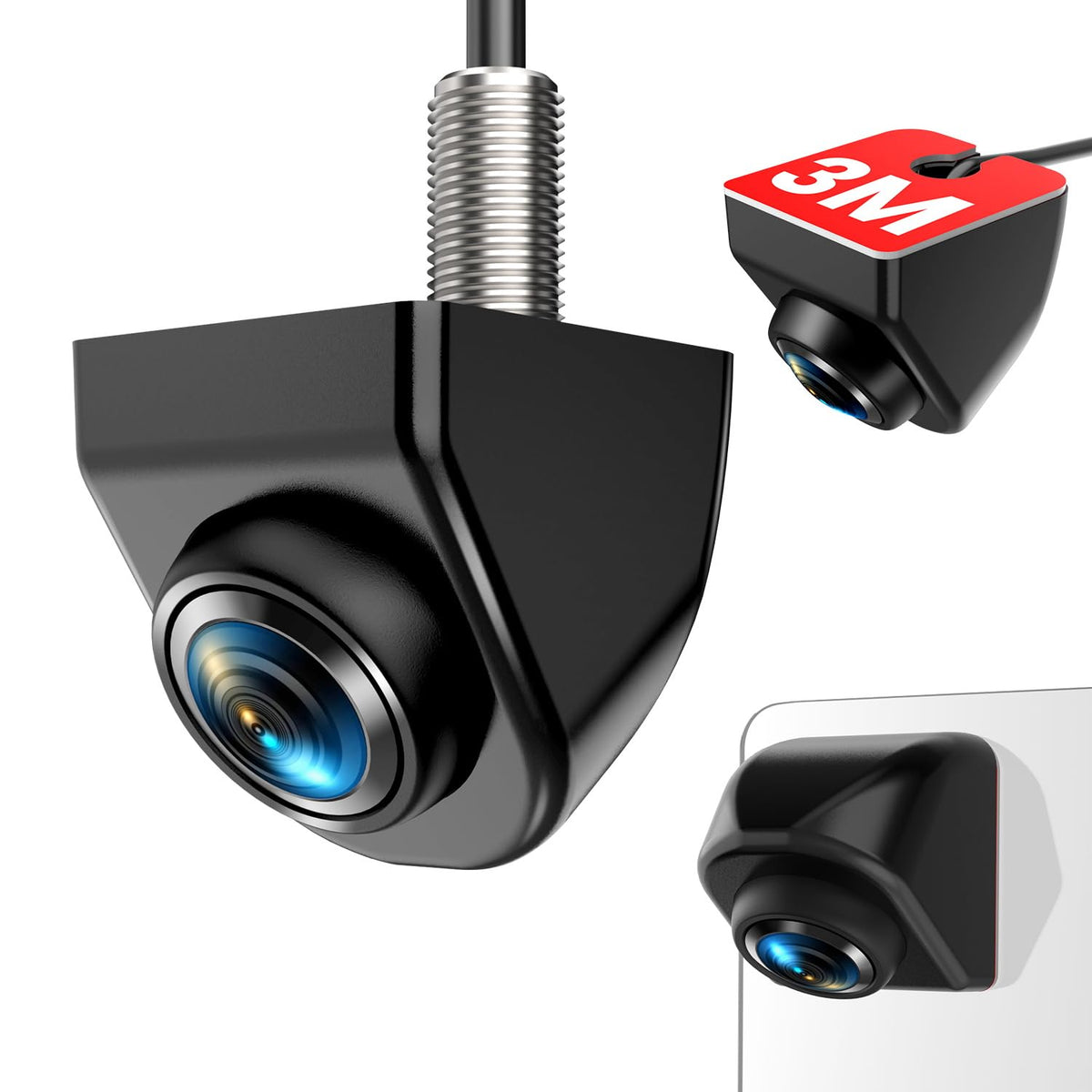

The camera uses a compact, OEM-style body intended for unobtrusive mounting without bulky brackets. Many installations are screw-free or use minimal fasteners, and the unit supports front, rear and side orientations so it can be installed where visibility is most needed without altering vehicle appearance.

• Mini OEM look fits flush with bumpers or trim for discreet placement.
• Screw-free or low-profile mounting reduces visible hardware and installation time.

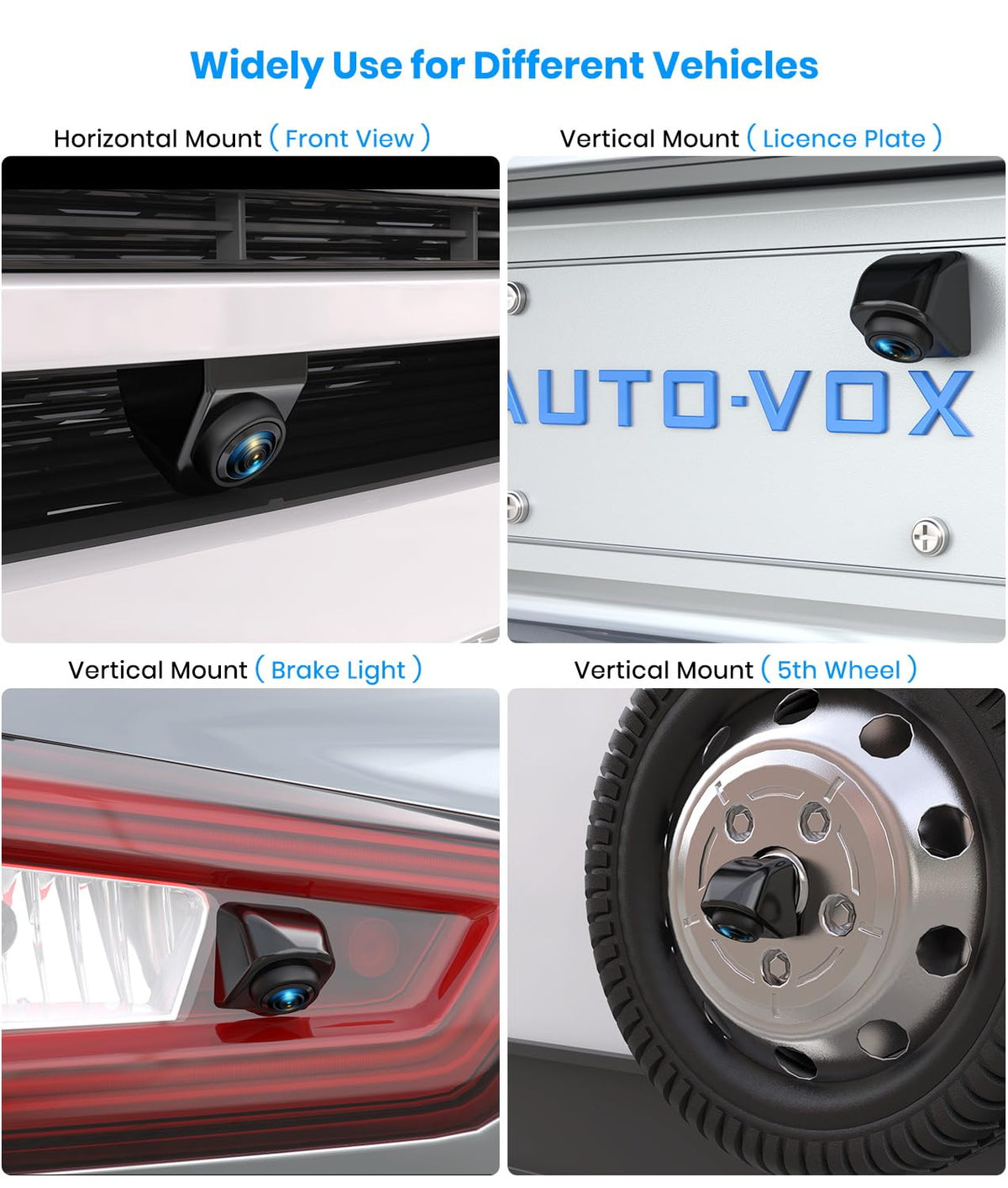

• Versatile mounting allows rear, front or side view applications depending on vehicle layout.

Who is this for: The AUTO-VOX 180° mini camera is aimed at drivers who want a low-profile, resilient camera that broadens visibility without drawing attention. It's well suited for owners of SUVs, pickup trucks, vans, RVs and campers who need wide-angle coverage, improved night performance and robust waterproofing for year-round use on work vehicles, recreational rigs and family cars.
