AURSINC ZK09-BM Ultra-Broadband LNA Amplifier 100 kHz–10 GHz, 21 dB Gain, USB/Battery

The AURSINC ZK09-BM is a compact ultra-broadband low-noise amplifier (LNA) covering 100 kHz–10 GHz that delivers up to 21 dB gain at 10 MHz and runs from USB or its internal 300 mAh battery for portable RF and SDR use.

Designed for field work and bench setups alike, this small-form LNA offers consistent, flat gain across an exceptionally wide frequency span useful for TinySA Ultra, SDR receivers and other RF test rigs. Its USB power option and built-in battery make it convenient for portable scanning, while the low-noise characteristics improve sensitivity when used correctly. The ZK09-BM replaces several legacy modules and is sized to minimize added noise and distortion in many signal environments.

How does the ZK09-BM improve weak-signal reception?

The amplifier raises input signal levels before the receiver’s front end, increasing apparent sensitivity without relying solely on the receiver’s internal gain stages. It achieves this with a low-noise design and flat frequency response so signals across HF, VHF, UHF and microwave ranges are amplified more evenly.

• Gain performance: 21 dB at 10 MHz, 17 dB at 6 GHz, 13 dB at 10 GHz.
• Typical output compression (OP1dB): ~13 dBm to preserve linearity.
• Wideband coverage: 100 kHz to 10 GHz for versatile use.
• Low added noise for clearer weak-signal pickup when environment permits.

What power options and battery life does it offer?

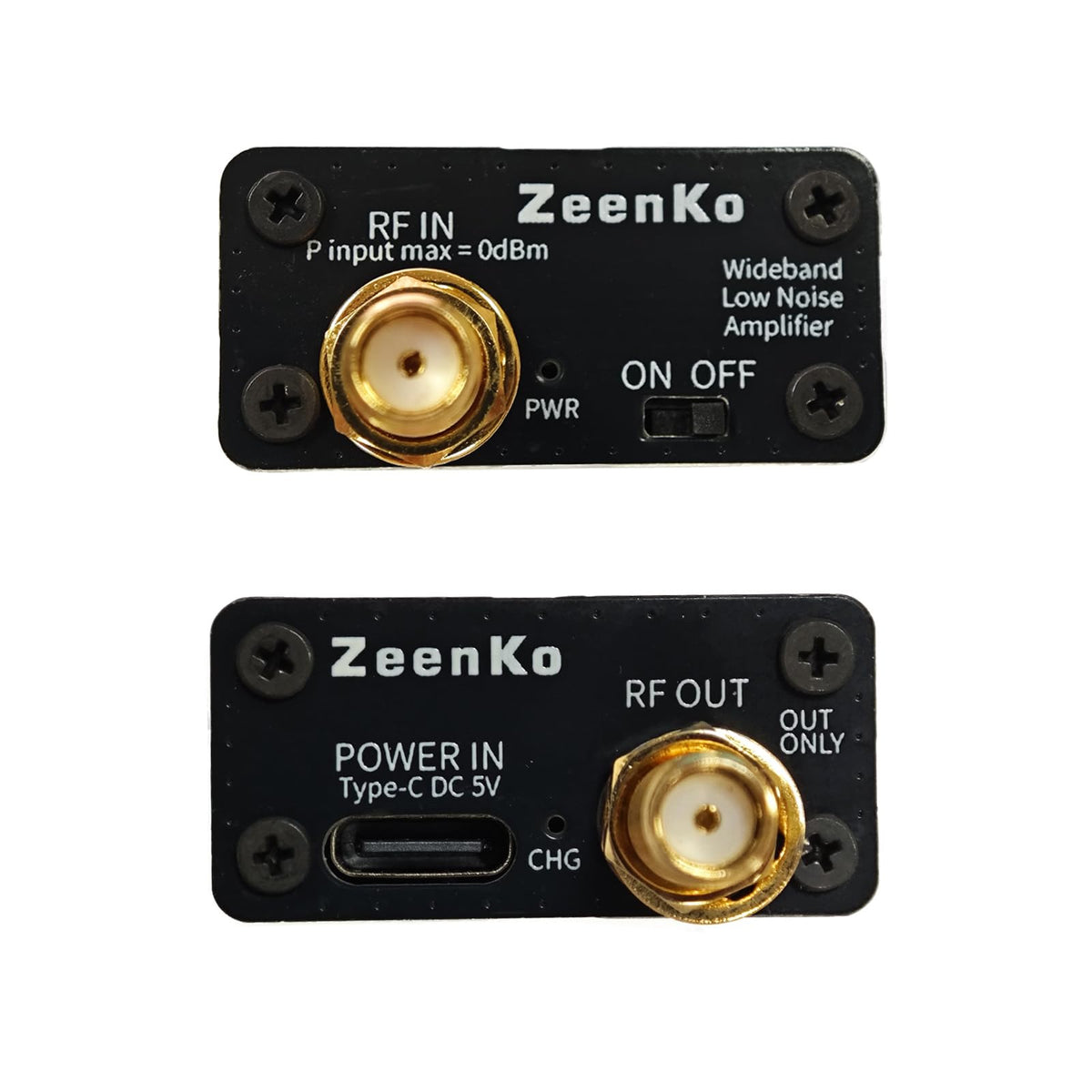

The ZK09-BM can be powered directly from a USB source or from its internal rechargeable 300 mAh battery, making it easy to use away from mains power. Charging uses approximately 210 mA, and typical total device draw is around 260 mA; the battery provides several hours of operation under normal conditions.

• USB interface for convenient powering and charging.
• Built-in 300 mAh battery for portable deployments with roughly up to five hours typical runtime.
• Low overall power consumption to extend field use between charges.
• Compact footprint for mounting near antennas or portable receivers.

Will the ZK09-BM work with my TinySA Ultra or SDR setup?

Yes—this module is recommended as a preamplifier for TinySA Ultra and many SDR front ends, but you should avoid stacking multiple preamplifiers simultaneously unless explicitly required. In high-noise or crowded RF environments, a preamplifier can overload the receiver or cause AGC to reduce sensitivity, so placement and use should match the signal environment.

• Recommended as a TinySA Ultra 5.8 GHz preamp when appropriate.
• Avoid using internal LNA and an external LNA at the same time unless configured properly.
• Not ideal for very noisy environments where amplified interference may dominate.
• Suitable for general RF testing, hobby SDR, and spectrum analysis across wide bands.

What physical and performance details should I expect?

The ZK09-BM is a compact module supplied with a USB cable; it replaces modules such as ADM-8095 and ADM-8625 in many applications. Its measured gain flatness and typical OP1dB value aim to strike a balance between sensitivity and linearity for practical measurement work.

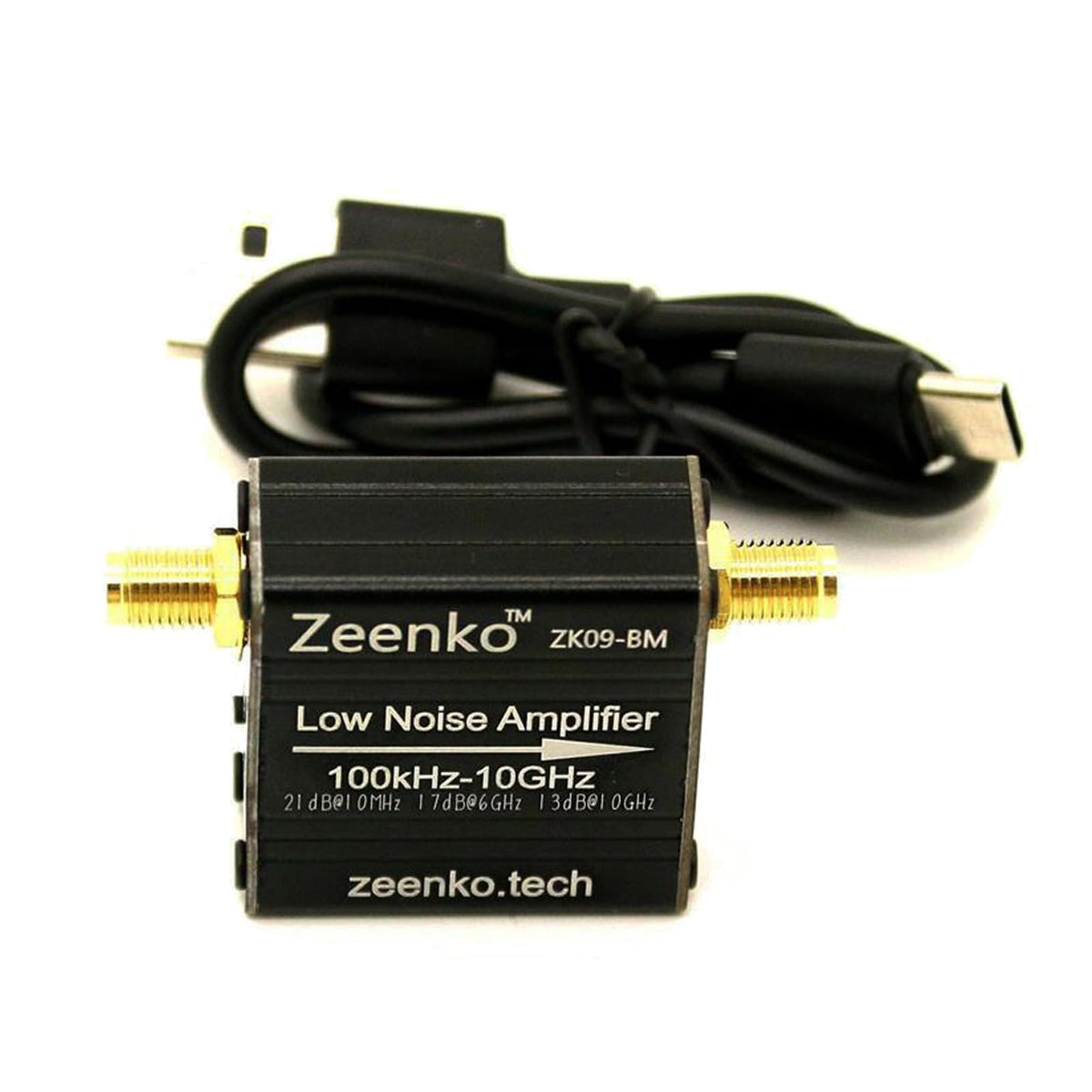

• Package includes: 1x ZK09-BM LNA module and 1x USB cable.
• Flatness optimized across 100 kHz–10 GHz for consistent response.
• Small size and reduced noise footprint for convenient integration.
• Typical OP1dB ~13 dBm for reasonable headroom before compression.

Who is this product for? The AURSINC ZK09-BM suits radio hobbyists, field technicians, and SDR users who need a portable, wideband preamplifier to boost weak signals across HF through microwave bands. It’s targeted at users requiring a compact, USB-friendly LNA for spectrum scanning and portable setups, but it is not intended as a cure-all in heavily polluted RF environments. If you need a small, battery-capable LNA with broad coverage and consistent gain for TinySA Ultra or similar SDR applications, the ZK09-BM is a practical choice.
