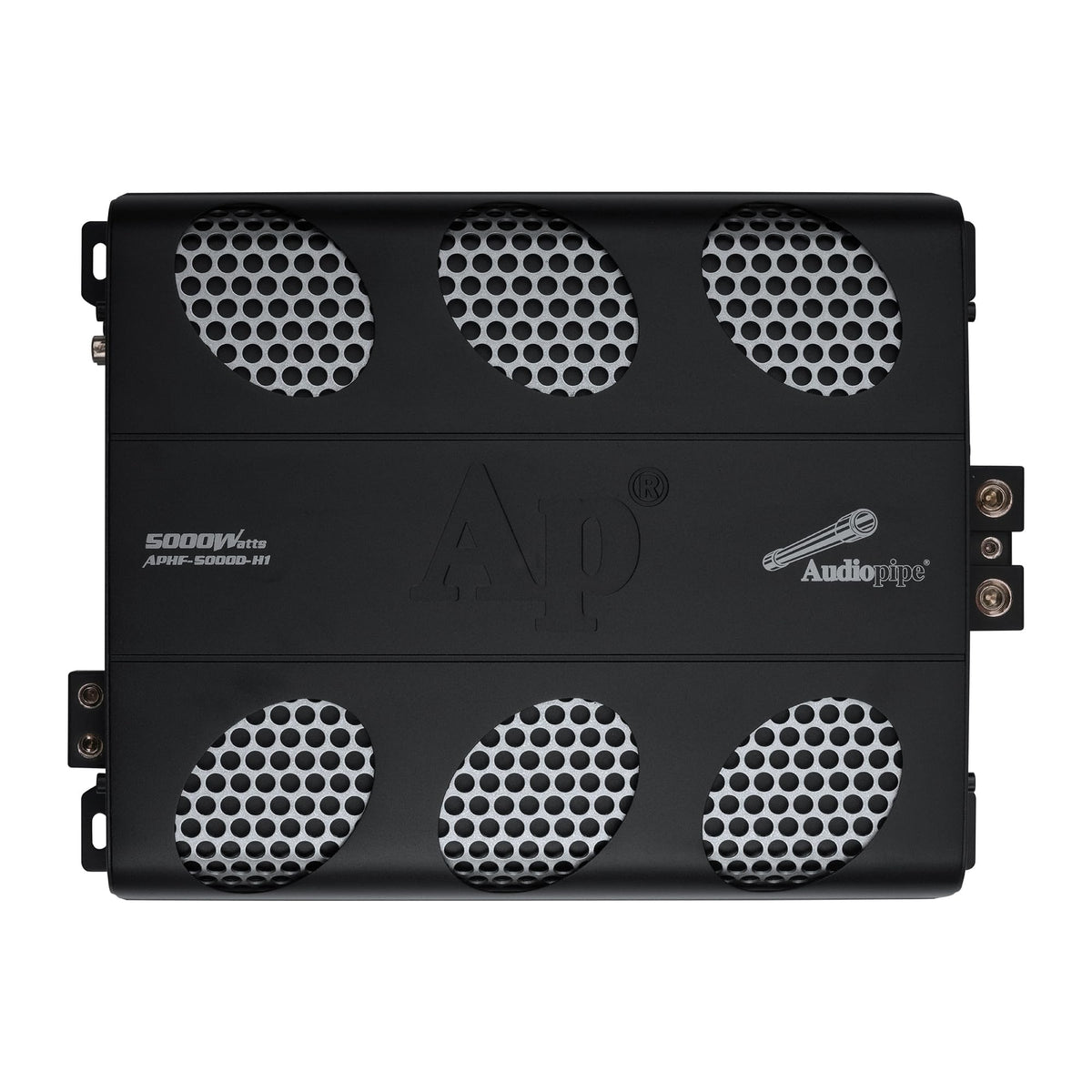

Audiopipe APHF-5000D-H1 5000W Full Range Class D MOSFET Amplifier – 1 Ohm, 4-Point Protection

Powerful, efficient car audio amplification

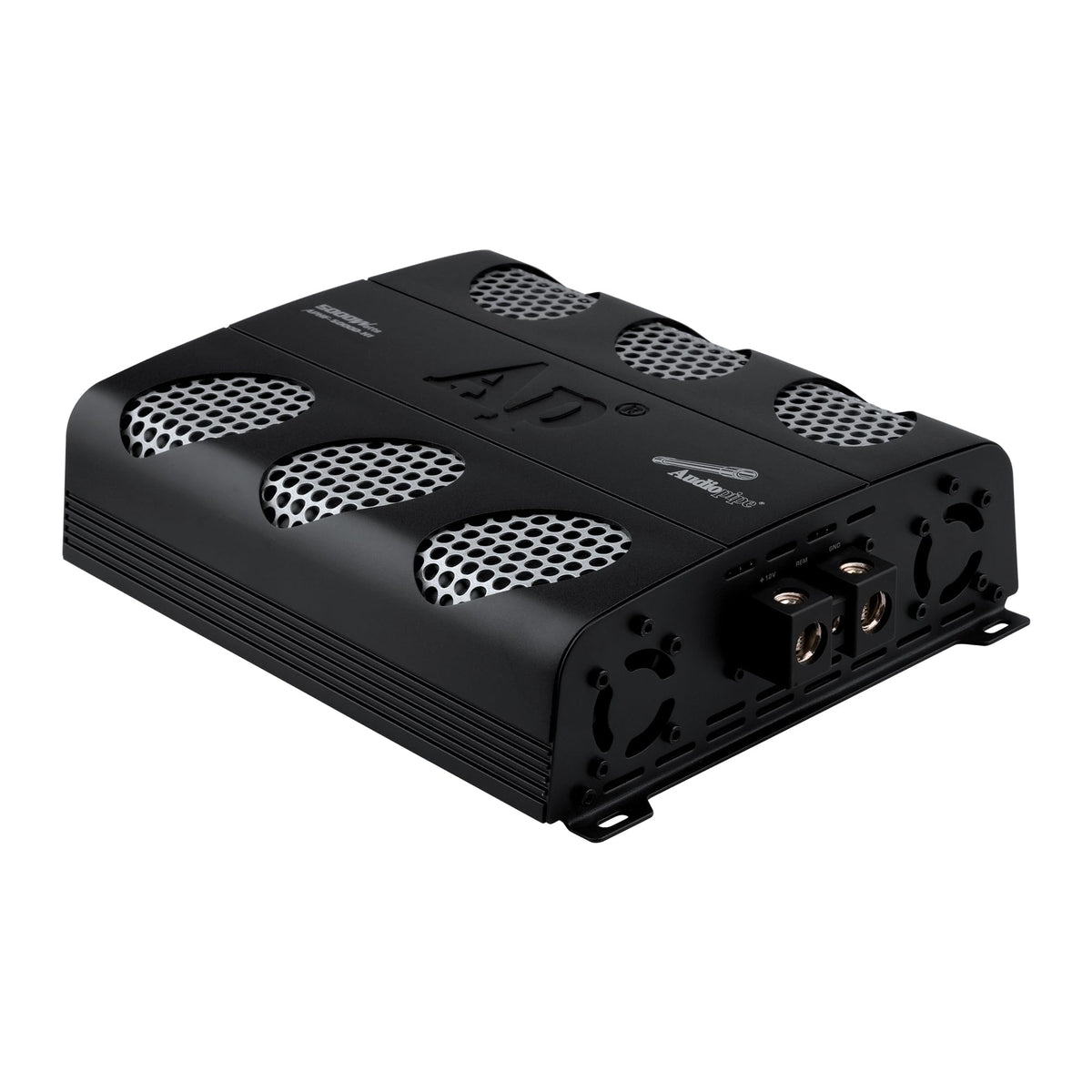

The Audiopipe APHF-5000D-H1 is a high-output, full-range Class D MOSFET amplifier designed to bring authentic, impactful sound to your vehicle. Built around efficient PWM technology, this unit aims to deliver clearer, louder audio to compatible speakers while maintaining a compact footprint thanks to a thoughtfully designed heatsink. It’s a practical choice for drivers who want strong performance without adding bulk to the install.

Power and design you can rely on

Designed as a mono amplifier with BTL (bridge-tied load) capability, it can push substantial power while preserving signal integrity. The result is a controlled, punchy bass and clean mids that stay articulate even at higher listening levels. If you’re upgrading a subwoofer setup or a demanding full-range system, this amp is meant to offer ample headroom with a relatively compact chassis.

• RMS power at 4 ohms: 1600W, at 2 ohms: 3200W, and at 1 ohm: 5000W (all <1% distortion at 14.4V).

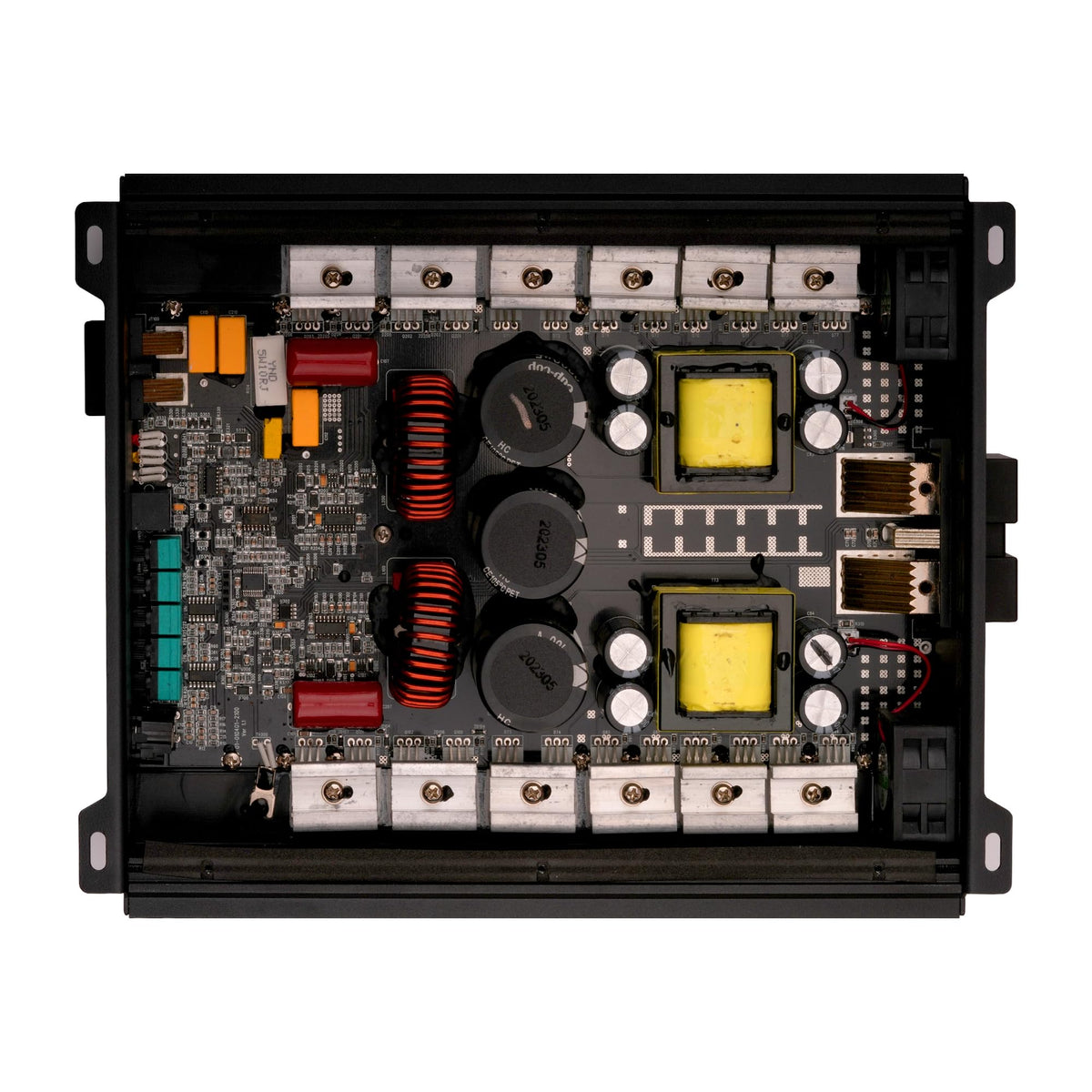

• Class D efficiency with dual internal amplifiers in BTL mode for higher output in a smaller footprint.
• Broad frequency range (10 Hz – 20 kHz) with a solid signal-to-noise ratio (≥85 dB) for clear audio reproduction.

Protection, control, and easy setup

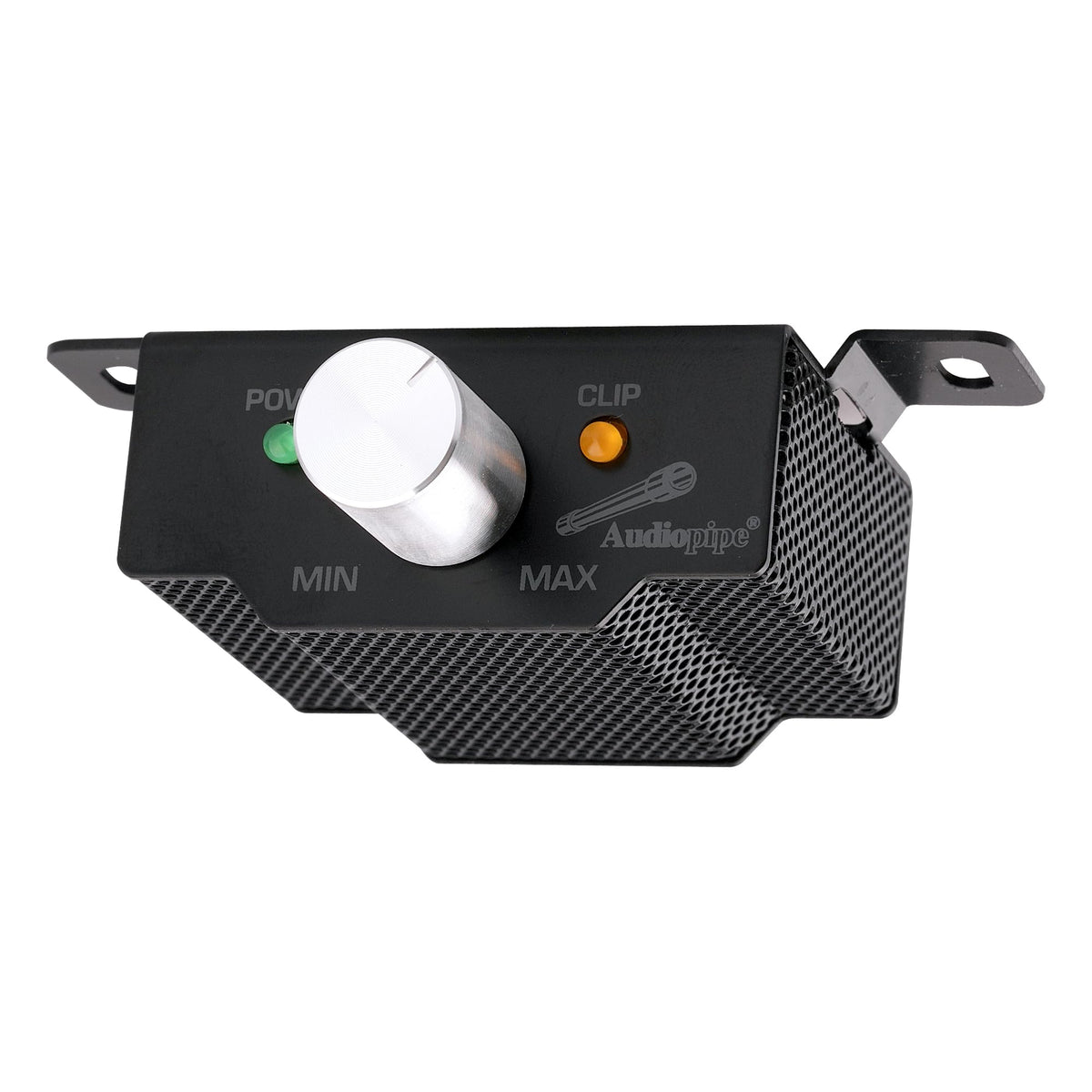

To support reliable daily use, the APHF-5000D-H1 includes a four-point protection system and a housing heatsink designed to help prevent thermal throttling during extended playback. In addition to overload and thermal protection, it guards against over- and under-voltage scenarios, helping protect both the amplifier and your speakers. A remote bass control knob, plus intuitive LEDs for clip and power status, makes it easier to dial in bass levels from the cockpit or cabin without reaching for the gain controls on the amp itself.

• Overload, overheat, over-voltage, and under-voltage protections for safer operation.
• Remote subwoofer volume control and LED indicators for quick on-the-fly tweaks and status checks.
• Solid heatsink and venting to maintain stable performance during longer sessions.

Real-world usage and installation notes

Whether you’re building a high-energy street setup or seeking a punchier soundstage in your daily drive, this amplifier can deliver the power needed to drive capable woofers and full-range drivers. Expect tight, impactful bass that remains controlled at higher volumes, with mids and highs staying clear as you raise the level. Installers and enthusiasts may appreciate the balance between high output and a relatively compact form factor, which helps fit into tight trunks or under-seat compartments. While performance depends on the rest of your system and vehicle acoustics, the APHF-5000D-H1 is positioned as a strong option for those seeking to expand their car audio with genuine power and reliable protection—without committing to a much larger, more complex solution.

Specifications at a glance

• Frequency response: 10 Hz – 20 kHz
• SNR: ≥85 dB
• Input sensitivity: 0.25 – 4 V
• Dimensions: 10.2" x 9" x 2.9" (L x W x H)
• Protection: overload, overheat, over/under voltage
