ATNEDCVH Stereo Audio Preamplifier 20dB Gain XLR RCA 3.5mm

The AtNeDcVh AH-P01X is a compact stereo preamplifier that raises weak line and phono signals by 20dB and routes XLR, RCA and 3.5mm sources to balanced or unbalanced outputs.

If you need a small, portable box to boost low-level audio sources — turntables, microphones, portable players or sound cards — into stable line-level outputs for mixers, active speakers or headphone systems, the AH-P01X handles that job. It offers XLR, RCA and 3.5mm inputs and matching outputs, a gain stage based on dual NE5532 op amps, and a front-panel volume knob for quick level tweaks. The unit runs from 5V DC (12V adapter included for greater stability) and measures 128 × 61 × 48 mm, making it suitable for desktop rigs, small studios and mobile setups.

How does the AH-P01X improve weak audio signals?

The preamp applies a fixed maximum gain of 20dB (about 10x) to low-level sources so downstream devices receive a stable line-level signal. Its dual NE5532 op amps and noise-reducing circuitry help preserve clarity while minimizing background noise.

• 20dB amplification for phono, mic and line-level sources

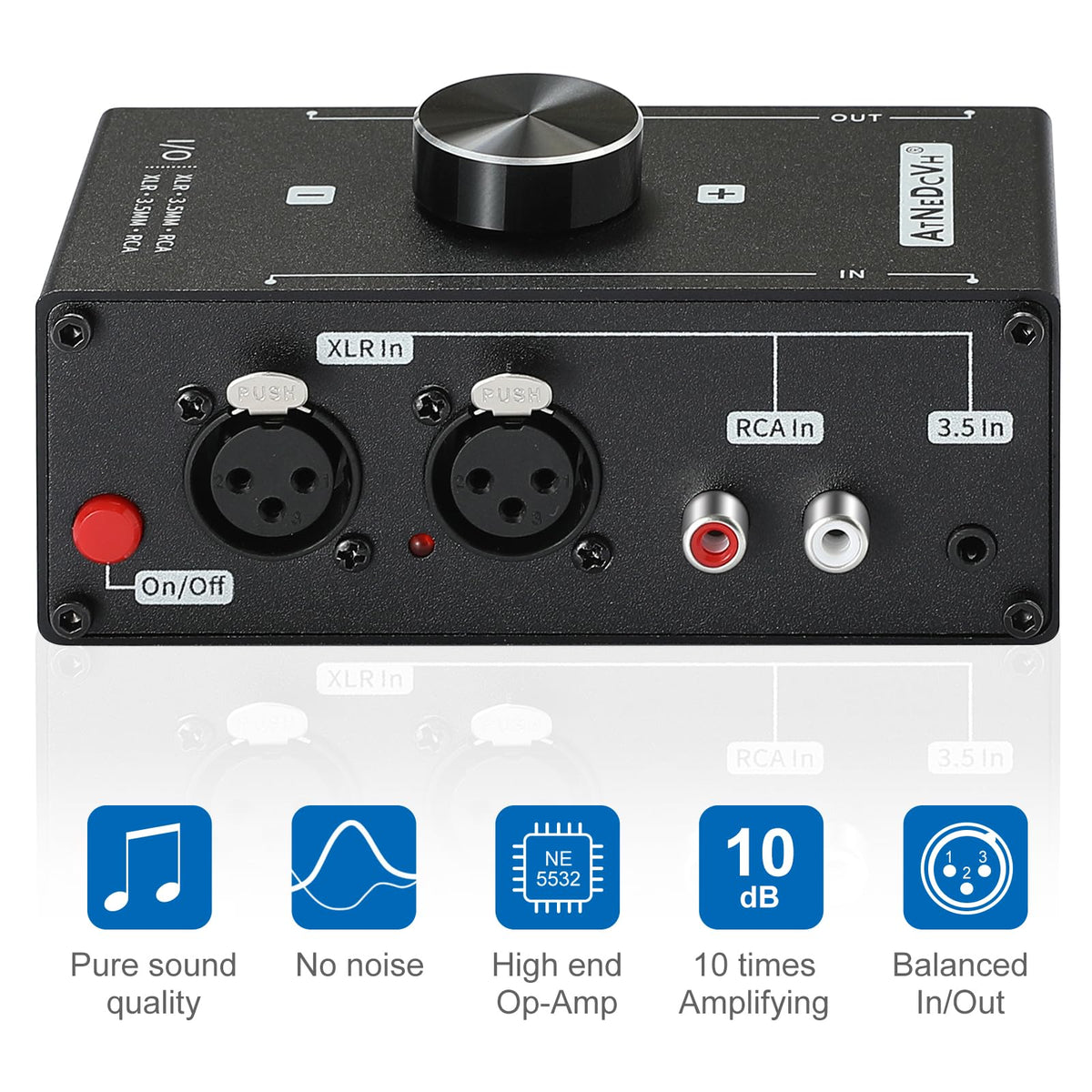

• NE5532 op amp topology for low distortion and stable gain
• High-frequency electrolytic capacitors and noise reduction design

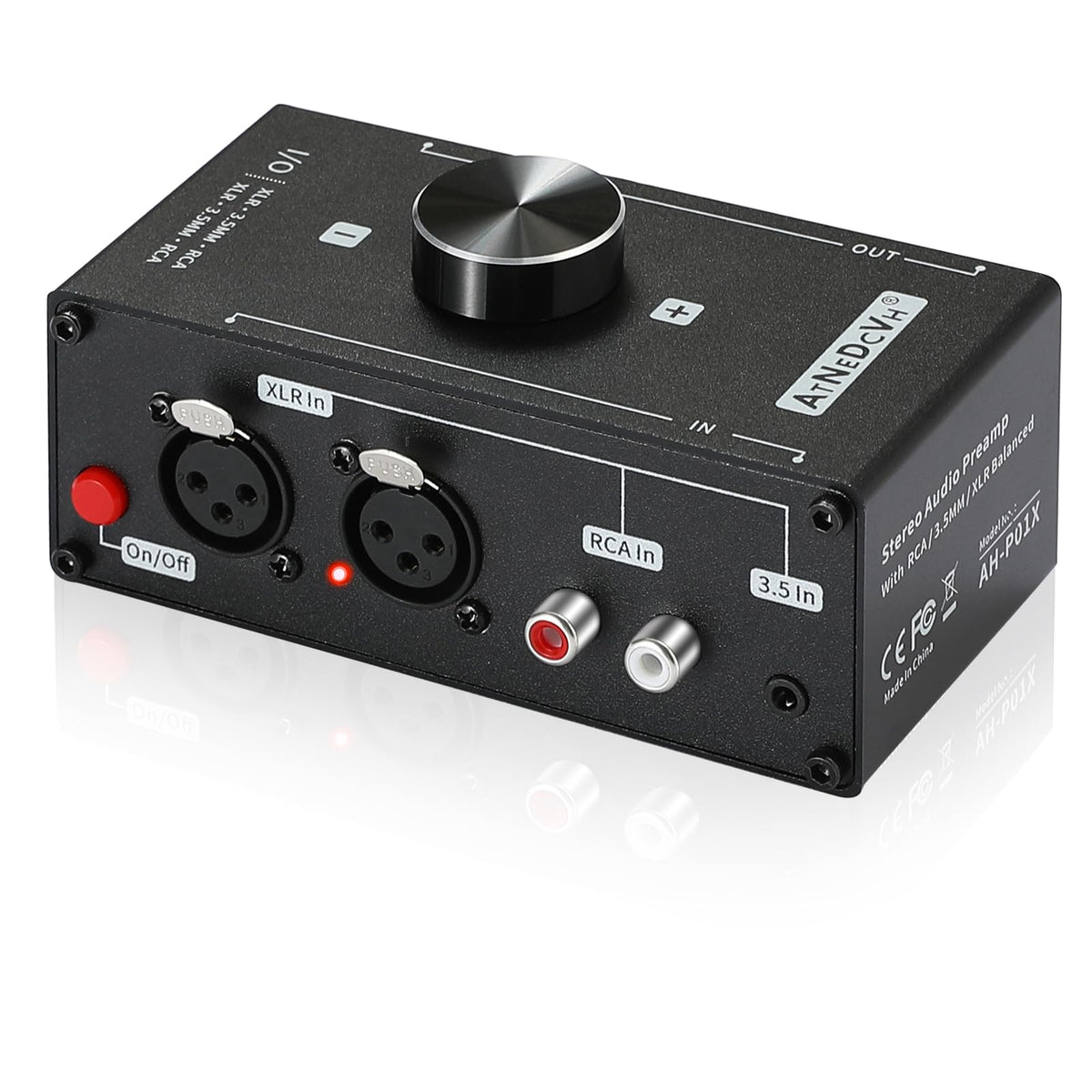

• Front volume knob to fine-tune output before feeding other gear

Which inputs and outputs will I be able to connect?

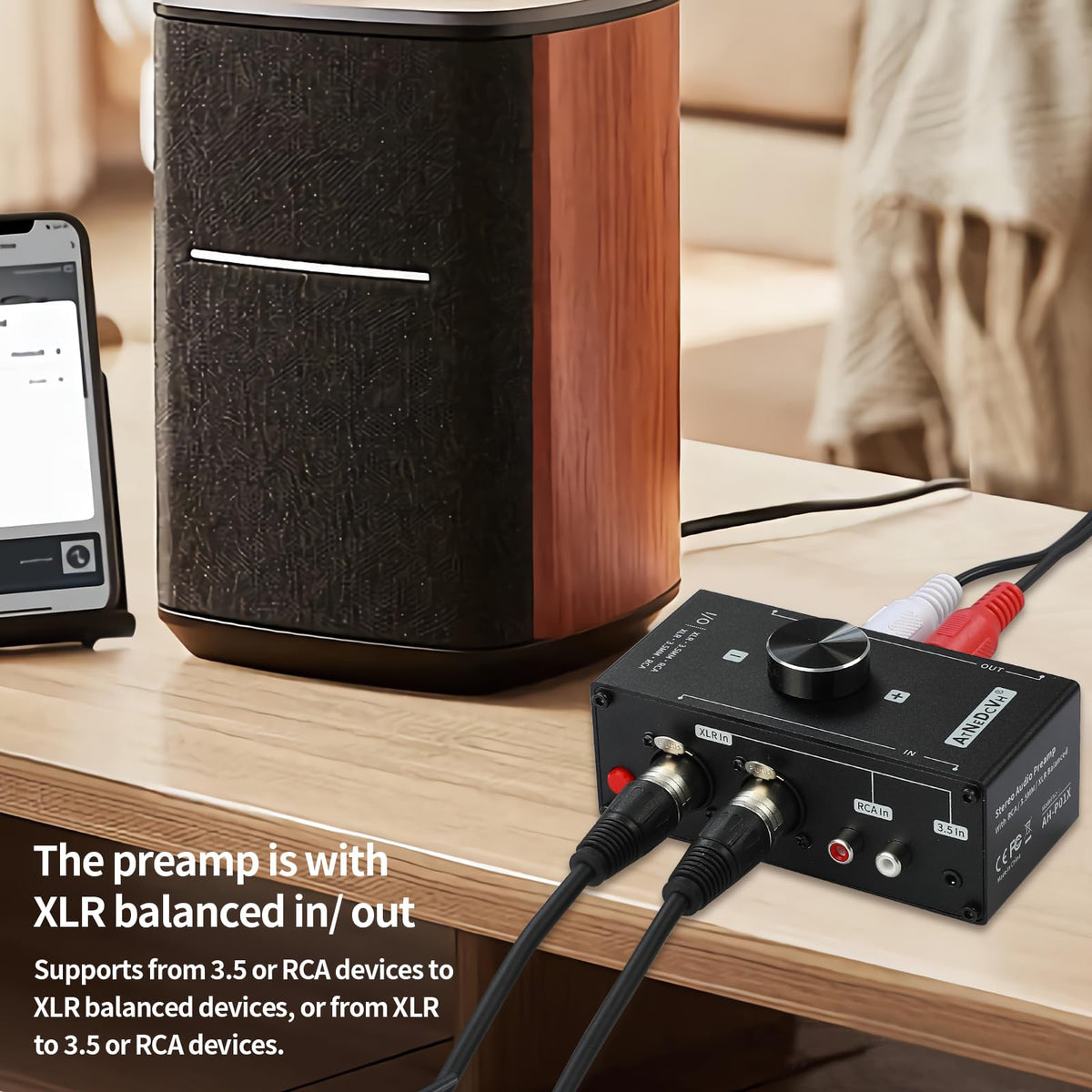

The AH-P01X accepts XLR balanced, RCA left/right and 3.5mm stereo inputs and provides the same three output types, so you can bridge between pro and consumer equipment without adapters. It’s designed for versatility across media players, instruments and playback devices.

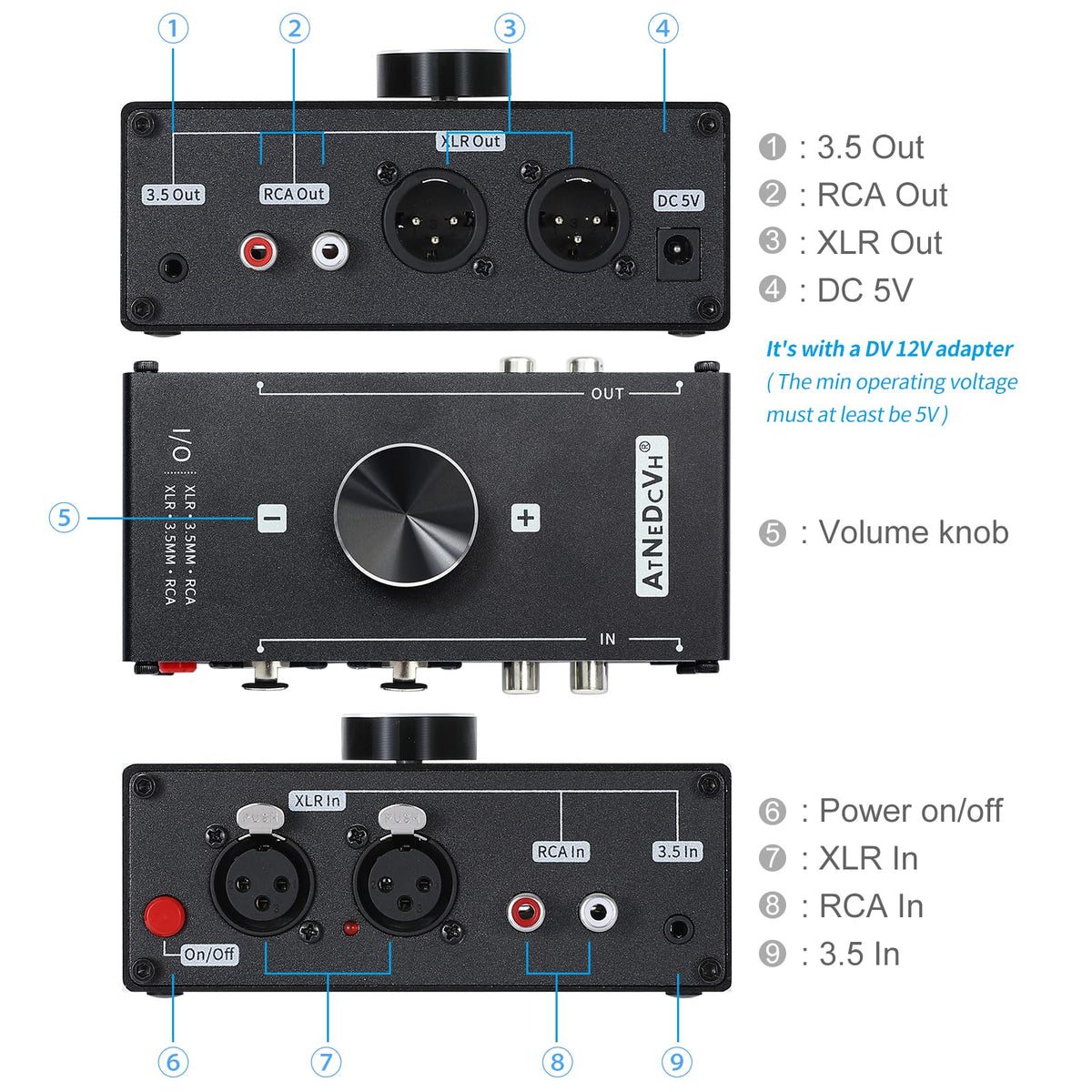

• Inputs: XLR balanced, RCA L/R, 3.5mm stereo

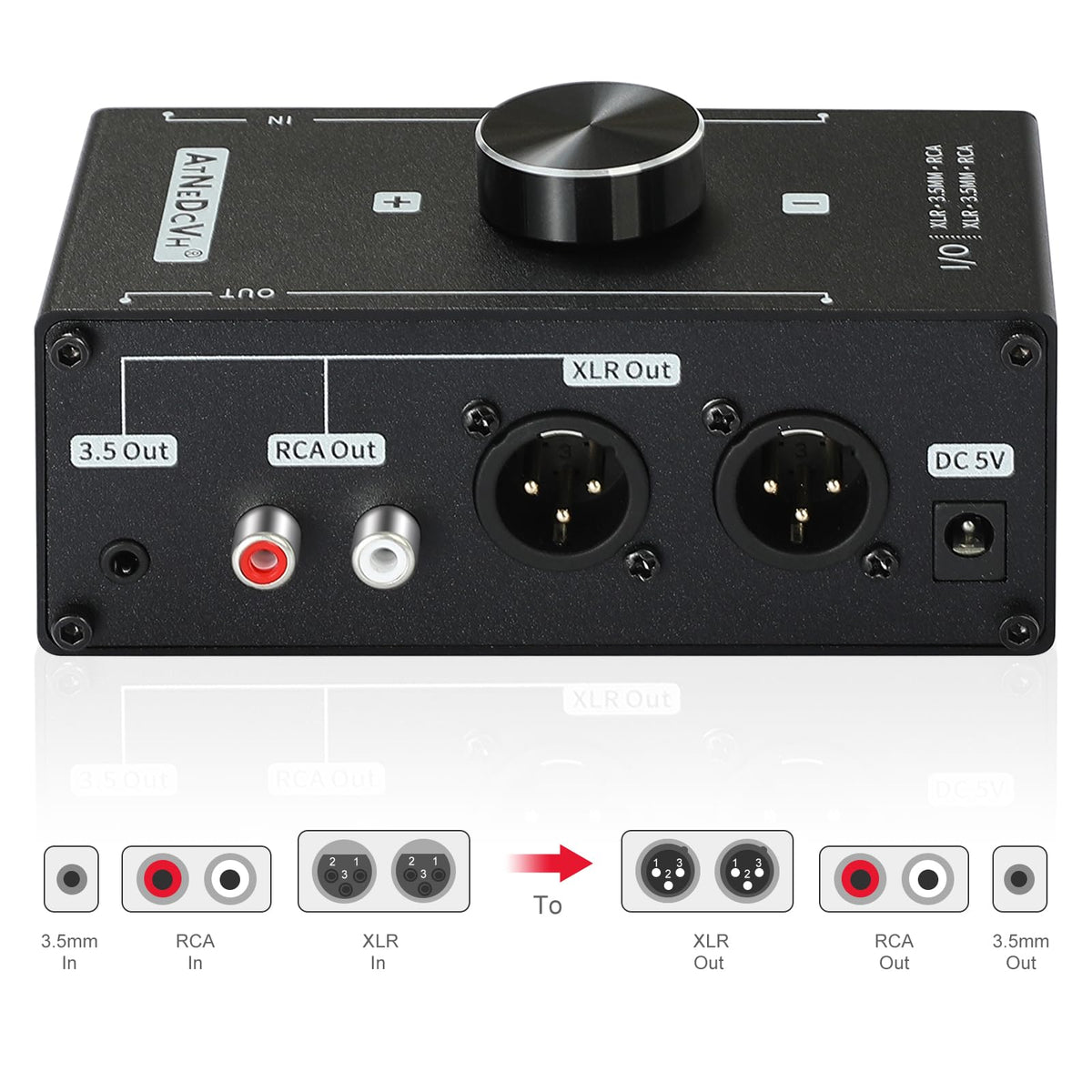

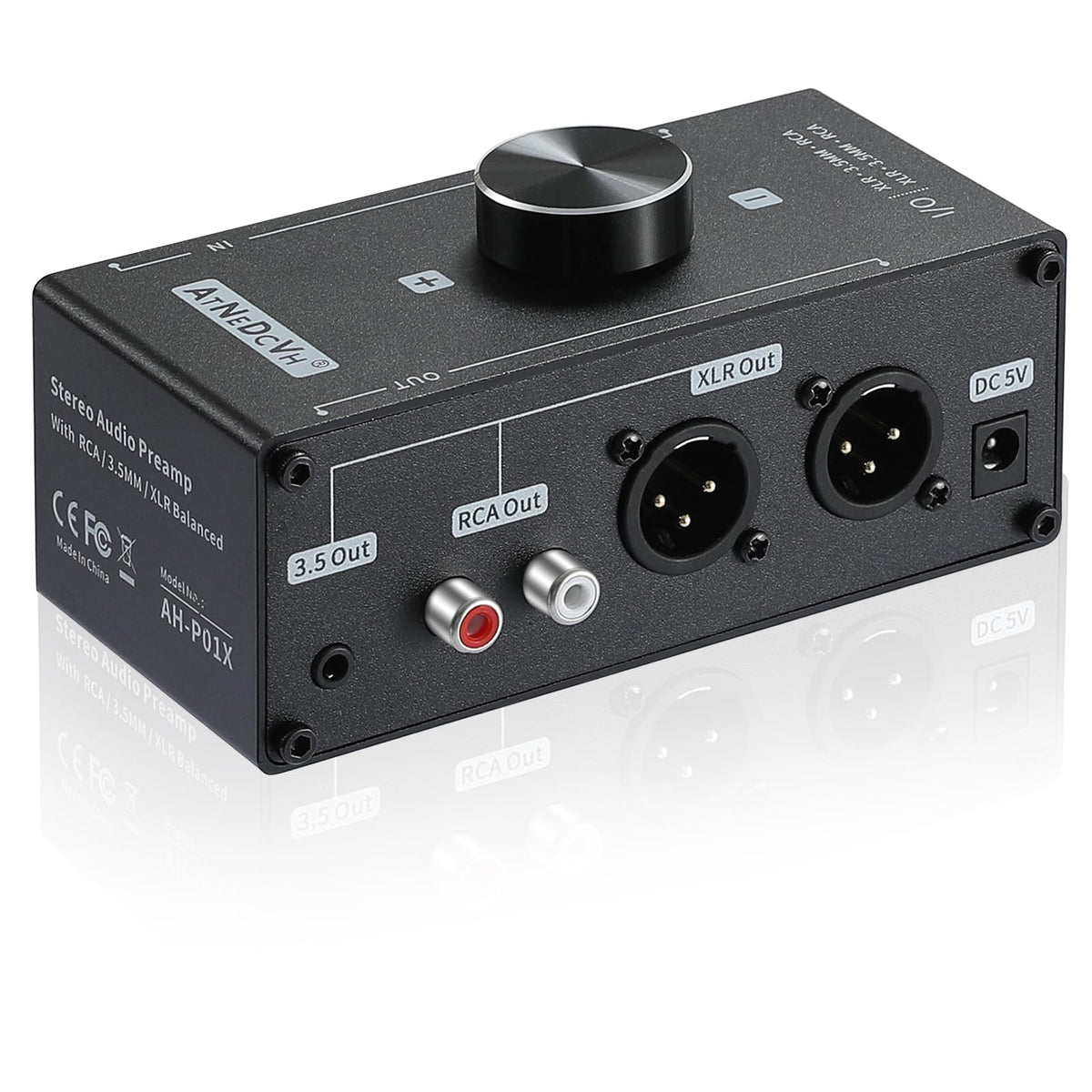

• Outputs: XLR balanced, RCA L/R, 3.5mm stereo

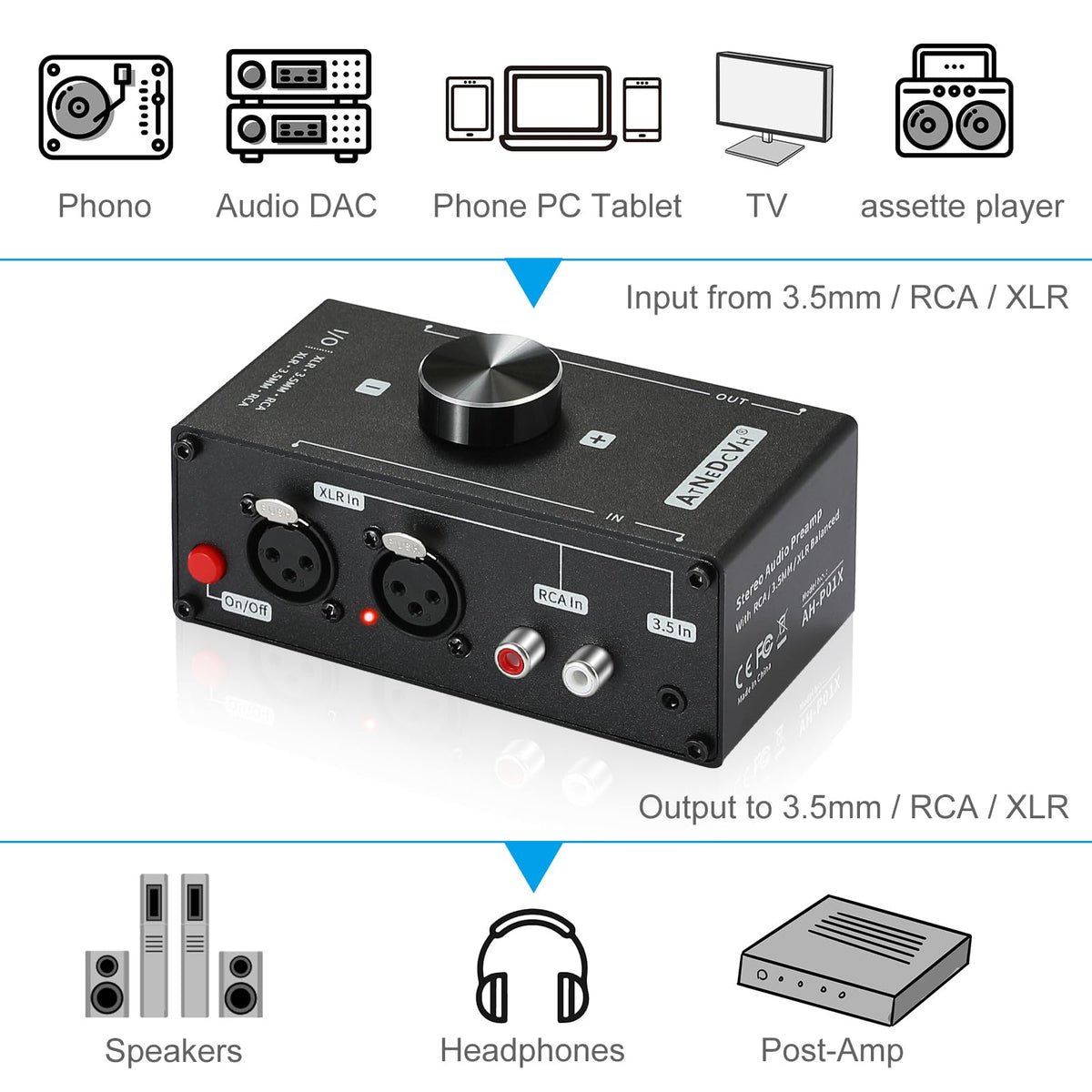

• Connects phones, tablets, turntables, mixers, sound cards and more
• Use balanced output to reduce noise over long cable runs

Will this unit power passive speakers or replace a power amplifier?

No — the AH-P01X is strictly a preamplifier and does not contain a speaker power stage. It boosts and conditions signals so an external power amplifier or active speaker can drive loudspeakers.

• Not a power amp — won’t drive passive speakers directly
• Pair with active speakers, powered monitors or an external amp
• Ideal for feeding mixers, AV receivers, headphone amps or subwoofers

What’s included and what power does it need?

The package contains the AH-P01X preamp, a DC 12V adapter and a product guide. While the unit operates at a minimum of 5V, the supplied 12V adapter is recommended for better stability and consistent performance.

• Includes AH-P01X preamplifier, 12V DC adapter, product guide
• Minimum operating voltage: 5V — 12V recommended for stability
• Compact footprint: 128 × 61 × 48 mm for desktop or rack-side use

Who is this for? The AtNeDcVh AH-P01X is built for home studio owners, hobbyist audiophiles and content creators who need a reliable, small-footprint preamp to elevate weak signals into clean, usable line-level outputs. It’s a practical choice when you want balanced connectivity, simple volume control and a low-noise gain stage without adding complexity or taking up much desk space.
