ASA Electronics Voyager VCMS12RGP Right-Side CMOS Camera

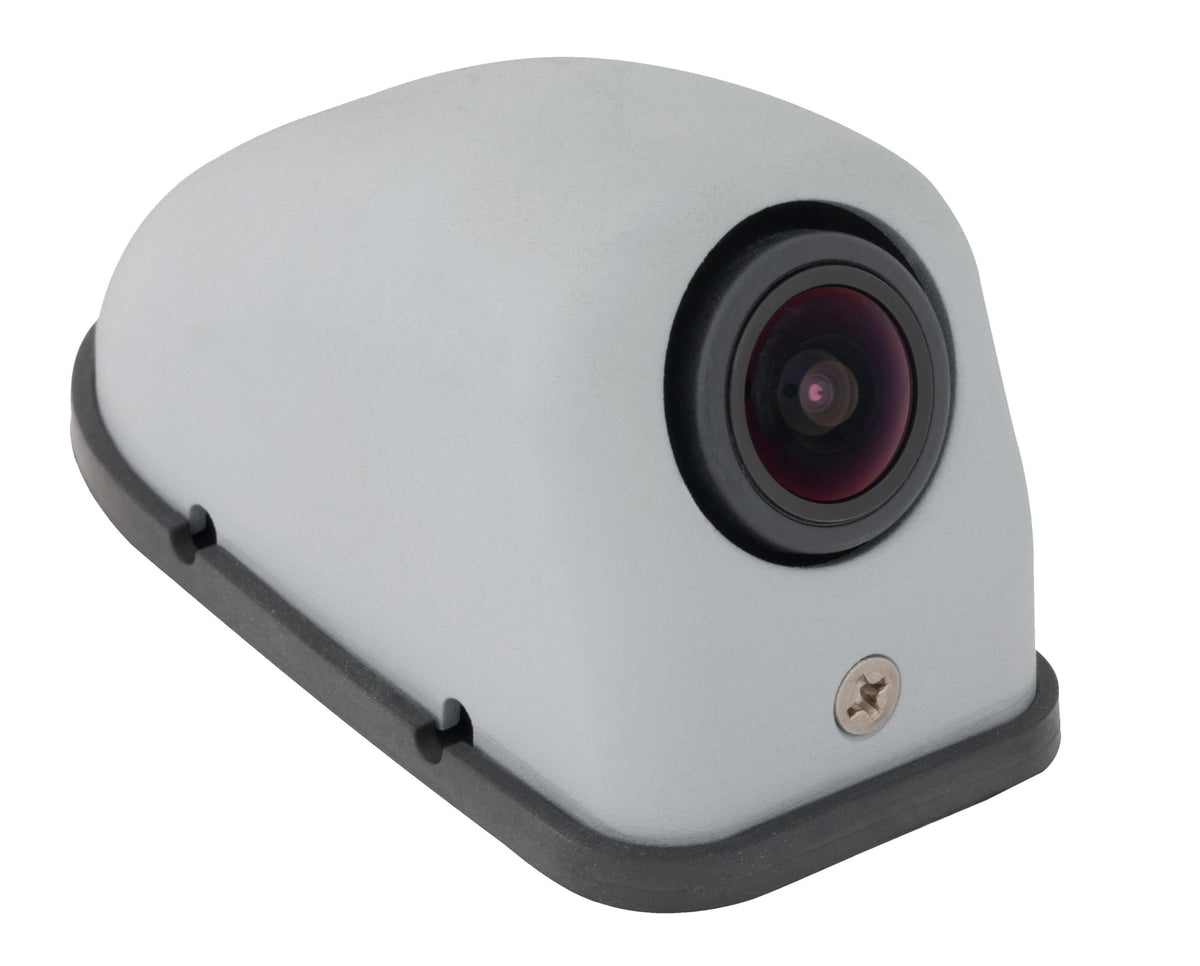

Voyager VCMS12RGP is a compact, right-side color CMOS camera built for RV blind-spot observation with a durable zinc-alloy gray housing and rubber lens cover.

This Voyager side-view camera combines ASA Electronics' Super CMOS imaging with a weatherproof, compact design so you can expand visibility along your RV's right side. Designed as a direct replacement for older VCMS36 and VCCSID models, the VCMS12RGP delivers a wide 131° field of view, mirror-image output for side-mounting, and simple 12V DC operation. The gray zinc alloy shell can be painted to match your coach and the rubber lens cover protects optics from road debris and moisture when parked or traveling.

How clear is the image from the Voyager VCMS12RGP?

The VCMS12RGP uses Super CMOS technology and high-performance color optics to produce a vivid, usable image in daylight and typical low-light conditions. It is rated at about 1.0 lux sensitivity, which provides reasonable color reproduction in twilight and urban street lighting.

• Sensor: 1/3" Super CMOS for color imaging
• Minimum illumination: ~1.0 lux for low-light viewing
• Viewing angle: 131° wide field to reduce blind spots
• Video format: NTSC output compatible with most monitors

Will this camera stand up to road and weather conditions?

Yes. The housing is zinc alloy with a rubber lens cover and IPX6 water resistance, so it withstands rain and road spray. The robust metal construction also offers impact and vibration resistance suitable for RV exteriors.

• Housing: corrosion-resistant zinc alloy in gray primer
• Ingress protection: IPX6 rating against heavy spray

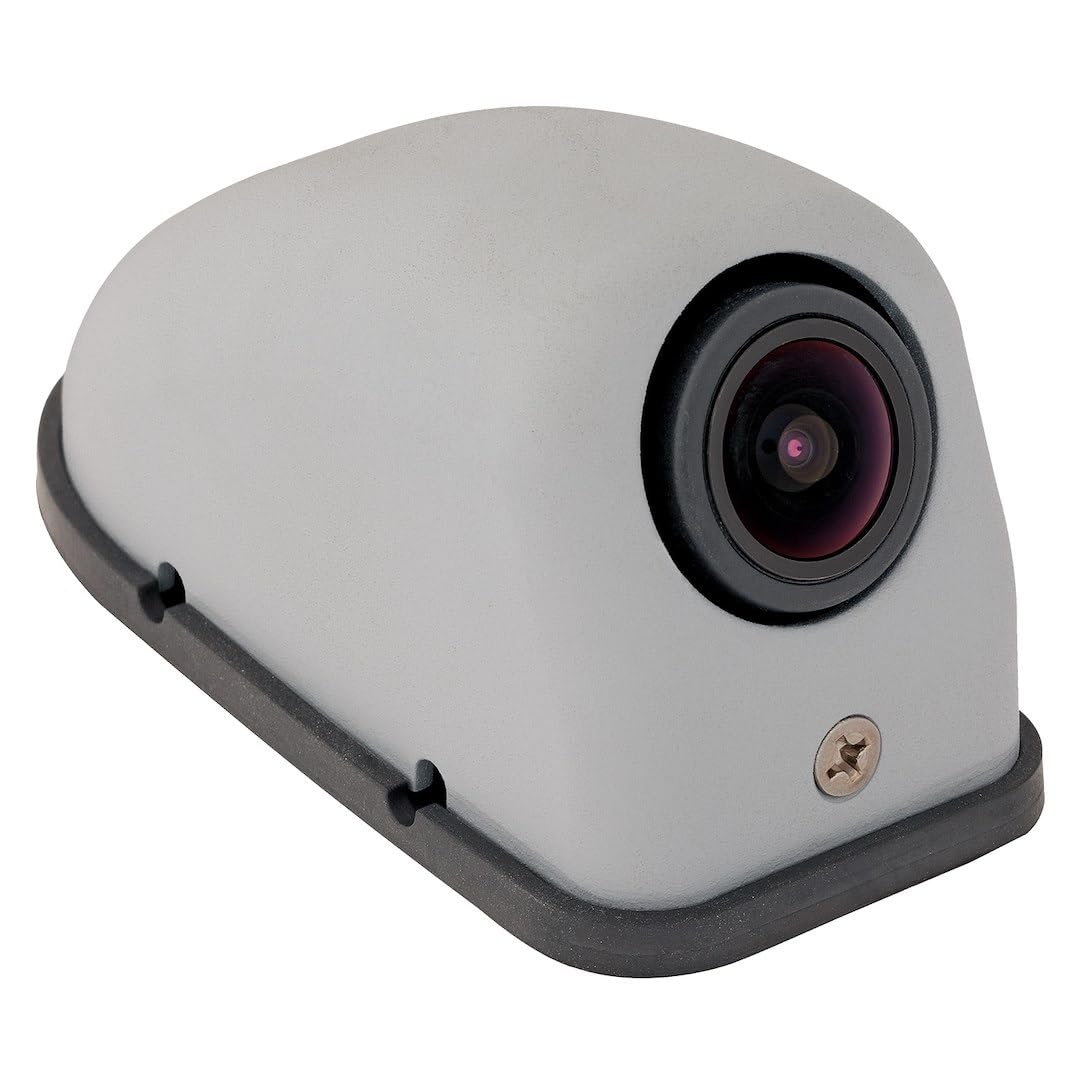

• Lens protection: flexible rubber cover guards against chips and dirt
• Mounting: right-side orientation with mirror-image output

How easy is installation and compatibility with existing systems?

Installation is straightforward for typical RV camera hookups—power is 12V DC and video is standard NTSC composite, so it pairs with most RV monitors and multi-camera systems. It replaces legacy VCMS36 and VCCSID models, minimizing modification for owners upgrading older installations.

• Power: 12V DC standard RV power wiring
• Video output: NTSC composite for wide monitor compatibility
• Direct replacement: fits where VCMS36 and VCCSID were used
• Orientation: specifically configured for right-side mounting

What are the physical size and mounting details?

The Voyager VCMS12RGP is intentionally compact so it blends with most RV exteriors without adding bulk. Its small footprint and simple mounting make it easy to position on the right side of a coach for optimal coverage without interfering with trim or doors.

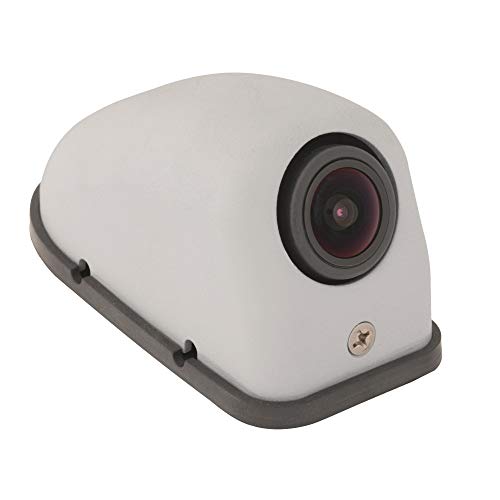

• Dimensions: 3.36" long x 1.7" high x 1.7" deep
• Weight: approximately 0.4 lb for minimal mounting strain
• Finish: gray primer suitable for custom painting
• Orientation options: mirror image output for side-view applications

Who is this for: The VCMS12RGP is aimed at RV owners, motorcoach technicians, and fleet operators who need a reliable, compact right-side camera to eliminate blind spots and improve situational awareness on the road. It suits customers replacing older Voyager side cameras or adding an extra side-view feed to an existing monitor system, especially when a paintable gray housing and rugged construction are preferred.
