AKK 5.8GHz 600mW FPV Transmitter & 700TVL Camera

The AKK KC04 bundle is a ready-to-fly 5.8GHz FPV kit that pairs a 600mW video transmitter with a 700/800TVL wide-angle camera for long-range, low-latency drone video.

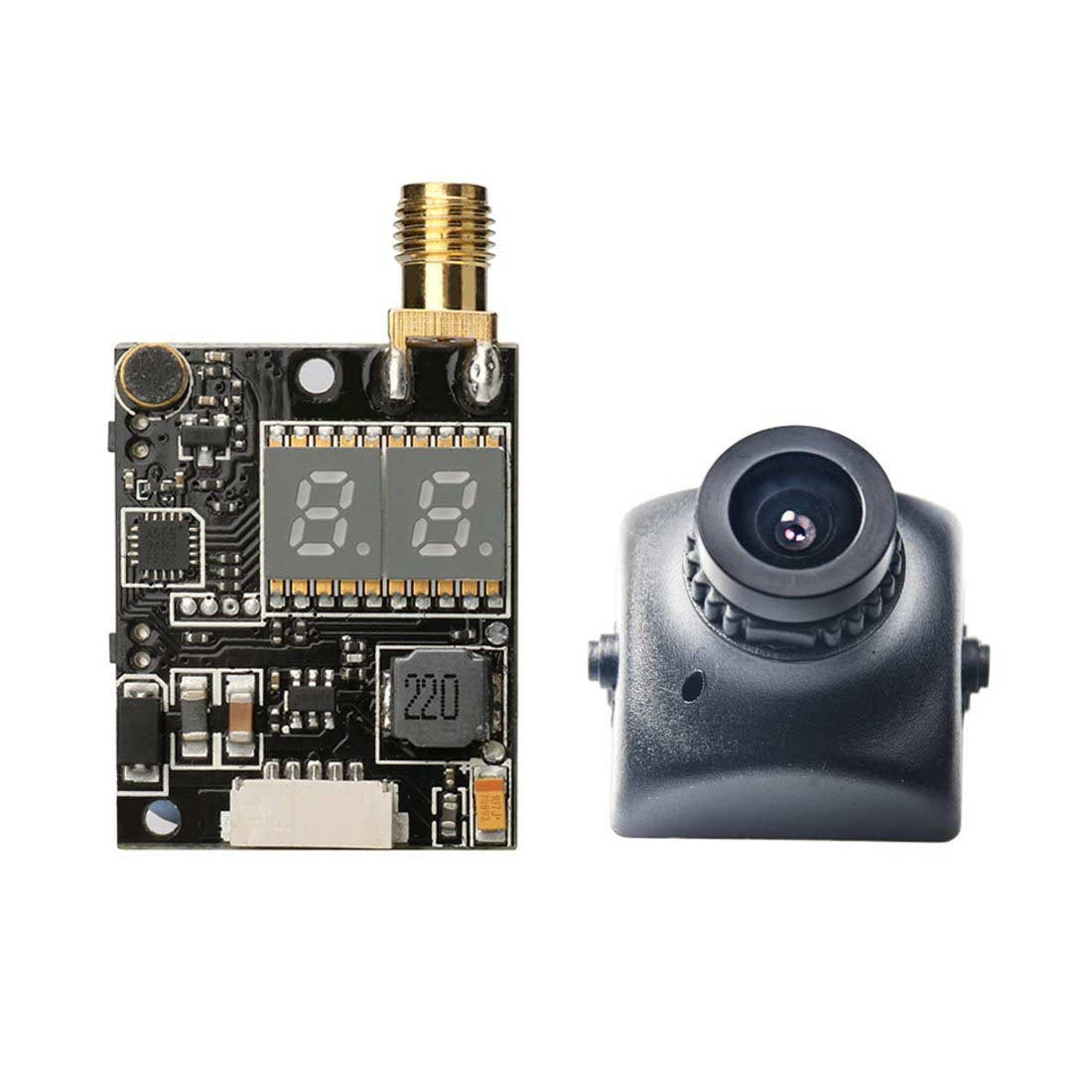

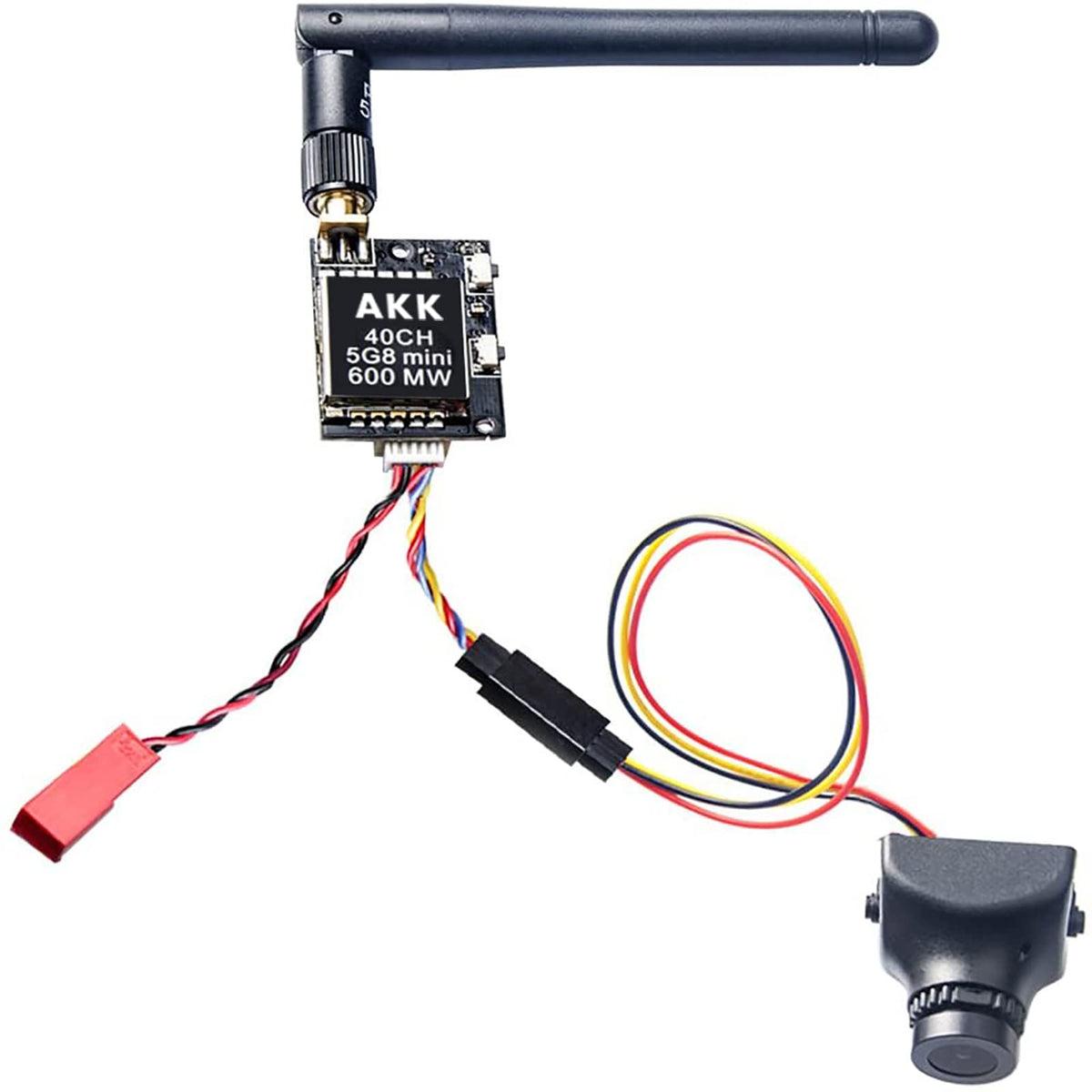

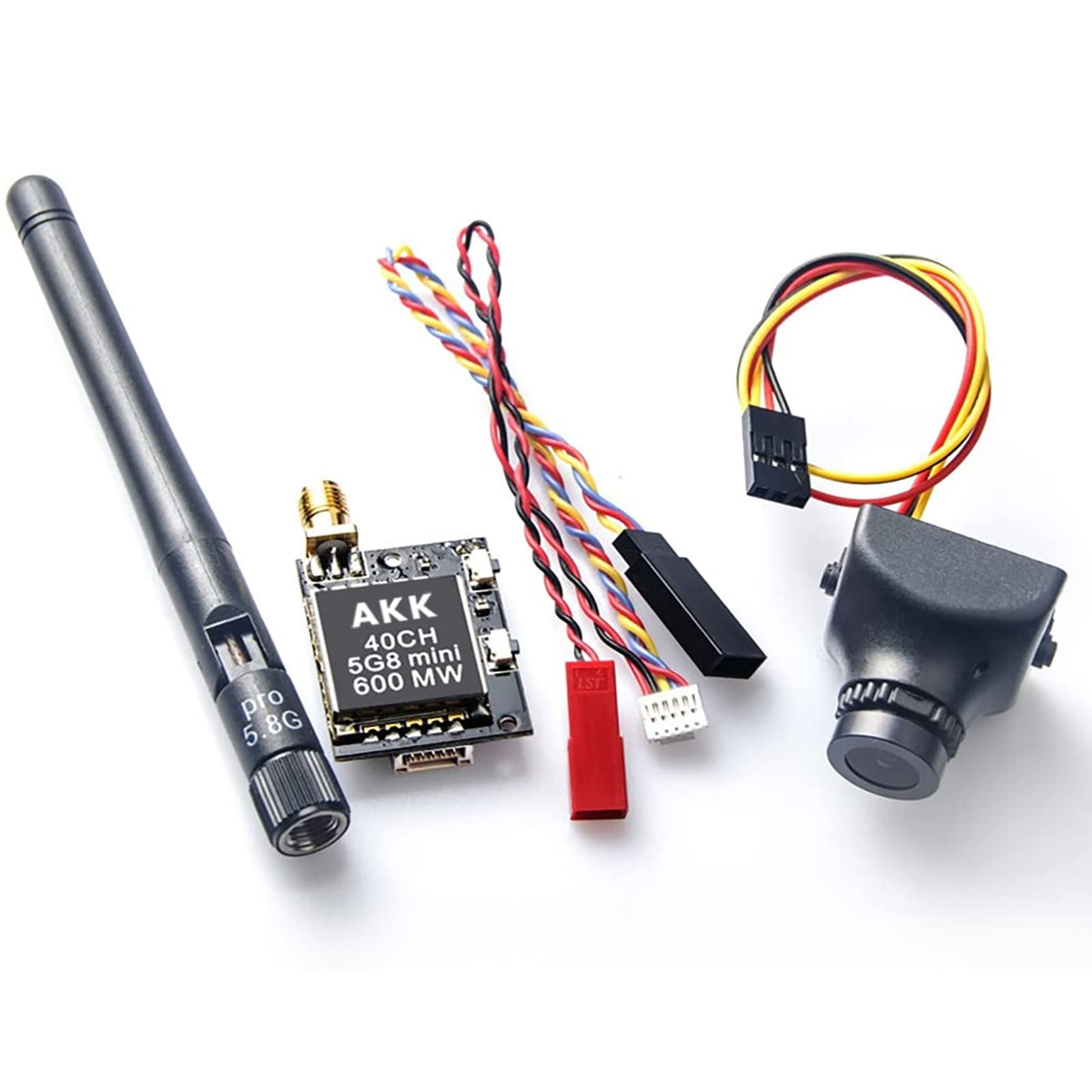

This compact combo integrates a high-power 5.8GHz transmitter and a sensitive 1/3" CMOS FPV camera designed for racing quadcopters and hobby drones. The kit ships with an RP-SMA antenna, connector and cable set, and a manual so you can install and start using the system quickly. It supports both NTSC and PAL video formats, provides channel and frequency switching via push buttons, and balances signal reach with a lightweight footprint suitable for agile frames.

How clear is the onboard camera image in bright and low light?

The camera uses a 1/3" CMOS sensor and automatic white balance to deliver clean daytime footage and usable night or shaded-area images down to 0.05 LUX at F1.2. Digital 2D noise reduction and a 0.45 gamma correction help retain detail while cutting interference.

• Resolution: 1280×720 pixels, horizontal 800TVL image clarity
• Minimum illumination: 0.05 LUX at F1.2 for low-light visibility
• Auto features: white balance, gain, and back light compensation

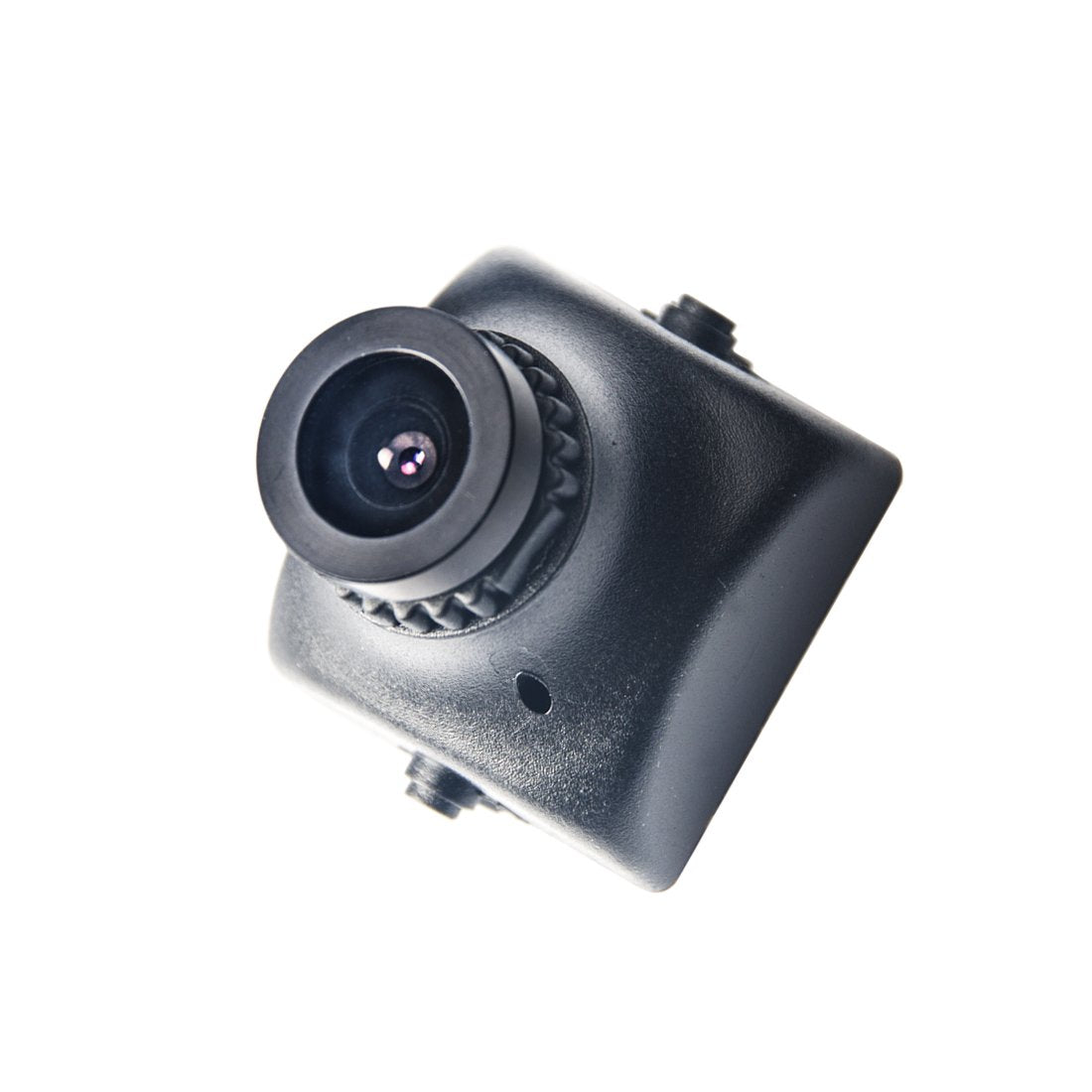

• Wide 2.8mm lens with ~120° field of view for racing perspectives

What range and reliability can I expect from the 600mW transmitter?

The transmitter provides a high-power 600mW output and an RP-SMA antenna connector to support long-distance line-of-sight links—over 3000 meters in open areas under ideal conditions. It includes dual push buttons for quick channel and frequency changes, plus stable video bandwidth and matched impedances for consistent signal performance.

• Power: 600mW 5.8GHz output for extended range

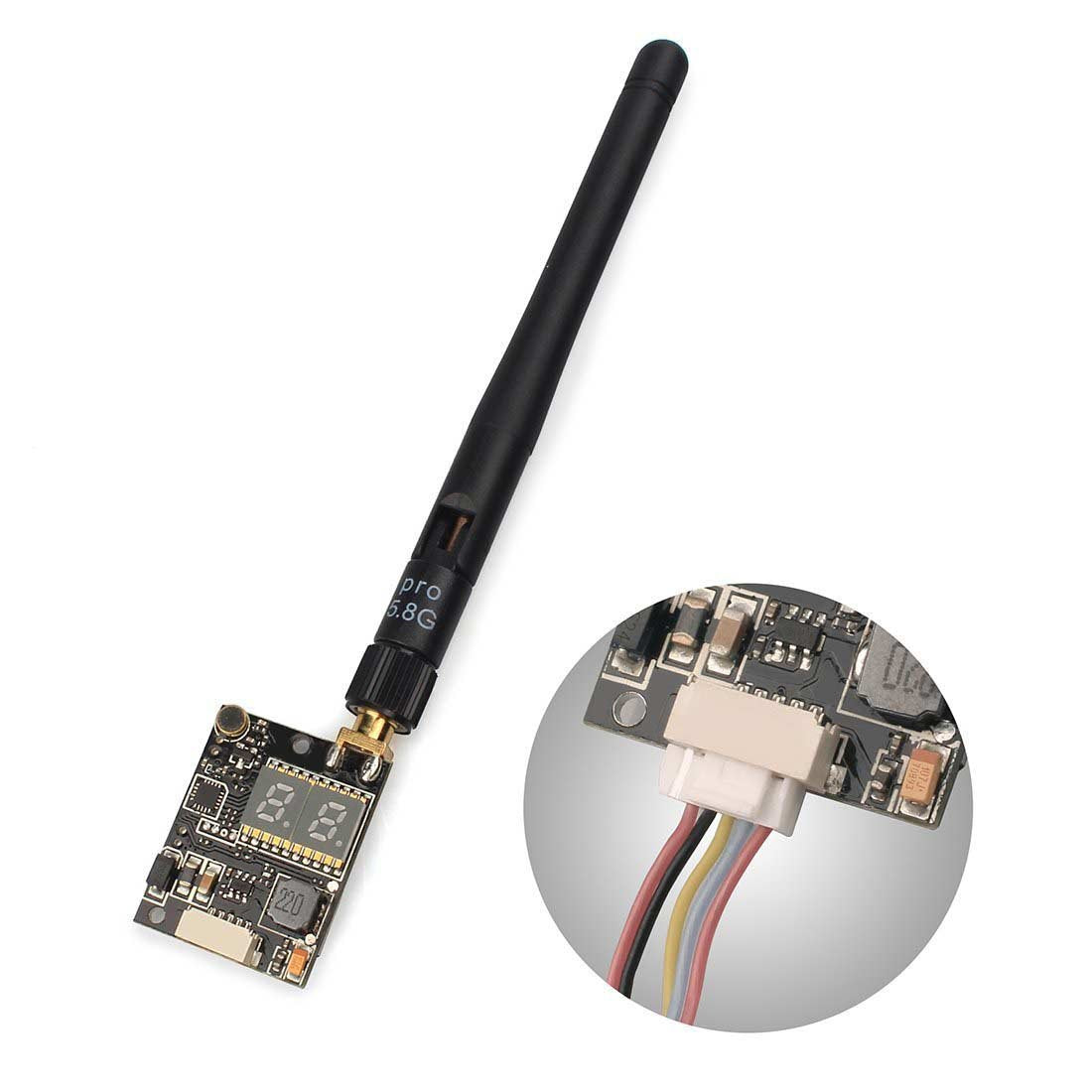

• Connector: RP-SMA antenna for easy aftermarket antenna swaps
• Transmitting distance: >3000m in open terrain (line-of-sight)
• Operating temperature: -10°C to +85°C for reliable operation

How easy is it to install and configure on a racing quadcopter?

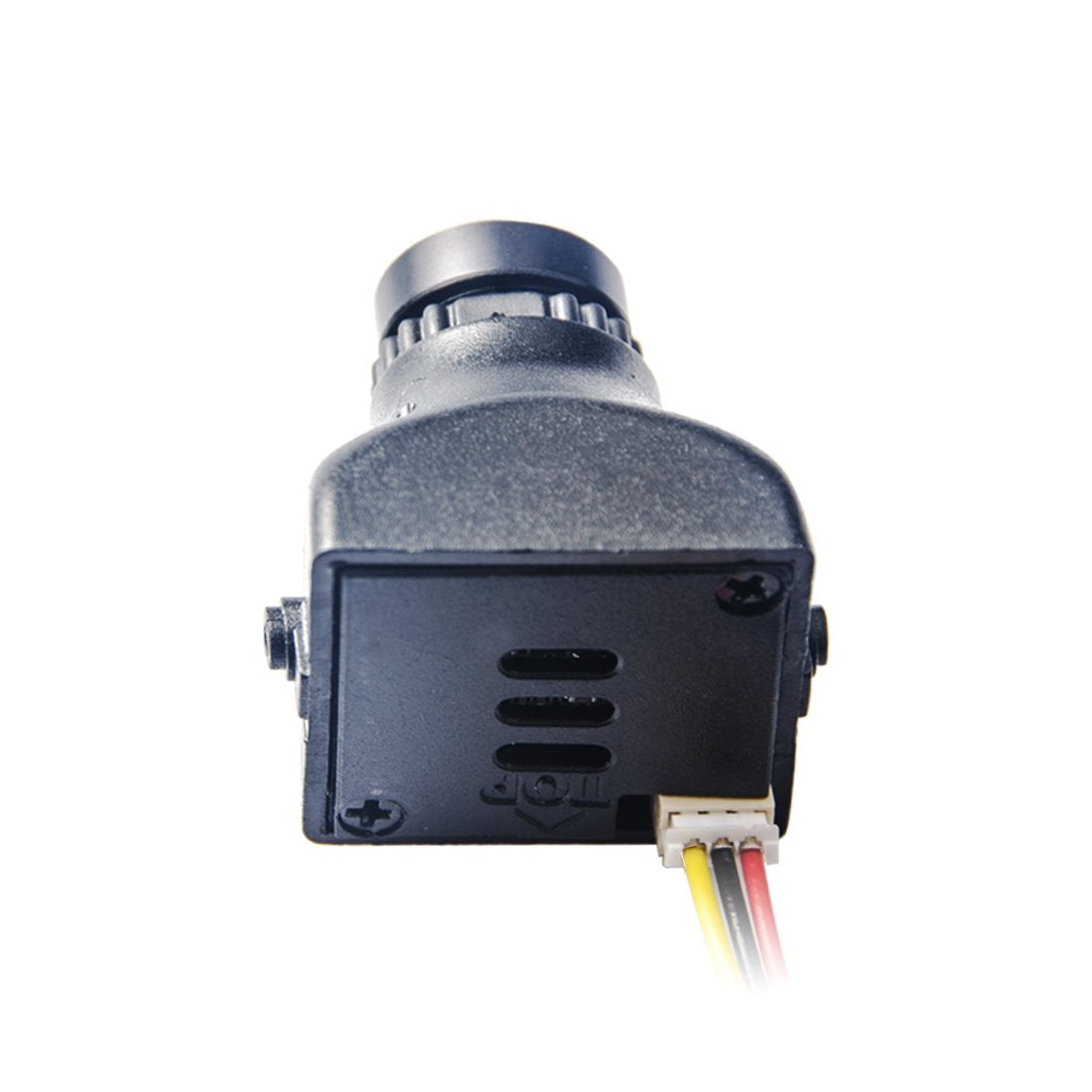

The kit is aimed at ready-to-fly integration: it’s small, lightweight, and ships with cables and a connector set to simplify wiring. Video input and impedance specs match common flight-video systems, and channel switching is done on-board without extra tools.

• Power supply: DC 5V, 1000mA recommended for camera and transmitter
• Video input levels and impedances compatible with standard FPV gear

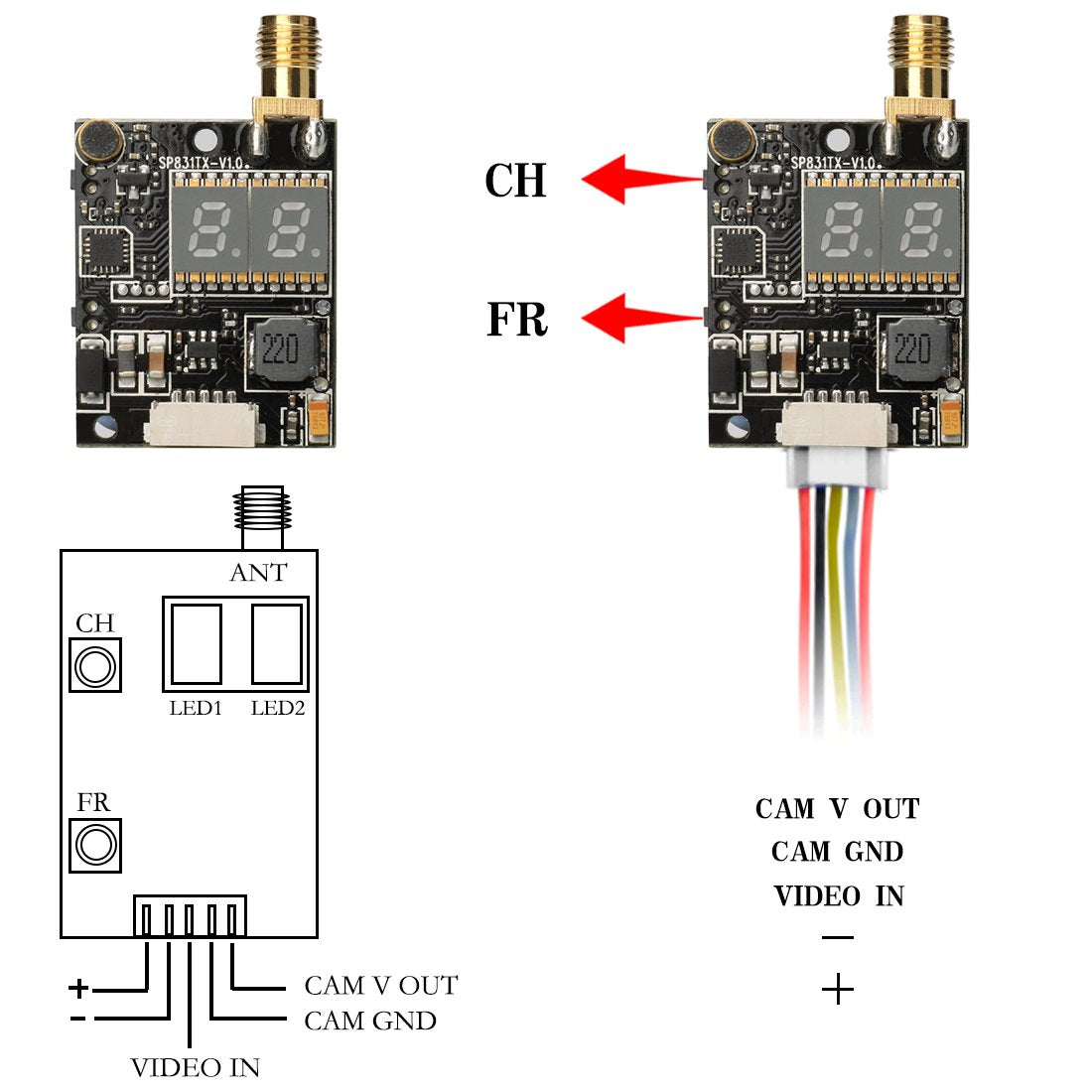

• Onboard controls: double push buttons to change CH and FR quickly
• Compact form factor keeps added weight to a minimum for racers

Which safety and performance specs matter for competition use?

The transmitter and camera list working-current and temperature tolerances so pilots can match them to power systems and environmental expectations. S/N ratio and video bandwidth figures indicate the signal quality you can expect in contested RF environments.

• S/N ratio >= 50dB for clear video with reduced noise
• Transmitter supply current ~280mA; camera ~135mA typical
• Video bandwidth 0–8 MHz with audio carrier at 6.5 MHz when used
• Wide operating temperature ranges for outdoor events

Who is this for: The AKK KC04 kit suits hobbyists and racing pilots who want a compact, higher-power FPV link with a wide-angle camera for fast, responsive flight visuals. It’s designed for users who need quick installation and reliable channel control on racing frames, while still allowing antenna upgrades and tuning for longer-range flights.
