Adafruit I2S MEMS Microphone Breakout SPH0645LM4H

The Adafruit I2S MEMS Microphone Breakout (SPH0645LM4H) is a compact, purely digital microphone module that delivers clear audio capture from 50Hz to 15kHz without any analog conversion.

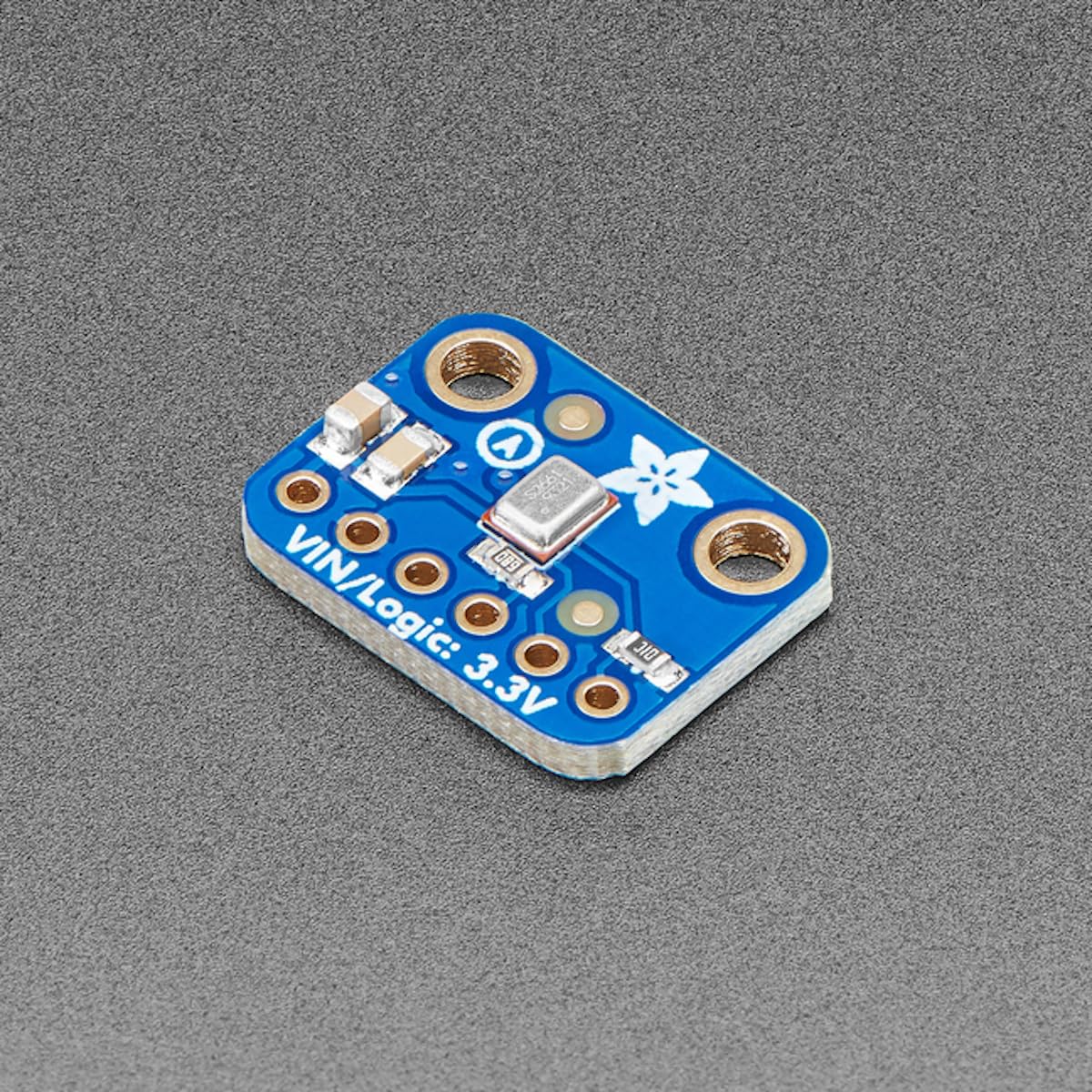

This tiny breakout board hosts the SPH0645LM4H MEMS microphone with an I2S output, making it ideal for single-board computers, microcontrollers with I2S input, and compact embedded audio projects. Unlike traditional electret mics, this module outputs a digital bitstream directly, removing the need for external ADCs and simplifying wiring and firmware. The low-profile package is useful where space is limited but you still want reliable audio detection and recording across the most commonly used voice and environmental frequencies.

How does a digital I2S MEMS microphone simplify my project?

The I2S interface streams digital audio, so there’s no separate analog signal to route or convert. This reduces noise, lowers parts count, and often results in cleaner audio when paired with a compatible I2S receiver. You can connect directly to many microcontrollers and single-board computers that support I2S input.

• Digital output removes the need for ADC and analog preamp circuitry
• Less analog wiring reduces interference and hum
• Direct I2S connection speeds integration with Raspberry Pi, ESP32, etc.

What audio performance can I expect from the SPH0645LM4H?

This MEMS microphone offers a frequency response roughly spanning from 50Hz up to 15kHz, covering voice, many instruments, and typical environmental sounds. While not intended for ultra-high-fidelity studio use, it provides reliable capture for voice recognition, sound detection, and general recording tasks.

• Frequency range: about 50Hz–15kHz for common audio content
• Optimized for voice and general environmental sounds
• Consistent digital output ensures repeatable recording quality

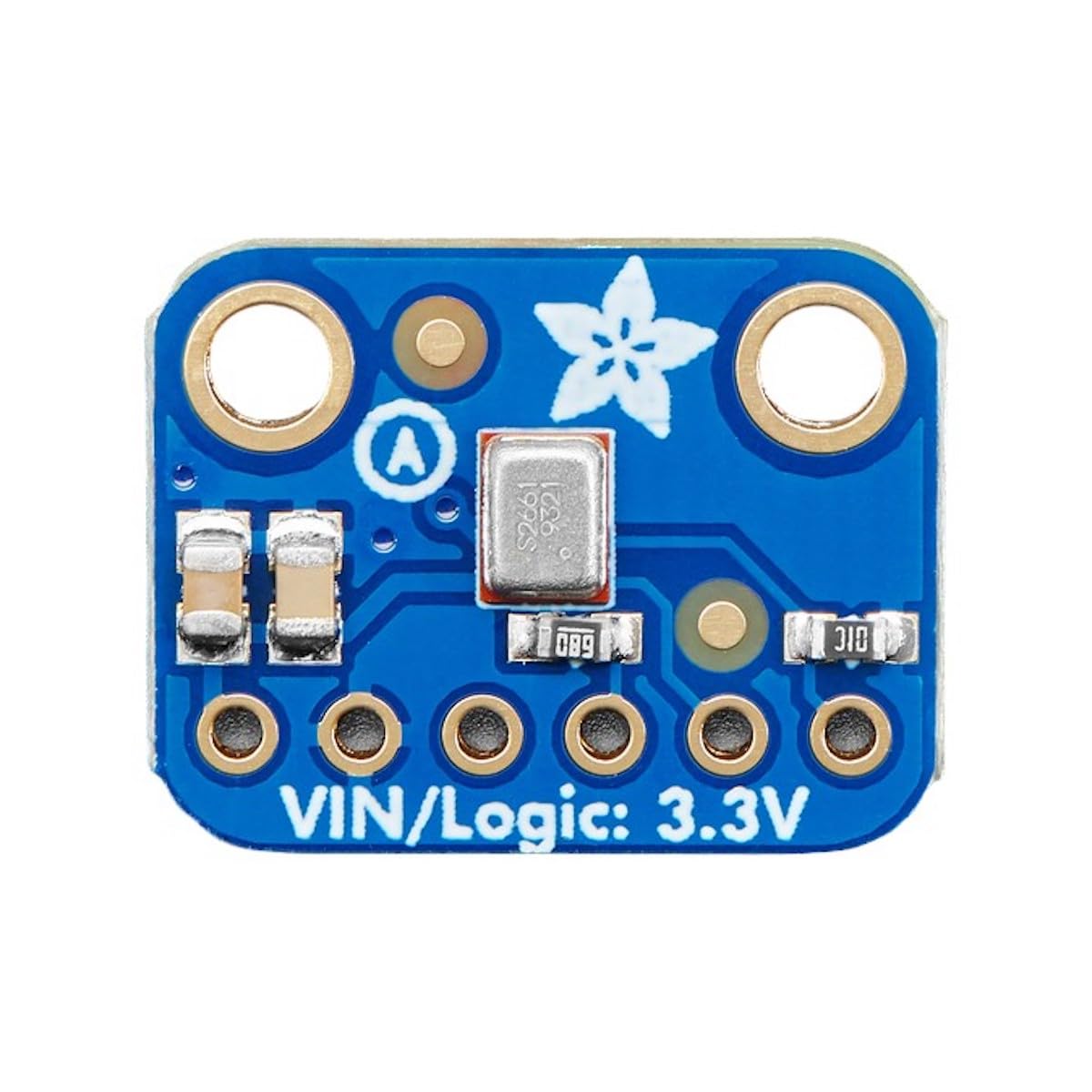

How do I wire and use this breakout with my board?

Wiring is straightforward: supply power and connect the I2S data, word select, and clock lines to your controller’s I2S pins. Many microcontrollers and single-board computers include libraries or drivers to read I2S streams; you’ll configure sample rate and bit depth in software to match the microphone’s capabilities.

• Power the breakout with the specified VCC and GND pins
• Connect LRCLK, BCLK, and DATA to the host I2S pins
• Set sample rate/format in software to match the microphone stream

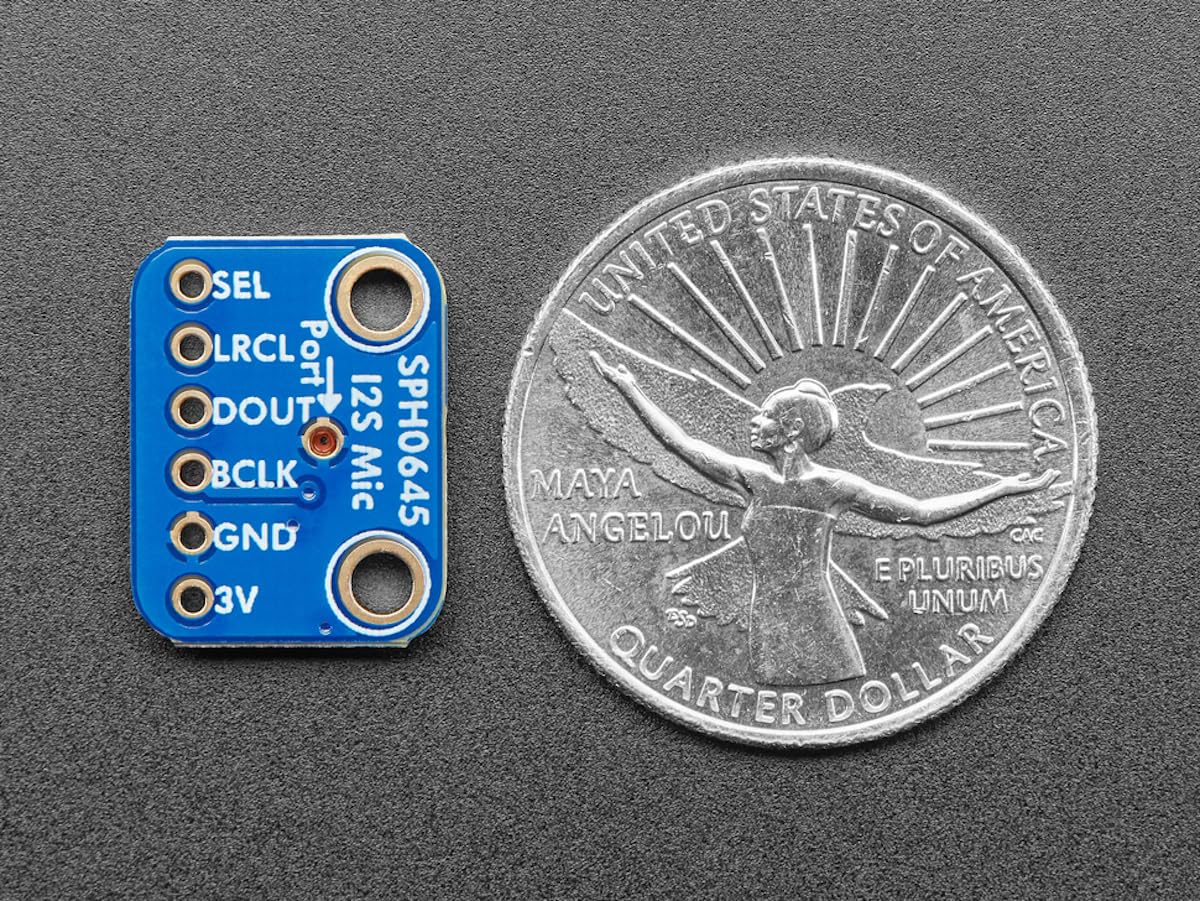

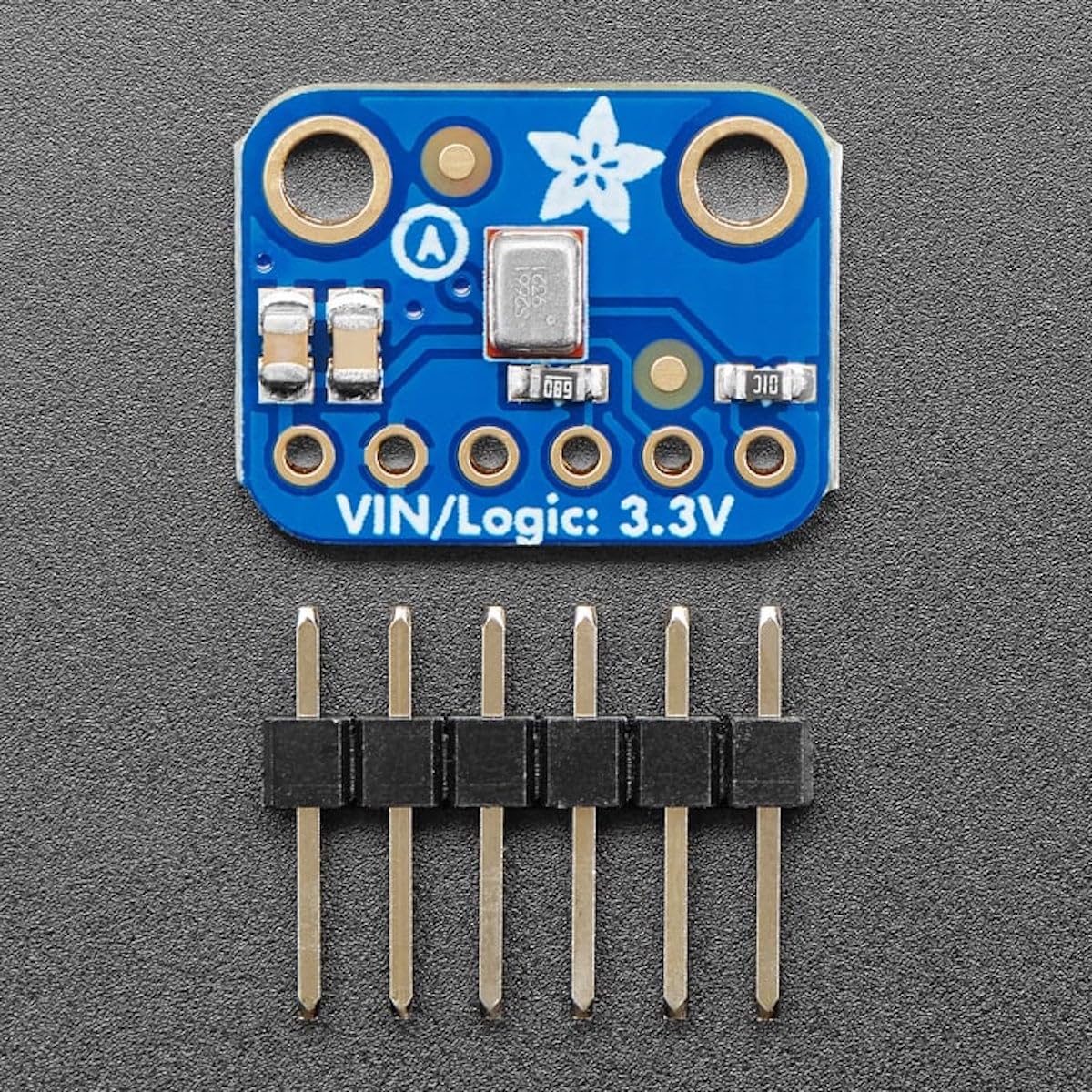

Are there any physical or mounting considerations?

The MEMS microphone and breakout are very small and low-profile, so plan placement to avoid occluding the acoustic inlet and to minimize mechanical noise. You can solder header pins, wire directly, or mount the board with small standoffs; keep the microphone opening clear for best results.

• Small form factor fits tight enclosures and wearable projects
• Leave the acoustic port unobstructed for accurate capture
• Solderable pads allow headers, wires, or PCB mounting options

Who is this for: The Adafruit SPH0645LM4H I2S MEMS Microphone Breakout is aimed at makers, hardware developers, and students building voice interfaces, sound-activated projects, or compact audio recorders where a digital microphone saves space and simplifies design. It’s particularly useful for projects using Raspberry Pi, ESP32, or other I2S-capable controllers that need reliable, low-cost audio input without analog circuitry.
