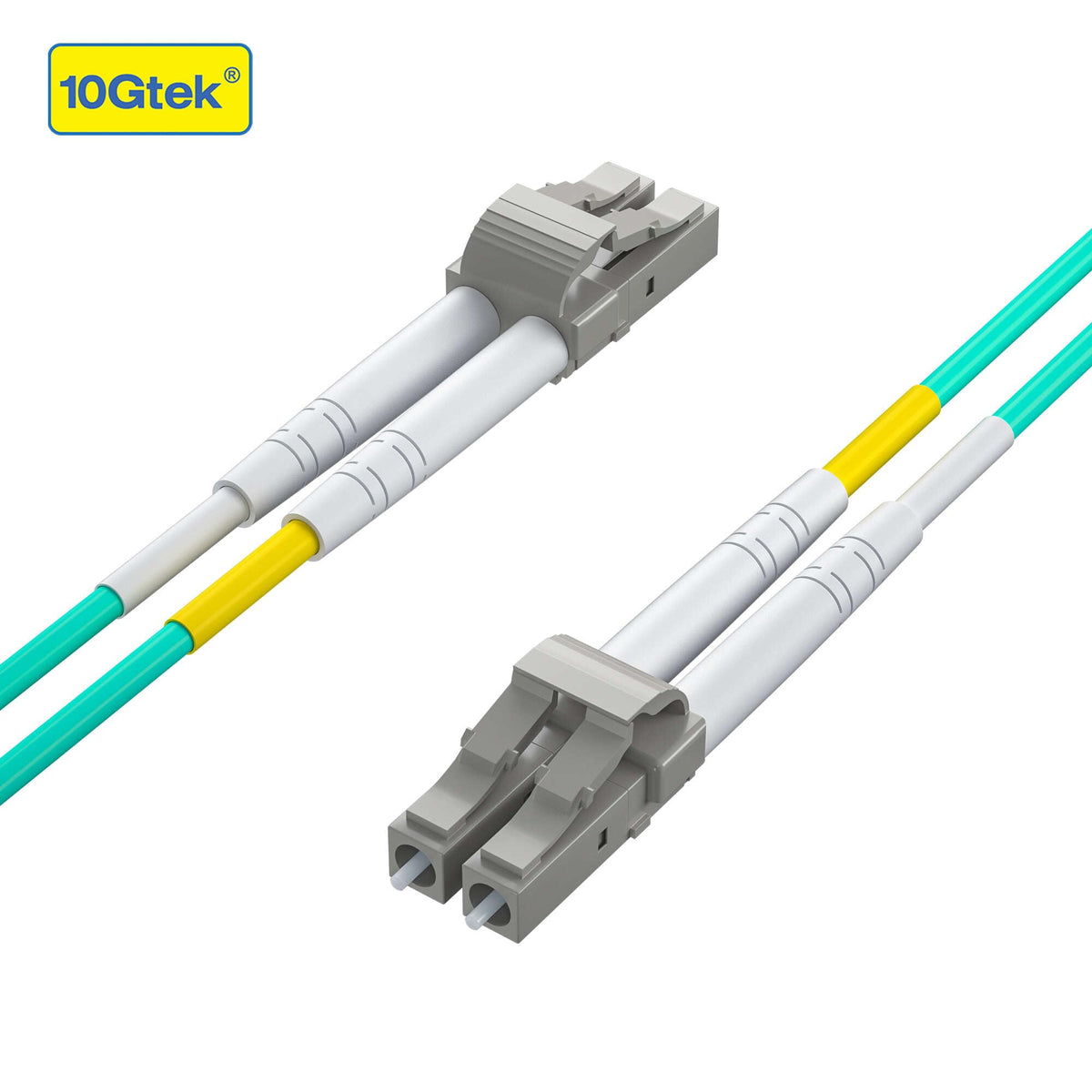

10Gtek LC to LC OM3 Fiber Patch Cable — Aqua 150m Duplex LSZH, 10Gb SFP-Compatible

10Gtek's LC-to-LC OM3 multimode fiber patch cable is a 150-meter, duplex 50/125µm LSZH jumper engineered for reliable 10Gb and gigabit links with SFP transceivers.

This fiber jumper combines OM3 multimode core geometry, low-smoke zero-halogen (LSZH) jacketing, and precision ceramic ferrules to deliver stable optical performance in data centers, campus networks, and enterprise backbone runs. The aqua jacket identifies OM3 multimode fiber for easy cable management while the LC duplex connectors provide a compact mating profile compatible with most modern transceiver ports.

How does this cable support 10Gb networking and SFP transceivers?

The OM3 grade multimode fiber and LC connectors are designed to meet 10 Gigabit Ethernet distance and bandwidth requirements when paired with compliant SFP/SFP+ modules. The jumper’s tight insertion loss and return loss specifications help maintain signal integrity across short and medium runs.

• OM3 multimode core: 50/125µm for high bandwidth.

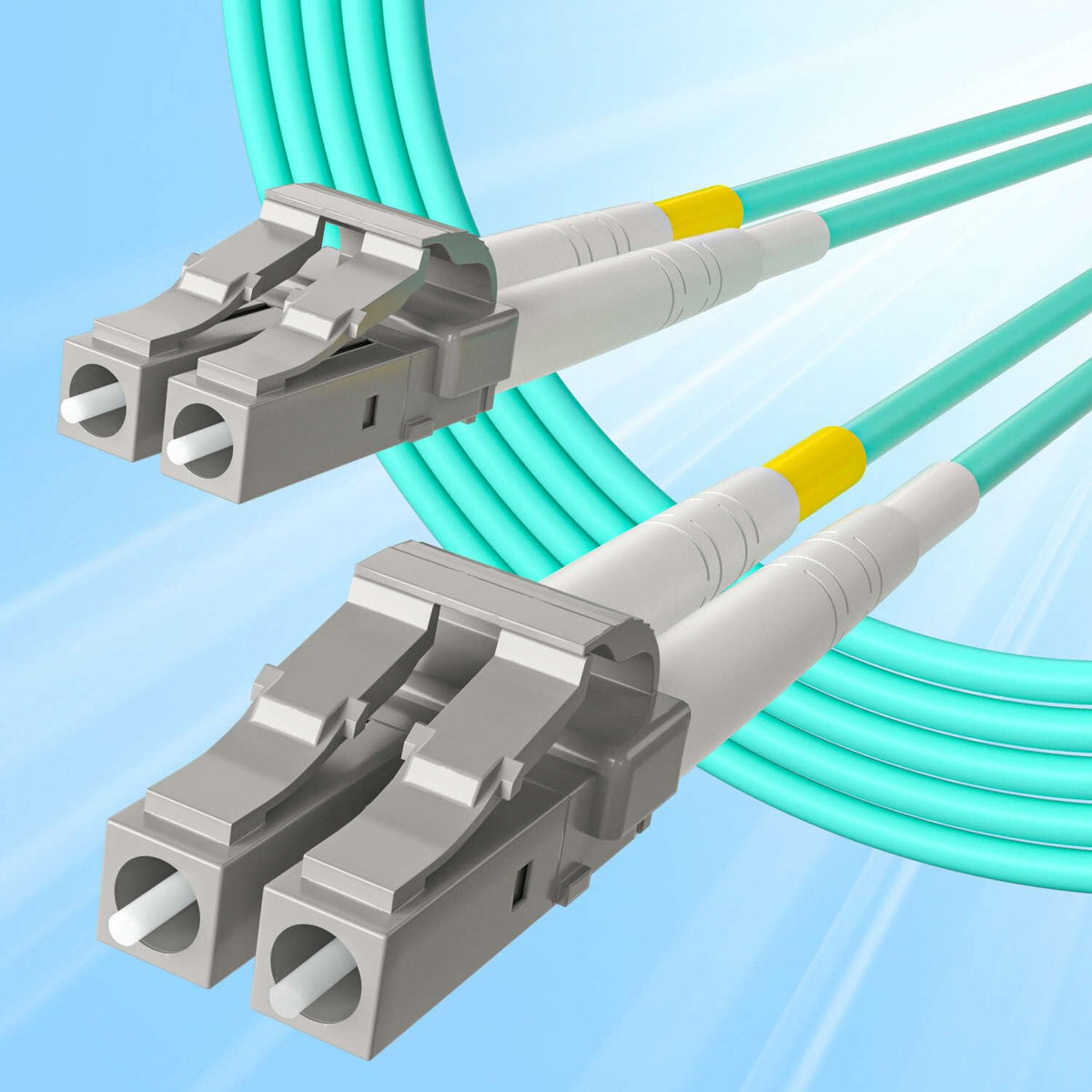

• LC duplex connectors: compact, duplex-ready for SFP ports.
• Insertion loss ≤ 0.3 dB and return loss ≥ 30 dB, factory-tested.
• 150 meters (492.1 ft) length for long rack-to-rack or room-to-room links.

What materials and testing ensure long-term reliability?

10Gtek uses quality inner construction and components to minimize degradation over time. Ceramic ferrules and aramid strength members protect fiber alignment, while the LSZH jacket reduces toxic smoke in confined spaces and complies with global safety directives.

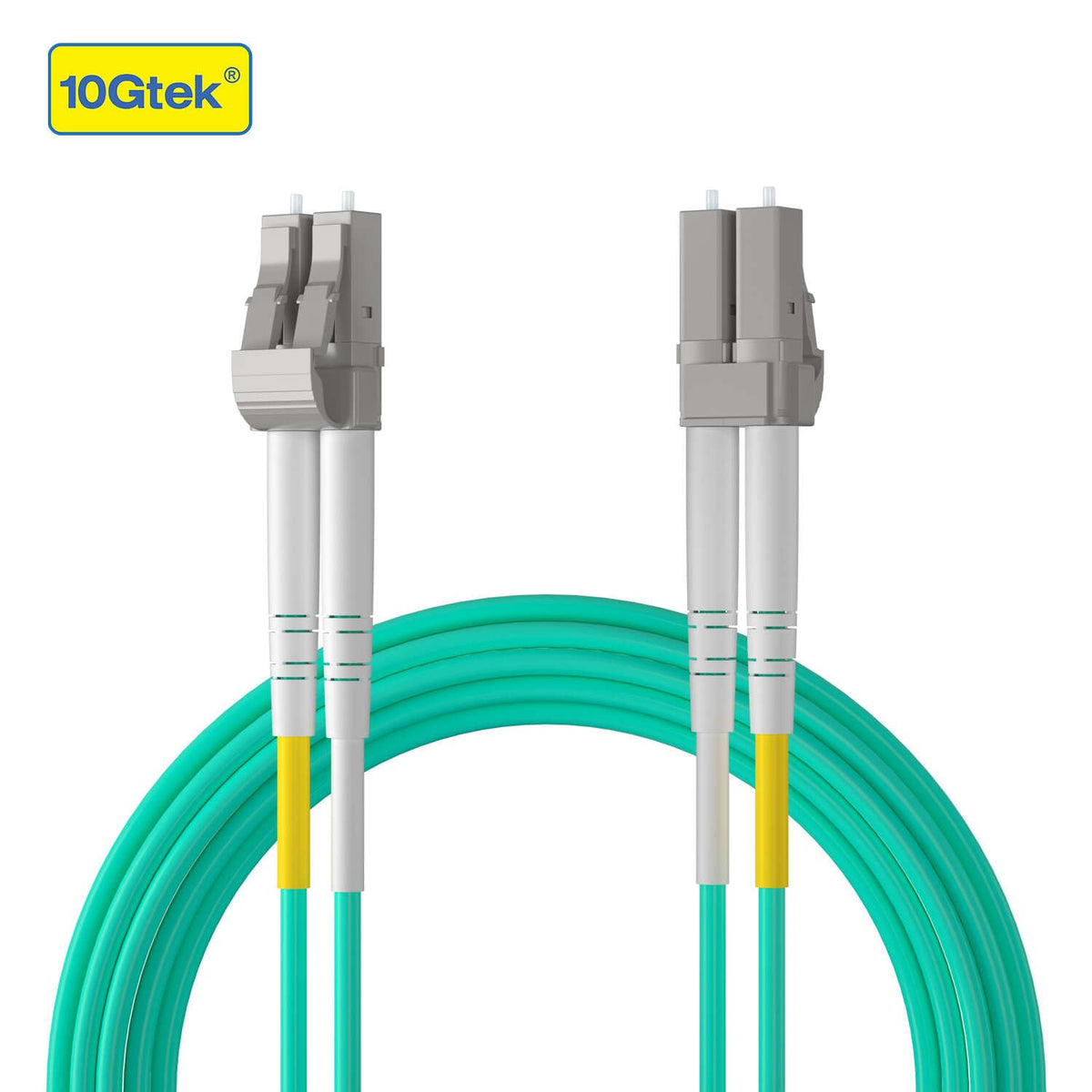

• Zirconia ceramic ferrules for repeatable connector alignment.
• Aramid yarn reinforcement inside the cable for tensile strength.

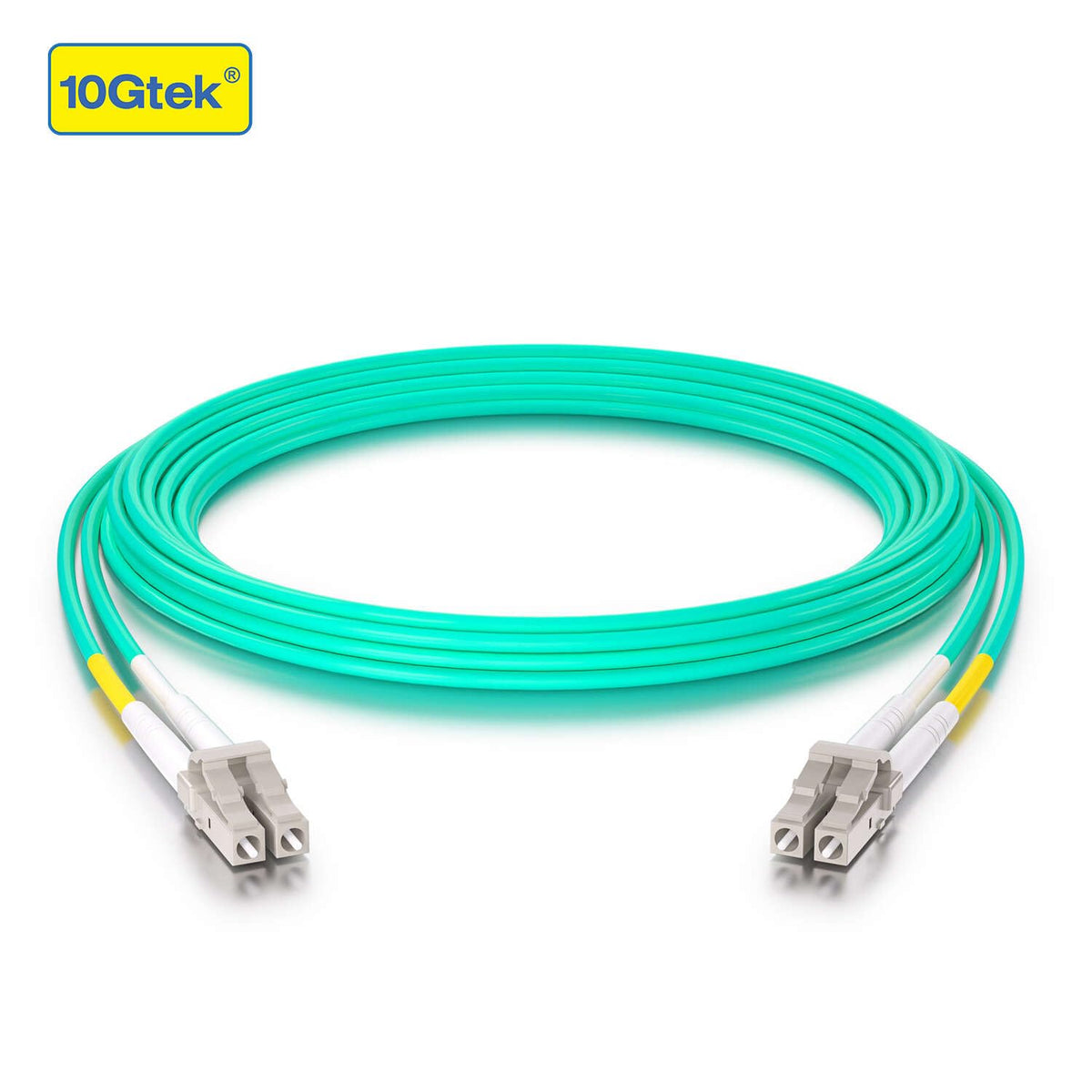

• LSZH jacket material for reduced smoke and halogen emissions.
• 100% insertion loss tested at factory to meet stated specs.

Which standards and environments is this patch cord compatible with?

This patch cord is manufactured to recognized telecommunications and fiber standards so it interoperates with equipment from different vendors. It’s suitable for structured cabling, fiber patch panels, transceiver connections, and other multimode applications in commercial and industrial facilities.

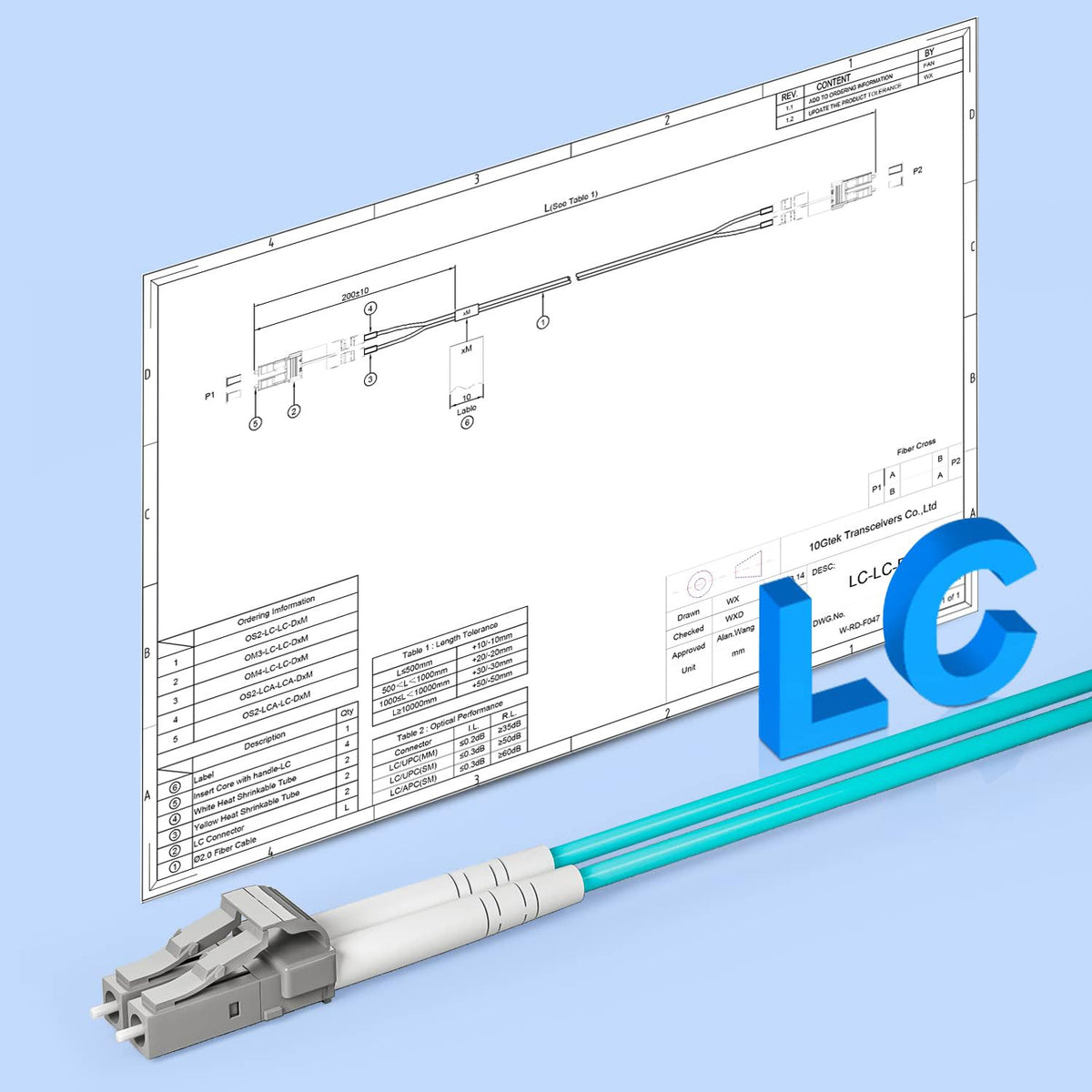

• Standards: TIA/EIA-568-C.3, IEC60793-2-10 A1b and related multimode norms.
• Compliance: CE and RoHS certified for safety and environmental compliance.
• Works with multimode SFP/SFP+ transceivers from major brands.
• Designed for indoor use in data centers, telecom rooms, and campus buildings.

How should I plan and install a 150-meter OM3 jumper?

Measure your path carefully and allow service loops for future moves or repairs. Keep connectors clean, avoid tight bends (respect fiber minimum bend radius), and use compatible patch panels or adapters to maintain low loss performance.

• Pre-test end-to-end links after installation to verify loss budgets.
• Maintain bend radius greater than the cable’s specified minimum.
• Store excess cable in service loops rather than tight coils.
• Use dust caps when connectors are not mated to prevent contamination.

Who is this for: IT teams, data center technicians, and network integrators who need a factory-tested multimode LC-to-LC cable for 10Gb and gigabit connections. It’s suited for installations that require predictable insertion loss, compliance with industry standards, and LSZH jacketing for improved safety in populated or confined indoor spaces.
